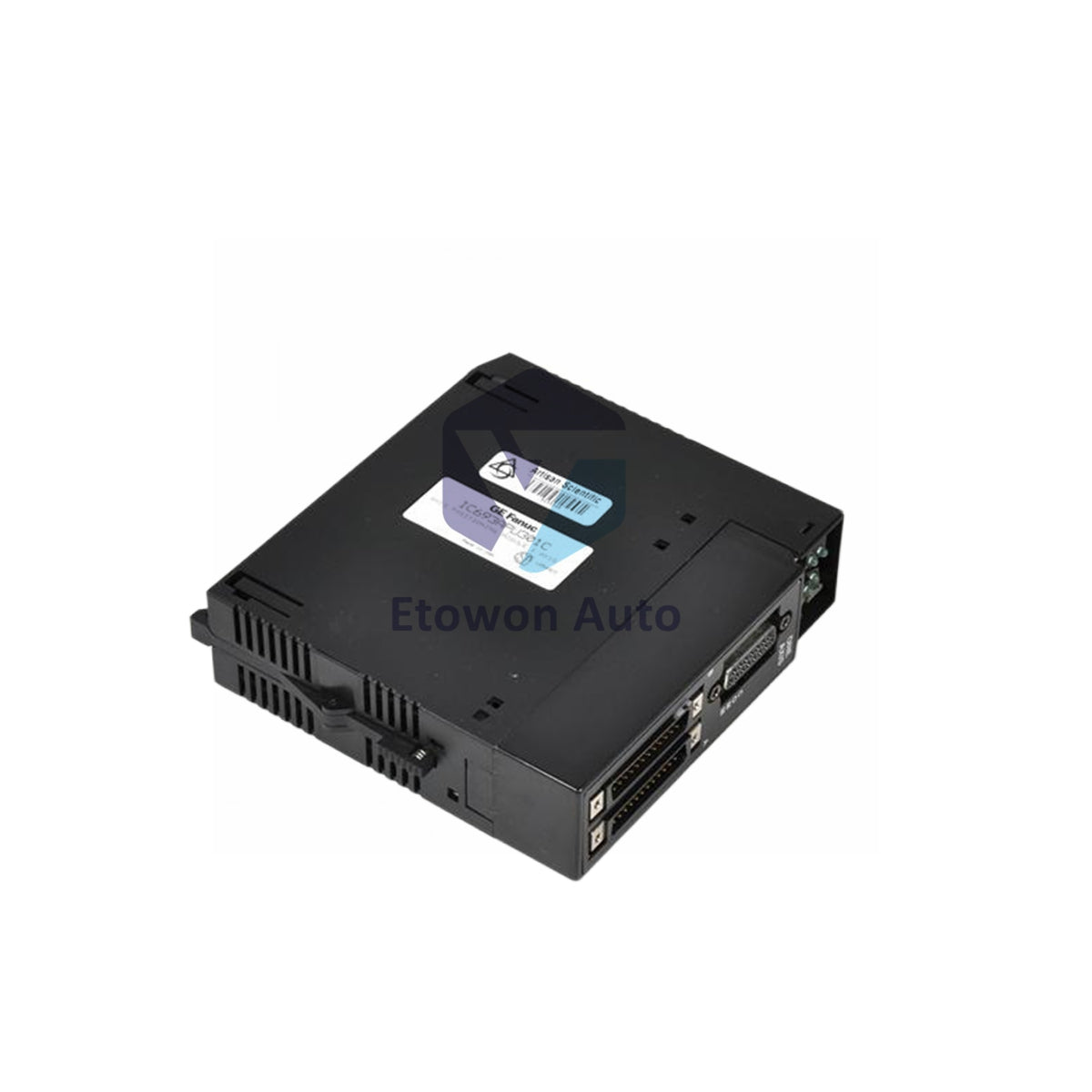

  • IC693PCM301

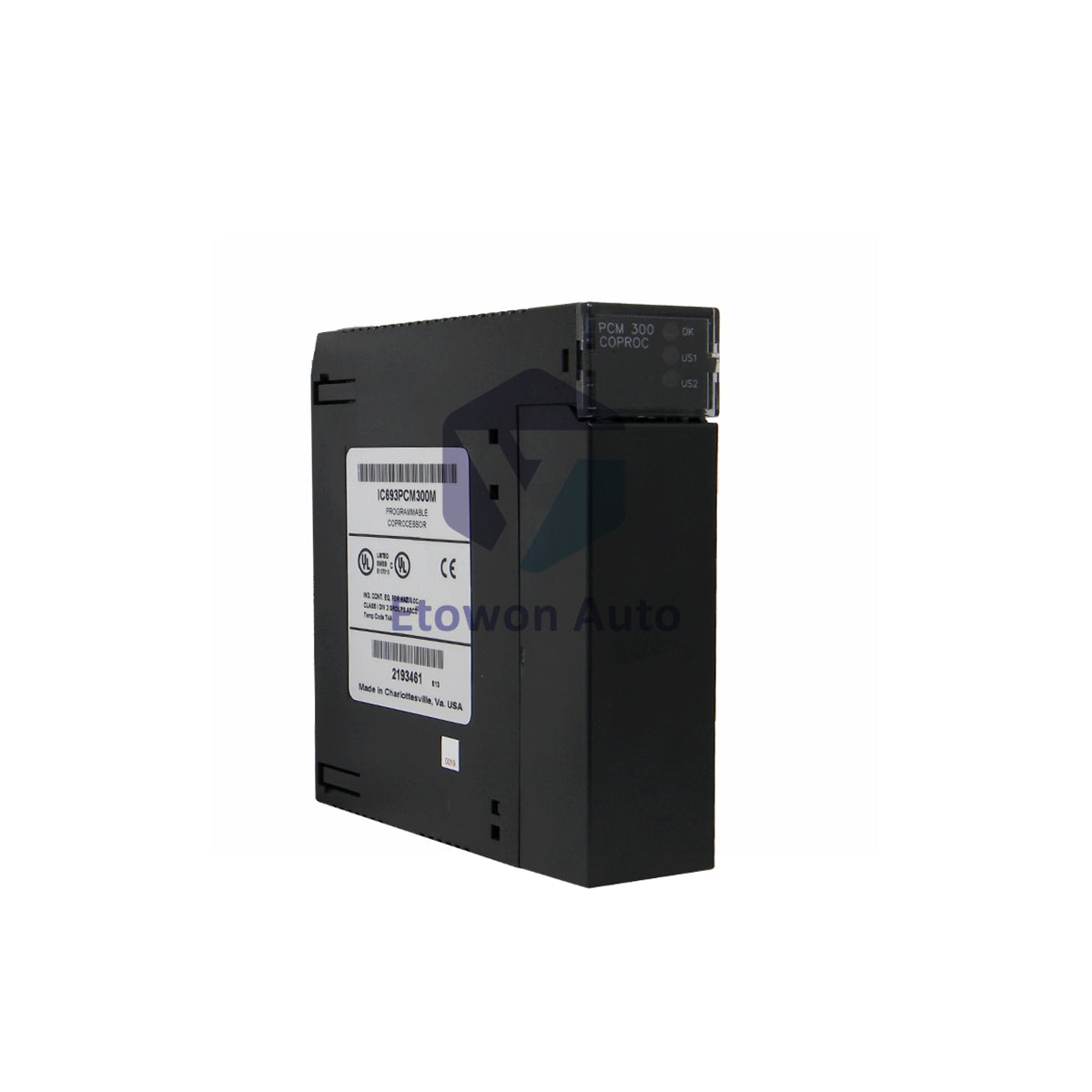

  • IC693PCM301-1

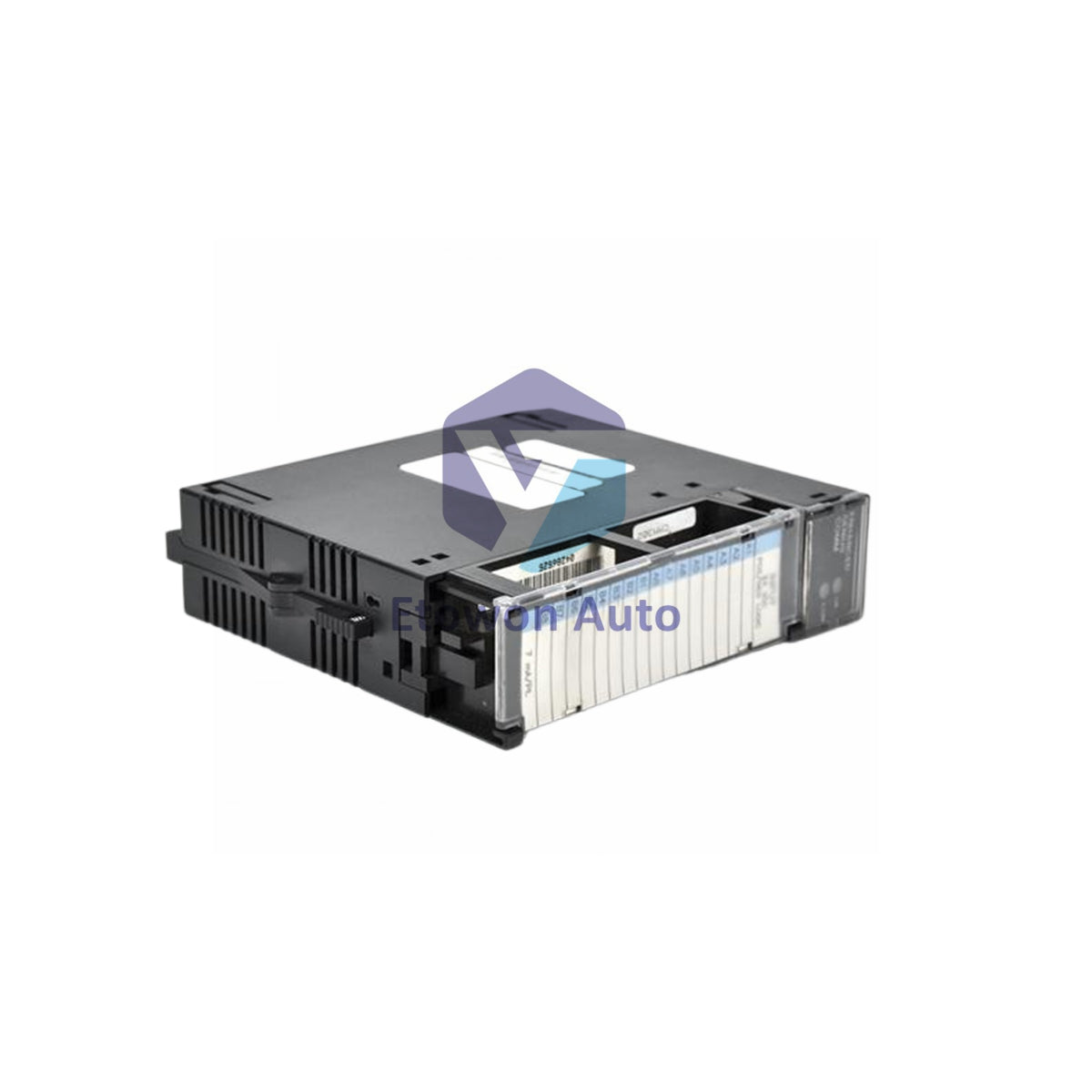

  • IC693PCM301-2
1 3

IC693PCM301

GE Fanuc IC693PCM301 425mA 5VDC High Speed Processor

In stock (14 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC693PCM301

  • Product Type: Coprocessor Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The GE Fanuc IC693PCM301 is a powerful Programmable Coprocessor Module (PCM) specifically engineered for the Series 90-30 PLC system. This module functions as an independent processor, offloading complex computational tasks and data handling from the main CPU to enhance overall system performance.

With a total memory capacity of 192K and 47K dedicated to MegaBasic programming, the IC693PCM301 provides the flexibility needed for custom algorithm execution and complex communication protocols. It is designed for high-efficiency operation, drawing 425 mA at 5 VDC from the backplane while maintaining a lightweight profile of only 0.45 kg.

Technical Specifications

Technical Parameter Detail Specification
Series Compatibility Series 90-30 PLC
Total Memory 192K Bytes
MegaBasic Memory 47K Bytes
Current Requirement 425 mA at 5 VDC
Operating Temp 0 to 60 Degrees Celsius
Module Weight 0.45 kg (Approximately 1 lb)

Key Performance Features

  • Optimized Processing Speed: Features high-speed execution for time-critical tasks, ensuring rapid response times in complex automation loops.
  • MegaBasic Programming: Supports advanced programming via MegaBasic, allowing users to develop sophisticated data processing and interfacing logic.
  • Seamless System Integration: Fully compatible with various Series 90-30 I/O and communication modules for a unified control architecture.
  • Industrial-Grade Robustness: Built to withstand harsh industrial environments, offering stable performance even under temperature fluctuations.

Application & Operation

The IC693PCM301 is ideal for applications requiring intensive data manipulation, such as barcode reading, sophisticated mathematical calculations, or custom serial communications. Its ability to operate independently of the main PLC scan cycle ensures that critical calculations do not impact the overall logic execution time. Installation is straightforward within any standard Series 90-30 baseplate.

Technical FAQs

Q1: What programming language does the IC693PCM301 use?
A1: This module primarily uses MegaBasic for custom logic and data handling, with 47K of dedicated memory for these tasks.

Q2: Does this module support communication with other serial devices?
A2: Yes, the PCM301 is frequently used to manage serial communication protocols, allowing the Series 90-30 to interface with non-GE devices.

Q3: Is any special power supply required?
A3: No, it draws its required 425 mA directly from the 5V DC bus of the Series 90-30 PLC backplane.

Condition: New & Original in Factory Packing

Warranty: 1 Year Comprehensive Warranty
