IC693CPU374

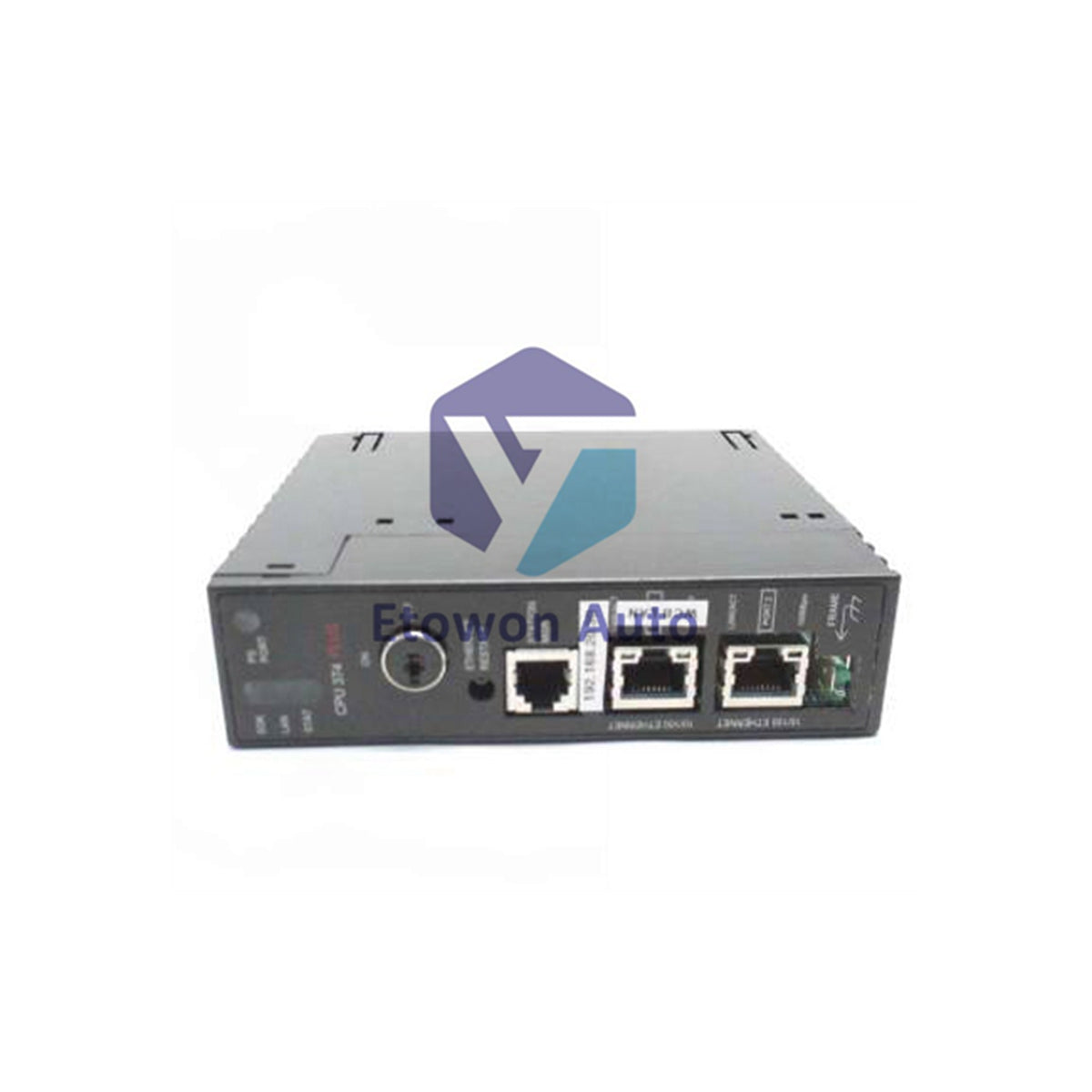

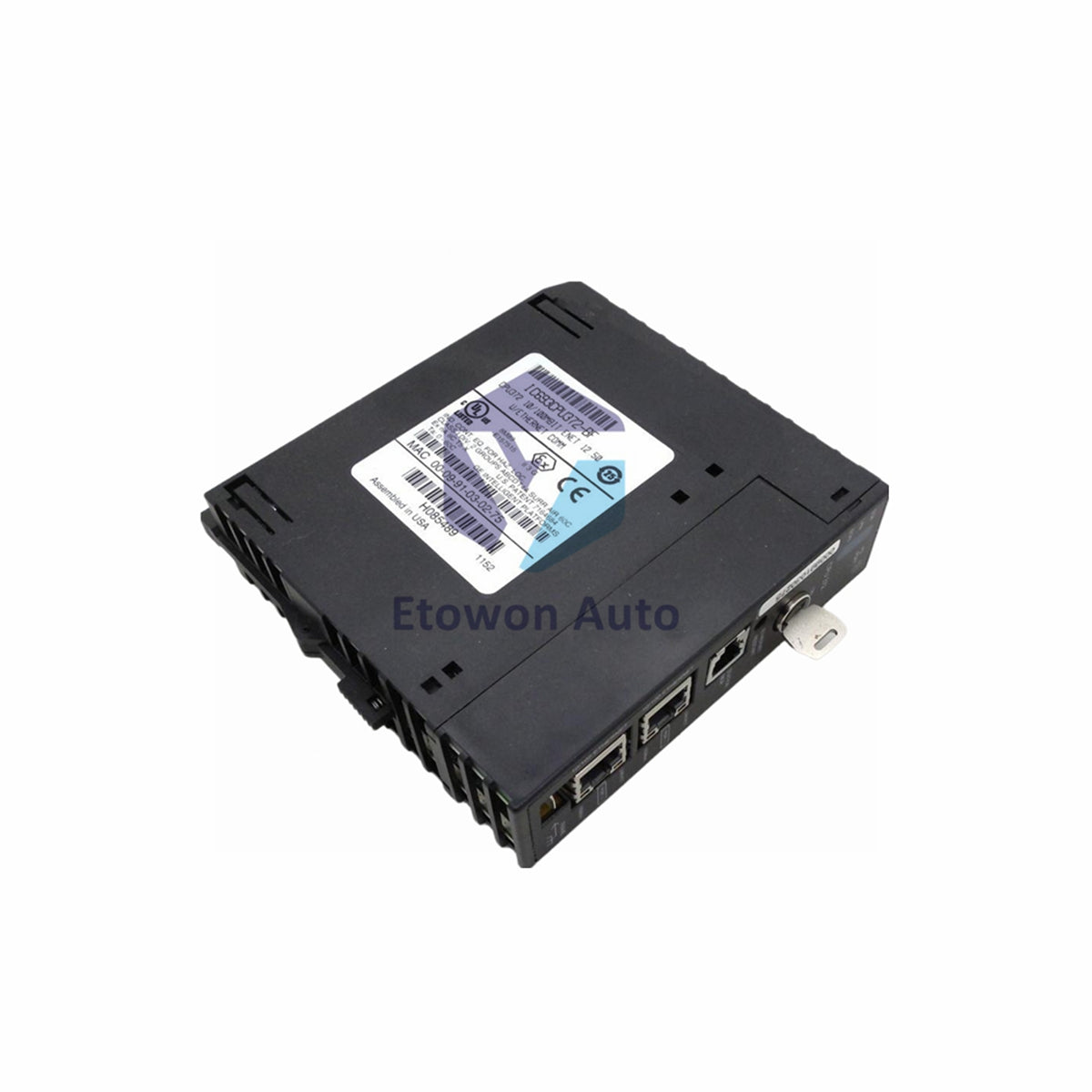

GE Fanuc IC693CPU374 CPU Module 133MHz 240KB Dual Ethernet

In stock (20 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC693CPU374

  • Product Type: CPU Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Fanuc IC693CPU374 Single Slot CPU Module

The GE Fanuc IC693CPU374 is a single slot CPU module for the Series 90-30 PLC system. Powered by an embedded 586 processor running at 133 MHz, this module delivers 240 KB of register memory and floating point math support. Dual Ethernet ports provide enhanced networking connectivity. Weighing 0.5 kg (1.10 lbs), it consumes 7.4 W at 5 V DC and operates from -20°C to +60°C for demanding industrial environments.

Technical Specifications

Parameter Value
Manufacturer GE Fanuc
Model Number IC693CPU374
Processor Speed 133 MHz (Embedded 586)
Register Memory 240 KB
Floating Point Math Supported
Ethernet Ports 2 (Dual Port)
Serial Port RS-485 (via power supply)
Power Consumption 7.4 W @ 5 V DC
Current Draw 1.5 A (typical under full load)
Operating Temperature -20°C to +60°C (-4°F to +140°F)
Weight 0.5 kg (1.10 lbs)

Model Number Breakdown

  • IC693 – GE Fanuc Series 90-30 PLC Compatible
  • CPU – Central Processing Unit
  • 374 – 133 MHz, 240 KB, Dual Ethernet Variant

Installation & Field Application Guide

  • Install the CPU module in the first slot (slot 0) of the Series 90-30 rack. Ensure the power supply meets the 1.5 A current draw requirement.
  • Connect Ethernet cables to both ports for network redundancy or dual-network communication.
  • Connect the RS-485 serial port via the power supply connector for programming or HMI communication.
  • Configure the module using GE Fanuc programming software. Set IP addresses, memory allocation, and scan cycle parameters.

Why Choose the IC693CPU374

  • Dual Ethernet ports support network redundancy and high-speed data throughput.
  • Floating point math capability handles complex control algorithms.
  • 240 KB register memory accommodates large programs and extensive data tables.
  • Wide operating temperature range (-20°C to +60°C) suits harsh environments.

Field Engineer FAQs

Q1: What programming languages are supported by the IC693CPU374?

A1: The CPU supports Ladder Diagram, Structured Text, and Function Block Diagram programming languages per IEC 61131-3 standards.

Q2: Can the dual Ethernet ports be used for separate networks?

A2: Yes, Port 1 can be configured for plant network communication while Port 2 connects to a separate HMI or SCADA network.

Q3: What is the maximum program capacity of the IC693CPU374?

A3: The module supports up to 64 KB of user program memory in addition to the 240 KB register memory.
