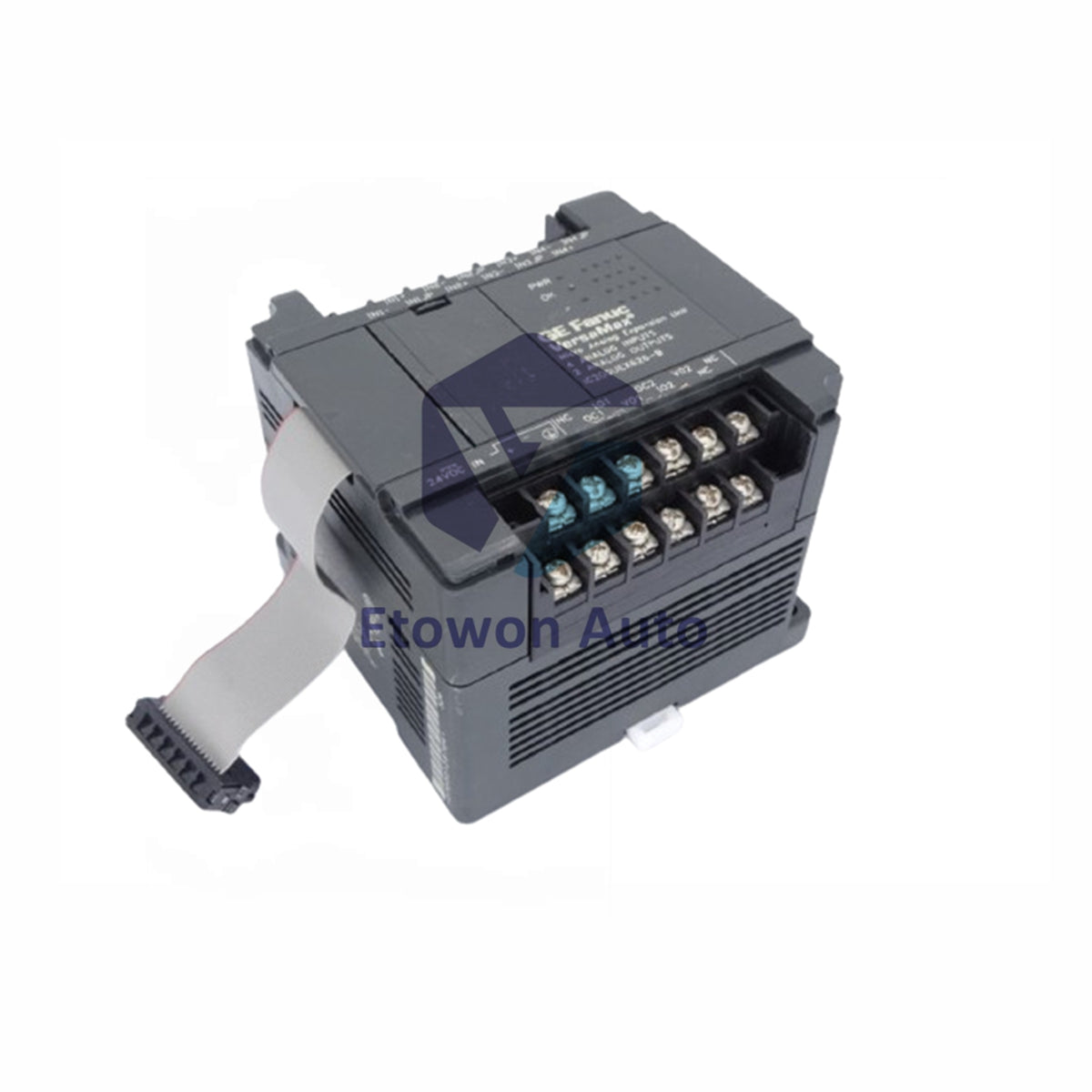

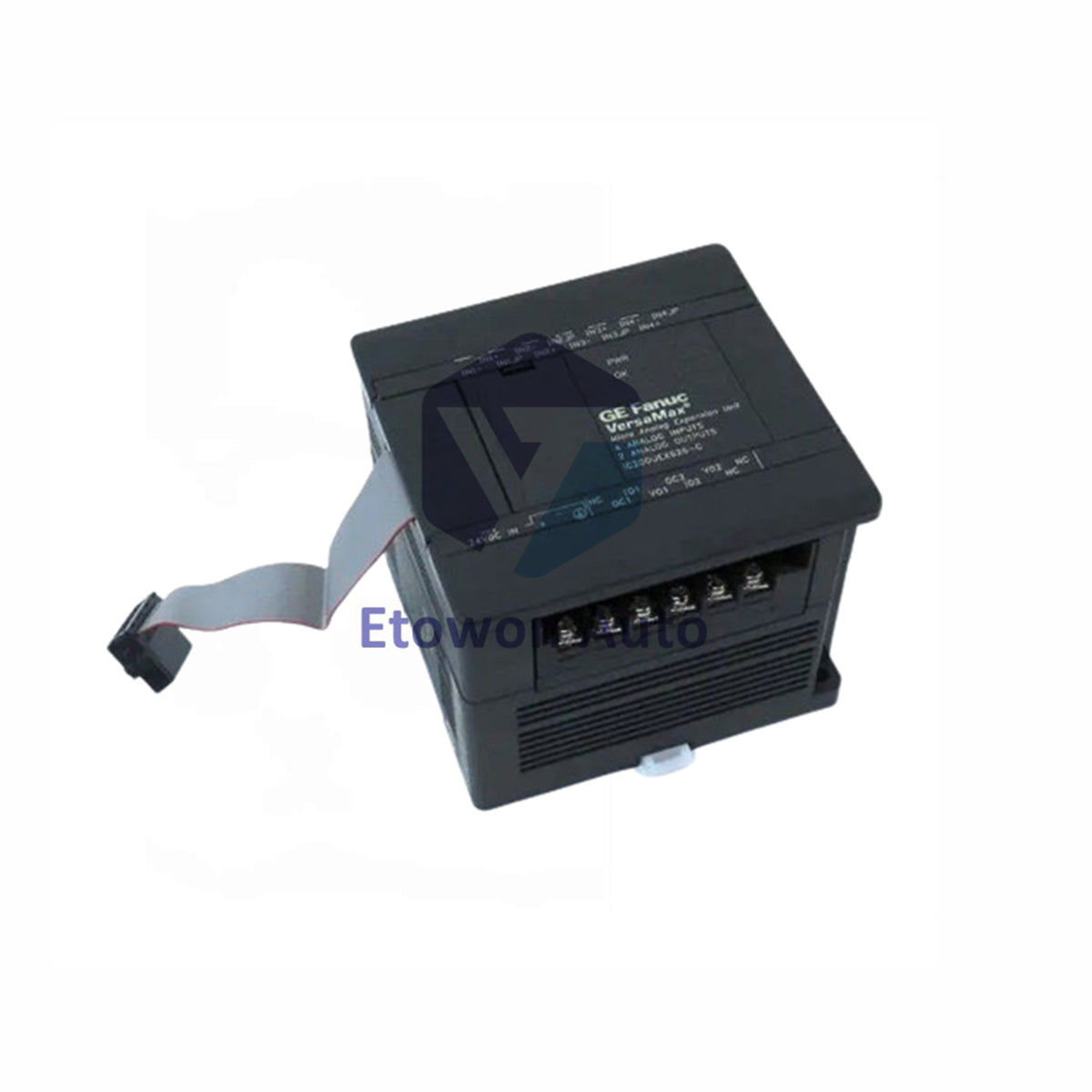

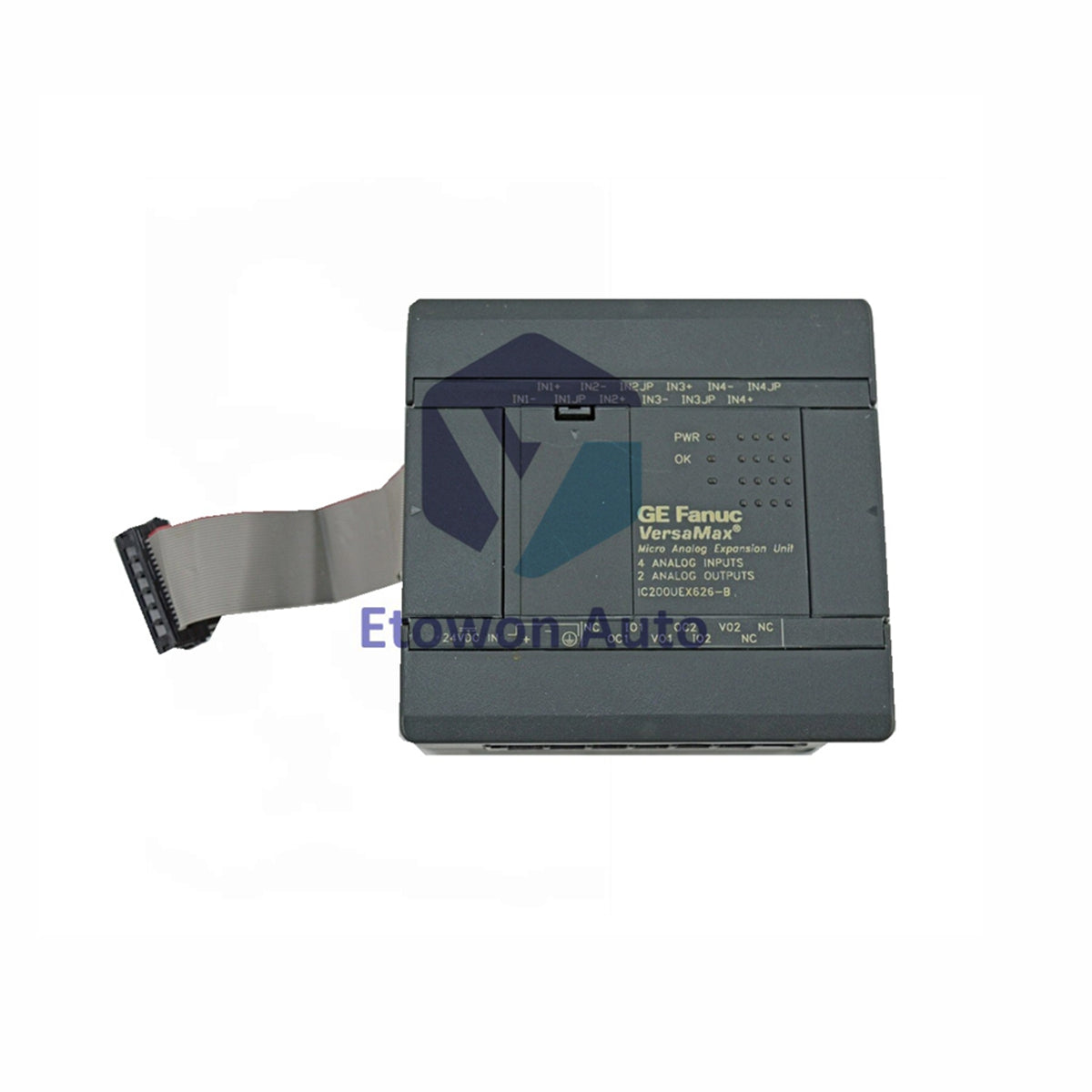

GE Fanuc IC200UEX626 Analog Expansion Module 16 Inputs

In stock (25 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC200UEX626

  • Product Type: Analog Expansion Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 600g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Fanuc IC200UEX626 Analog Expansion Module

The GE Fanuc IC200UEX626 is a 16-channel isolated analog input expansion module for the VersaMax series. It provides high-resolution 16-bit data acquisition for industrial control applications, including process monitoring, temperature sensing, and pressure measurement. This module integrates seamlessly with PLC systems, delivering reliable analog signal processing in harsh environments. Weighing only 0.6 kg (1.32 lbs), it offers a compact solution for system expansion.

Technical Specifications

Parameter Value
Model GE Fanuc IC200UEX626
Product Type Analog Expansion Module
Input Power Supply Rating 3 Watts
User Power Supply for Sensors 24 VDC, 200 mA
Input Voltage Range 20 VDC to 28 VDC
Number of Inputs 16 (Isolated)
Current Output Capacity 500 mA per channel
Operating Temperature -20°C to +60°C (-4°F to +140°F)
Dimensions (W x H x D) 112 x 79 x 51 mm (4.4 x 3.1 x 2.0 in)
Weight 0.6 kg (1.32 lbs)
Response Time 20 ms
Input Data Resolution 16-bit
Isolation Voltage 1500 Vrms

Installation & Field Application Guide

  • Mount the module in a standard VersaMax I/O rack. Ensure proper alignment with the backplane connector.
  • Use shielded twisted-pair cables for analog input wiring to minimize noise interference. Maintain a minimum bend radius of 10x cable diameter.
  • Provide 24 VDC power from a regulated supply. The module draws 3W; ensure the system power budget accommodates this.
  • When wiring sensors, connect the 24 VDC user power supply at 200 mA maximum load per sensor loop.

Why Choose the IC200UEX626

  • 16 isolated analog inputs provide superior noise immunity in industrial environments.
  • 16-bit resolution delivers precise measurement for critical process variables.
  • 1500 Vrms isolation protects the PLC backplane from sensor-side faults.
  • Wide operating temperature range (-20°C to +60°C) supports harsh factory floor conditions.

Field Engineer FAQs

Q1: What types of sensors can connect to the IC200UEX626 inputs?

A1: The module accepts 4-20 mA transmitters, 0-10V sensors, thermocouples (with external conditioning), and RTDs. Each input is individually configurable via the PLC configuration software.

Q2: How do I verify proper analog input readings?

A2: Use a signal calibrator to inject known values (e.g., 4 mA or 12 mA) and compare the PLC reading against the expected digital count. A 16-bit resolution provides 0-65535 counts over the full input range.

Q3: Can this module replace an older IC200UEX625?

A3: Yes, the IC200UEX626 is the enhanced version with the same physical dimensions and backplane compatibility. Verify firmware compatibility with your VersaMax CPU before installation.
