IC200UAL006

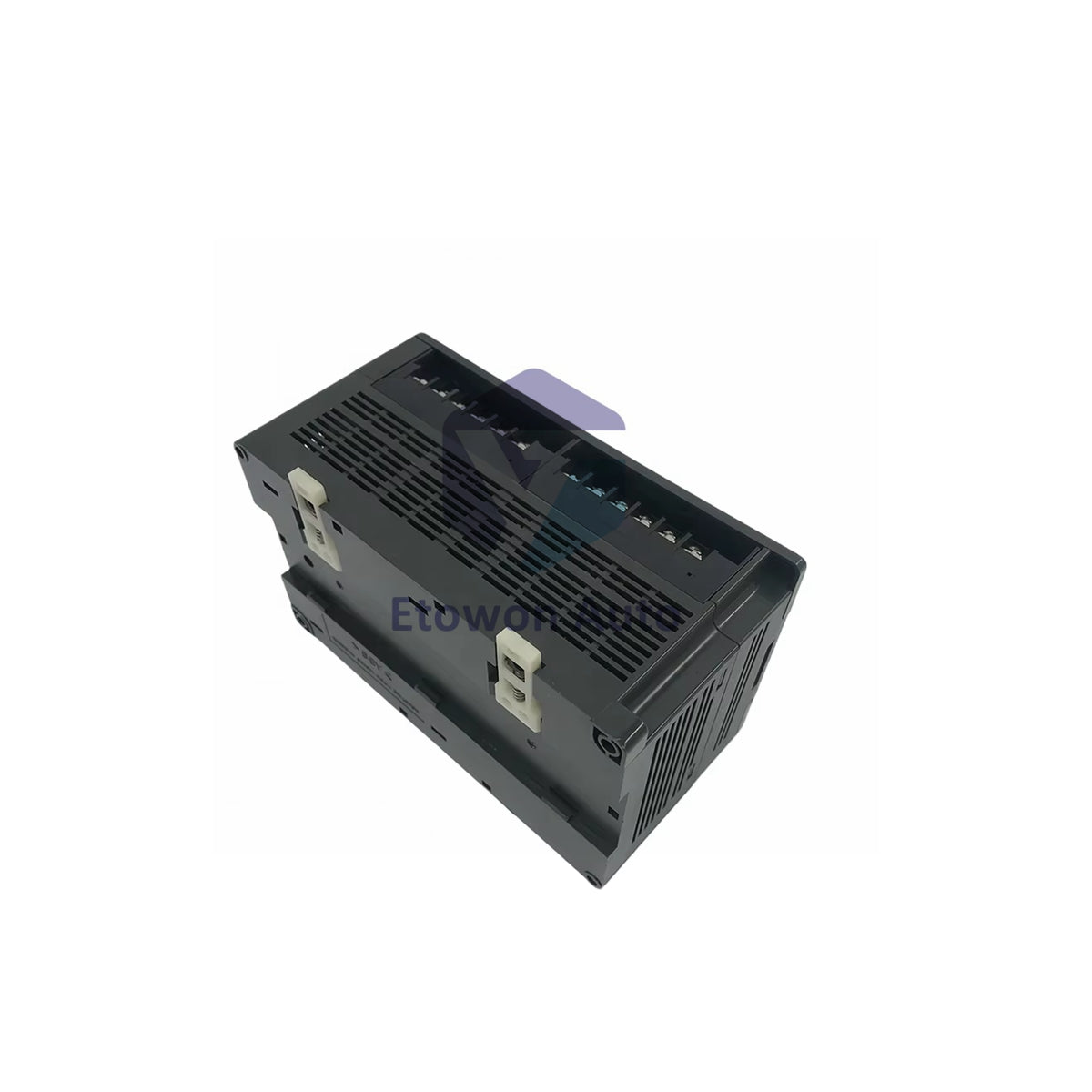

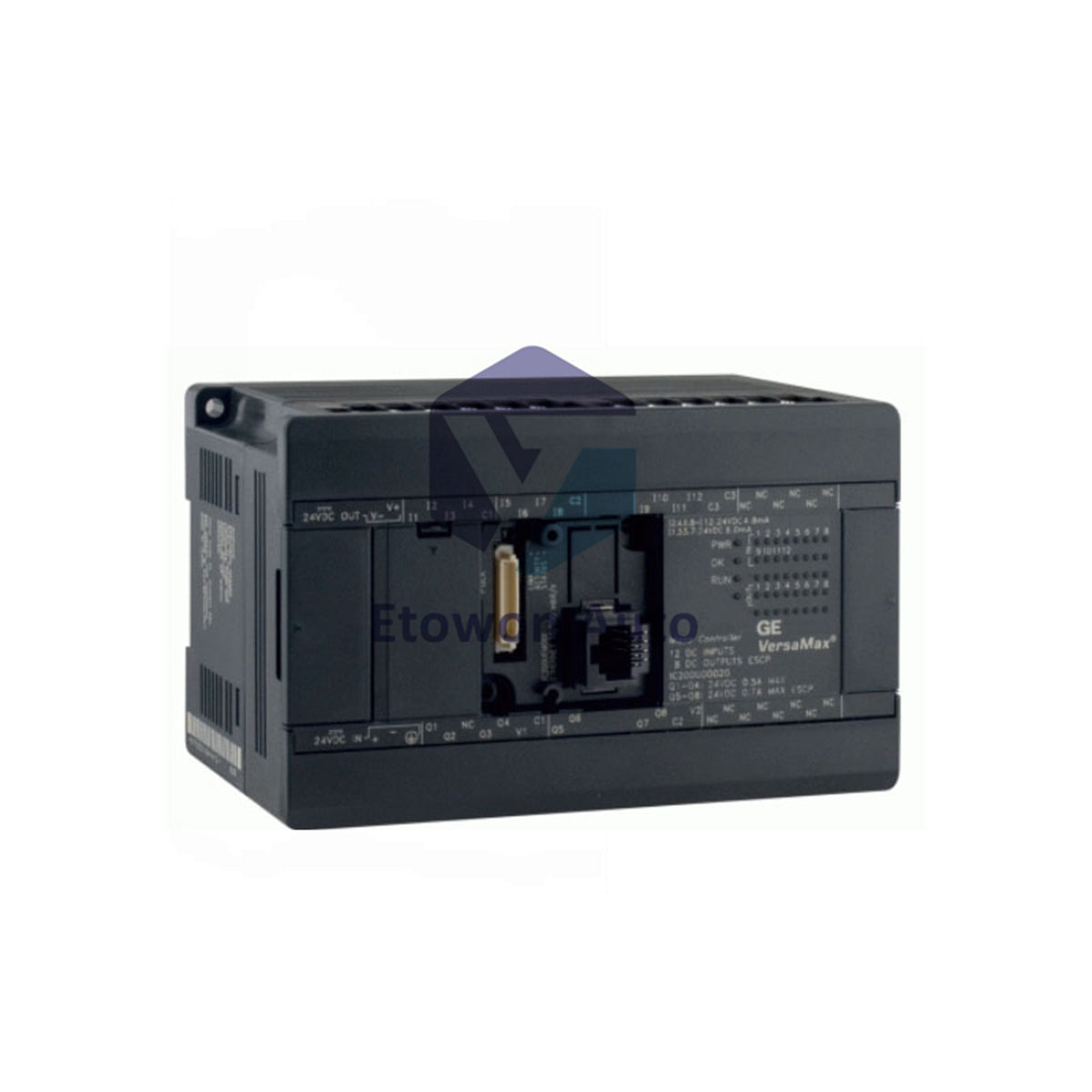

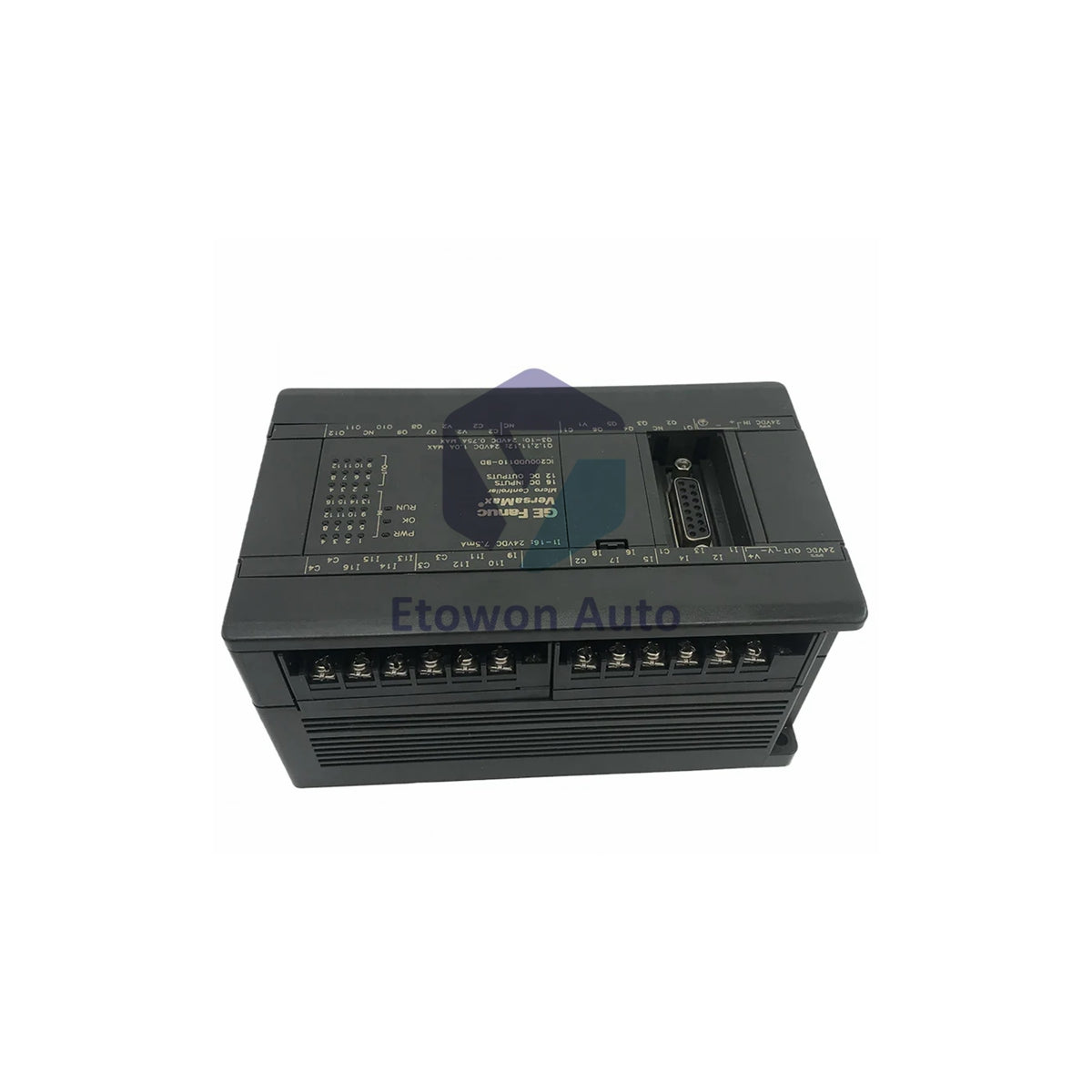

GE Fanuc IC200UAL006 VersaMax Micro Controller 120-240VAC

In stock (17 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC200UAL006

  • Product Type: Controller Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The GE Fanuc IC200UAL006 is a compact Micro Programmable Logic Controller (PLC) from the VersaMax product line. Designed for small-to-medium industrial automation applications, this all-in-one controller integrates power supply, CPU, and I/O processing into a single robust unit.

Operating on a 120 to 240 V AC line voltage, the IC200UAL006 features 23 total I/O points (including both discrete and built-in analog signals) alongside two multi-protocol serial communication ports. Weighing 0.91 kg (2.00 lbs) with an estimated gross shipping weight of 1.20 kg (2.65 lbs), it provides an efficient, space-saving solution for distributed machine control.

Core Technical Advantages

  • Versatile Hybrid I/O Mix: Combines 13 discrete inputs, 10 discrete outputs, 2 analog inputs, and 1 analog output within a single compact chassis.
  • Dual Serial Communication Ports: Features Port 1 (RJ-45 RS-232) and Port 2 (DB-15 RS-485) for seamless programming, HMI connectivity, and network integration.
  • Auxiliary Field Power Supply: Provides an onboard 24 V DC user sensor power supply rated at 200 mA to directly power field instrumentation.
  • High Output Current Capacity: Built-in relay outputs support a maximum resistive load rating of 2 A at 240 V AC or 24 V DC for direct actuator driving.

Technical Specifications

Parameter Specification Details
Brand / Manufacturer GE Fanuc
Part Number / Catalog No. IC200UAL006
Product Family VersaMax Micro PLC
Product Type Micro Programmable Logic Controller
Operating Voltage Rating 120 V AC to 240 V AC
Total I/O Capacity 23 Total I/O Points
Discrete Inputs / Outputs 13 Discrete Inputs / 10 Discrete Relay Outputs
Analog Inputs / Outputs 2 Analog Inputs / 1 Analog Output
Communication Ports Port 1: RJ-45 (RS-232) | Port 2: DB-15 (RS-485)
User Sensor Power Output 200 mA at 24 V DC
Max Relay Load Rating 2 A at 240 V AC or 24 V DC (Resistive)
Portable Memory Support Not Supported
Estimated Net / Shipping Weight Net Unit: 0.91 kg (2.00 lbs) | Gross Shipping: 1.20 kg (2.65 lbs)

Installation & Wiring Guidelines

  • Power Supply Connection: Ensure input voltage line matches the required 120–240 V AC supply and is properly fused prior to energizing the PLC.
  • Serial Port Assignment: Use the RJ-45 Port 1 for direct PC programming/configuration cables and DB-15 Port 2 for multi-drop RS-485 device networks.
  • Sensor Auxiliary Power: Verify that total field sensor load connected to the internal 24 V DC auxiliary output does not exceed the 200 mA threshold.

Technical FAQs

Q1: How many total I/O points are built into the GE IC200UAL006?
A1: It features 23 total I/O points: 13 discrete inputs, 10 discrete outputs, 2 analog inputs, and 1 analog output.

Q2: What connectors are used for communication on this VersaMax Micro module?
A2: Port 1 uses an RJ-45 connector (RS-232), and Port 2 uses a DB-15 connector (RS-485).

Q3: Does the IC200UAL006 support portable memory modules?
A3: No, portable memory modules are not supported on this specific Micro PLC variant.
