FBM242 16-Channel Discrete Output - Foxboro

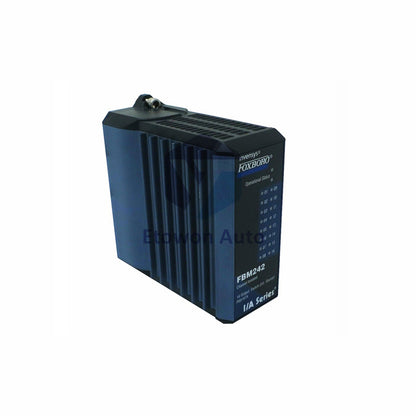

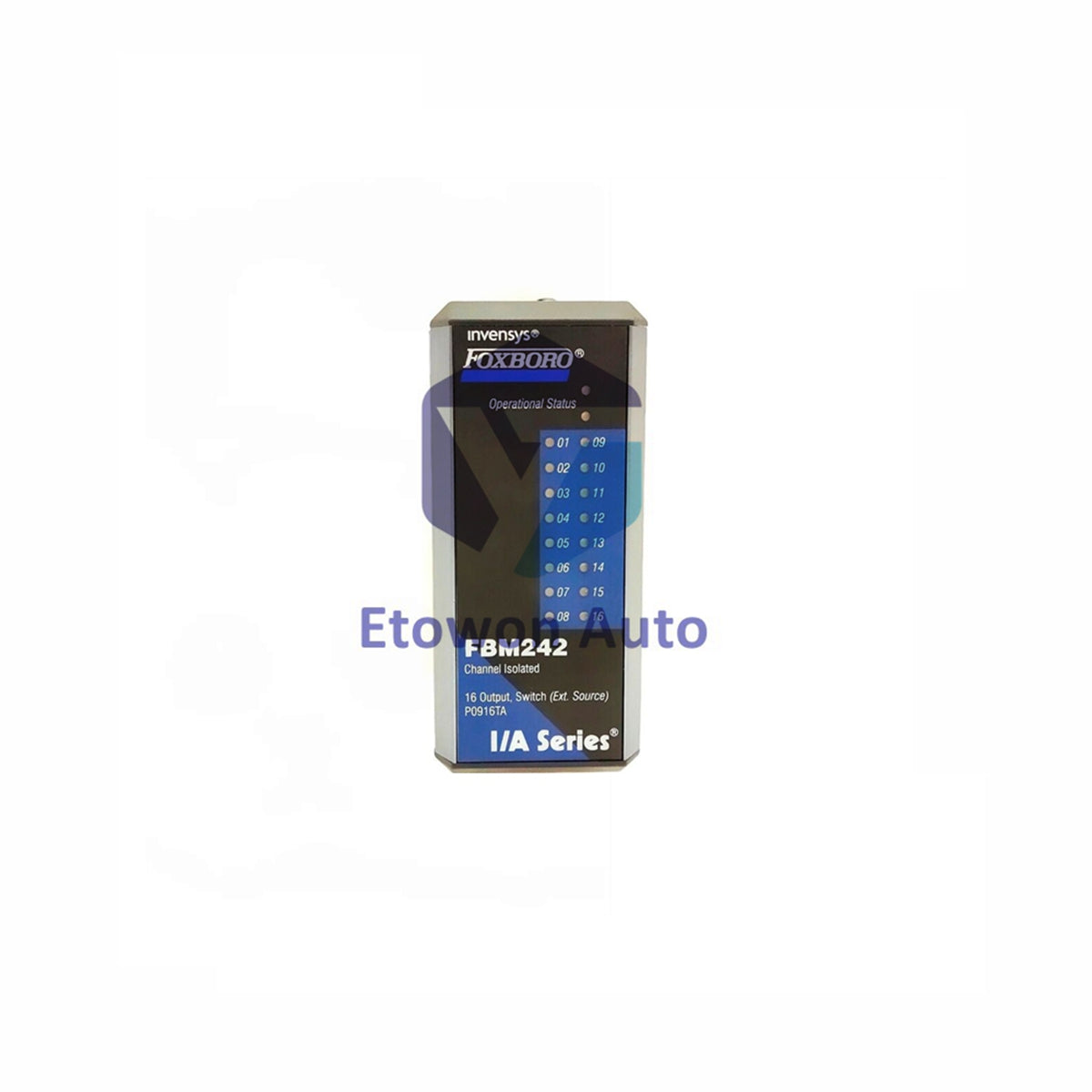

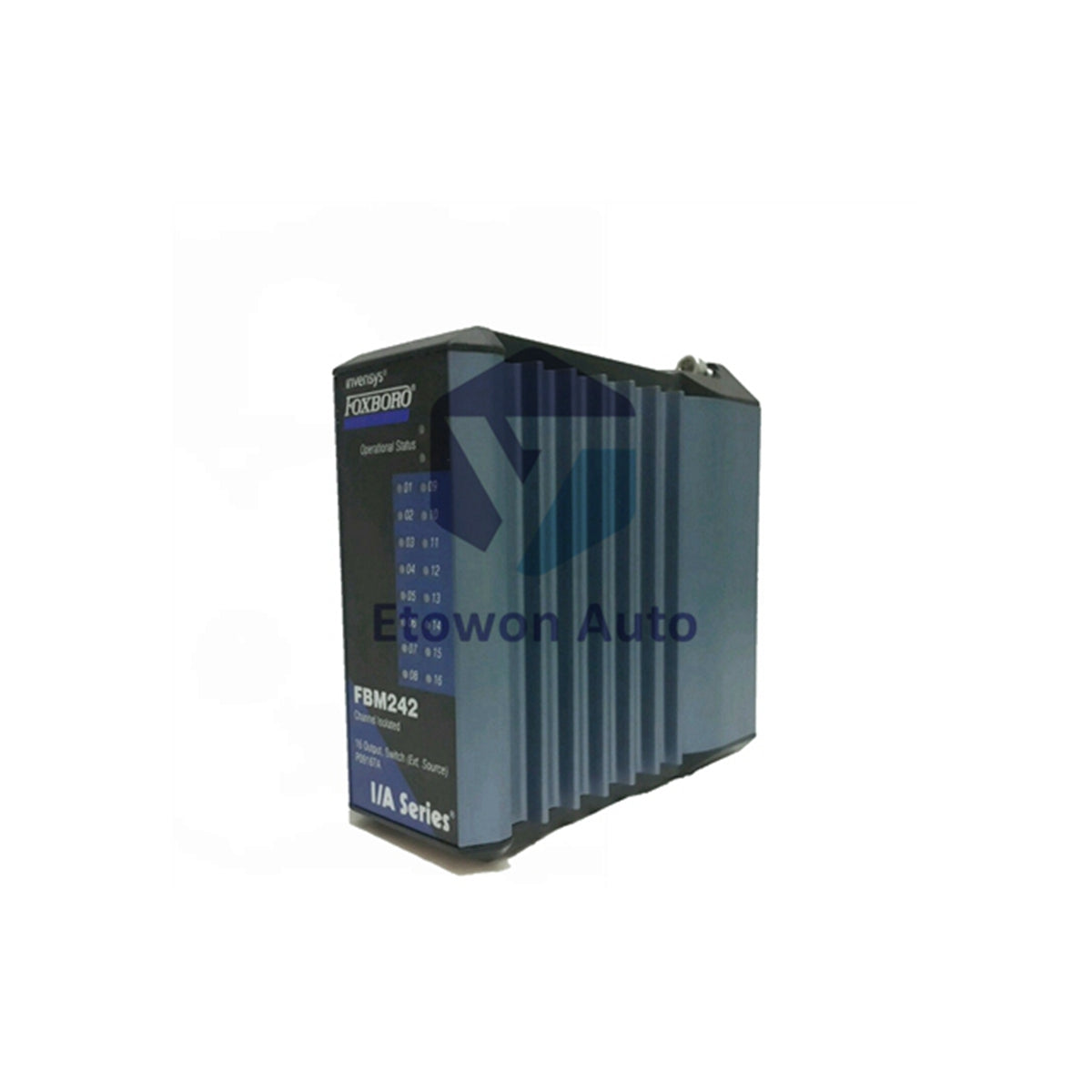

Foxboro FBM242 Externally Sourced Discrete Output Interface Module

The Foxboro FBM242 by Schneider Electric is an Externally Sourced Discrete Output Interface Module for industrial control systems. It features sixteen discrete outputs supporting multiple voltage ranges.

Technical Specifications

• Brand & Model: Foxboro by Schneider Electric FBM242
• Product Type: Externally Sourced Discrete Output Interface Module
• Output Channels: Sixteen discrete outputs
• Output Voltage Options: 15-60 V dc, 120 V ac, 125 V dc, 240 V ac
• Isolation: Galvanically isolated per channel; group isolated with external excitation
• Input Voltage: 24 V dc +5%, -10% (redundant)
• Power Consumption: 3 W maximum at 24 V dc
• Heat Dissipation: 6.5 W maximum (all outputs at 1.5 A each)
• Temperature (Module): -20 to +70°C
• Temperature (Termination): -20 to +50°C
• Relative Humidity: 5 to 95% noncondensing
• Dimensions (L x W x H): 10.4 cm x 4.5 cm x 11.4 cm
• Weight: 0.284 kg

Key Features

• Sixteen Isolated Outputs: Each channel provides galvanic isolation for signal integrity
• Multiple Voltage Support: Handles 15-60 Vdc, 120 Vac, 125 Vdc, and 240 Vac outputs
• Configurable Options: Input Filter Time, Fail Safe Configuration, Fail Safe Fall-Back
• Sustained or Momentary Outputs: Programmable output modes for various applications
• G3 Harsh Environment Rated: Rugged design for Class G3 environments
• No Calibration Required: Module and termination assemblies need no calibration

Programmable Functions

• Discrete I/O Execution: Runs Discrete I/O or Ladder Logic programs
• Input Filter Time: Adjustable filtering for input signals
• Fail Safe Configuration: Programmable safe states during faults
• Output Modes: Select sustained or momentary output operation

Environmental Ratings

• Operating Temperature: -20 to +70°C for module
• Termination Assembly: -20 to +50°C rating
• Humidity Tolerance: 5 to 95% noncondensing
• Environment: Suitable for Class G3 harsh locations

Package Contents

• 1 x Foxboro FBM242 Discrete Output Interface Module
• Documentation and configuration guide

Shipping

• Weight: 0.284 kg (module only)
• Packaging: Anti-static protection
• Carriers: FedEx, UPS, DHL

FAQs

• What voltages does the FBM242 support?
  The FBM242 supports 15-60 V dc, 120 V ac, 125 V dc, and 240 V ac output signals for flexible field device integration.
• What does externally sourced mean?
  External excitation means field devices provide their own power. The FBM242 switches these external signals without supplying power itself.
• Can I use FBM242 in harsh environments?
  Yes. The FBM242 features a rugged design suitable for Class G3 harsh environments with wide temperature tolerance.
