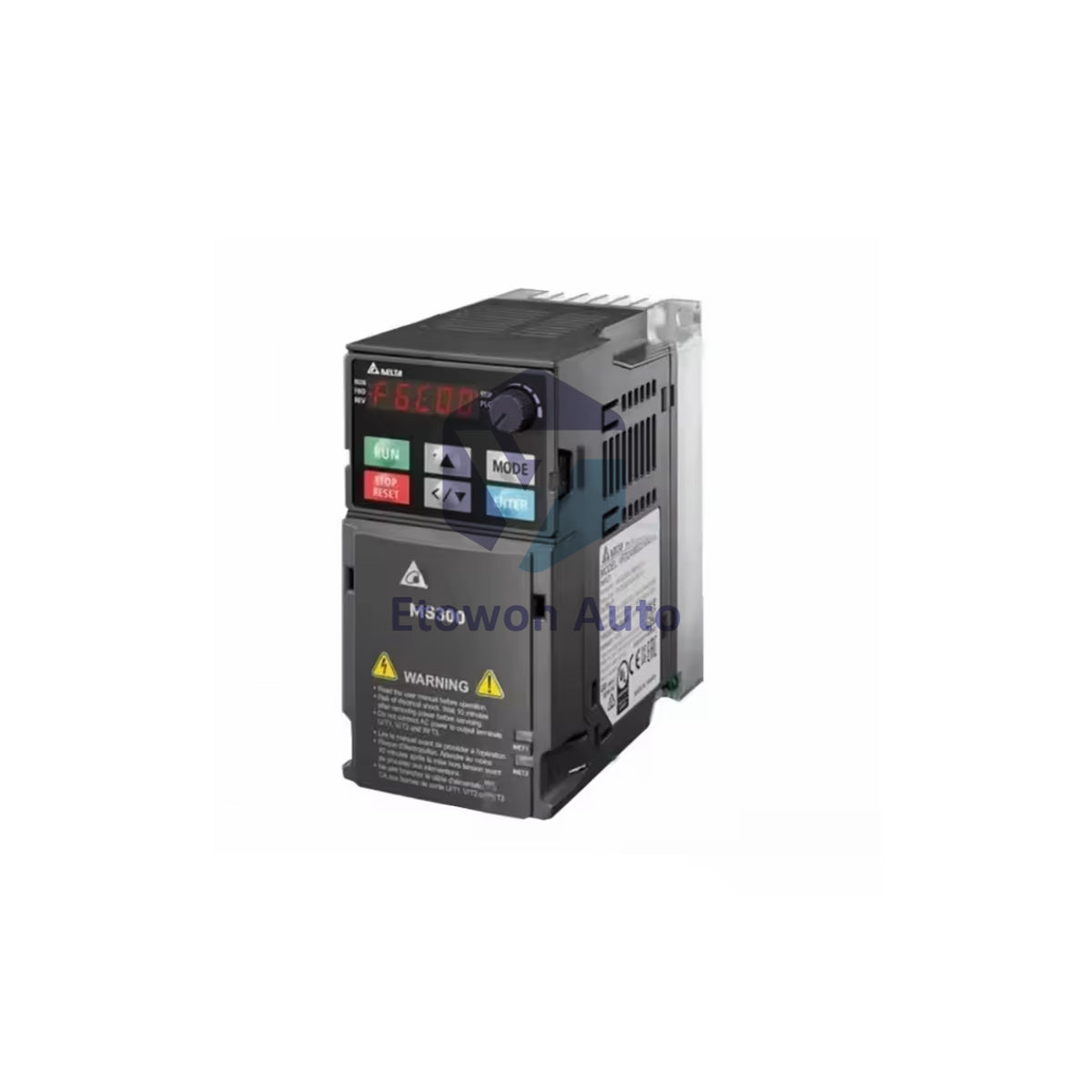

Delta MS300 VFD2A8MS21ENSAA | IP40 Rated Compact Drive

Delta VFD2A8MS21ENSAA MS300 Series Variable Frequency Drive

The VFD2A8MS21ENSAA from Delta Electronics provides reliable motor control with enhanced environmental protection. This MS-300 series drive operates with 230V single-phase power and supports motors up to 0.5 horsepower. Its IP40 rating ensures superior protection against dust and moisture in challenging industrial environments.

Technical Specifications

• Brand: Delta Electronics
• Model: VFD2A8MS21ENSAA
• Series: MS-300
• Input Power: 230V - 1 Phase
• Motor Power: 0.5 HP (0.4 KW)
• Frequency Range: 0 - 599 Hz
• Heavy Duty Output: 2.8 Amps
• Normal Duty Output: 3.2 Amps
• Protection Rating: IP40
• EMC Filter: Optional
• Frame Size: A3
• Weight: 1.7 lbs (0.77 kg)
• Dimensions: 2.68" x 5.04" x 5.0"

Performance Features

• 0-599 Hz frequency range for precise speed control
• IP40 protection against dust and water splashes
• Compact A3 frame design for space-efficient installation
• Dual current ratings: 2.8A heavy duty and 3.2A normal duty
• Optional EMC filter for electromagnetic compatibility

Installation & Packaging

• Mount in areas with proper ventilation and clearance
• Connect to 230V single-phase power source
• Package includes drive unit and installation manual
• Shipping available via FedEx, UPS, and DHL

Frequently Asked Questions

• What is the protection rating? Features IP40 rating for dust and moisture protection.
• What motors work with this drive? Controls single-phase motors up to 0.5HP.
• What input voltage does it require? Requires 230V single-phase power supply.
