330105-02-12-10-12-00

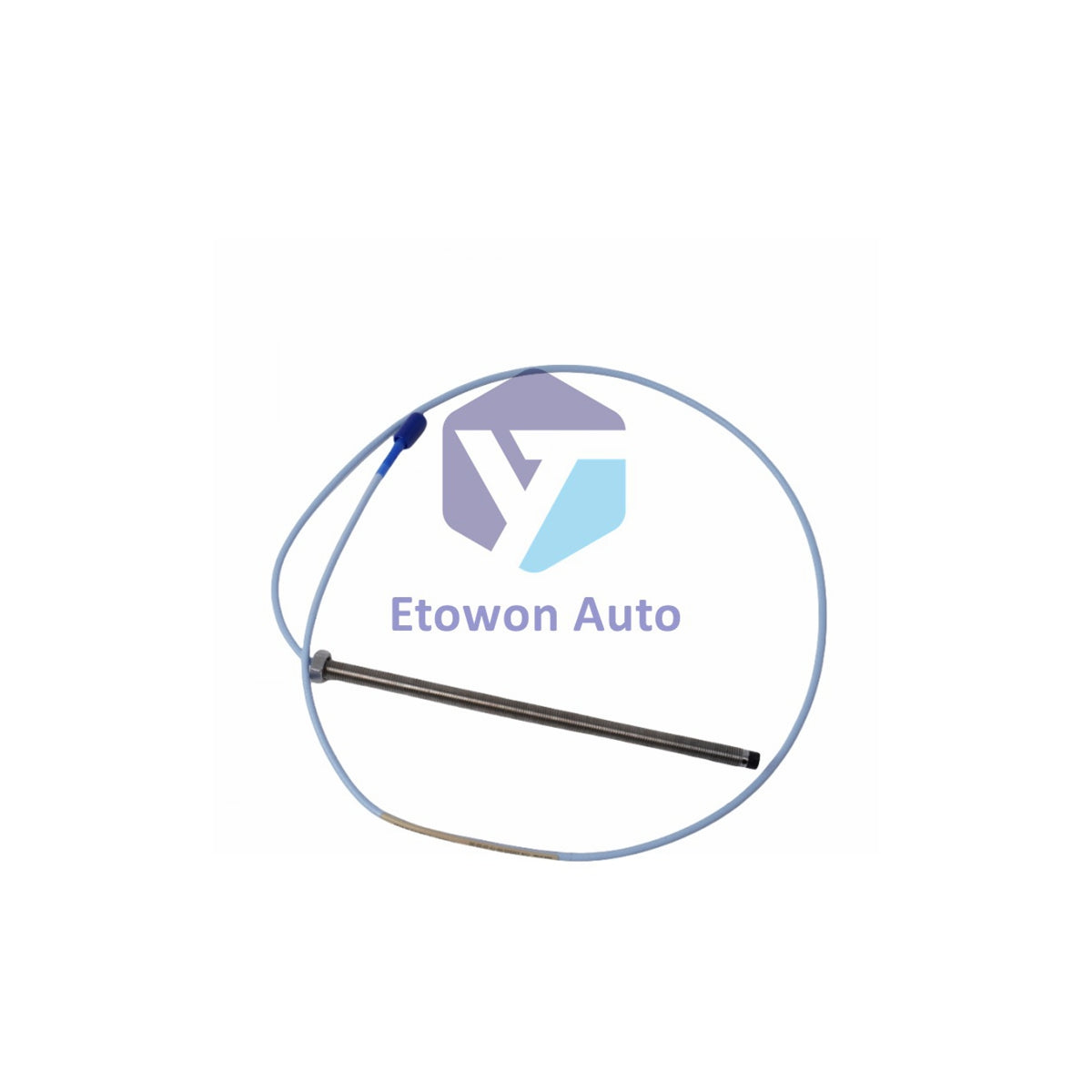

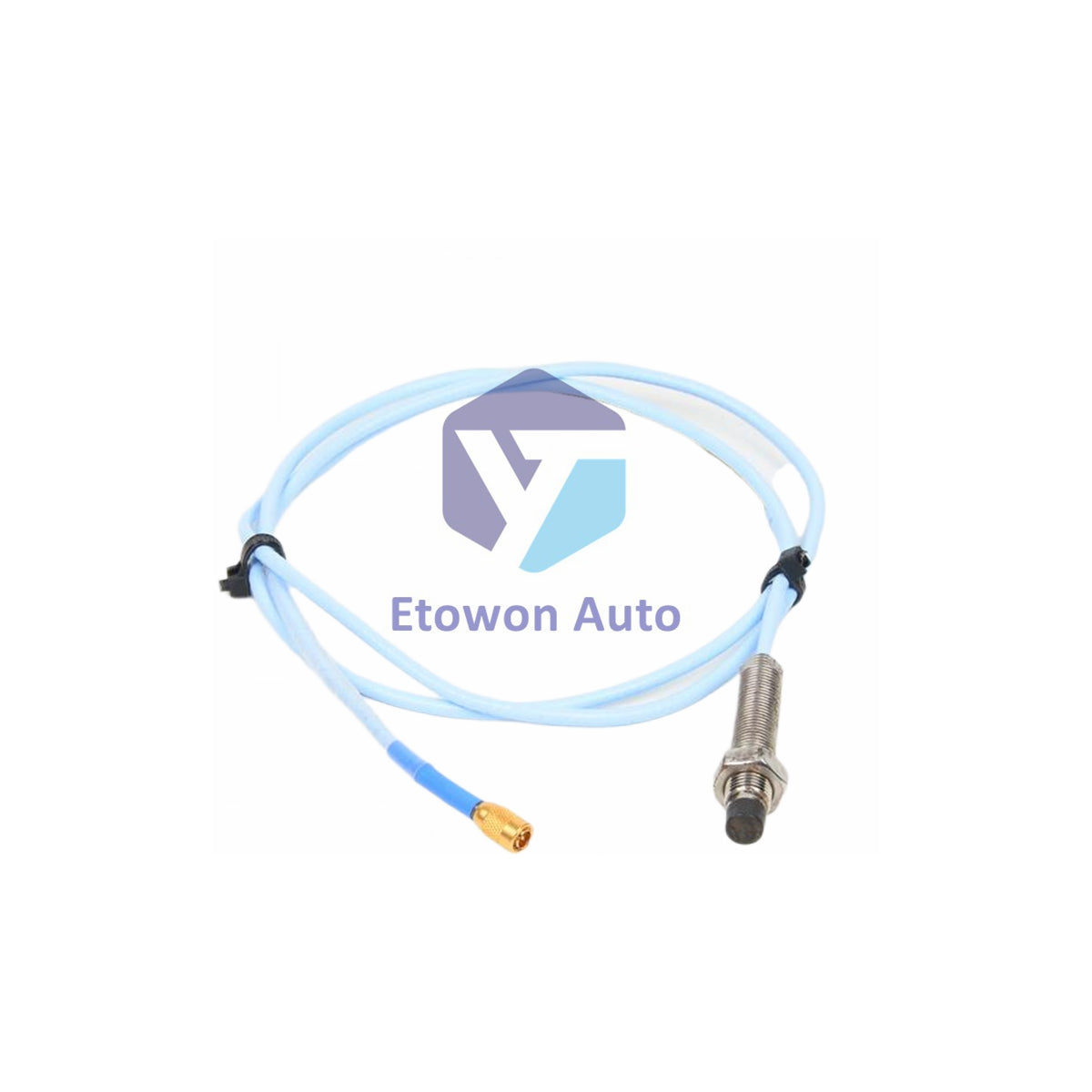

Bently Nevada 8mm Reverse Probe 330105-02-12-10-12-00 FluidLoc

In stock (21 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330105-02-12-10-12-00

  • Product Type: Reverse Mount Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Bently Nevada 330105-02-12-10-12-00 3300 XL 8mm Reverse Mount Probe

Product Overview

Bently Nevada 330105-02-12-10-12-00 is a 3300 XL 8mm reverse mount proximity probe with 3/8-24 UNF thread. Features 1.0 meter total length with Miniature ClickLoc coaxial connector and FluidLoc cable. Designed for reverse mount applications where the probe mounts from inside the machine casing. New and original in factory packing with 12 month warranty.

Model Number Decoder

Position Code Meaning
1 3 330105 3300 XL 8mm Reverse Mount Probe, 3/8-24 UNF
4 5 02 Unthreaded Length 2mm
6 7 12 Overall Case Length 12mm
8 9 10 Total Length 1.0 meter
10 11 12 Miniature ClickLoc connector, FluidLoc cable
12 13 00 No agency approval

Technical Specifications

Parameter Value
Brand Bently Nevada
Model 330105-02-12-10-12-00
Type 3300 XL 8mm Reverse Mount Probe
Thread 3/8-24 UNF
Tip Material Polyphenylene sulfide (PPS)
Case Material AISI 303/304 SST
Total Length 1.0 meter
Connector Miniature ClickLoc coaxial
Cable Type FluidLoc (prevents fluid ingress)
DC Resistance 7.59 Ω ±0.50
Case Torque Max 22.6 N•m (200 in•lbf)
Case Torque Recommended 7.5 N•m (66 in•lbf)
Operating Temp Standard 52°C to +177°C
Relative Humidity ≤3% change at 93% RH
Weight 323 g/m (11.4 oz)

Installation

Mount probe with 3/8-24 UNF threaded case. Tighten case to recommended torque 7.5 N•m (66 in•lbf). Maximum rated torque 22.6 N•m (200 in•lbf). Recommended gap for radial vibration is 9 VDC (1.27mm / 50 mils). FluidLoc cable prevents oil and liquid leakage. Use 3 conductor shielded triad cable for field wiring.

Features

Reverse mount design for internal machine casing installation. FluidLoc cable prevents oil and liquid leakage through cable interior. TipLoc molding provides 330N pull strength. CableLoc design secures cable to probe body. PPS tip with thicker coil encapsulation. AISI 303/304 stainless steel case. Miniature ClickLoc connector.

FAQ

Q1: What is the FluidLoc cable option?
A1: FluidLoc prevents oil and other liquids from leaking out of the machine through the cable interior. Recommended for oil filled or liquid exposed installations.

Q2: What is the recommended case torque?
A2: 7.5 N•m (66 in•lbf) recommended. 22.6 N•m (200 in•lbf) maximum rated. Exceeding maximum may damage the probe.

Q3: What is the DC resistance for 1.0m probe?
A3: 7.59 Ω ±0.50 measured from center conductor to outer conductor.
