330905-00-13-10-01-05

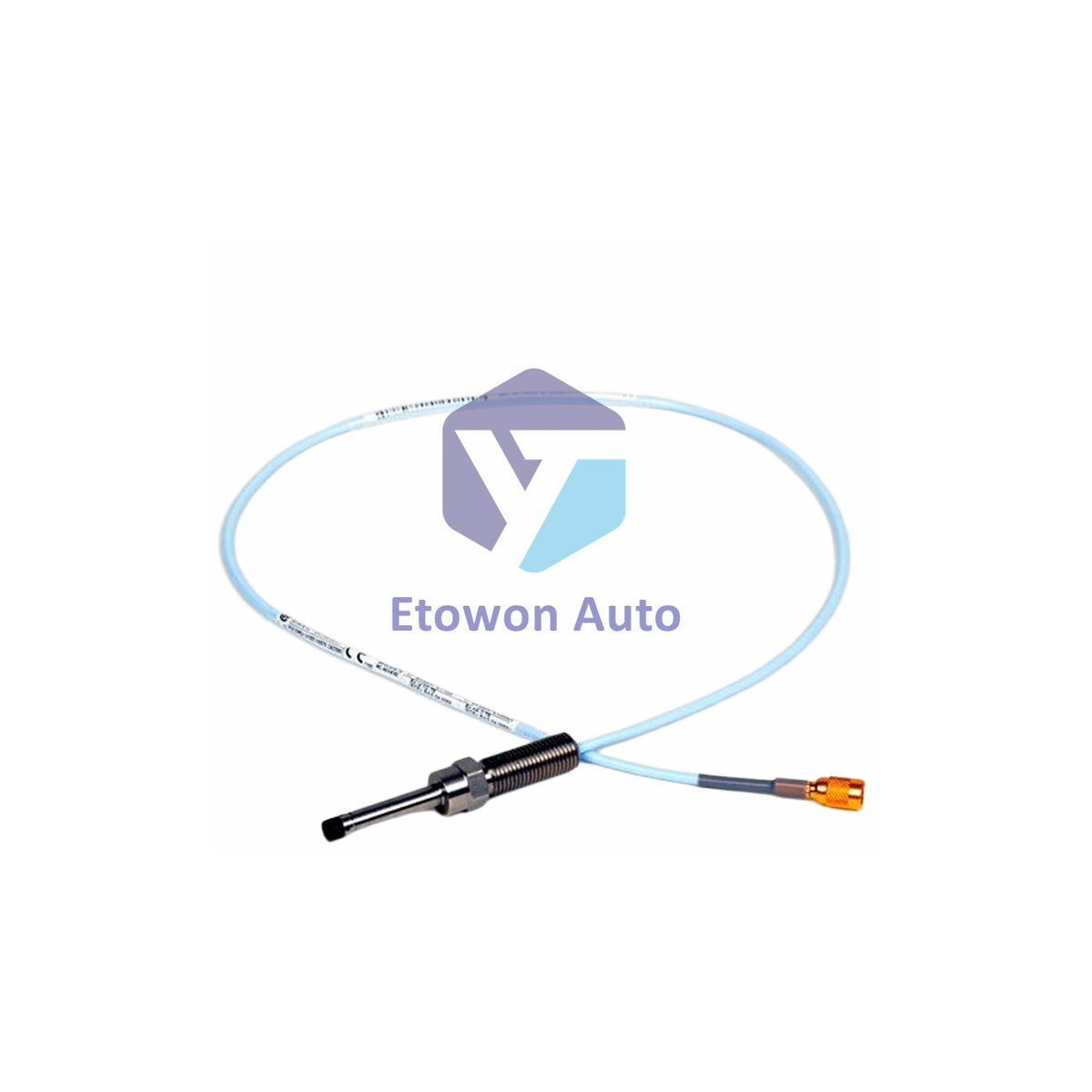

Bently Nevada 330905-00-13-10-01-05 3300 NSv Probe 130mm

In stock (17 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330905-00-13-10-01-05

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 150g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The 330905-00-13-10-01-05 is a premium 3300 NSv proximity probe manufactured by Bently Nevada. Engineered for precision vibration, dynamic displacement, and axial shaft position monitoring on machinery with small shaft diameters or tight physical clearances (such as fluid-film bearing turbines and process compressors), this transducer features an M10x1 unarmored stainless steel thread profile.

Core Technical Advantages

  • Chemical-Resistant PPS Construction: Features a polyphenylene sulfide (PPS) tip and Viton O-ring seal, offering enhanced chemical resistance over legacy probes in harsh compressor environments.
  • Optimized Tight-Space & Side-View Performance: Provides superior side-view characteristics compared to 3000-series 190 probes when gapping near counterbores or restrictive target surfaces.
  • Lightweight & Durable Design: Weighs ~150g complete with its 1m coaxial cable, minimizing physical load on mounting brackets and dynamic probe holders.
  • Broad Global Compliance: Supplied with Option -05 (Multiple Approvals) for seamless integration into hazardous area machinery monitoring systems.

Technical Specifications

Parameter Specification Details
Manufacturer / Brand Bently Nevada
Full Part Number 330905-00-13-10-01-05
Model Line 3300 NSv Proximity Transducer System
Thread & Armor Type M10x1 Thread | Unarmored Cable
Unthreaded & Overall Case Length Unthreaded: 00 mm (-00) | Overall Case: 130 mm (-13)
Total Length & Cable Type 1.0 meter (39 in) (-10) | Standard Cable with ClickLoc Connector (-01)
Net Assembly Weight Approx. 0.15 kg (150 g / 0.33 lbs)
Agency Approvals Option Multiple Approvals (-05)
Linear Measuring Range & ISF 1.5 mm (60 mils) | 7.87 V/mm (200 mV/mil)
Recommended Gap Setting 1.0 mm (40 mils) (Range: 0.25 to 1.75 mm / -1 to -13 Vdc)
Operating & Storage Temperature -52°C to +177°C (-62°F to +351°F)
Materials (Tip / Case / Cable) PPS Tip | AISI 304 Stainless Steel Case | FEP Coaxial Cable

Engineering Installation & Guidelines

  • Mounting Torque Limits: Recommended mounting torque for M10x1 threads is 7.5 N·m (66 in·lb), with a maximum allowable rating of 22.6 N·m (200 in·lb).
  • Connector Hand-Tightening: Hand-tighten the miniature coaxial ClickLoc connector to finger tight (Max torque: 0.56 N·m / 5 in·lb) to prevent center-pin degradation.
  • Cable Bend Radius: Maintain a minimum bend radius of 25.4 mm (1.0 in) along the FEP insulated coaxial cable during wire routing.

Why Choose This Model

  • Factory New Quality: Standardized unit backed by a full 12-month manufacturer warranty.
  • Target Gap Precision: Optimized for shaft targets down to 8.9 mm (0.35 in) diameter.
  • High Thermal Tolerance: Rated for severe continuous process temperatures up to +177°C.

Technical FAQs

Q1: Is the 3300 NSv probe compatible with legacy Bently Nevada systems?
A1: Yes, the 3300 NSv probe and extension cable are mechanically and electrically interchangeable with legacy 3300 RAM probe systems.

Q2: What is the exact physical case configuration of the 330905-00-13-10-01-05?
A2: It features an M10x1 threaded case with 0 mm unthreaded length, 130 mm overall case length, and a 1.0-meter overall cable length.

Q3: What is the approximate weight of this probe assembly?
A3: The sensor head and 1.0-meter cable assembly weigh approximately 0.15 kg (150 grams / 0.33 lbs).
