330851-02-000-050-90-00-CN

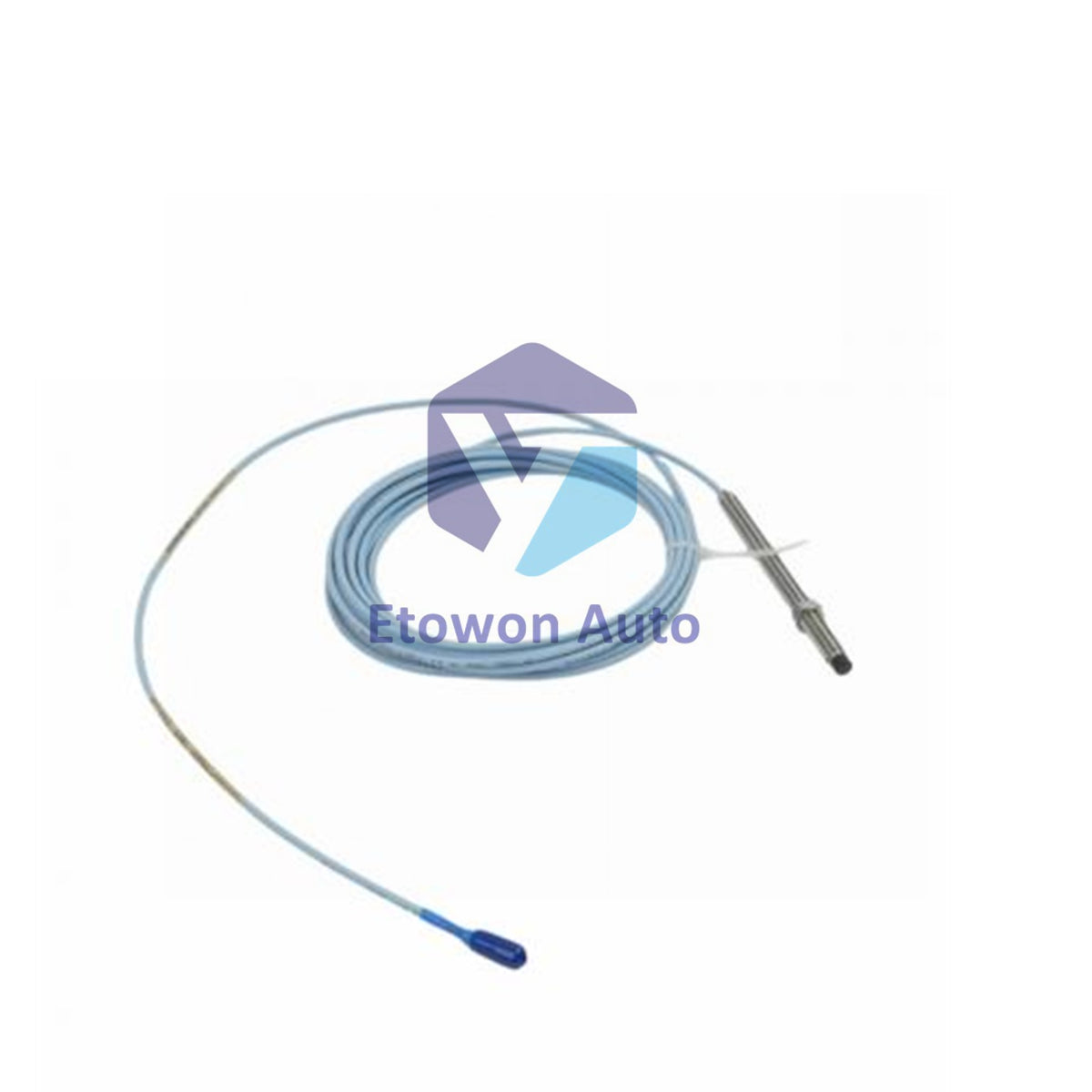

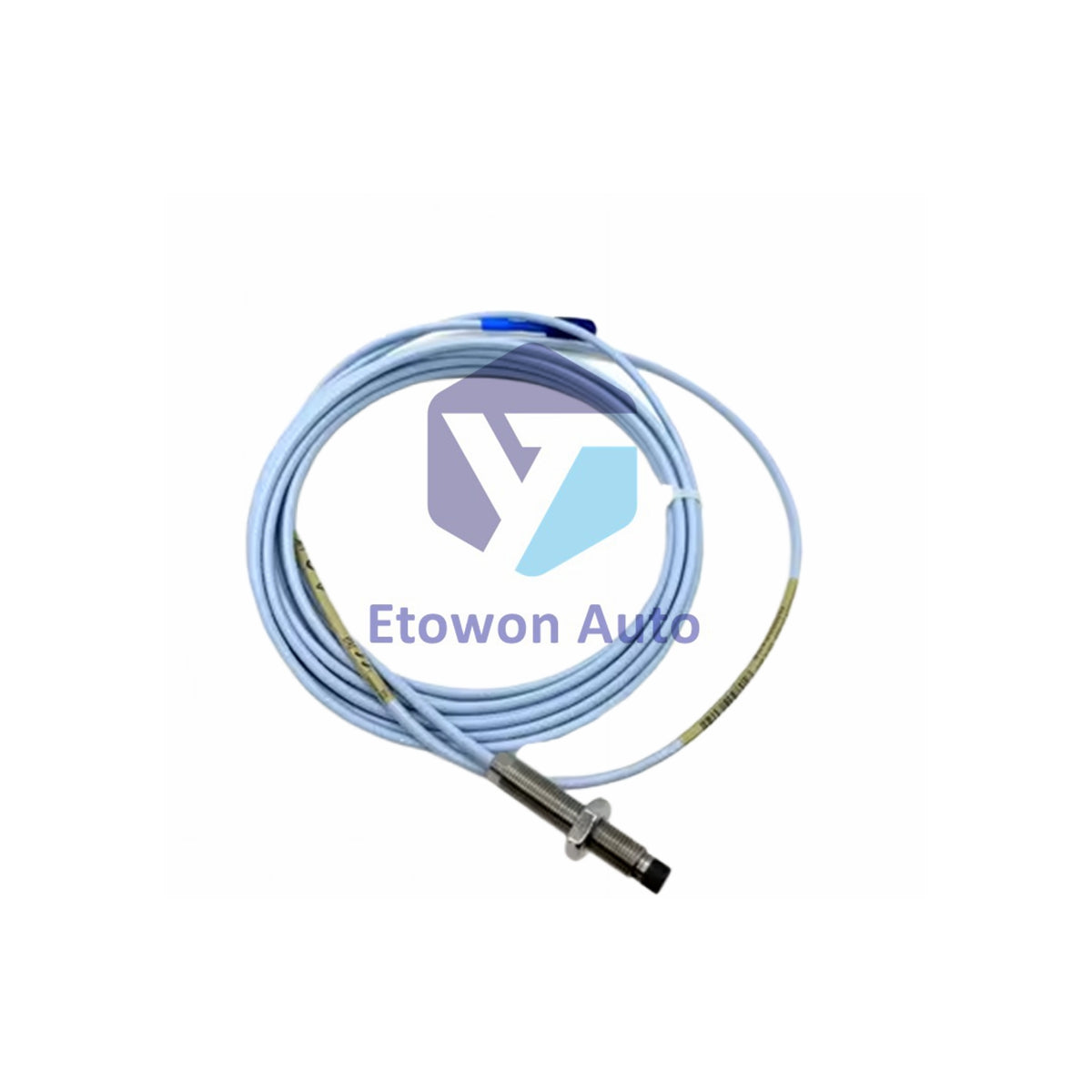

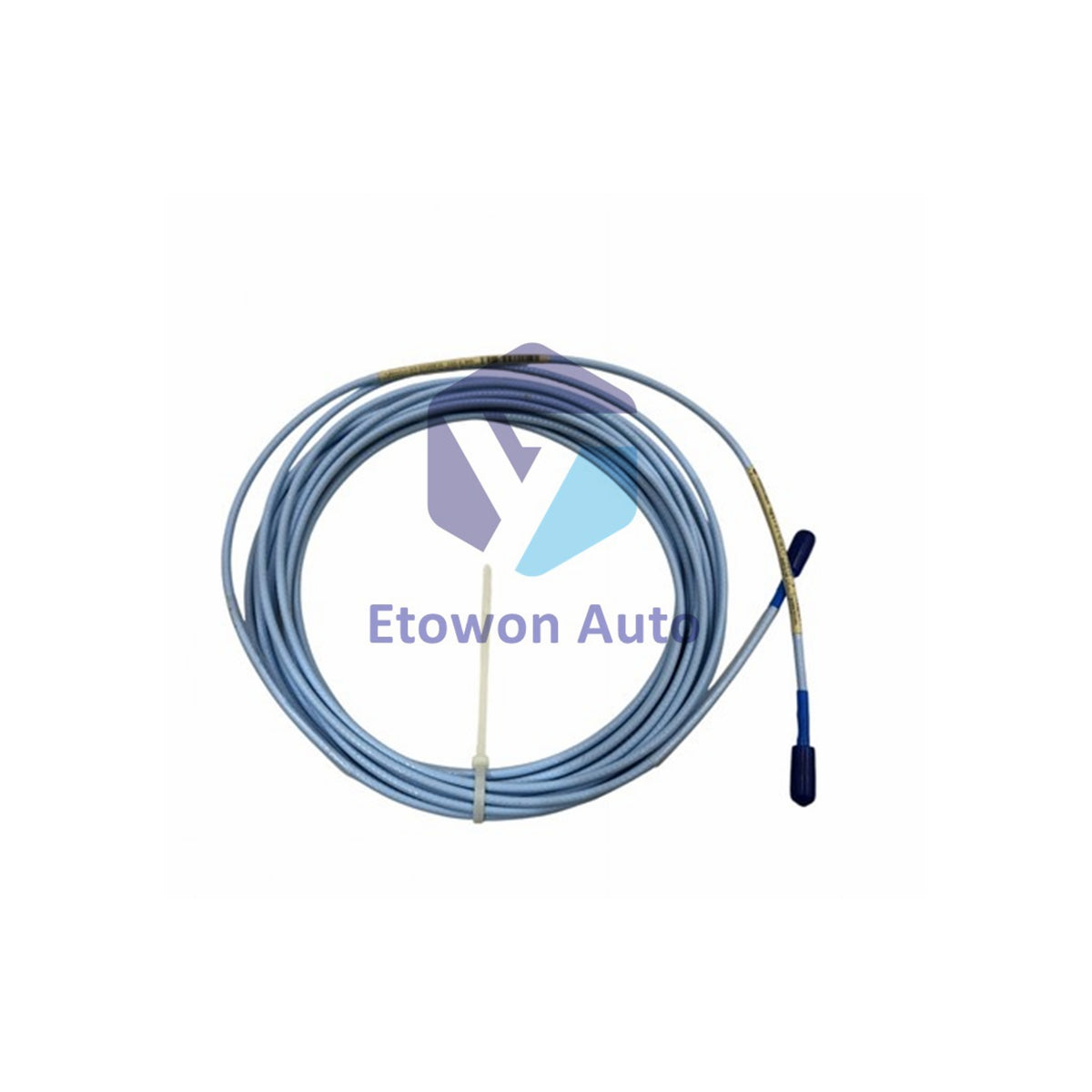

Bently Nevada 330851-02-000-050-90-00-CN 3300 XL Probe

Only 5 units left

  • Manufacturer: Bently Nevada

  • Product No.: 330851-02-000-050-90-00-CN

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 330g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Bently Nevada 330851-02-000-050-90-00-CN 3300 XL 25 mm Proximity Probe

Bently Nevada 330851-02-000-050-90-00-CN is a 3300 XL series 25 mm proximity probe designed for steam turbine DE environments. Operates continuously at 200°C and withstands intermittent peaks up to 250°C.

Model Configuration

Parameter Value
Full Model 330851-02-000-050-90-00-CN
Probe Case Type 02 = M30 x 2 Thread
Unthreaded Length 000 = 0 in
Overall Case Length 050 = 50 mm
Total Length 90 = 9.0 m (29.5 ft)
Armor Option 00 = No Armor
Agency Approval CN = Country Specific Approval

DC Resistance

Probe Length Resistance (Center to Outer Conductor)
9.0 m 8.8 ± 1.1 ohms

Physical Specifications

Component Material / Value
Tip Material PEEK (Polyetheretherketone)
Case Material AISI 304 Stainless Steel
Cable Type 75Ω triaxial, PFA insulated FluidLoc®
Weight (no armor, 1m lead) 230 g (8.1 oz) minimum
Weight (with armor, 1m lead) 330 g (11.6 oz)

Torque Specifications

Description Maximum Rated Recommended
All threaded probe cases 163 N·m (120 ft·lb) 68 N·m (50 ft·lb)

Temperature Range

Condition Range
Continuous Operating -35°C to +200°C (-31°F to +392°F)
Short Term (less than 24 hours) +250°C (482°F) max

Temperature Schedule (EPL Ga and Gc)

Classification Ambient Temperature (Probe Only)
T1 -55°C to +232°C
T2 -55°C to +177°C
T3 -55°C to +120°C
T4 -55°C to +80°C
T5 -55°C to +40°C

Certifications

  • FCC Part 15 Compliant
  • EMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
  • RoHS Directive 2011/65/EU
  • ABS 2009 Steel Vessels Rules
  • Class I, Zone 0: AEx/Ex ia IIC T5…T1 Ga (with zener barriers or galvanic isolators)
  • Class I, Zone 2: AEx/Ex nA IIC T5…T1 Gc (without barriers)

FAQs

Q1: What steam turbine environments is this probe designed for?
A1: Maximum survivability in harsh DE environments with continuous operation up to 200°C.

Q2: What existing systems does this probe replace?
A2: Replaces standard 7200 25 mm, 7200 35 mm and 25 mm DE Integral transducer systems.

Q3: What is the recommended installation torque?
A3: 68 N·m (50 ft·lb) recommended, 163 N·m (120 ft·lb) maximum.
