330701-01-20-10-02-00

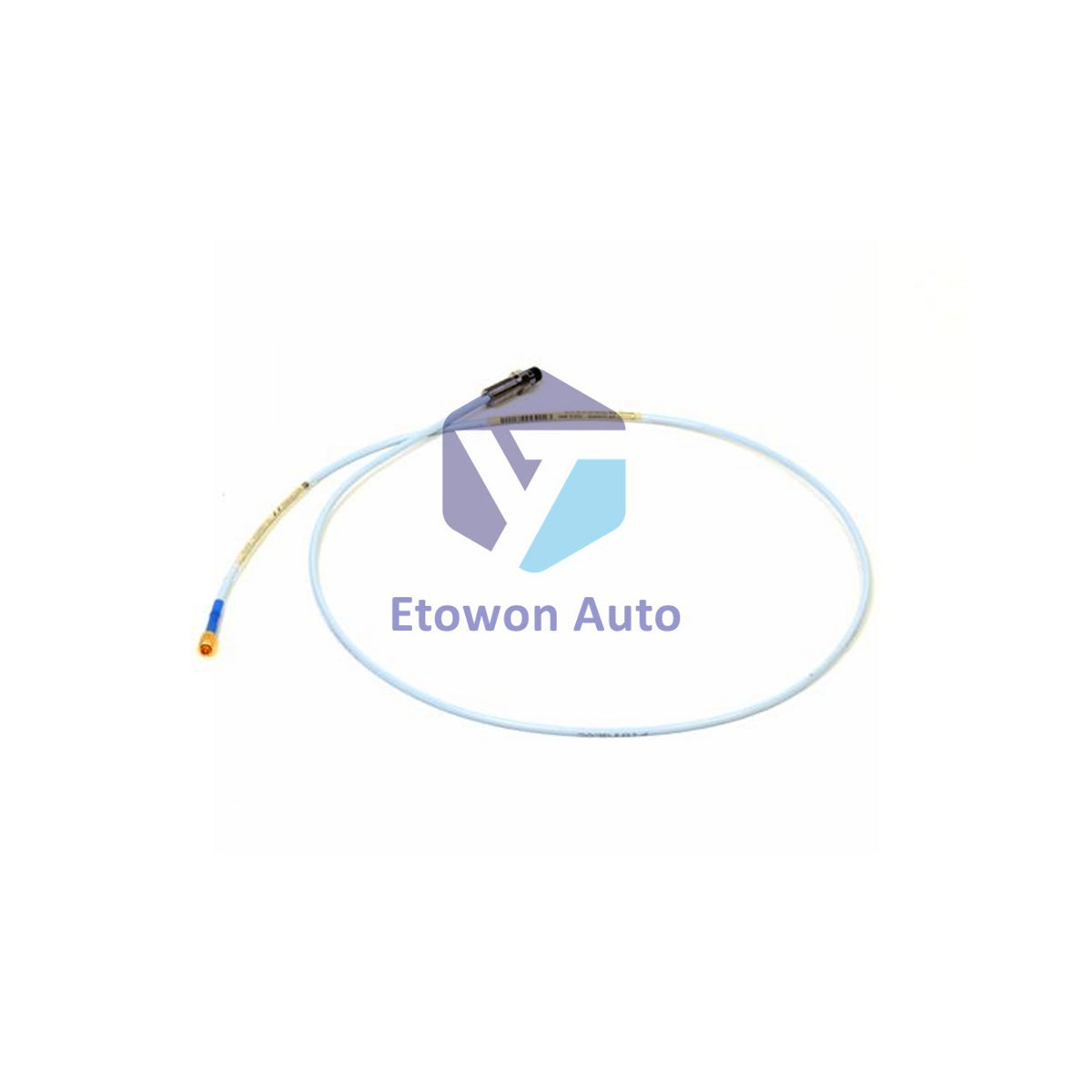

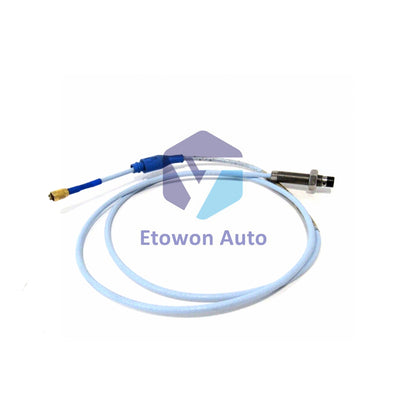

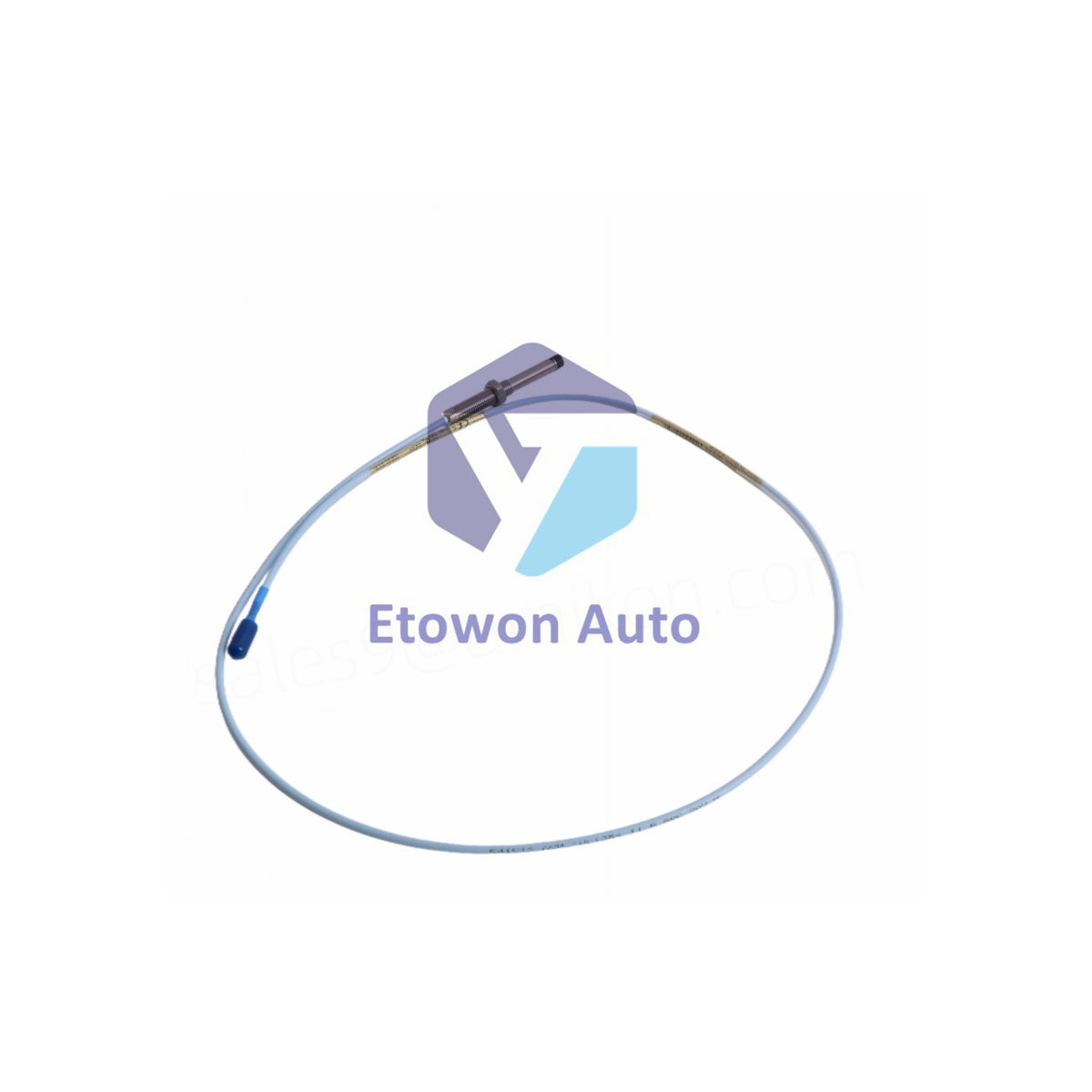

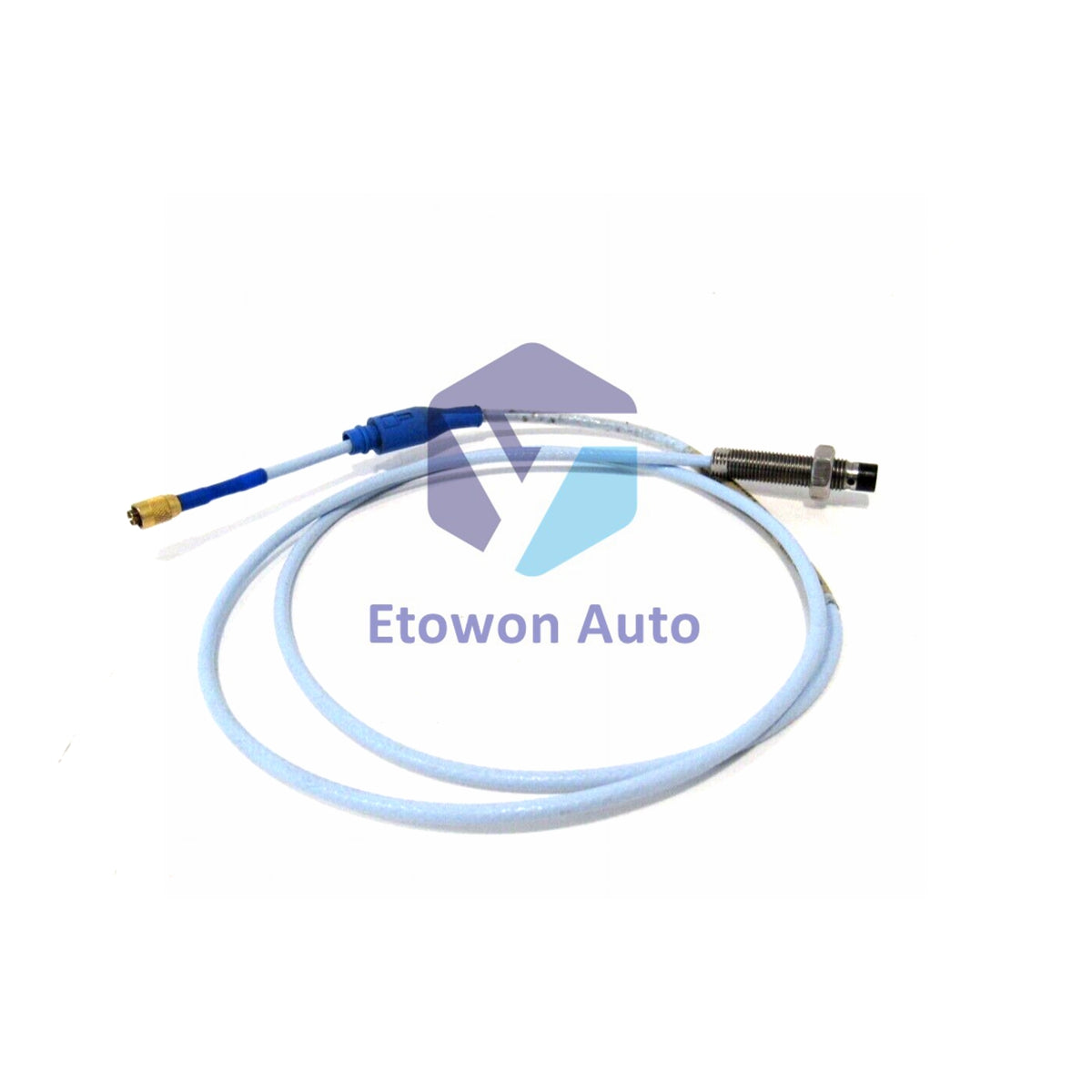

Bently Nevada 330701-01-20-10-02-00 3300 XL 11mm Probe | 1m

Only 6 units left

  • Manufacturer: Bently Nevada

  • Product No.: 330701-01-20-10-02-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 170g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The Bently Nevada 330701-01-20-10-02-00 is a 3300 XL 11 mm proximity probe for vibration and position monitoring. Features 1/2‑20 UNF thread without armor. 1.0 inch unthreaded length, 2.0 inch overall case length, 1.0 meter total length. Miniature coaxial ClickLoc connector with standard cable. Weight: 0.17 kg. Made in USA.

Core Advantages

Robust 11mm Design

Larger diameter provides enhanced durability. PPS probe tip with AISI 304 stainless steel case.

Wide Temperature Range

Operates from -51°C to +177°C. Viton O‑ring seals differential pressure between tip and case.

High-Strength Cable

75 Ω triaxial FEP insulated cable. Minimum bend radius of 25.4 mm (1.0 in).

Specifications

Parameter Value
Part Number 330701-01-20-10-02-00
Manufacturer Bently Nevada
Model 3300 XL 11 mm Probe
Thread Type 1/2‑20 UNF (without armor)
Unthreaded Length 1.0 in
Overall Case Length 2.0 in
Total Length 1.0 m (3.3 ft)
Connector Type Miniature coaxial ClickLoc
Agency Approval Not required
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 304 SST
Cable Type 75Ω triaxial, FEP insulated
Probe DC Resistance (1m) 5.9 ± 0.5 Ω
Max Thread Engagement 0.750 in (1/2‑20)
Max Case Torque 45.2 N•m (400 in•lb)
Recommended Case Torque 15.2 N•m (133 in•lb)
Connector Torque (Max) 0.565 N•m (5 in•lb)
Min Bend Radius 25.4 mm (1.0 in)
Operating Temperature -51°C to +177°C
Seal Material Viton O-ring
Weight 0.17 kg

Installation Tips

Mounting Torque

Recommended case torque: 15.2 N•m (133 in•lb). Maximum: 45.2 N•m (400 in•lb).

Cable Routing

Minimum bend radius: 25.4 mm (1.0 in). Avoid sharp bends near the connector.

Temperature

Avoid exposing probe below -34°C as it may cause premature pressure seal failure.

Why Choose 330701-01-20-10-02-00?

Bently Nevada 3300 XL series reliability. 11mm design offers robust construction. PPS tip and AISI 304 case. 75Ω triaxial FEP cable. ClickLoc connector for secure connections.

FAQs

Q1: What is the thread type?
A1: 1/2‑20 UNF without armor.

Q2: What is the operating temperature range?
A2: -51°C to +177°C.

Q3: What is the recommended case torque?
A3: 15.2 N•m (133 in•lb). Maximum 45.2 N•m (400 in•lb).
