330101-00-20-10-12-05

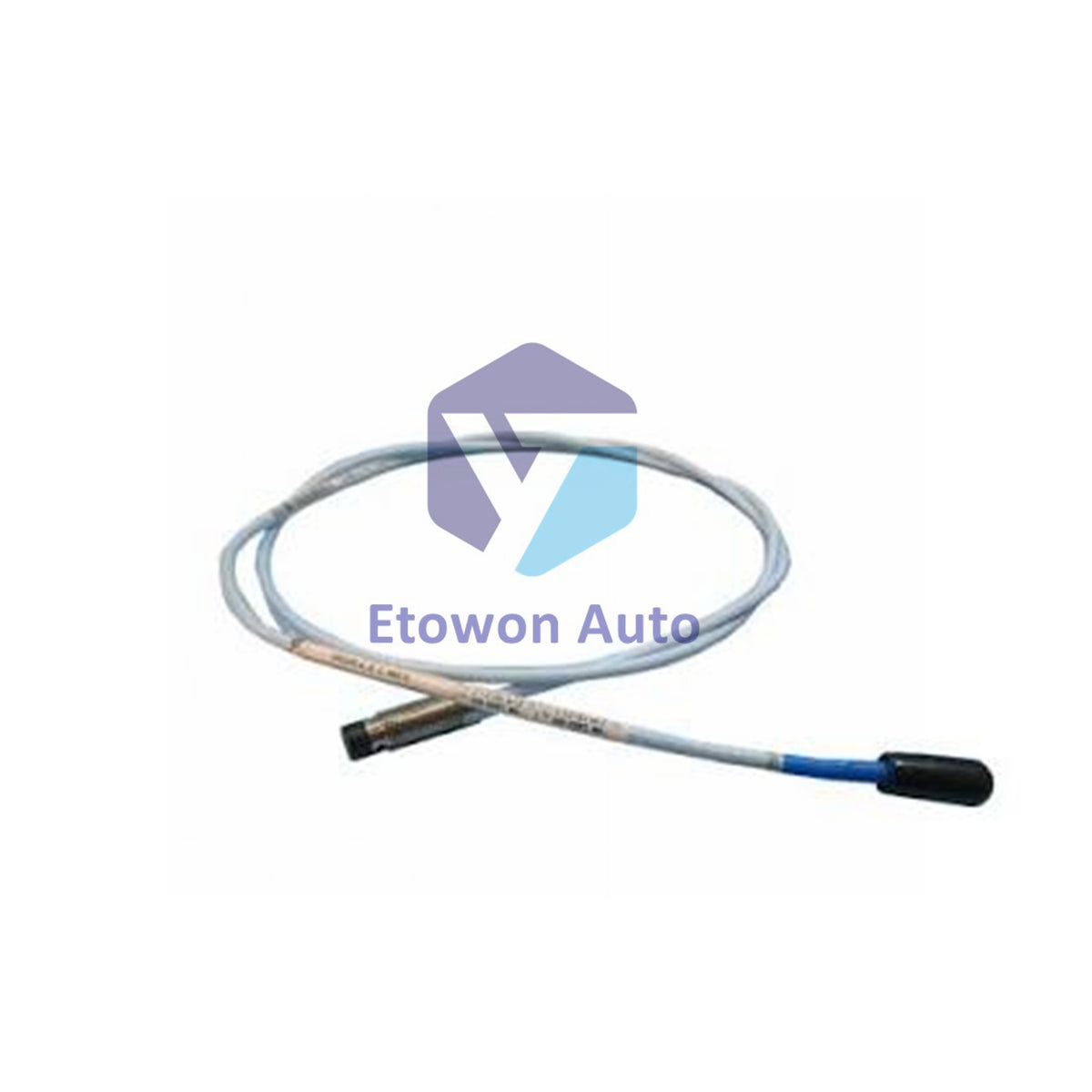

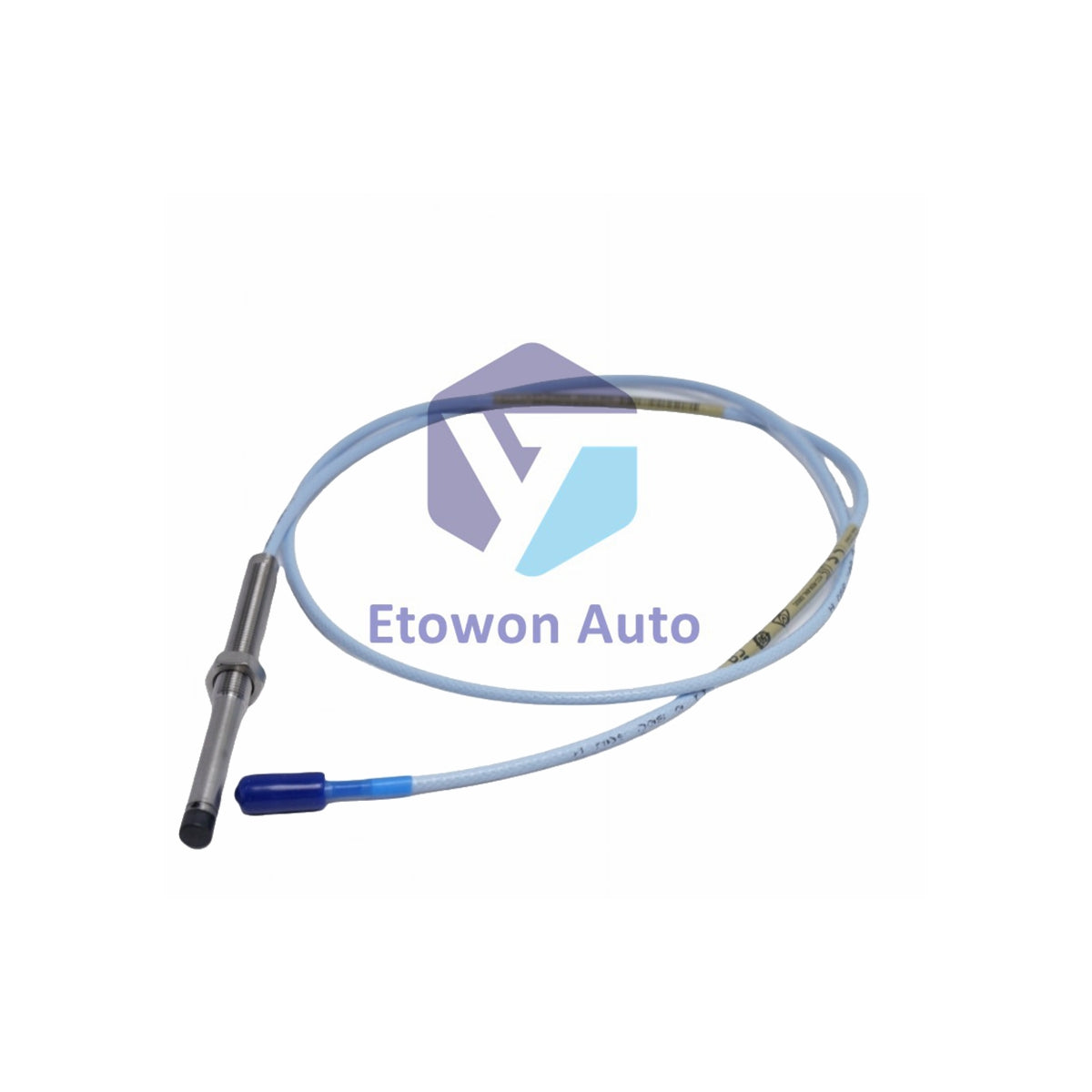

Bently Nevada 3300 XL 8mm Vibration Probe 330101-00-20-10-12-05

Only 7 units left

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-20-10-12-05

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The 330101-00-20-10-12-05 is a 3300 XL 8 mm proximity probe from Bently Nevada, designed for non-contact vibration and position measurement. Features 3/8-24 UNF thread, 1.0 metre total length, and miniature coaxial ClickLoc connector with FluidLoc cable. CSA, ATEX, and IECEx approved for hazardous areas. Weight: 323 g/m (11.4 oz/ft). Made in USA.

Technical Configuration

Part Number Breakdown

330101 = 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor.
00 = Unthreaded Length: 0.0 in (minimum).
20 = Overall Case Length: 2.0 in.
10 = Total Length: 1.0 metre (3.3 feet).
12 = Miniature coaxial ClickLoc connector, FluidLoc cable.
05 = CSA, ATEX, IECEx Approvals.

Advanced Probe Design

Patented TipLoc molding ensures robust bond between probe tip and body. CableLoc design provides 330 N (75 lbf) pull strength. FluidLoc cable option prevents oil leakage through cable interior. 8 mm diameter offers thicker PPS encapsulation and stronger case for optimal robustness against physical abuse.

Technical Specifications

Parameter Specification
Part Number 330101-00-20-10-12-05
Manufacturer Bently Nevada
Type 3300 XL 8 mm Probe, 3/8-24 UNF, without armor
Unthreaded Length 0.0 in (minimum)
Overall Case Length 2.0 in
Total Length 1.0 metre (3.3 feet)

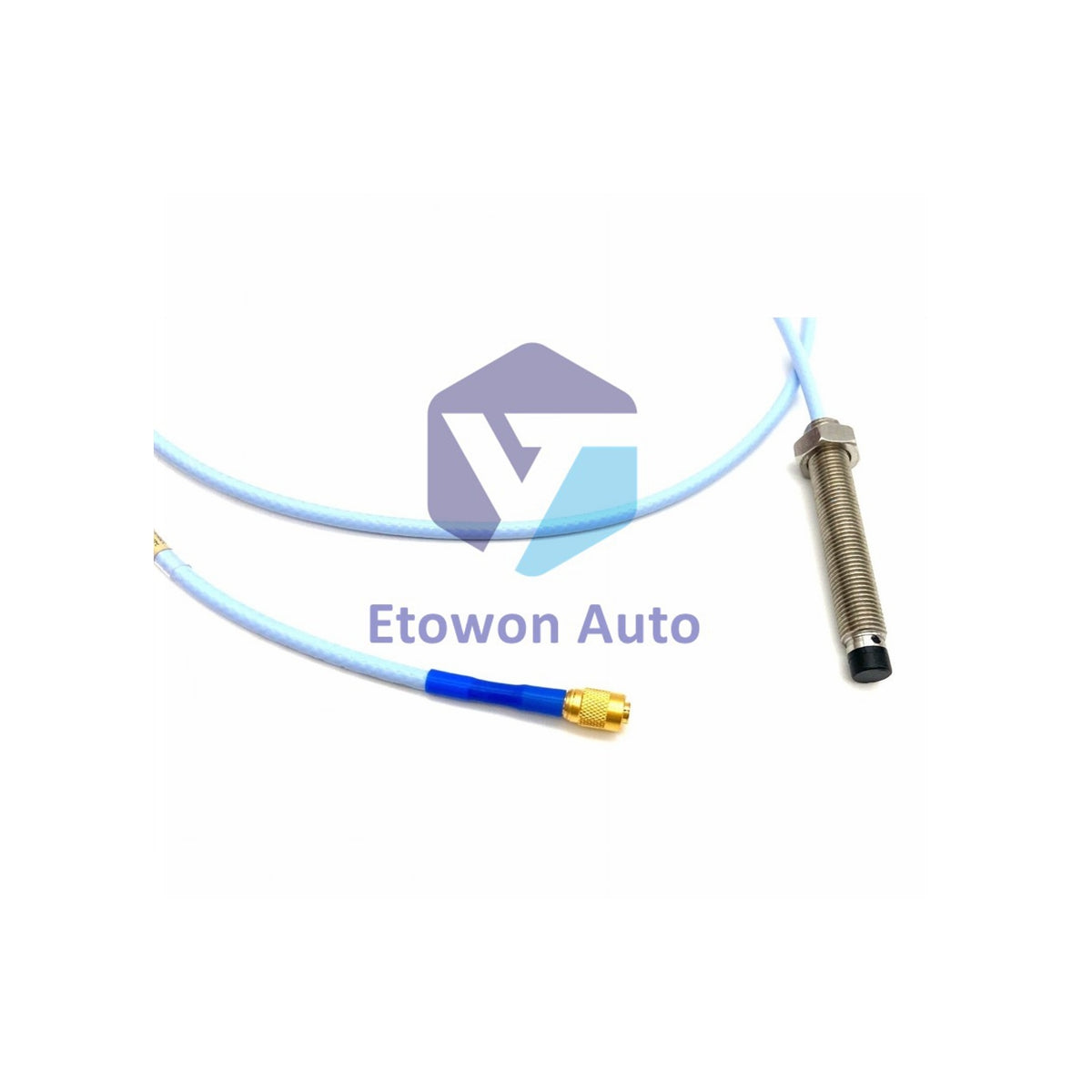

Connector Miniature coaxial ClickLoc, FluidLoc cable
Agency Approvals CSA, ATEX, IECEx (Option 05)
Linear Range 2 mm (80 mils) from 0.25 to 2.3 mm (10 to 90 mils)
Recommended Gap (Radial Vibration) -9 Vdc [~1.27 mm (50 mils)]
Scale Factor (5/1m System) 7.87 V/mm (200 mV/mil) ±5%
Scale Factor (9m System) 7.87 V/mm (200 mV/mil) ±6.5%
DSL (5/1m System) <±0.025 mm (±1 mil) @ 0–45°C
DSL (9m System) <±0.038 mm (±1.5 mil) @ 0–45°C
Probe DC Resistance (1.0m) 7.59 ± 0.50 Ω
Extension Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical
Field Wiring Length Max 305 m (1,000 ft), 16–24 AWG shielded triad
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303/304 Stainless Steel
Temperature (Standard) -52°C to +177°C (-62°F to +350°F)
Temperature (ETR Probe Tip) -52°C to +218°C (-62°F to +425°F)
Temperature (ETR Cable/Connector) -51°C to +260°C (-60°F to +500°F)
Pressure Seal Viton® O-ring
Humidity <3% ASF change @ 93% RH (56 days, IEC 68-2-3)
Weight 323 g/m (11.4 oz/ft)

Installation & Maintenance

Mounting

Install probe with 3/8-24 UNF thread. Set target gap to -9 Vdc for radial vibration applications [~1.27 mm (50 mils)]. Avoid exposing probe below –34°C as it may cause premature pressure seal failure.

Wiring

Use 3-conductor shielded triad cable, 16–24 AWG tinned wiring. Maximum field wiring length of 305 m (1,000 ft) between Proximitor Sensor and monitor. FluidLoc cable prevents oil leakage through cable interior.

Environmental Considerations

Standard probe operates -52°C to +177°C. ETR option extends tip to +218°C. Viton® O-ring seals differential pressure. Humidity tested to <3% ASF change at 93% RH for 56 days per IEC 68-2-3.

Engineering Advantages

Hazardous Area Approvals

CSA, ATEX, and IECEx certified (Option 05) for installation in potentially explosive atmospheres. Suitable for oil, gas, and petrochemical applications.

Robust Mechanical Design

TipLoc and CableLoc technologies provide 330 N pull strength and secure tip-to-body bond. 8 mm diameter with thicker PPS encapsulation delivers superior durability against physical abuse.

High Accuracy

7.87 V/mm scale factor with ±5% interchangeability error. DSL <±0.025 mm for 1/5m systems, <±0.038 mm for 9m systems. Linear range of 2 mm (80 mils) from 0.25 to 2.3 mm.

Technical FAQs

Q1: What approvals does the 05 option provide?

A1: CSA, ATEX, and IECEx certifications for hazardous area installation. Suitable for Class I, Division 1 & 2 environments.

Q2: What is the recommended gap setting for radial vibration?

A2: -9 Vdc, approximately 1.27 mm (50 mils) from target surface.

Q3: What is the maximum field wiring length?

A3: 305 m (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor using 16–24 AWG shielded triad cable.
