330104-00-06-10-02-00

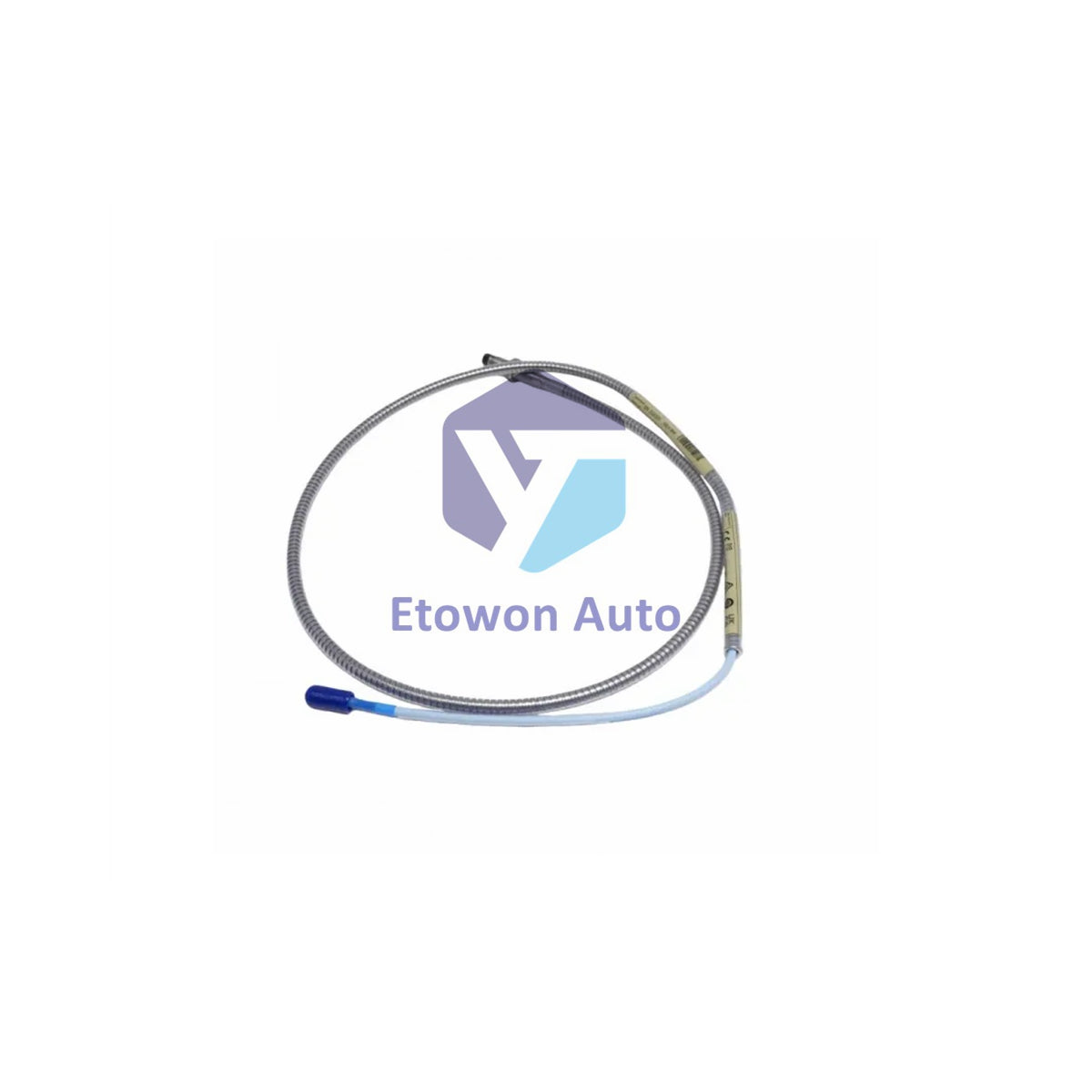

Bently Nevada 3300 XL 8mm Probe 330104-00-06-10-02-00

In stock (13 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330104-00-06-10-02-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Bently Nevada 3300 XL 8mm Proximity Transducer Probe (330104-00-06-10-02-00)

The Bently Nevada 330104-00-06-10-02-00 is a high-performance 3300 XL 8mm reverse mount proximity probe engineered for continuous critical machinery vibration and shaft position monitoring. Designed with a 1.0-meter overall length, ClickLoc coaxial connector, and Viton® O-ring sealing, this probe weighs approximately 0.323 kg (0.71 lbs) and delivers precise non-contact displacement measurement against rotating shaft targets in demanding industrial environments.

Key Performance Advantages

Delivers excellent linear measuring accuracy for dynamic vibration and static axial displacement tracking on turbomachinery. Equipped with a patented ClickLoc miniature coaxial connector for secure, vibration-resistant connectivity, and robust environmental sealing designed to resist chemical and fluid penetration.

Part Number Breakdown (330104-00-06-10-02-00)

Unthreaded Length Option (-00) 00 = 0.0 in (0 mm) Unthreaded Length
Overall Case Length Option (-06) 06 = 60 mm Overall Case Length
Total Length Option (-10) 10 = 1.0 meter (3.3 feet) Total Length
Connector Option (-02) 02 = Miniature ClickLoc coaxial connector, standard lead
Agency Approval Option (-00) 00 = Not required (Standard Uncertified Version)

Technical Specifications

Manufacturer & Series Bently Nevada (3300 XL 8mm Series)
Part Number 330104-00-06-10-02-00
Supply Voltage & Linear Range -17.5 Vdc to -26 Vdc / 2.0 mm (80 mils) Linear Range
Probe Resistance & Weight 7.45 Ω ± 0.5 Ω / Approx. 0.323 kg (0.71 lbs)
Target Material & Sealing AISI 4140 Steel Target / Viton® O-Ring Seal
Operating Temperature Range -51°C to +177°C (-60°F to +350°F) Body/Tip Range
Hazardous Area Approval Option 00 (Unapproved / Safe Area Use)

Installation & Operation Guidelines

  • Gap Setting: Position the probe to maintain an approximate 1.27 mm (50 mils) physical gap from the target to yield a nominal -10 Vdc bias output baseline.
  • System Matching: Connect to a matching 3300 XL Proximitor and extension lead to form a complete 5m or 9m calibrated system length.
  • Connector Care: Hand-tighten ClickLoc coaxial connectors securely without using tools to avoid damaging miniature pin contacts.

Frequently Asked Questions

Q1: Has EMC filter?
A1: N/A (Eddy current proximity transducer).

Q2: Key feature vs PF523?
A2: Non-contact shaft displacement probe with 1.0m total length.

Q3: Drives 3-phase motors?
A3: No, measures vibration and shaft gap position.
