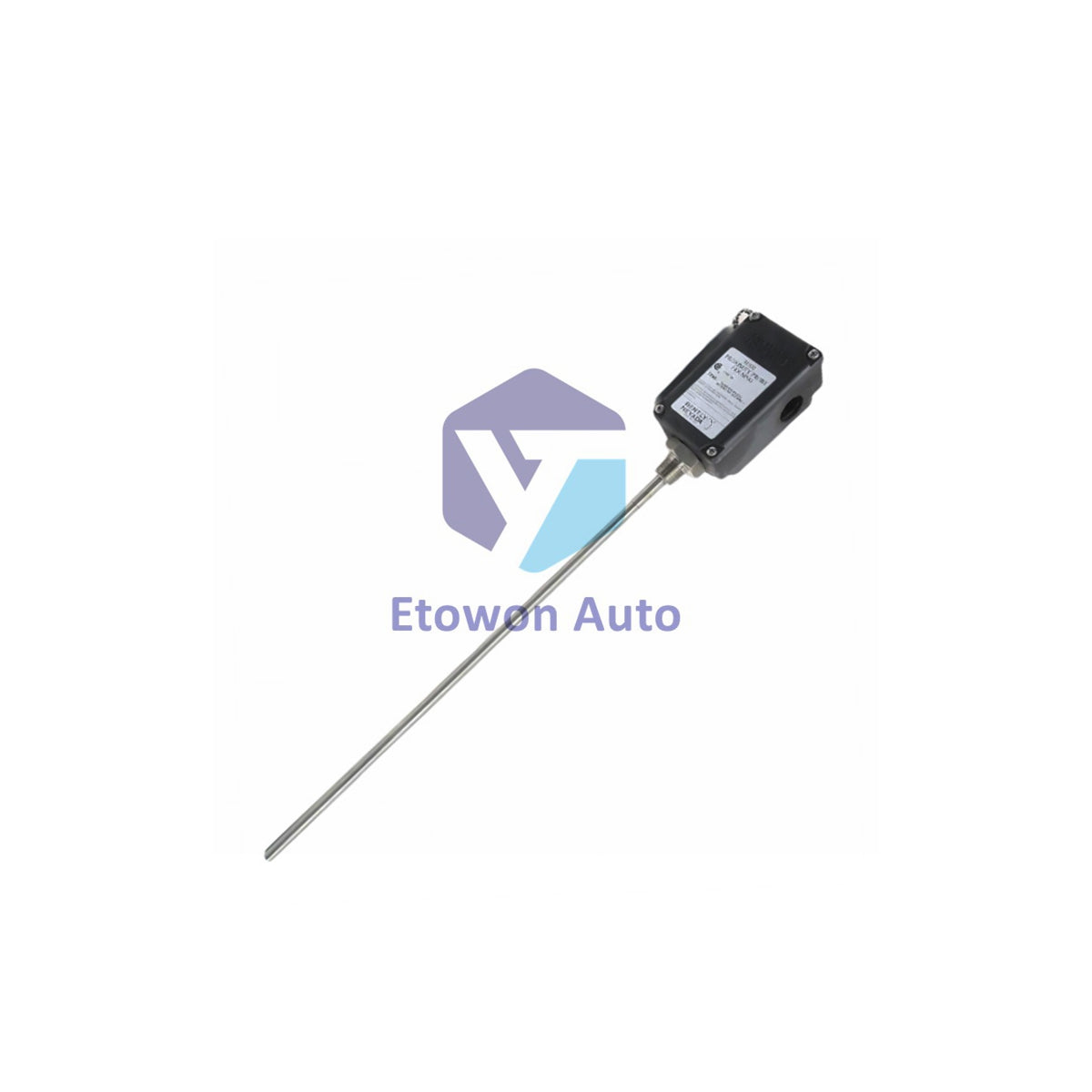

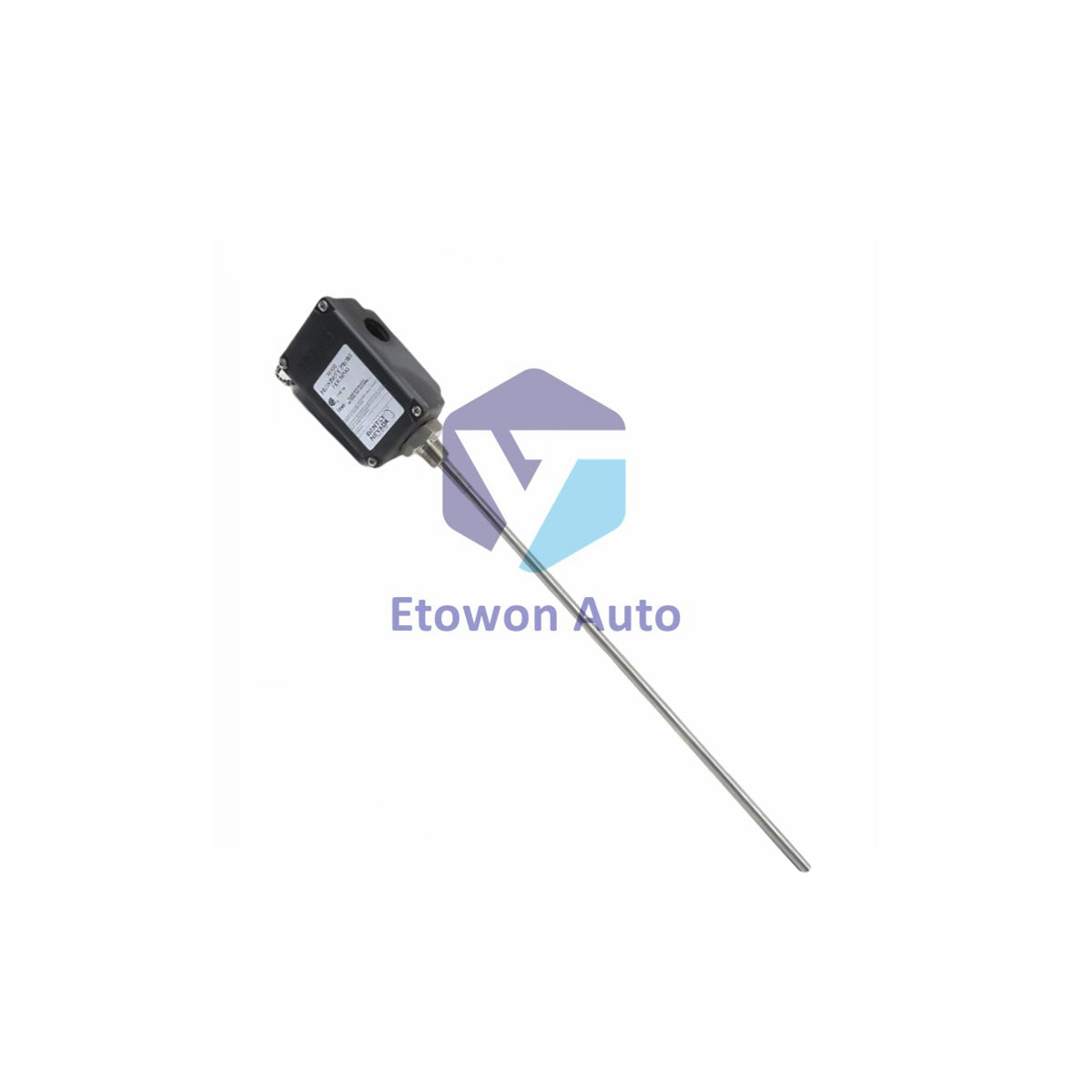

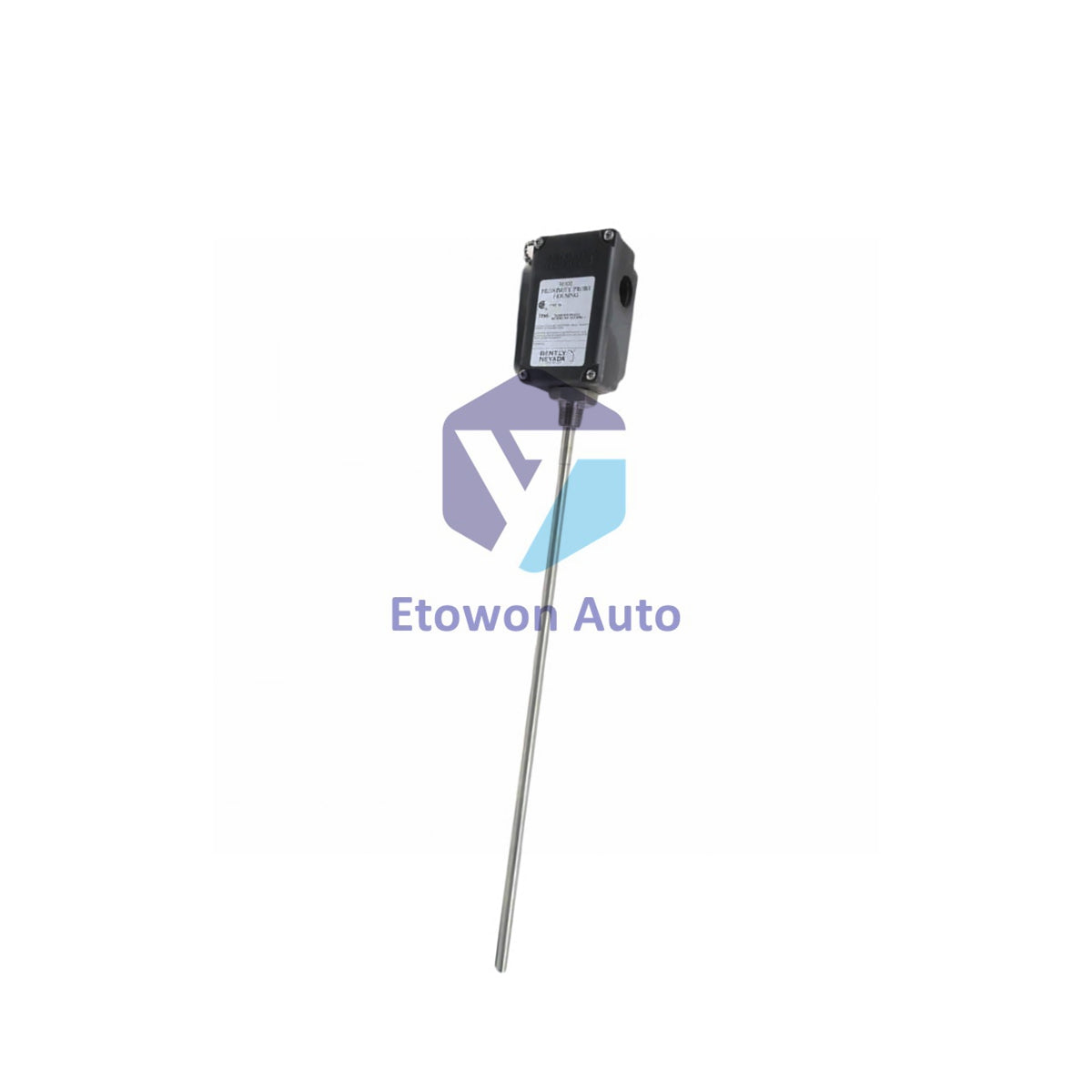

Bently Nevada 31000-16-10-15-041-03-02 Probe Housing Assembly

Product Overview

The Bently Nevada 31000-16-10-15-041-03-02 is a rugged, industrial-grade Proximity Probe Housing Assembly engineered for critical machinery asset protection. This specialized enclosure is designed to internally mount and protect a 3300 XL 8mm proximity probe, providing an external path for adjusting or swapping sensors while the machinery is under active operation. Constructed from a highly durable combination of PPS thermoplastic and premium stainless steel hardware, it delivers uncompromising environmental protection for non-contacting radial vibration and axial gap measurement loops on large turbines, compressors, and gearboxes.

Core Features

• Conductive PPS Thermoplastic Structure: Main body molded from Polyphenylene Sulfide (PPS) polymer, ensuring natural electrostatic dissipation to completely prevent hazardous spark build-up.
• Explosive Atmosphere Readiness: Fully certified under the European CENELEC EN50014 standard for explosion-proof safety loops in hazardous process locations.
• Robust NPT Sealing Matrix: Features a full IP66/Type 4X weather-proof rating equipped with three cable grommets to fully shield the inner telemetry connection from steam, oil, and moisture washdowns.
• High Mechanical Load Rating: Supports heavy physical industrial stress, tolerating up to 205 lbs of vertical load force at full extension alongside an external 7J impact resistance score.

Technical Specifications

Engineering & Installation Guide

• Enclosure Mounting & Structural Support: With a solid total weight profile of 1.10 kg across the extended 4.1" sleeve assembly, ensure your casing mount wall provides rigid stability. Thread the 3/4-14 NPT connection straight into the machinery housing tap and torque firmly to precisely 260 in-lbs using a calibrated torque wrench to ensure a liquid-tight pressure seal.
• Penetration Depth Verification: Double-check your machine casing dimensions prior to threading the assembly home. The 4.1" penetration depth must provide ample internal clearance to prevent the 3300 XL 8mm probe tip from making physical, destructive contact with the rotating shaft when set to its calibrated voltage gap.
• Cable Sealing Integration: Run the 1.0-meter probe lead out through the built-in NPT reducer port. Select the matching cable grommet from the three included options (covering a 1/8" to 3/8" range) to match your outer sleeve diameter, locking down the compression nut to maintain the IP66 ingress defense standard.
• Electrostatic Bonding Rules: Because the outer housing utilizes a specialized conductive PPS thermoplastic compound, ensure the assembly has clean, metal-to-metal continuity back to the machine ground point. This fulfills CENELEC EN50014 parameters by eliminating static charging risks in combustible atmospheres.

Technical FAQs

Q1: What is the main design advantage of using a 31000 series front-access housing over standard bracket mounts?
A1: The 31000 series housing allows engineers to mechanically access, gap, or completely replace the internal 3300 XL proximity probe from outside the machine casing without shutting down the equipment. This eliminates costly machinery outages during minor instrumentation tune-ups.

Q2: Why is the torque value of 260 in-lb strictly specified for the 3/4-14 NPT process thread?
A2: Applying the exact 260 in-lb torque ensures the NPT tapered threads crush and seal correctly against high internal machine pressures, stopping dangerous lube-oil leaks. Under-torquing leads to vibrational loosening, while over-torquing risk straining the 1.5" standoff adapter block.

Q3: How does the combination of 304 and 303 stainless steels protect the internal sensor components?
A3: The interior sleeve and brackets utilize 304 stainless steel for superior structural durability against raw mechanical fatigue, while the external fasteners utilize 303 stainless steel to provide high corrosion resistance against caustic washdown routines and atmospheric chemicals.
