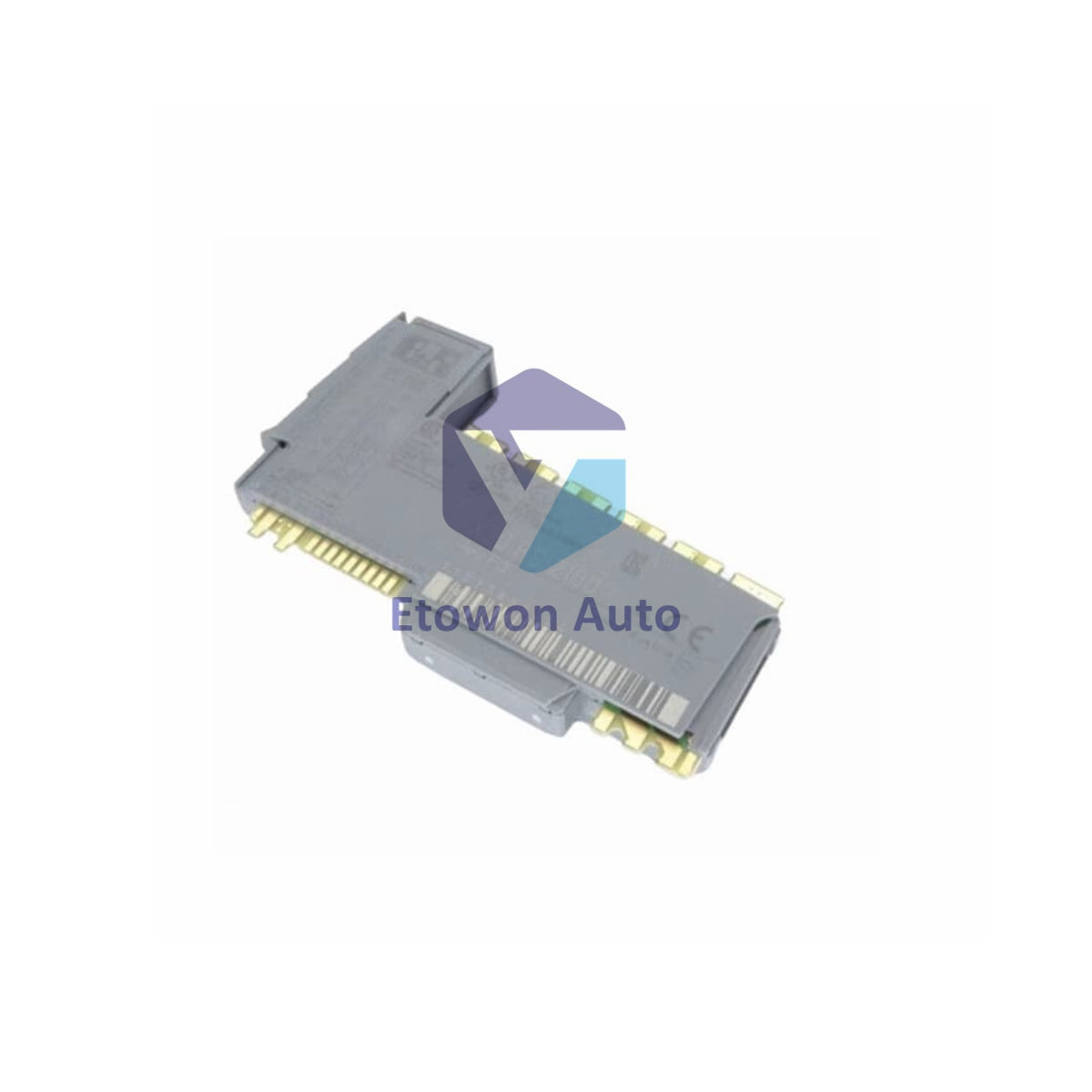

B&R X20RT8401 High-Speed Mixed I/O Module

X20RT8401 reACTION Technology Module

B&R X20RT8401 delivers 1 µs response in a compact analog combo design. Four high-speed digital inputs. Four configurable mixed channels. One high-speed analog input ±10 V. One high-speed analog output ±10 V. ABR incremental encoder input. Blackout mode support.

Technical Specifications

• Digital Inputs: 4 standard + 4 mixed, 24 VDC sink, filter <3 µs
• Digital Outputs: 4 mixed push-pull, 100/530 mA configurable, switching delay <1 µs
• Analog Input: 1 high-speed, ±10 V voltage signal
• Analog Output: 1 high-speed, ±10 V voltage signal
• Encoder Input: 1 ABR incremental, 24 V, 333 kHz max frequency, 32-bit counter
• Encoder Supply: 24 VDC, 600 mA, short-circuit protected
• Response Time: 1 µs via reACTION Technology
• Blackout Mode: Programmed logic runs during network failure
• Isolation: Channel to bus 856 VAC
• Temperature: -25 to 60°C horizontal, -25 to 50°C vertical
• Certifications: CE, UL, ATEX Zone 2, DNV, CCS, LR, KR, ABS, BV
• Memory: 64 Mbit flash, 100,000 write cycles

Package Contents

• 1x X20RT8401 reaction module
• Quick start guide
• Shipping via FedEx, UPS, DHL

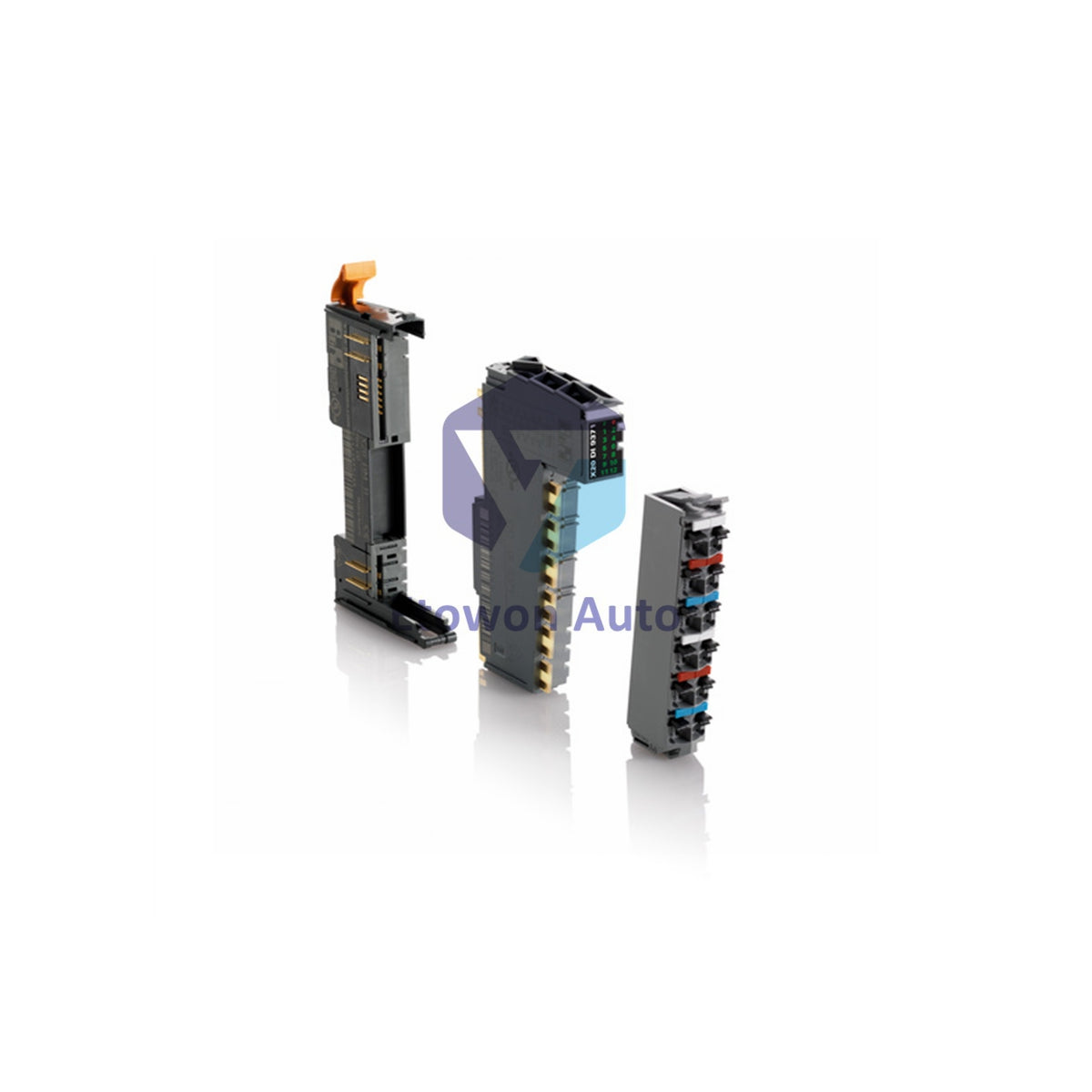

• X20TB12 terminal block and X20BM11 bus module sold separately

FAQ

Q: What is the main advantage of X20RT8401?

It provides both analog input and output in a single module with full digital I/O and encoder support.

Q: Can I use the analog input and output simultaneously?

Yes. Both analog channels operate independently within the 1 µs response framework.

Q: What encoder types are compatible?

24 V asymmetrical incremental encoders (A, B, R) with 333 kHz max frequency.
