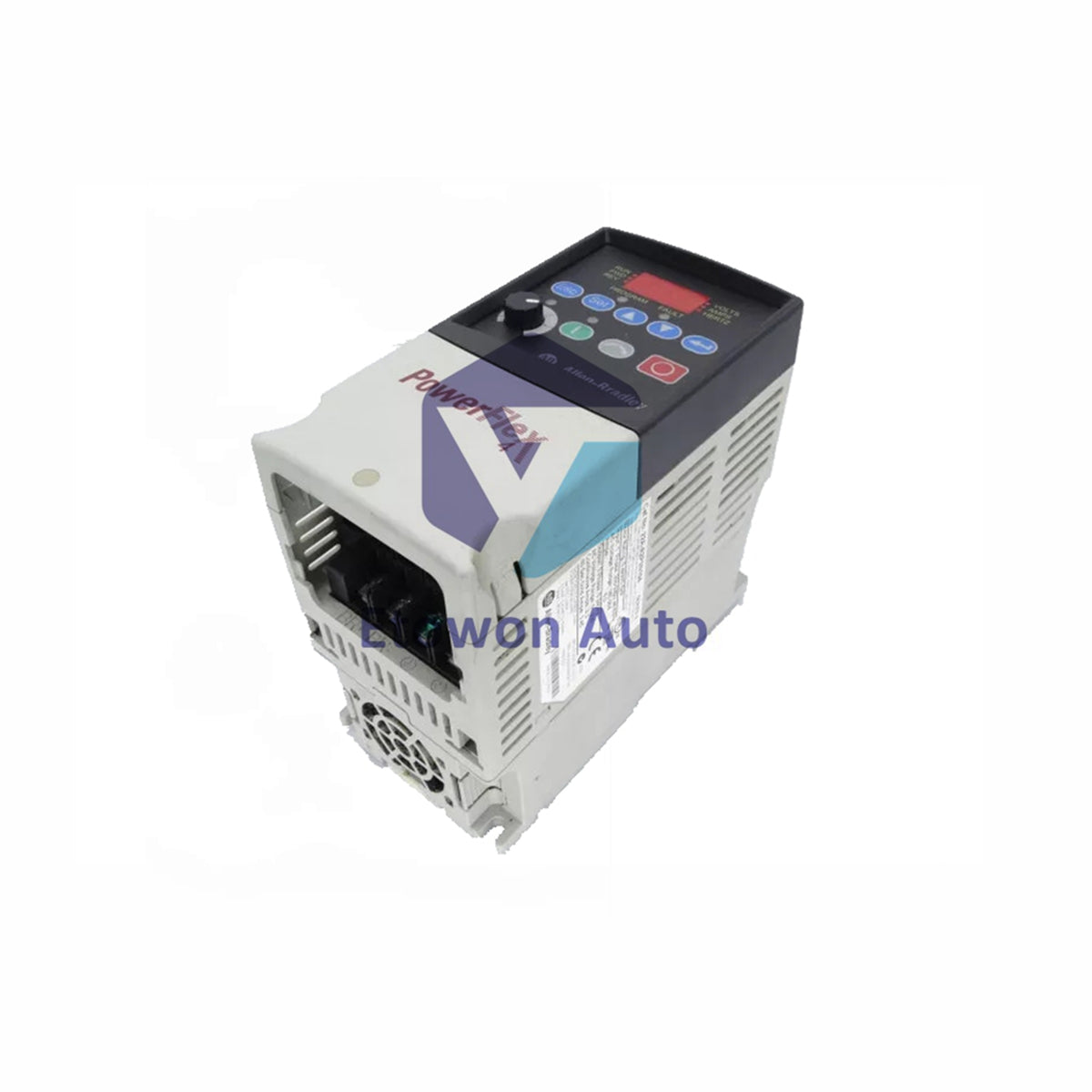

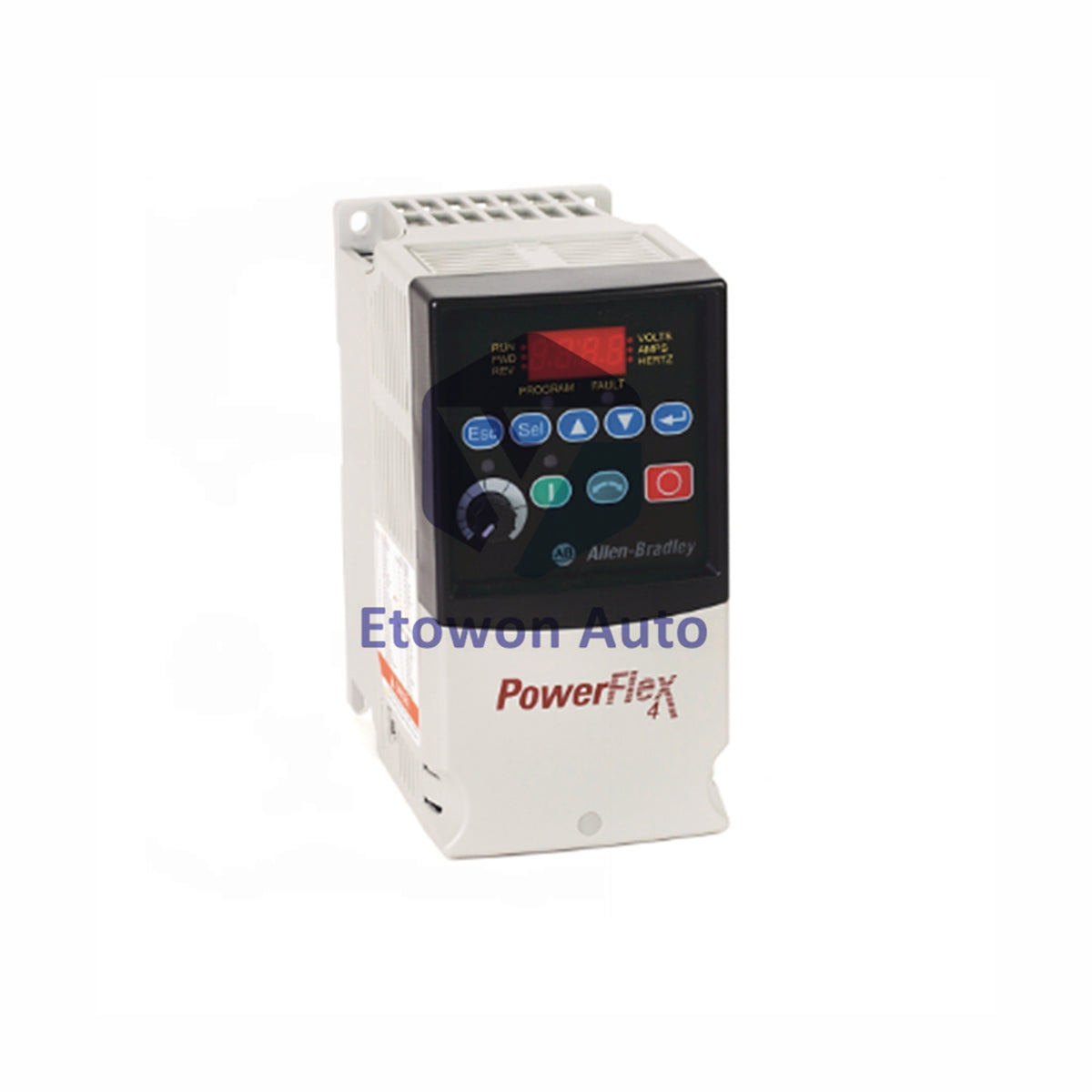

22B-D012N104

Allen-Bradley PowerFlex 4M Drive | 22A-D1P5N104

In stock (20 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-D012N104

  • Product Type: PowerFlex 40 AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 3977g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley PowerFlex 4M Drive 22A-D1P5N104

Advanced 3-phase motor controller 22A-D1P5N104 featuring LED display and RS485 connectivity for industrial automation systems. Professional-grade performance with reliable speed control capabilities.

Product Identification

  • Brand: Allen-Bradley
  • Model: 22A-D1P5N104
  • Product Series: PowerFlex 4M Drive
  • Drive Type: AC Variable Frequency Drive

Core Specifications

  • Power Input: 380-480V AC (3-Phase)
  • Current Output: 12A continuous
  • Control Interface: Digital keypad with LED status display
  • Communication: Built-in RS485 port
  • Protection Rating: IP20 (NEMA Open Type)
  • Response Time: < 5ms signal processing

Technical Details

  • Model Series: PowerFlex Frame Size C
  • EMC Filter: Non-CE compliant configuration
  • Dimensions: Compact panel-mount design
  • Weight: 3.977 kg (8.77 lbs)
  • Ambient Temperature: -10°C to +50°C
  • Storage Temperature: -40°C to +70°C

Installation Features

  • Vertical cabinet mounting design
  • 35mm DIN rail compatibility
  • Pre-configured acceleration profiles
  • Easy wiring termination system
  • Quick setup and configuration

Frequently Asked Questions

  • What communication protocols are supported by model 22A-D1P5N104?
    RS485 with Modbus protocol for industrial network integration.
  • Is this drive suitable for single-phase power?
    No, requires 3-phase 380-480V AC power input only.
  • What motor types can be controlled by 22A-D1P5N104?
    Compatible with standard 3-phase AC induction motors.

Warranty & Support

  • Warranty Period: 12 Months Coverage
  • Technical Support: Available
  • Manufacturer Backup: Allen-Bradley quality
  • Defect Protection: Manufacturing issues covered

Additional Resources

Download Detailed Product Specifications PDF
