25B-V6P0N104

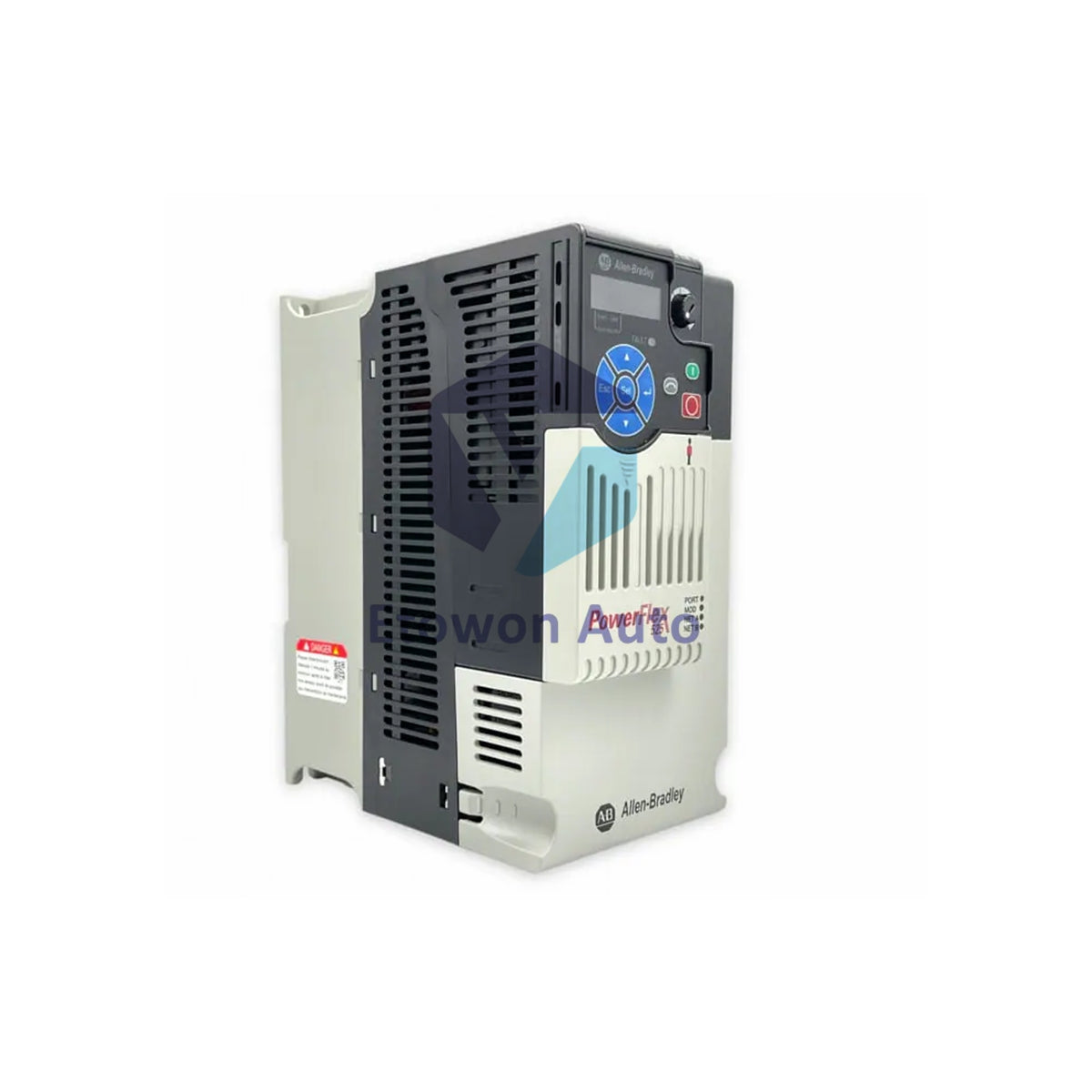

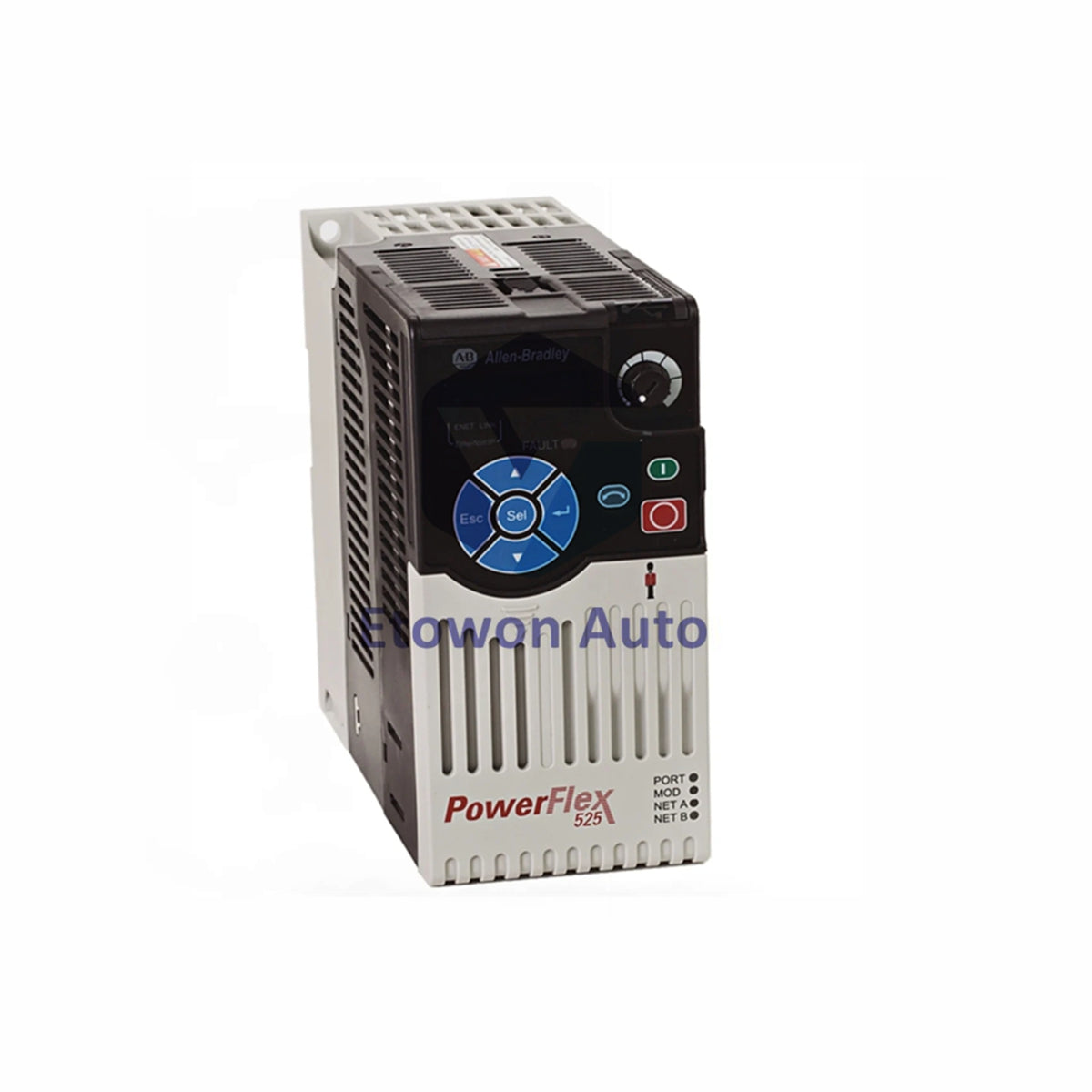

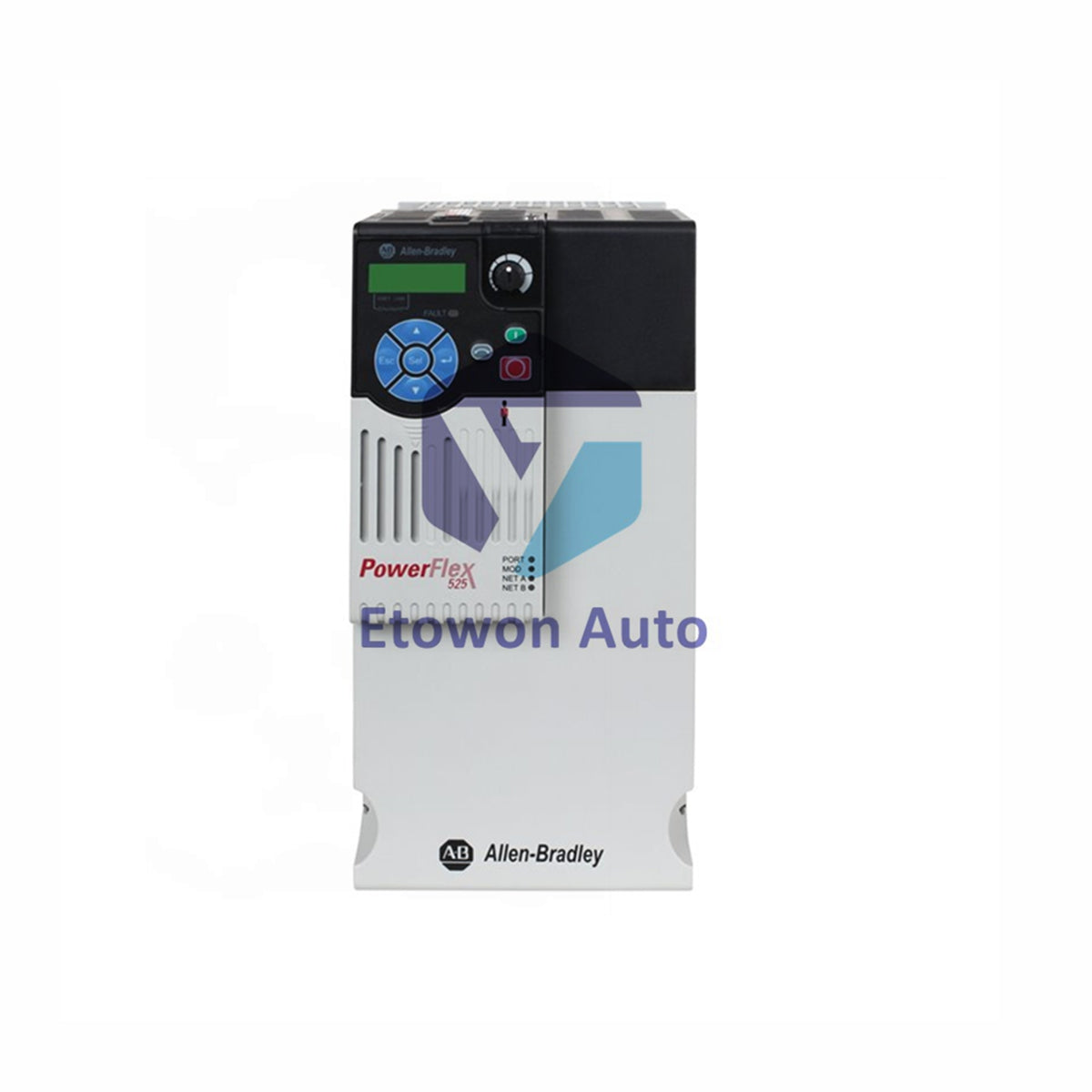

Allen-Bradley 25B-V6P0N104 PowerFlex 525 AC Drive

In stock (23 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 25B-V6P0N104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The Allen-Bradley 25B-V6P0N104 is a PowerFlex 525 adjustable frequency AC drive with 1.5 HP (1.1 kW) output. It supports V/Hz, sensorless vector, closed-loop vector, and permanent magnet motor control. The integrated Ethernet port enables direct PAC integration. Net weight is approximately 1.1 kg (2.4 lbs).

Key Specifications

Parameter Value
Catalog Number 25B-V6P0N104
Product Family PowerFlex 525
Input Voltage 100 to 120 VAC, 1-Phase (85 to 132 VAC)
Input Current 3.2 A
Output Voltage 0 to 230 VAC, 3-Phase
Output Current 6.0 A
Output Power 1.5 HP (1.1 kW), normal and heavy duty
Output Frequency 0 to 500 Hz
Efficiency 97.5% typical
Control Methods V/Hz, SVC, closed-loop vector, PM motor
Embedded I/O 6 digital in, 2 analog in, 2 relay out, 1 analog out
Communication Ethernet/IP, RS485, DSI port
Safety Safe-Torque Off (STO)
Braking Built-in IGBT
Enclosure IP20 NEMA/Open Type
Frame B
Dimensions (HxWxD) 7.09 x 3.43 x 6.77 in
Storage Temp. -40 to 85 °C
Net Weight Approx. 1.1 kg (2.4 lbs)

Installation & Advantages

Mounting: Panel mount with IP20 open-type enclosure.

Communication: Integrated Ethernet/IP port enables direct CompactLogix and ControlLogix integration.

Control: Multiple motor control methods support speed, torque, and position applications.

Safety: Safe-Torque Off (STO) functionality supports machine safety requirements.

Weight Advantage: At 1.1 kg, the compact frame simplifies panel layout and reduces enclosure load.

FAQs

Q1: What is the output power rating?
A1: It delivers 1.5 HP (1.1 kW) for both normal and heavy duty operation.

Q2: Does this drive include an EMC filter?
A2: No, the 25B-V6P0N104 does not have an integrated EMC filter.

Q3: What communication ports are built in?
A3: It includes Ethernet/IP and RS485 ports, plus a DSI port for accessory modules.
