25B-D6P0N114

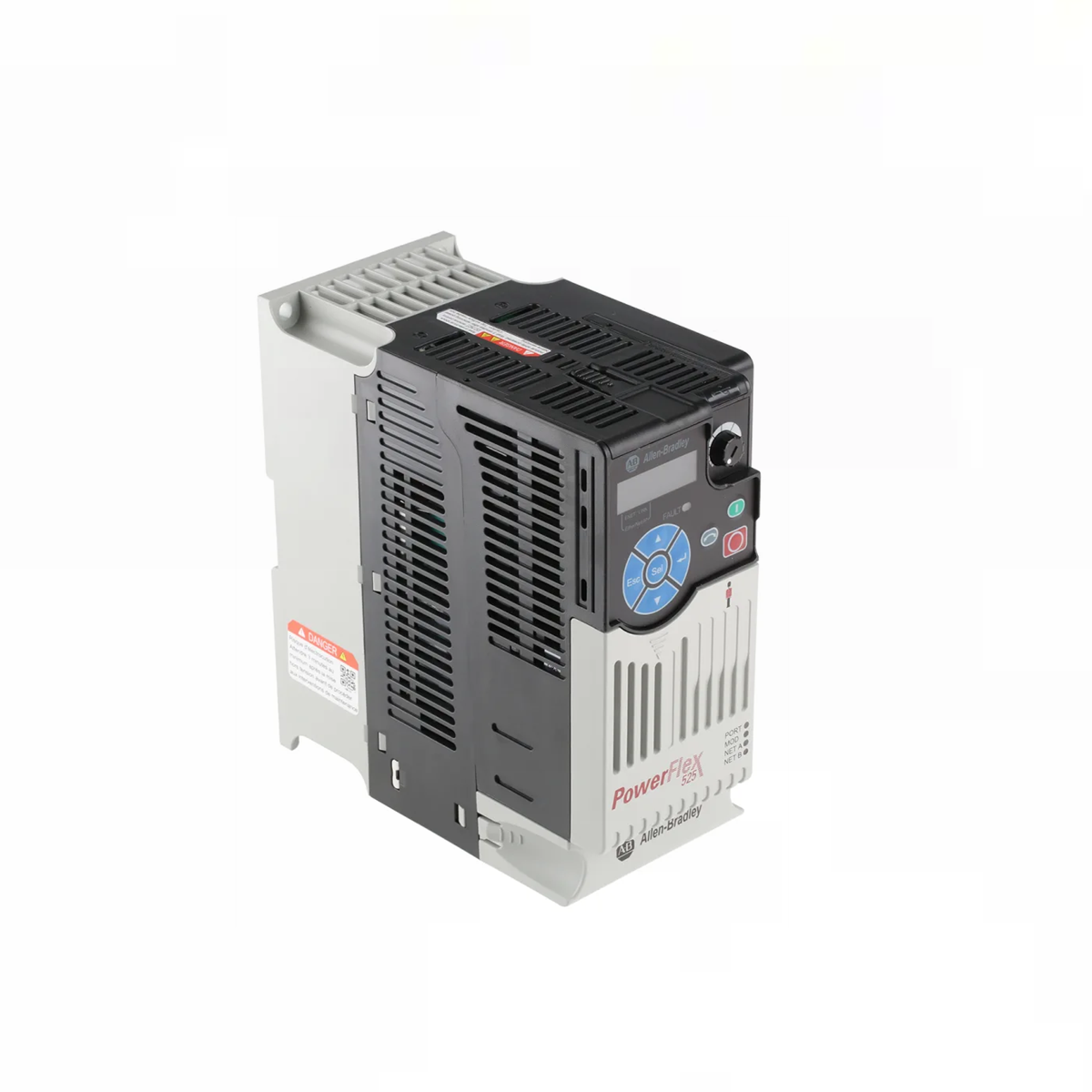

Allen-Bradley 25B-D6P0N114 PowerFlex 525 VFD 3HP

In stock (23 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 25B-D6P0N114

  • Product Type: Variable Frequency Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1300g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The Allen-Bradley 25B-D6P0N114 is a PowerFlex 525 adjustable frequency AC drive delivering 2.2 kW (3.0 HP) motor output with 6.0 A rated current. Weighing approximately 1.3 kg, it operates on 323-528 VAC 3 phase input with 0-460 VAC output and an integral EMC filter.

Key Features

Integral EMC filter reduces external components and installation cost. Safe Torque Off (STO) functionality provides integrated safety. PointStop technology included. Built in HIM with start, stop, forward, reverse, and jog buttons plus potentiometer. Embedded Ethernet I/P and RS485 communication. Supports zero stacking at 45°C. Lightweight 1.3 kg Frame A design for DIN rail or panel mounting.

Technical Specifications

Manufacturer Rockwell Automation / Allen-Bradley
Part Number 25B-D6P0N114
Series PowerFlex 525 Drive
Input Voltage 323-528 VAC
Input Phase 3 Phase
Output Voltage 0-460 VAC
Output Current 6.0 A
Output Power 2.2 kW (3.0 HP)
Output Frequency 0-500 Hz
Frame Size Frame A
Enclosure Rating IP20 / NEMA UL Type Open
EMC Filter Integral
Safety Safe Torque Off (STO)
Communication Ethernet I/P, RS485
Discrete Inputs 7 Sink / Source
Discrete Outputs 1 N.O., 1 N.C., 2 Digital Optocoupler
Analog Input 2 (0-10VDC, 0-20mA)
Analog Output 1 (0-10VDC, 0-20mA)
Control Methods V/Hz, SVC, Closed Loop Vector, PM Motor
Dimensions 6.77 x 2.83 x 5.98 inches
Weight Approximately 1.3 kg

Installation Guide

Mount the 25B-D6P0N114 (approx. 1.3 kg) on a standard DIN rail or screw mount to an enclosure subpanel. Connect 3 phase 323-528 VAC input and verify 6.0 A output current matches motor requirements. Use Ethernet I/P or RS485 for network integration with Studio 5000 Logix Designer. Zero stacking is supported at ambient temperatures up to 45°C. Ensure installation environment is dry and free from live current.

Engineering Advantages

Integrated EMC filter eliminates need for external filtering components. Safe Torque Off (STO) simplifies machine safety design without external contactors. Built in HIM with potentiometer and LCD enables local configuration and monitoring. Compact 1.3 kg Frame A footprint with zero stacking reduces panel size. Supports multiple motor control methods including permanent magnet motor control. Seamless integration with CompactLogix and ControlLogix via Ethernet I/P.

Frequently Asked Questions

Q1: What is the motor output rating of the 25B-D6P0N114?

A1: It delivers 2.2 kW (3.0 HP) with 6.0 A output current for both normal and heavy duty operation.

Q2: Does this drive include an EMC filter?

A2: Yes, it features an integral EMC filter, reducing external component requirements.

Q3: What safety functionality does this drive offer?

A3: It includes integrated Safe Torque Off (STO) functionality for machine safety applications.
