Allen-Bradley 25B-D030N104 | 7DI 2AI 1AO IP20 VFD 11kW Heavy Duty

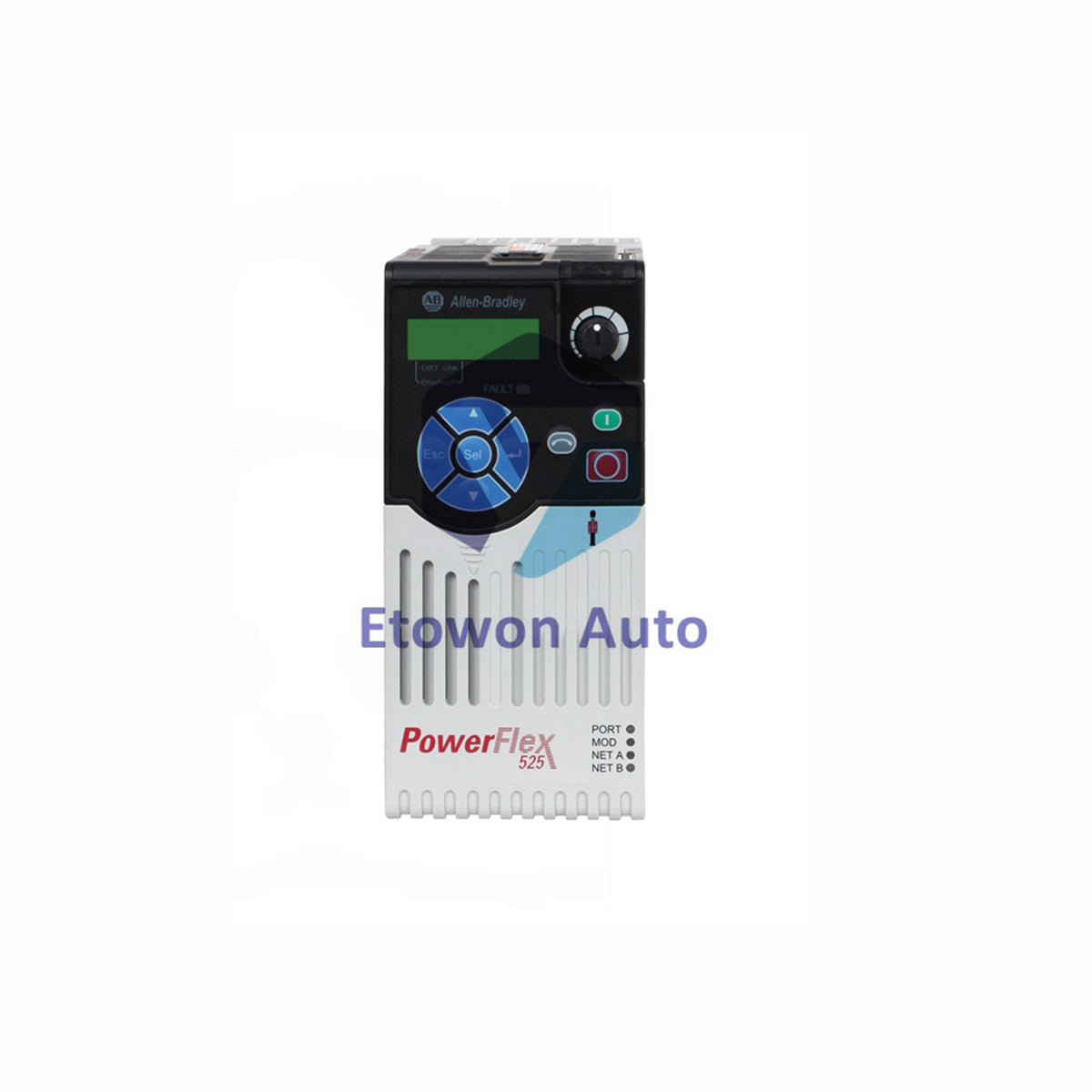

Allen-Bradley 25B-D030N104 PowerFlex 520 AC Drive

Product Overview

The Allen-Bradley 25B-D030N104 is a PowerFlex 520 series adjustable frequency AC drive. It delivers 30.0 A output current with 15.0 kW (20.0 HP) normal duty and 11.0 kW (15.0 HP) heavy duty power ratings. Operating on 3-phase 480 VAC input, this Frame D drive features an IP20 / NEMA Open Type enclosure. Weight is 3.9 kg.

Specifications

Key Features

• 30.0 A output current for demanding motor applications
• 15.0 kW normal duty and 11.0 kW heavy duty power ratings
• 3-phase 480 VAC input with 0-460 VAC output range
• Frame D compact design for panel space savings
• 7 discrete inputs with sink/source configurability
• 2 analog inputs and 1 analog output for process control
• 2 optocoupler digital outputs and 2 relay outputs
• IP20 / NEMA Open Type enclosure

Installation Notes

Mount the drive in a vertical position with adequate clearance. Ensure proper grounding and cable sizing for 30.0 A output. The IP20 enclosure requires installation in a protected panel. Configure I/O settings based on application requirements.

FAQs

Q1: What is the difference between normal duty and heavy duty ratings?

A1: Normal duty provides 15.0 kW for variable torque loads. Heavy duty provides 11.0 kW for constant torque applications with higher overload requirements.

Q2: What analog I/O is available on this drive?

A2: 2 analog inputs and 1 analog output, supporting 0-10 VDC or 0-20 mA signals.

Q3: What is the enclosure rating?

A3: IP20 / NEMA UL Type Open, requiring installation in a protected enclosure.
