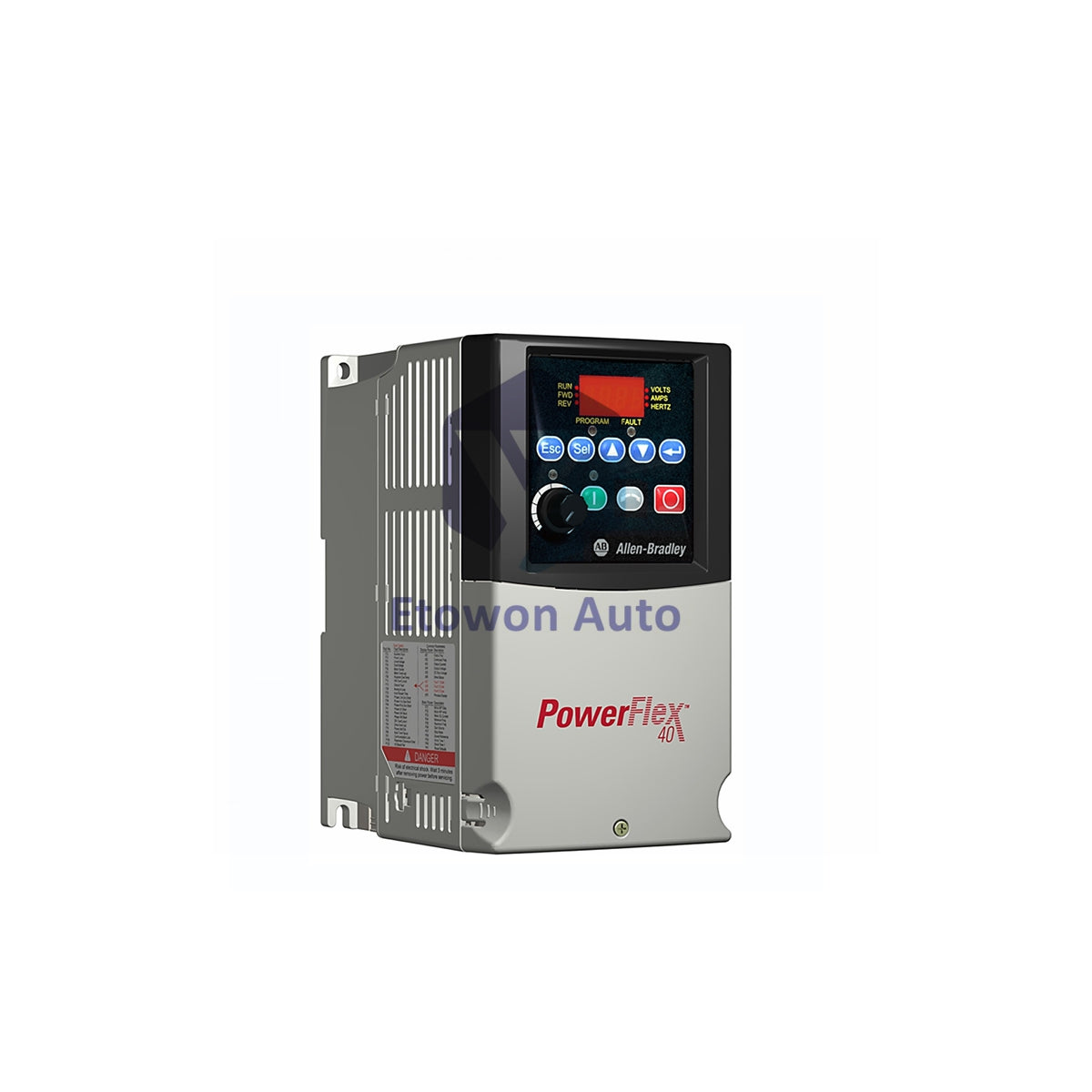

Allen-Bradley 22D-B2P3H204 PowerFlex 40P 0.4kW Plate VFD

In stock (12 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22D-B2P3H204

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2700g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 22D-B2P3H204: PowerFlex 40P 0.5HP Drive

The Allen-Bradley 22D-B2P3H204 is a PowerFlex 40P adjustable frequency drive rated for 0.5HP (0.4kW). This plate mount VFD delivers 2.3A output at 240V AC 3-phase input with IP20/NEMA Open protection. Engineers choose the 22D-B2P3H204 for sensorless vector control and compact plate mounting.

Key Specifications

  • Part Number: 22D-B2P3H204
  • Amperage: 2.3 A
  • Horsepower: 0.5 HP (0.4 kW)
  • Input Power: 240V AC, 3-Phase, 50-60 Hz
  • Frame Size: B
  • Enclosure: Open Plate Mount (IP20)
  • Filter: No CE Compliant Filter
  • Weight: 2.7 kg (6.0 lbs)

Electrical Ratings

  • Input Power Rating: 1.15 KVA at 2.5A
  • Power Dissipation: 40W estimated
  • Voltage Tolerance: -10% to +10%
  • Frequency Tolerance: 48 to 63 Hz
  • Power Factor: 0.98 across full speed range
  • Short-Circuit Rating: 100,000 Amps

Control & Performance

  • Sensorless vector control with 100:1 speed range
  • Standard V/Hz control with custom capability
  • Sinusoidal PWM with 2-16 kHz carrier frequency
  • Output frequency: 0-500 Hz programmable
  • Drive efficiency: 97.5%
  • Accel/Decel: 0-600 seconds (0.1s increments)
  • Overload: 150% for 60s, 200% for 3s

Protection Features

  • MOV surge protection (phase-to-phase & phase-to-ground)
  • BUS overvoltage trip: 405V DC
  • BUS undervoltage trip: 210V DC
  • Class 10 motor overload (i²t algorithm)
  • 200% hardware overcurrent limit
  • 300% microprocessor overcurrent trip
  • 100ms power loss ride-through
  • 2-second Logic control ride-thru

Environmental Ratings

  • Operating Temp: -10°C to +40°C (14°F to 104°F)
  • Storage Temp: -40°C to +85°C (-40°F to 185°F)
  • Relative Humidity: 5% to 95% non-condensing
  • Max Altitude (no derating): 1000m
  • Certifications: cUL-us, CE, AS/NZS

Package Contents

  • 1x Allen-Bradley 22D-B2P3H204 drive unit
  • Factory sealed anti-static packaging
  • Original Allen-Bradley box

Shipping Information

  • FedEx, UPS, DHL Express worldwide
  • Same-day dispatch for in-stock items
  • Tracking provided immediately

FAQs

Q: Weight of Allen-Bradley 22D-B2P3H204?

A: 2.7 kg (6.0 lbs).

Q: What control methods does it support?

A: Sensorless vector and standard V/Hz control.

Q: What is the maximum output frequency?

A: 0 to 500 Hz programmable output frequency range.

Product Resources

📄 Download PDF
🏷️ Tags: AC Drive

Scalar (V/f)

Vector

AC-powered
  • Confirm the exact model, part number, and specifications before ordering.
  • Ensure compatibility with your current machinery or control systems.
  • Reach out via sale@etowonauto.com or +8617859788089 for technical assistance.
  • Review delivery options, lead times, and shipping requirements.
  • Follow manufacturer instructions and best practices during installation.

In-stock items are typically dispatched the same business day. For products not currently in stock, dispatch times may vary based on availability. International shipping is available, and shipping costs are calculated according to destination, weight, and carrier selection.

Returns are accepted within 30 days of receipt, provided items are unused and in original condition. Return shipping costs are the responsibility of the customer. Please contact us before returning any item to receive return authorization.

For more details, please review our Shipping & Return Policy.
