22B-B017C104

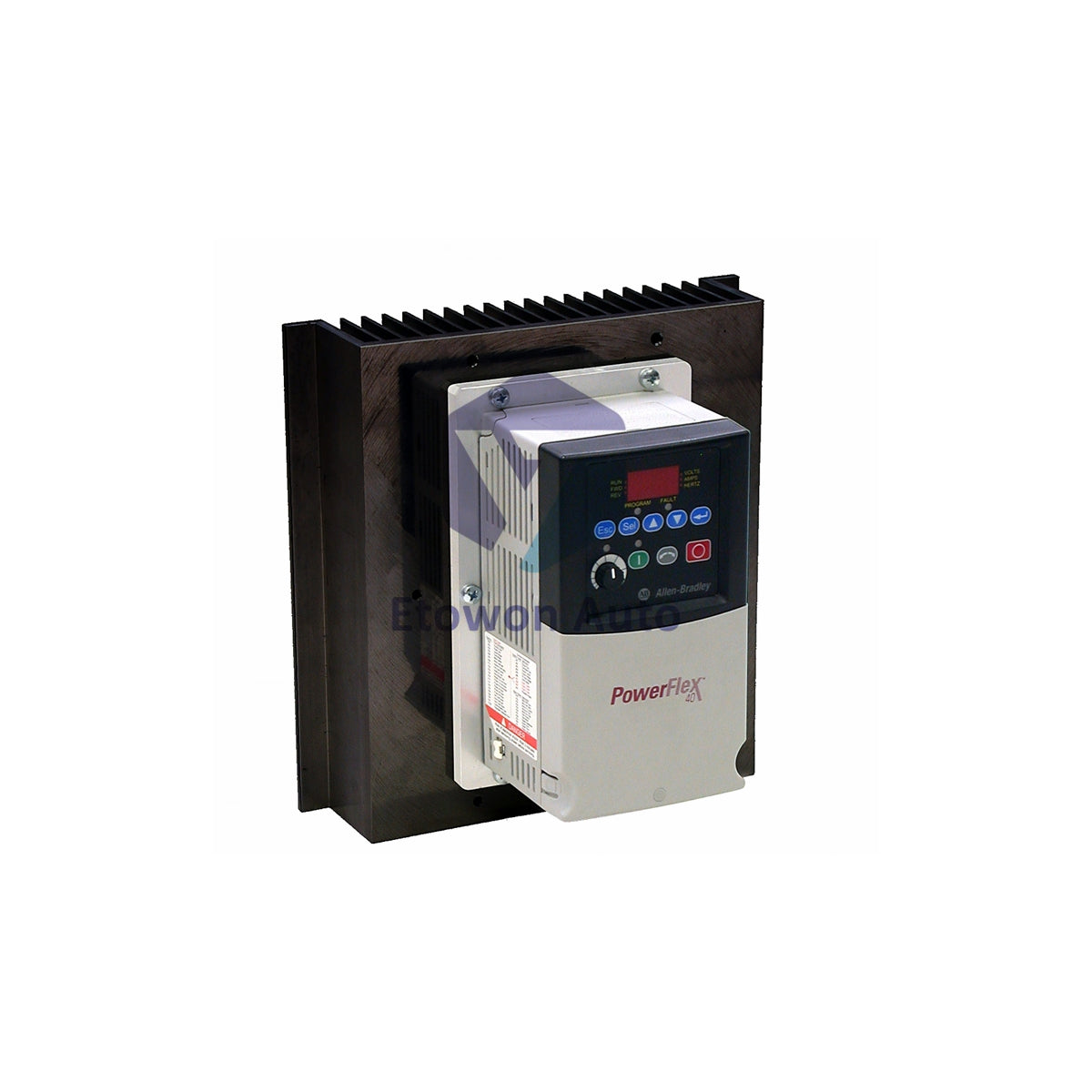

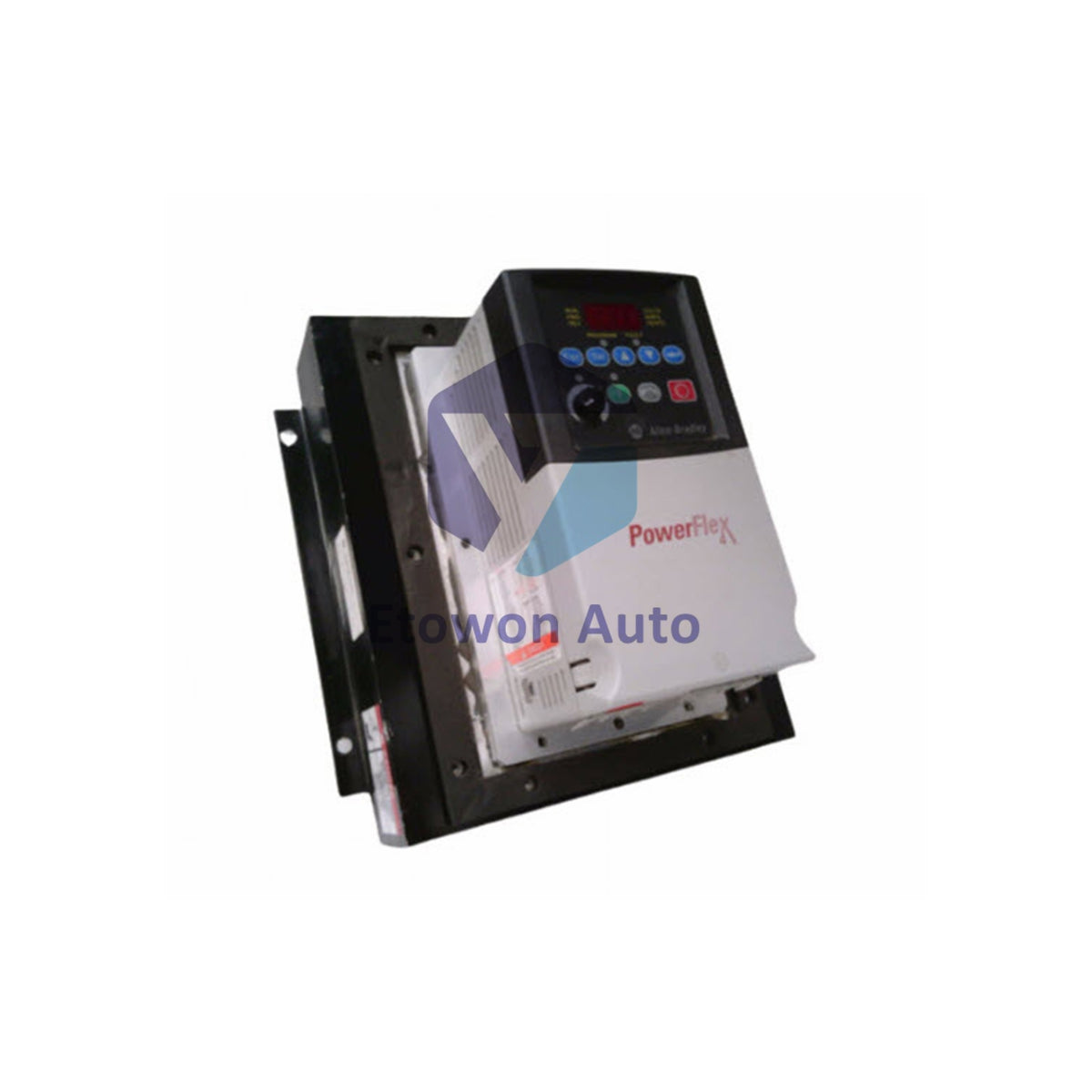

Allen-Bradley 22B-B017C104 PowerFlex 40 VFD 240V 5HP 17.5A

In stock (22 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-B017C104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 6690g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Technical Specifications

Manufacturer / Brand Allen-Bradley (Rockwell Automation)
Product Line PowerFlex 40 Adjustable Frequency AC Drive
Part Number 22B-B017C104
Input / Output Voltage Input: 240V AC, 3-Phase (48–63 Hz) | Output: 0–230V AC (0–400 Hz)
Power Rating & Output Current 5 HP (3.7 kW) | Output Current: 17.5 A
Enclosure Rating & Carrier Freq. IP66 / NEMA 4X Panel Mount | Carrier Frequency: 2–16 kHz
Short Circuit Rating & Power Loss 100,000 A Short Circuit | Power Loss: 180 W (150 W Ext, 30 W Int)
Control & Communication Integrated Keypad (HIM), Onboard RS-485 (DSI Protocol), Optional EtherNet/IP / DeviceNet
Operating Environment Ambient Temp: 14–104°F (-10 to 40°C) | Humidity: 0–95% Non-condensing
Weight 6.69 kg (14.75 lbs)

Product Overview

The Allen-Bradley 22B-B017C104 is an IP66/NEMA 4X rated PowerFlex 40 adjustable frequency drive weighing 6.69 kg (14.75 lbs). Designed for demanding industrial environments, it operates on 3-phase 240V AC input to supply 17.5 A output current to 3-phase motors rated up to 5 HP (3.7 kW). With built-in RS-485 communication, an integrated Human Interface Module (HIM) keypad, and water/dust-tight panel mounting, this drive offers reliable motor speed control and process automation.

Key Features

  • Harsh Environment Protection: Features a rugged IP66 / NEMA 4X enclosure designed to withstand dust, washdowns, and aggressive indoor environment conditions.
  • Powerful Output Capacity: Delivers 17.5 A output current to control motors up to 5 HP (3.7 kW) with a 100,000 A short circuit withstand rating.
  • Versatile Network Integration: Native RS-485 port supporting DSI protocol with optional expansion for EtherNet/IP, DeviceNet, ControlNet, and Bluetooth adapters.
  • Thermal Management: Engineered for efficient heat dissipation with 180 W total power loss (150 W external, 30 W internal).

Installation Essentials

Mount the 22B-B017C104 vertically on a flat surface using its IP66/NEMA 4X panel mount flange to ensure proper environmental sealing and heat dissipation. Connect 3-phase 240V AC line power to the designated terminals. Maintain ambient operating temperatures between 14°F and 104°F (-10°C to 40°C) and secure all conduit entries to retain IP66 protection integrity.

Technical FAQs

Q1: What are the primary electrical output ratings for the 22B-B017C104 drive?
A1: It receives 3-phase 240V AC input power and delivers 17.5 A output current for 5 HP (3.7 kW) motors.

Q2: What enclosure rating and physical weight apply to this PowerFlex 40 model?
A2: It features an IP66 / NEMA 4X environmental panel-mount enclosure and weighs 6.69 kg (14.75 lbs).

Q3: What communication options are available on the 22B-B017C104?
A3: It includes a built-in RS-485 port (DSI protocol) and supports optional EtherNet/IP, DeviceNet, ControlNet, and Bluetooth communication cards.
