1794-TB2

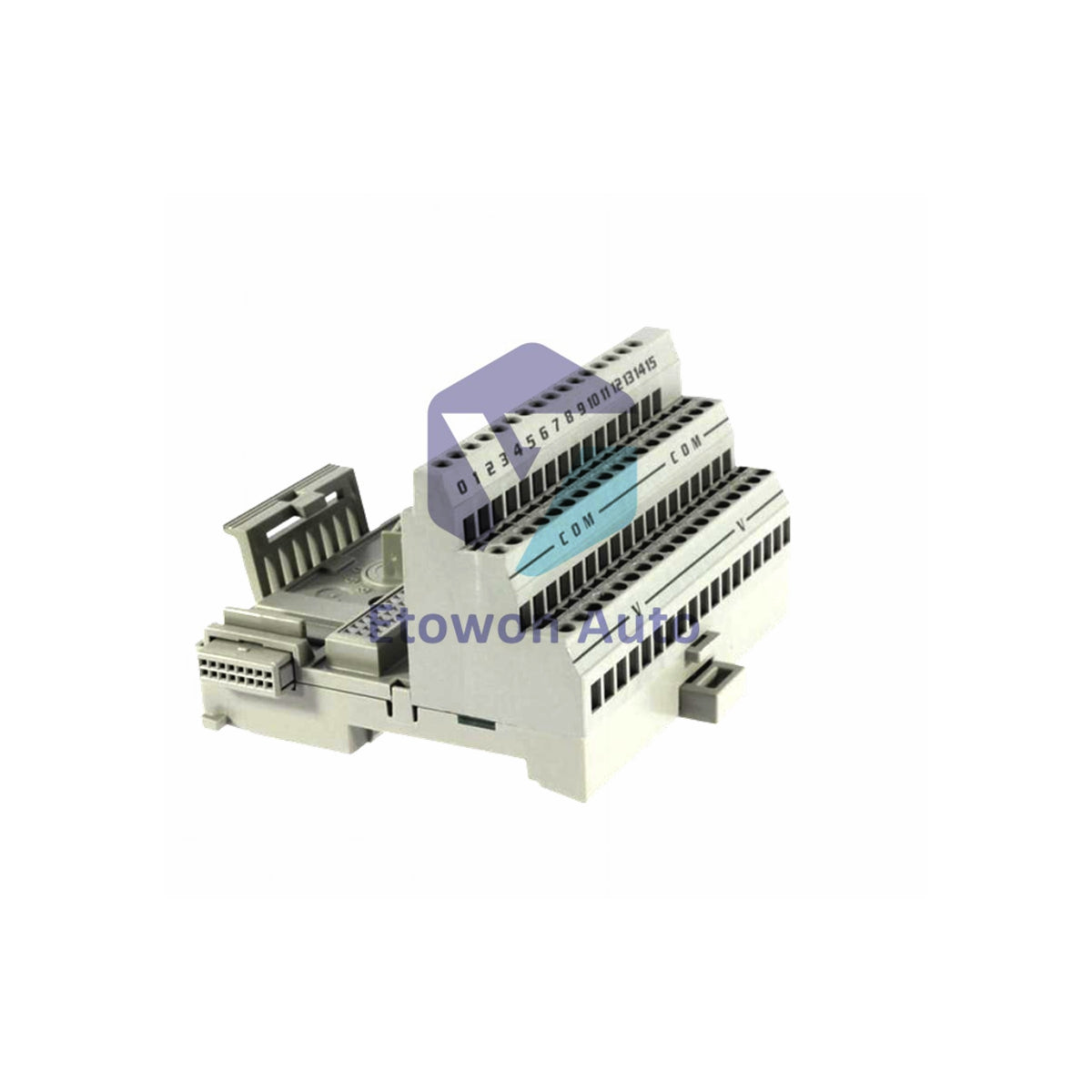

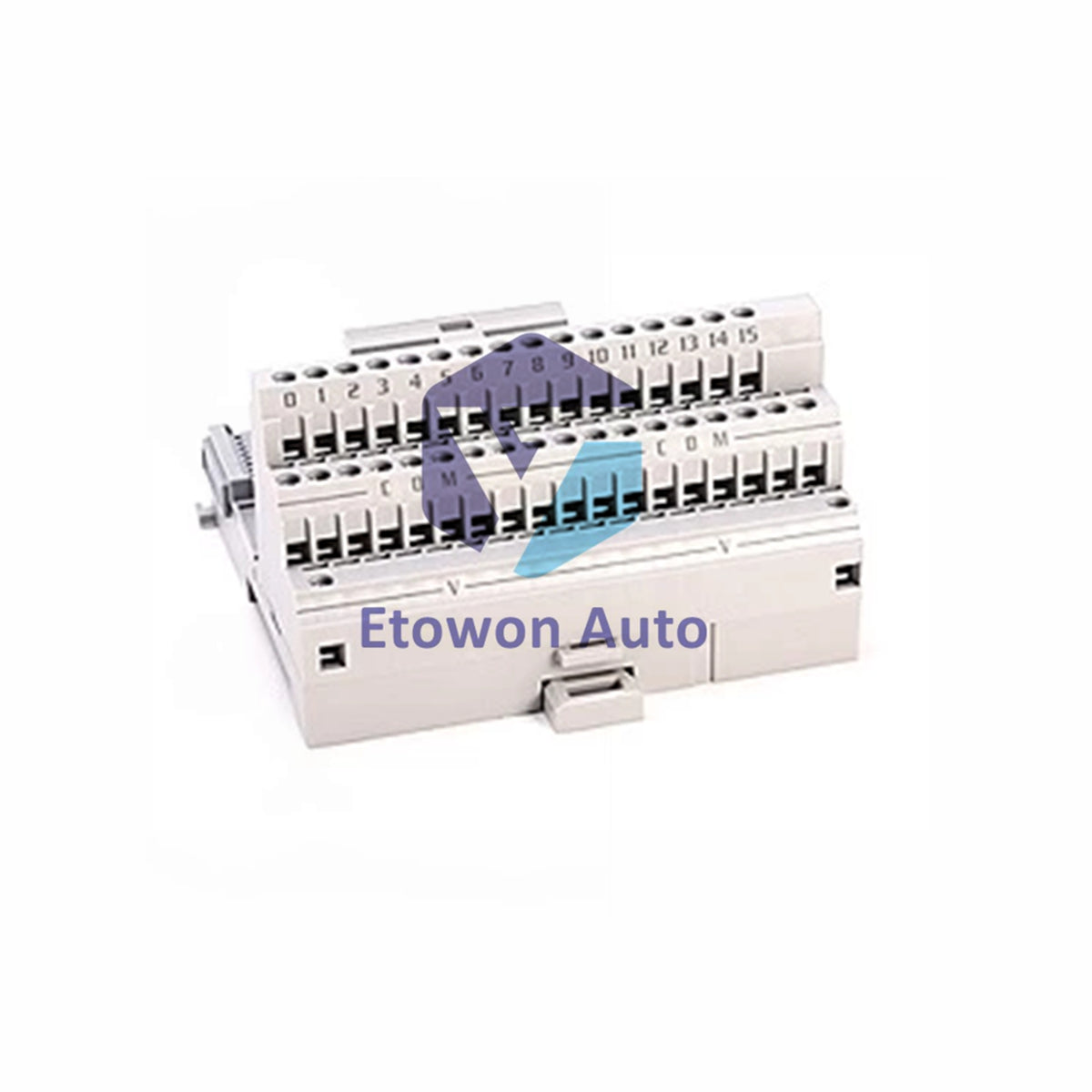

Allen-Bradley 1794-TB2 Flex I/O Terminal Base Unit Cage Clamp

In stock (26 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1794-TB2

  • Product Type: Terminal Base Unit

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 1794-TB2 Flex I/O Terminal Base Unit

Product Overview

Allen-Bradley 1794-TB2 is a cage clamp type terminal base unit for Flex I/O 1794 series. Features 1 row of 16 terminals, 1 row of 18 terminals and 1 row of 2 terminals. Mounts on panel or DIN rail. UL listed and CSA certified. Unit weight 0.3 kg.

Technical Specifications

Parameter Value
Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1794-TB2
Product Type Flex I/O Terminal Base Unit
Terminal Rows 16 + 18 + 2 terminals
Terminal Type Cage clamp, 2-wire screw
Supply Voltage Range 125 V DC/AC max, 50/60 Hz, 10 A
Voltage Rating 24 V DC/AC, 120 V DC/AC
Maximum Current 10 A
Isolation Voltage 125 V continuous
Wire Size 0.21 to 1.3 mm² (24 to 16 AWG)
Terminal Screw Torque 0.56 to 0.79 Nm (5 to 7 lb-in)
Dimensions (L x W x H) 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in)
Mounting Panel or DIN Rail
Enclosure Open type
Operating Temperature 0°C to 55°C
Storage Temperature -40°C to 85°C
Operating Vibration 5 g at 10 to 500 Hz
Operating Shock 30 g
Non-operating Shock 50 g
Weight 0.3 kg

Components

  • Female Flexbus connector
  • Male Flexbus connector with cover plug
  • Key switch
  • Panel mounting holes
  • Input output terminal strips
  • Locking tab
  • Module locking latch

Key Features

  • Cage clamp 2-wire screw termination
  • 3 rows of terminals 16 + 18 + 2
  • 10 A maximum current capacity
  • 125 V AC/DC maximum voltage rating
  • UL listed and CSA certified
  • Panel or DIN rail mounting
  • Compatible with 24 to 16 AWG stranded copper wire

FAQs

Q1: What is the maximum current and voltage rating?
A1: 10 A maximum current. 125 V AC/DC maximum voltage.

Q2: What wire size and torque does 1794-TB2 accept?
A2: 0.21 to 1.3 mm² (24 to 16 AWG). Torque 0.56 to 0.79 Nm.

Q3: What is the unit weight and dimensions?
A3: 0.3 kg. Dimensions 94 x 94 x 69 mm.

Product Resources

📄 Download PDF
🏷️ Tags: Terminal Base Unit
