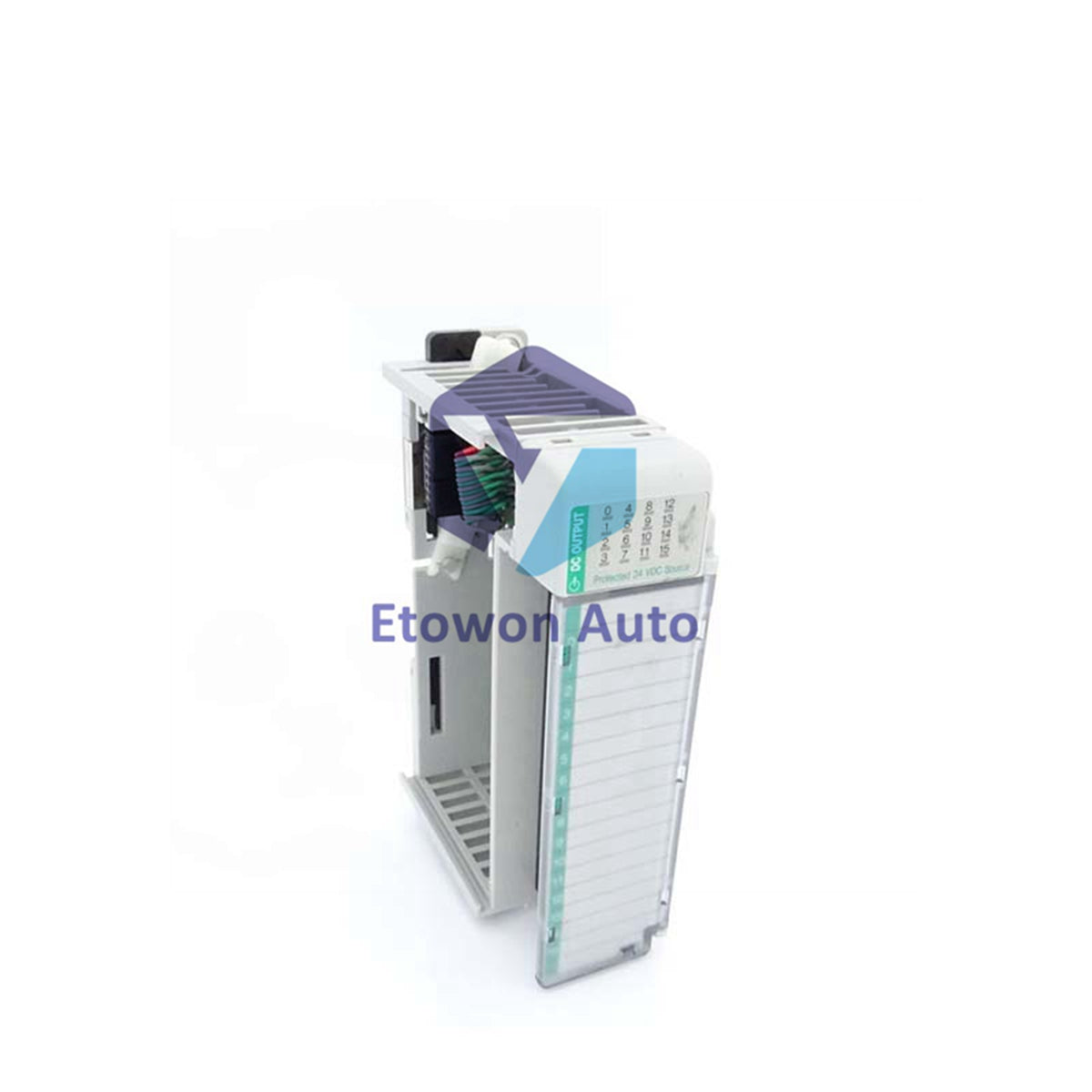

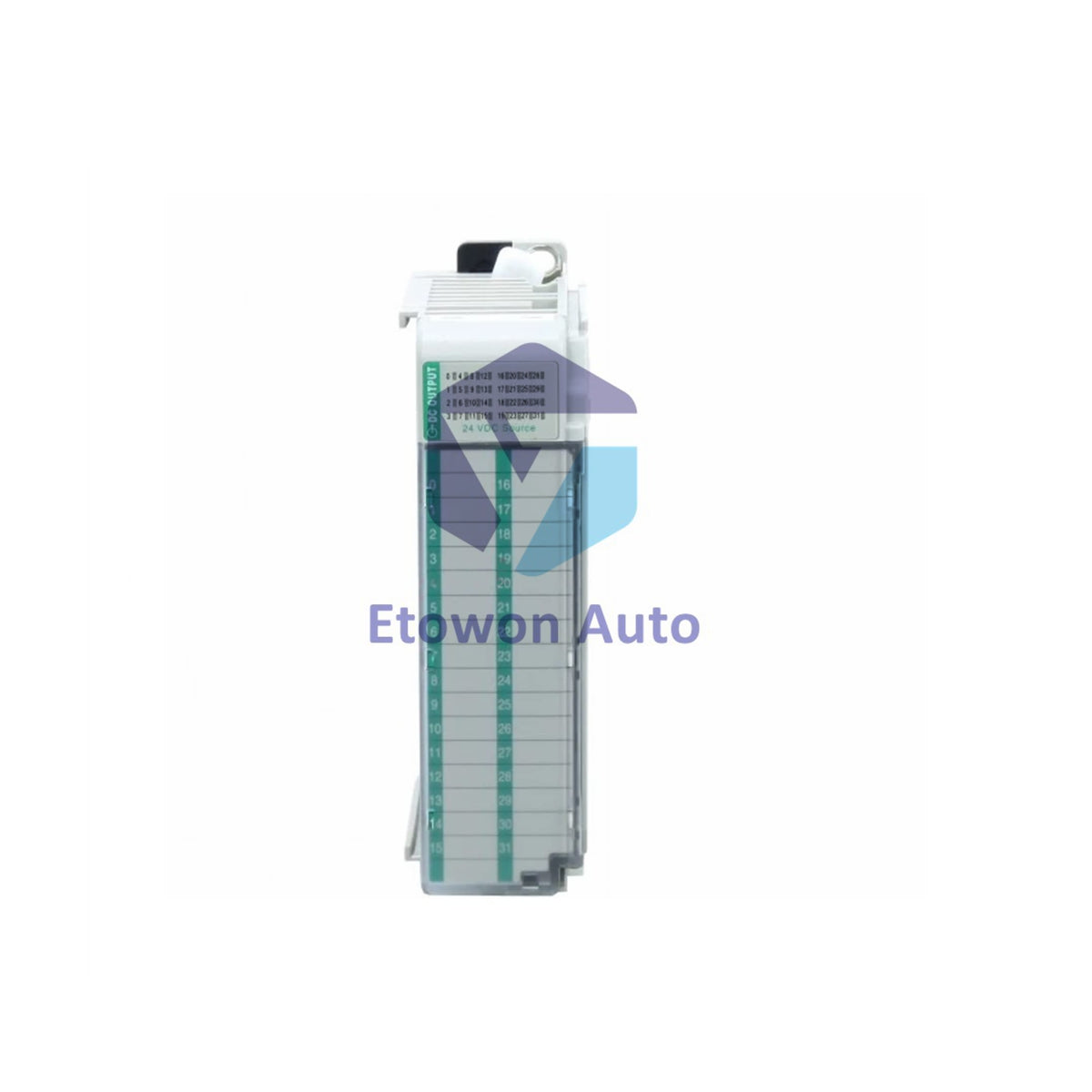

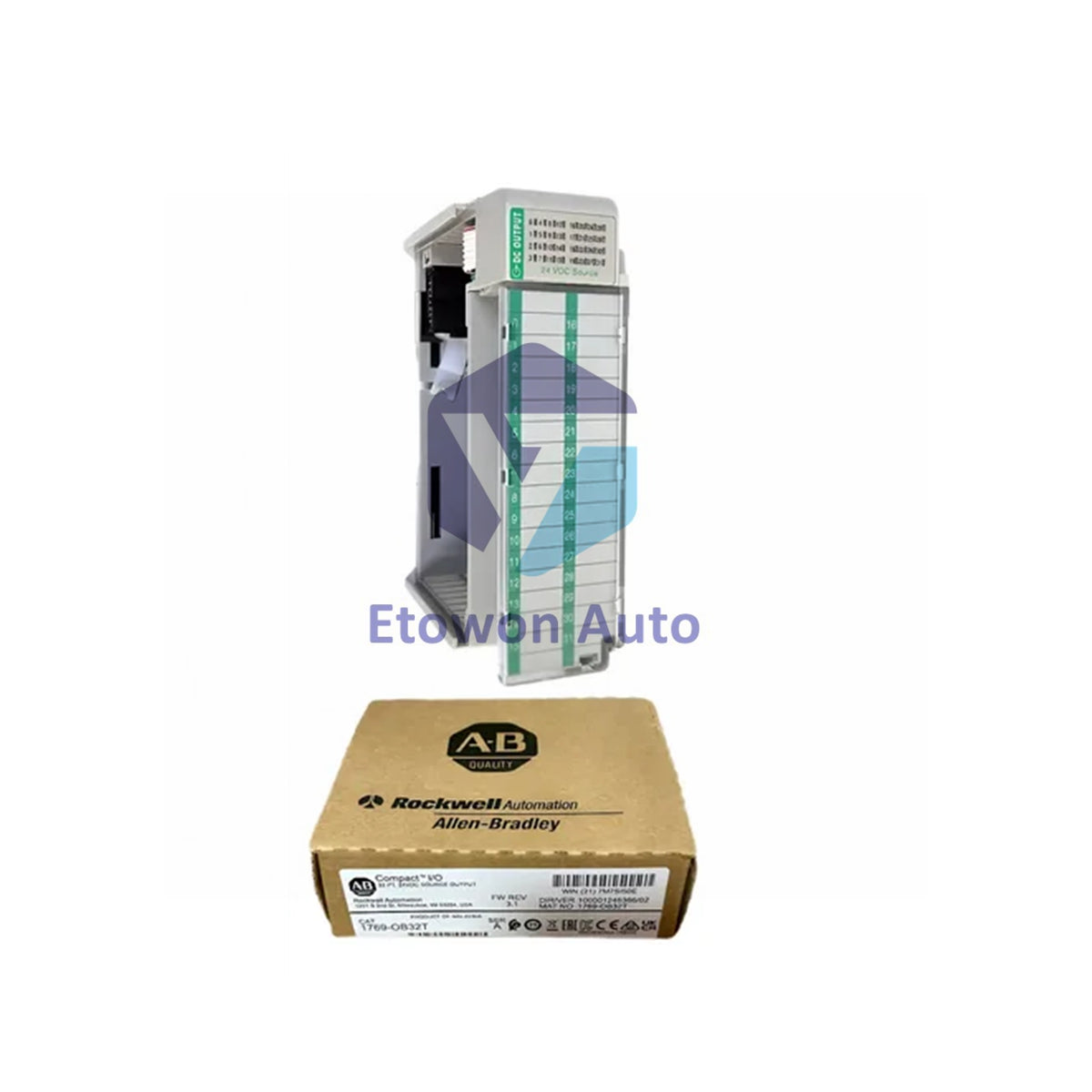

Allen-Bradley 1769-OB32T 32 Point Output Module 24V DC 0.5A

In stock (16 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1769-OB32T

  • Product Type: Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 230g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 1769-OB32T 32 Point Digital Output Module

Product Overview

Allen-Bradley 1769-OB32T is a 32 point 24 V DC sourcing output module for CompactLogix and MicroLogix 1500. Output voltage range 10.2 to 26.4 V DC. 0.5 A per point with 2 A surge for 10 ms. Switching speed 0.5 ms ON, 0.4 ms OFF. Module power consumption 220 mA at 5 V DC (4.76 W). Module weight 0.23 kg (0.51 lb).

Technical Specifications

Parameter Value
Brand Allen-Bradley
Part Number 1769-OB32T
Output Type 32 channel sourcing (24 V DC)
Voltage Range 10.2 to 26.4 V DC
Current Rating per Point 0.5 A
Surge Current 2 A for 10 ms
ON Switching Speed 0.5 ms
OFF Switching Speed 0.4 ms
Power Consumption 220 mA at 5 V DC (4.76 W max)
Isolation IEC Class 2 reinforced
Wire Size 22-14 AWG solid, 22-16 AWG stranded
Terminal Torque 0.68 Nm (6 lb-in)
Power Supply Distance 8 modules max
Module Size (W x H x D) 35 x 118 x 87 mm
Module Weight 0.23 kg (0.51 lb)

Environmental Ratings

Parameter Value
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Vibration Resistance 5G @ 10-500 Hz
Shock Resistance 30G operational
Humidity 5% to 95% non-condensing

Key Features

  • 32 channel sourcing outputs at 24 V DC
  • 0.5 A per point, 2 A surge for 10 ms
  • 0.5 ms ON / 0.4 ms OFF switching speed
  • IEC Class 2 reinforced isolation
  • Compact 35 mm width single slot design
  • DIN rail or panel mount
  • Replacement terminal block 1769-RTBN18
  • Replacement door 1769-RD

FAQs

Q1: What is the current rating and switching speed?
A1: 0.5 A per point, 2 A surge for 10 ms. 0.5 ms ON, 0.4 ms OFF.

Q2: What is the voltage range and power consumption?
A2: 10.2 to 26.4 V DC range. 220 mA at 5 V DC (4.76 W max).

Q3: What is the weight and module size?
A3: Module weight 0.23 kg (0.51 lb). Size 35 x 118 x 87 mm.

🏷️ Tags: Output Module

Scalar (V/f)

Vector

AC-powered
  • Confirm the exact model, part number, and specifications before ordering.
  • Ensure compatibility with your current machinery or control systems.
  • Reach out via sale@etowonauto.com or +8617859788089 for technical assistance.
  • Review delivery options, lead times, and shipping requirements.
  • Follow manufacturer instructions and best practices during installation.

In-stock items are typically dispatched the same business day. For products not currently in stock, dispatch times may vary based on availability. International shipping is available, and shipping costs are calculated according to destination, weight, and carrier selection.

Returns are accepted within 30 days of receipt, provided items are unused and in original condition. Return shipping costs are the responsibility of the customer. Please contact us before returning any item to receive return authorization.

For more details, please review our Shipping & Return Policy.
