Allen-Bradley 1769-L33ERM 2MB User Memory Processor Module

Product Overview

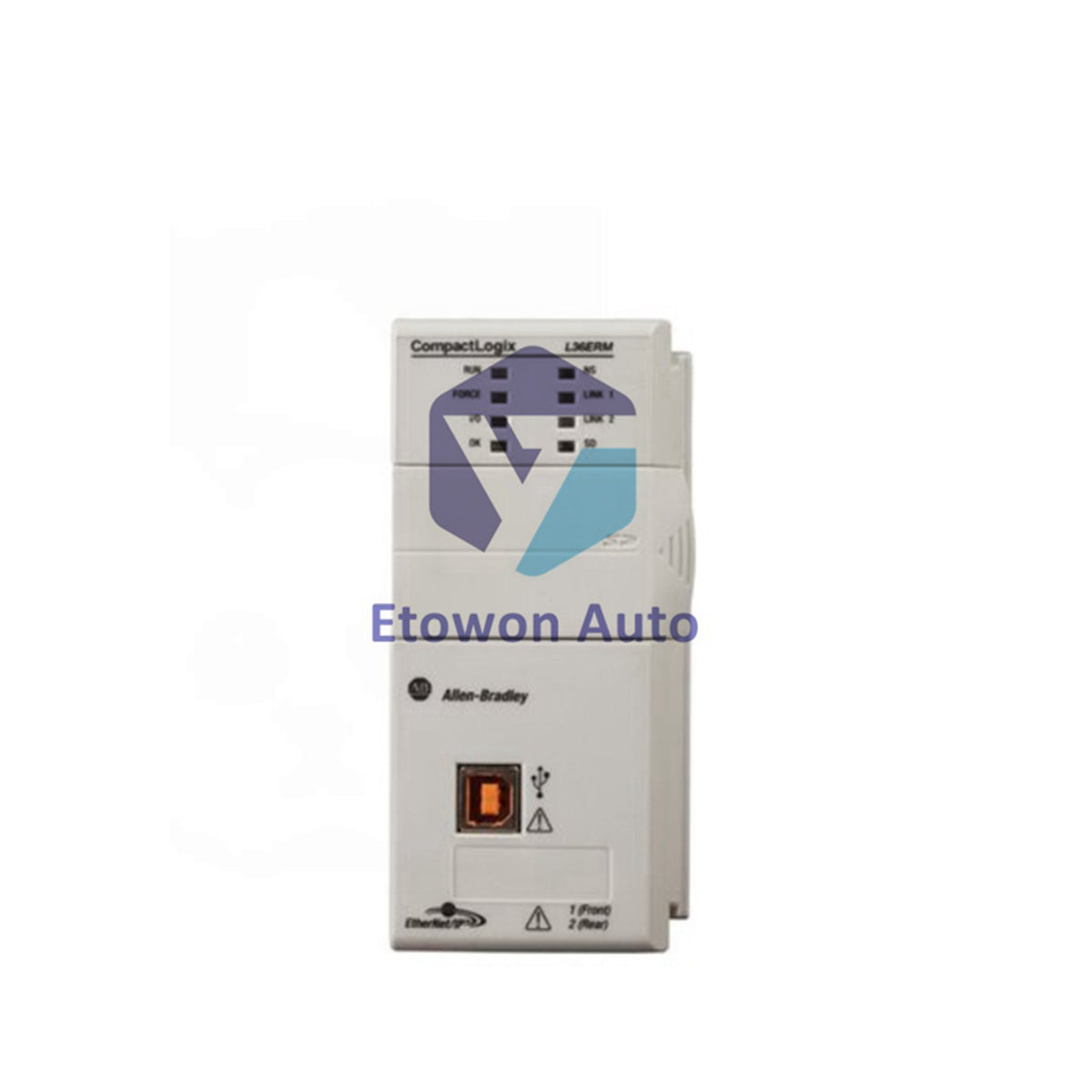

The 1769-L33ERM is a high-performance CompactLogix 5370 standard controller manufactured by Allen-Bradley (Rockwell Automation). Designed to handle complex, high-speed machine control and multi-axis coordinated movement, this processor features a generous 2MB user memory alongside an included 1GB non-volatile SD memory card (expandable up to 2GB). It is equipped with dual Ethernet/IP ports and a dedicated USB programming interface. Capable of executing synchronization commands across 8 axes of integrated motion over Ethernet/IP, this 0.50 kg (1.10 lbs) control unit directly interfaces with up to 16 local 1769 Compact I/O modules across 3 expansion banks without requiring an external backup battery.

Core Technical Advantages

Integrated 8-Axis CIP Motion Control

The 1769-L33ERM eliminates the need for dedicated motion control cards or separate network interfaces. By utilizing Common Industrial Protocol (CIP) Motion over standard Ethernet/IP, the controller natively coordinates up to 8 synchronous axes. It provides seamless position, velocity, torque, and frequency control loop profiles directly from the central processor.

Dual Port Ethernet/IP with DLR Topology

Featuring two built-in RJ45 Ethernet ports configured with an internal switch, the processor supports Device Level Ring (DLR) network topologies. This ring infrastructure provides advanced network fault tolerance; if a single segment of the ethernet cable breaks, the system continues operating without dropping communication loops or forcing machine shutdowns.

Battery-Free Energy Storage Solution

To reduce periodic maintenance routines and environmental waste, this 5370 controller replaces traditional lithium batteries with an advanced internal electrochemical energy storage solution. Upon a system power failure, the residual stored energy powers the CPU just long enough to flush volatile runtime data and project memory into the secure non-volatile SD card.

Technical Specifications

Installation and Maintenance

Mechanical Interlocking and I/O Bank Rules

Mount the 1769-L33ERM securely on a standard 35mm DIN rail or bolt it directly to the enclosure backing plate. When planning your I/O layout, remember that this processor can handle a maximum of 16 local 1769 Compact I/O modules distributed across up to 3 physical banks. Ensure that your power supply modules are positioned to satisfy local bus distance ratings, and lock the expansion levers together firmly to secure the backplane connection.

Ethernet Network Port Dual-Port Management

The dual RJ45 ports function as an embedded switch that shares a single IP address. Use this functionality to construct robust Device Level Ring (DLR) arrays or straight linear network strings. Connect your programming laptop or a PanelView HMI to the secondary port, or connect via the integrated USB port on the front face for immediate local diagnostic access.

Project Flash Management and Firmware Loads

During a major upgrade or hardware maintenance swap, use Studio 5000 Logix Designer to load the matching firmware version onto the controller. The project data can be stored securely on the 1784-SD1 1GB card. This allows field technicians to recover from an unplanned hardware swap quickly by moving the physical SD card to a new processor without connecting a programming PC.

Engineering Advantages

Advanced Motion Drive Architecture Alignment

The 8-axis CIP Motion capability coordinates perfectly with modern servo drives like the Kinetix 350, Kinetix 5500, Kinetix 5700, and Kinetix 6500 series, as well as PowerFlex 755 variable frequency drives. This provides high-accuracy multi-axis control for packaging machinery, sorting gates, and continuous assembly lines.

Unifying Factory-Floor Communication Profiles

With a high allocation capacity of 32 simultaneous CIP connections, the processor manages multiple field elements at once. It connects effortlessly to distributed SCADA networks, remote DCS clusters, field sensors, and discrete variable frequency drives while maintaining low communication cycle times.

Global Certification and Robust Hardware

Compliant with FCC Part 15 and CE directives, this industrial PLC is built to handle tough electrical and physical environments. Its high mechanical shock resistance rating of 30G ensures stable performance even when mounted directly onto high-vibration machinery beds or processing skid frames.

Technical FAQs

Q1: What is the benefit of the "M" suffix in the 1769-L33ERM part number?
A1: The "M" designation stands for Integrated Motion over Ethernet/IP. While a standard 1769-L33ER can control remote drives over a network via simple messaging, the 1769-L33ERM contains dedicated internal motion engines that enable hard real-time synchronization of up to 8 servo axes within the Studio 5000 environment.

Q2: Can I split the dual Ethernet ports to handle two different subnets?
A2: No. The dual Ethernet ports on CompactLogix 5370 controllers share a single network interface card and one IP address. They are designed for daisy-chaining devices or creating resilient Device Level Ring (DLR) network loops rather than routing signals between distinct subnets.

Q3: How long does the internal energy storage hold project data during a power failure?
A3: The internal energy storage system does not maintain data in volatile RAM indefinitely. Instead, it provides a brief burst of power immediately after an outage, which allows the CPU to write all active configurations and tag parameters into the non-volatile SD card. The data remains safely stored on the card until the next system boot.
