1756-OF8I

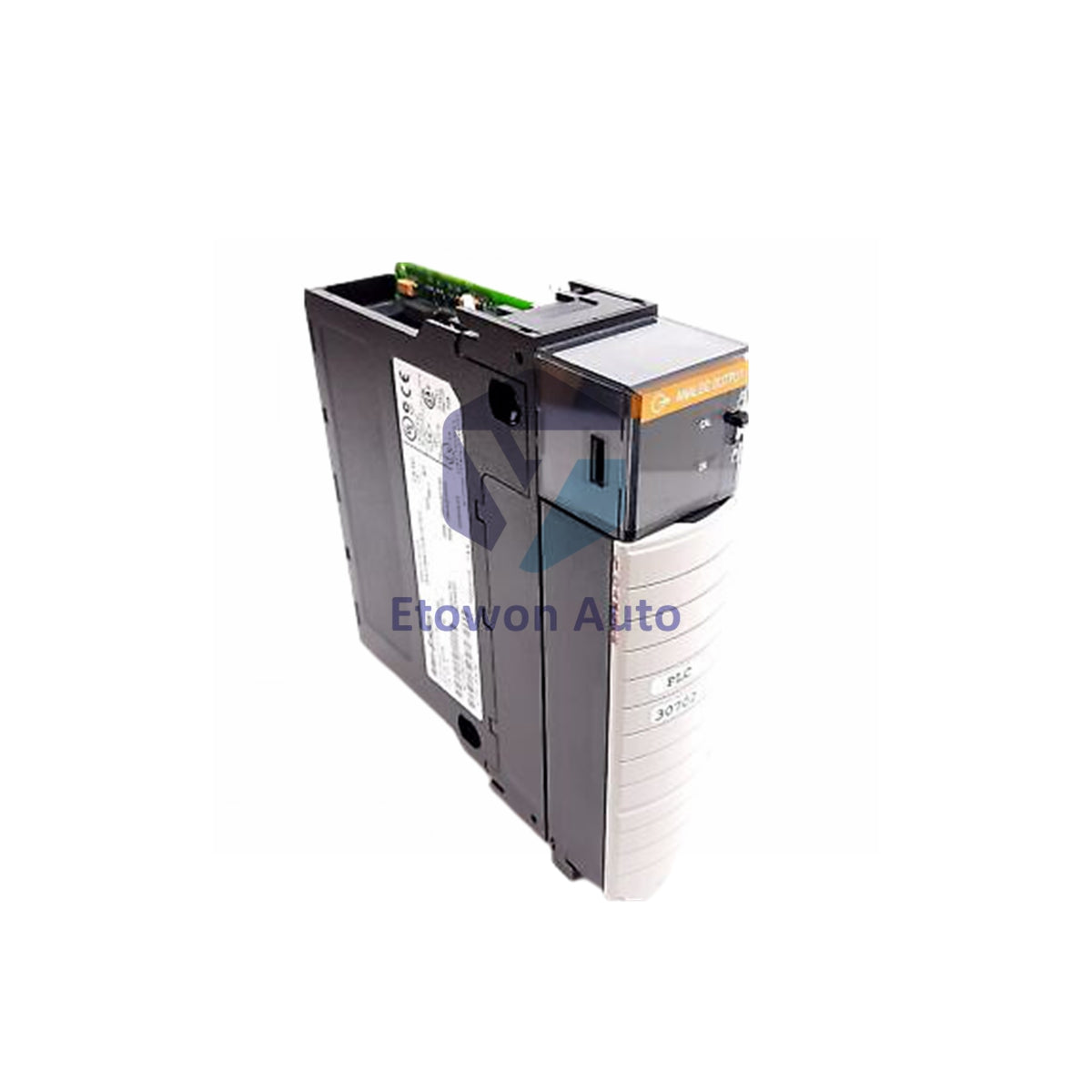

Allen-Bradley 1756-OF8I ControlLogix Output Module 16 Bit

In stock (30 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-OF8I

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

1756-OF8I Allen-Bradley ControlLogix Isolated Analog Output Module – 8 Channels

The Allen-Bradley 1756-OF8I is an 8-channel isolated analog output module for the ControlLogix platform. Provides voltage and current output capability with 16-bit high resolution.

Product Information

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1756-OF8I
Product Type Isolated Analog Output Module
Series ControlLogix
Number of Outputs 8 Isolated Channels
Connector Type 36-Pin Removable Terminal Block
Weight 0.45 kg

Output Specifications

Voltage Ranges -10 to +10V, 0-10V, 0-5V
Current Ranges 0-20mA, 4-20mA
Resolution 16-bit (0.32 µA/count)
Accuracy ±0.05% of Full Scale
Update Rate 1ms per Module
Conversion Method R-Ladder DAC

Electrical Characteristics

Power Consumption 6.5W
Backplane Current (24V) 275 mA
Isolation 50V Continuous
Overvoltage Protection ±30V

Environmental Ratings

Operating Temperature 0°C to 60°C (32°F to 140°F)
Humidity 5% to 95% Non-Condensing
Shock Resistance 30G Operational
Enclosure Open-Style

Compatible Terminal Blocks

  • 1756-TBNH
  • 1756-TBSH

System Integration

  • Fits any ControlLogix chassis slot
  • Supports local or remote I/O
  • IEEE 32-bit floating point data
  • Individual channel configuration

Applications

  • Process control systems
  • Valve positioning
  • Motor speed control
  • Test equipment interfaces
  • Analog actuator control

FAQs

Q1: How many output channels does the 1756-OF8I provide?
A1: 8 isolated analog output channels.

Q2: What are the voltage and current output ranges?
A2: Voltage: -10 to +10V, 0-10V, 0-5V. Current: 0-20mA, 4-20mA.

Q3: What terminal blocks are compatible?
A3: 1756-TBNH and 1756-TBSH with 36-pin connector.

Product Documentation

Download Detailed Product Specifications PDF

🏷️ Tags: Analog Output Module

Scalar (V/f)

Vector

AC-powered
