1756-BATA

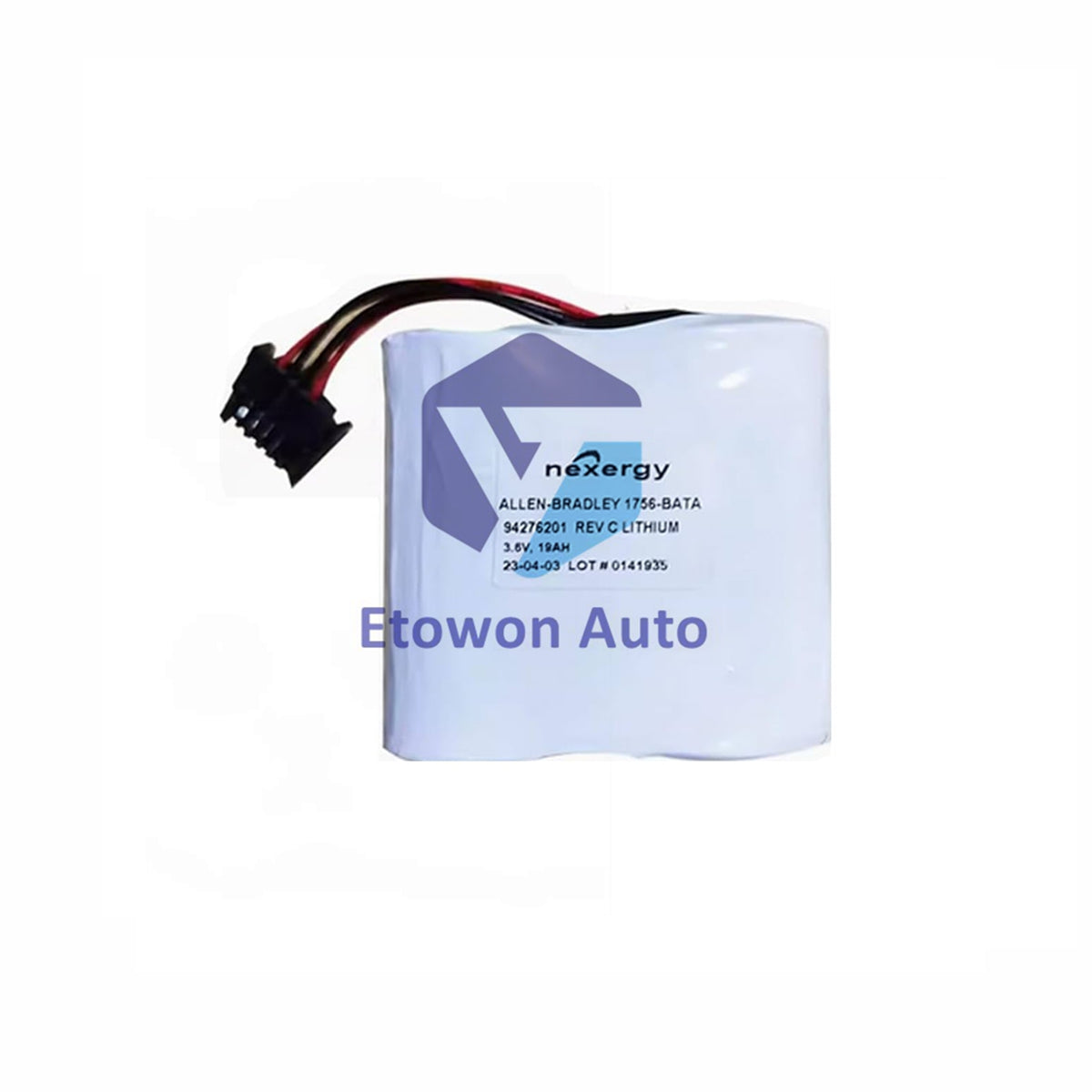

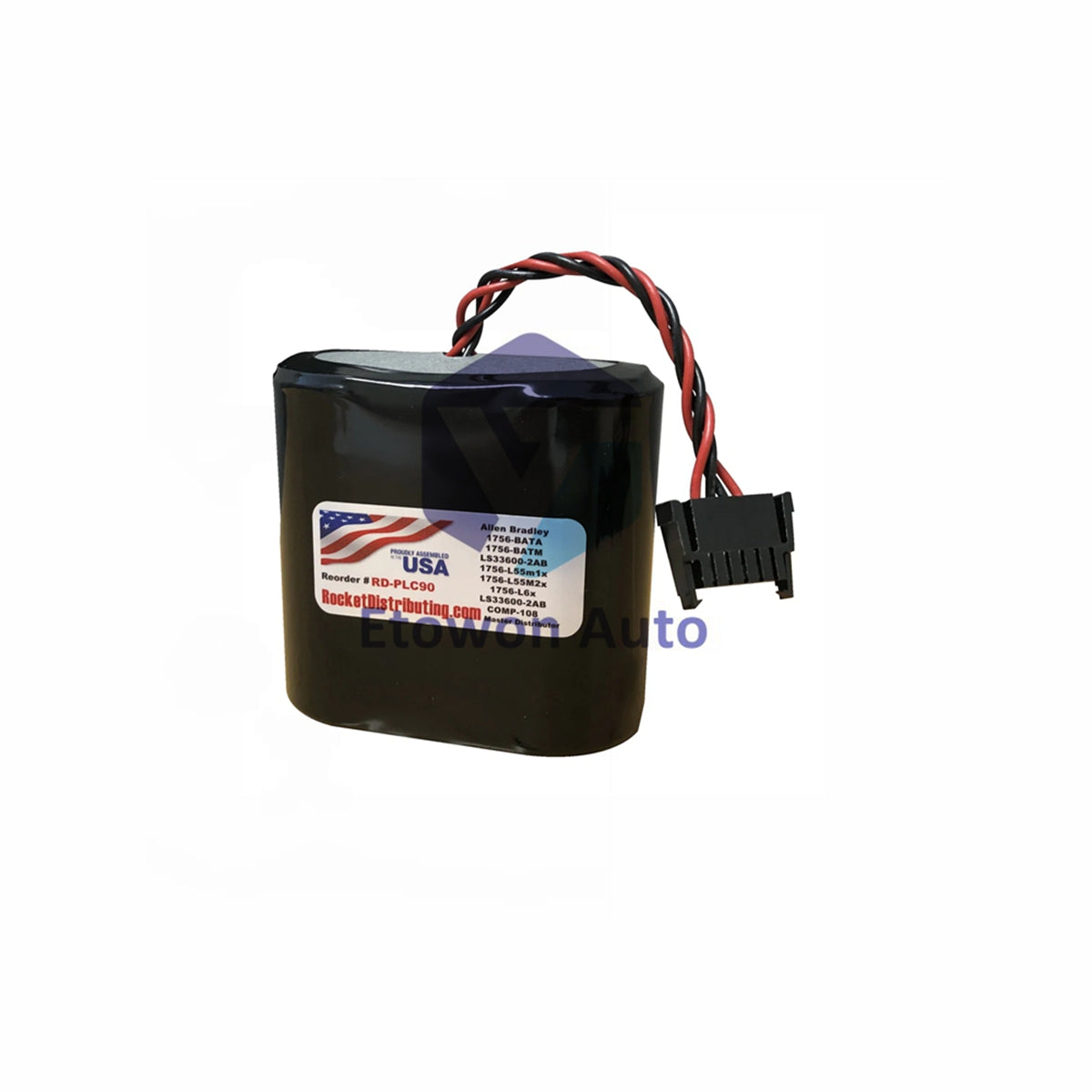

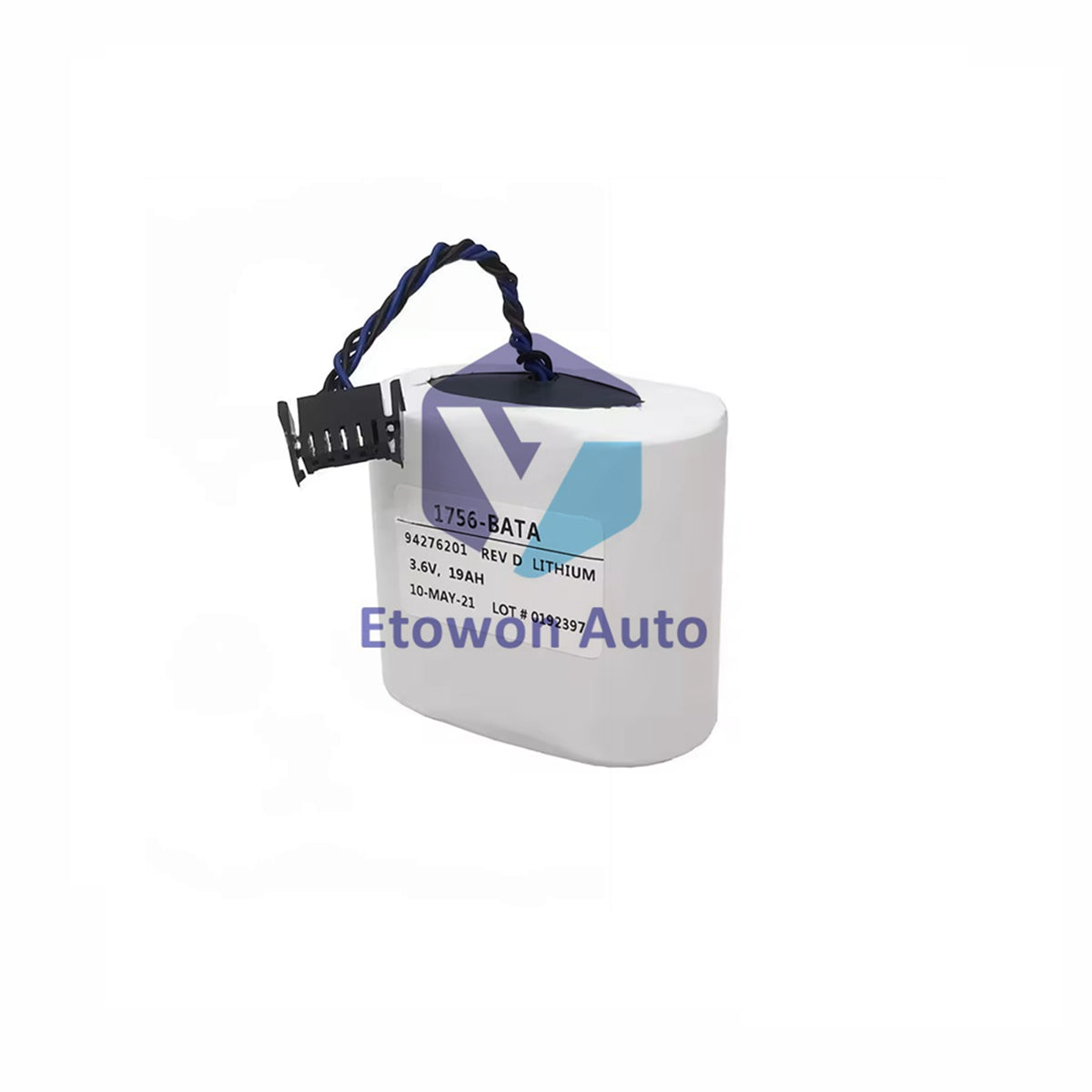

Allen-Bradley 1756-BATA ControlLogix Replacement Lithium Cell

In stock (23 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-BATA

  • Product Type: Lithium Battery

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 50g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 1756-BATA Lithium Backup Battery

The Allen-Bradley 1756-BATA is a premium replacement lithium battery cell engineered specifically to safeguard internal configurations within Allen-Bradley ControlLogix computing modules. Functioning as the primary energetic core inside external battery housings, this high energy density component ensures continuous volatile data retention during main power system cuts.

Key Advantages

  • Optimized Energy Density: Packs substantial storage capacity into a compact physical architecture, delivering a stable power solution for complex logic platforms.
  • Extended Operation Life: Specially built to survive prolonged operational environments, cutting down routine field technician hardware swaps.
  • Minimized Inactive Gaps: Fast recharge capabilities rapidly restore standby safety margins, keeping your automation networks at peak performance levels.

Technical Specifications

Electrical Power Levels 3.6 Volts Nominal Voltage / Peak Power Dissipation Max 4.5 Watts
System Bus Allocations Backplane Current Draw: 10 Amps at 5V DC / 2.8 Amps at 24V DC
Environmental Window Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Mass Configuration Net Component Weight: Approximately 0.05 kg
Application Focus Replacement Cell for Allen-Bradley ControlLogix 1756-BATM Housing Kits

Quick Installation

  • Housing Disassembly: Unlatch the external Allen-Bradley 1756-BATM storage chassis to reveal the spent battery mounting slot.
  • Polarity Verification: Guide the new 0.05 kg lithium cell inside, aligning electrical contact terminals perfectly with internal block leads.
  • System Re-engagement: Re-clip the enclosure shield securely, making sure backplane current rails handle baseline drops smoothly under regular operations.

Technical FAQs

Q1: Is the Allen-Bradley 1756-BATA a standalone module or an internal component?
A1: The cell acts as the primary replacement battery pack meant to sit within the larger, externally mounted Allen-Bradley 1756-BATM housing setup.

Q2: How well does this cell adapt to fluctuating facility thermal conditions?
A2: The component maintains a certified temperature window from -20°C up to 60°C, providing exceptional stability across most industrial factory floors.

Q3: What are the primary backplane parameter allowances for this line?
A3: It works alongside network pathways carrying maximum values up to 10 Amps at 5V DC and 2.8 Amps at 24V DC to safeguard local drive electronics.
