1746-IM8

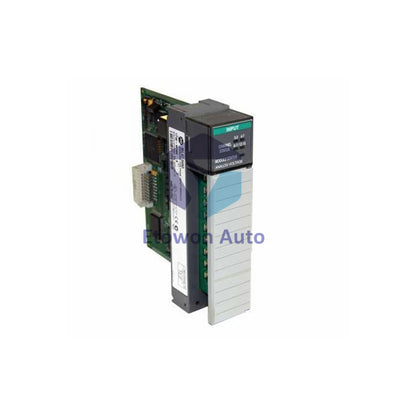

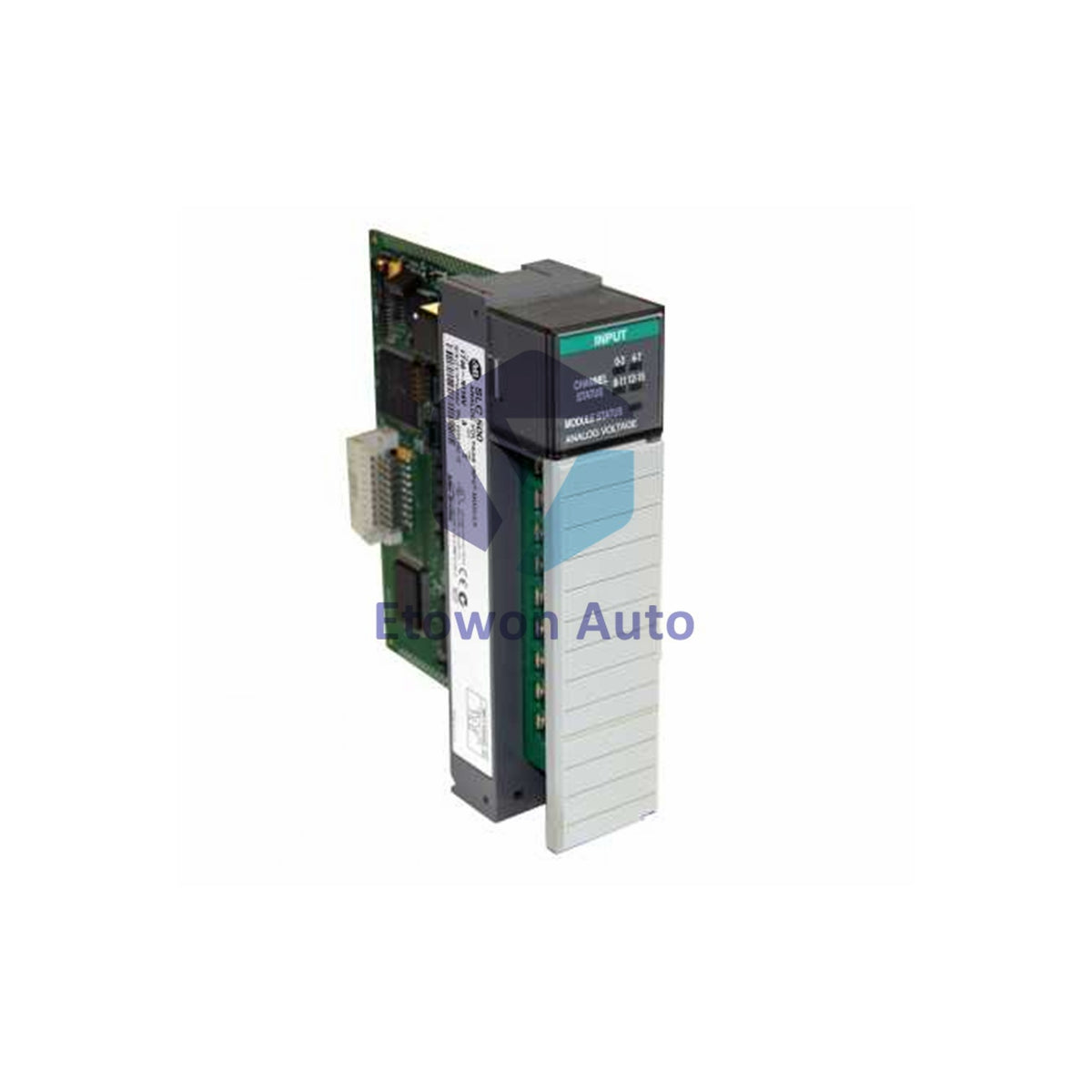

Allen-Bradley 1746-IM8 SLC 500 AC Input Module

In stock (29 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1746-IM8

  • Product Type: AC Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 350g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The Allen-Bradley 1746-IM8 is an 8-channel digital AC input module for the SLC 500 series. It accepts 170–265VAC signals at 47–63 Hz, making it suitable for general-purpose industrial control with 200/240VAC voltage categories. The module weighs approximately 0.35 kg (0.77 lb).

Technical Specifications

Manufacturer Rockwell Automation / Allen-Bradley
Catalog Number 1746-IM8
Series SLC 500
Module Type Digital AC Input Module
Inputs 8 channels
Voltage Range 170–265 VAC at 47–63 Hz
Voltage Category 200/240 VAC
Backplane Current (5V DC) 50 mA
Backplane Current (24V) 0 mA
Signal Delay 35 or 45 ms
Off State Current 2 mA
Operating Temperature -25°C to +60°C (-13°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 5% to 95% non-condensing
Operating Vibration 1.0 g at 5–2000 Hz
Operating Shock 30 g
Heat Dissipation 3.1 W total; 0.35 W per point
Weight 0.35 kg (0.77 lb) approx.
I/O Connection 1746-HT and 1746-HCA

Engineering Advantages

The wide 170–265VAC input range tolerates voltage fluctuations common in industrial power distribution. Eight channels in a single slot conserve rack space. The 2 mA off-state current prevents false triggering from leakage. Low 3.1 W heat dissipation reduces panel cooling requirements. At roughly 0.35 kg, the module adds minimal weight to the chassis. Withstands 30 g shock and 1.0 g vibration for reliable operation in high-vibration machinery environments.

Technical FAQs

Q1: What voltage range does the 1746-IM8 accept?
A1: 170–265 VAC at 47–63 Hz, with a 200/240 VAC voltage category.

Q2: How much backplane current does it draw?
A2: 50 mA at 5V DC and 0 mA at 24V.

Q3: What are the environmental limits?
A3: -25°C to +60°C operating, 5–95% RH non-condensing, 30 g shock.
