1734-8CFG

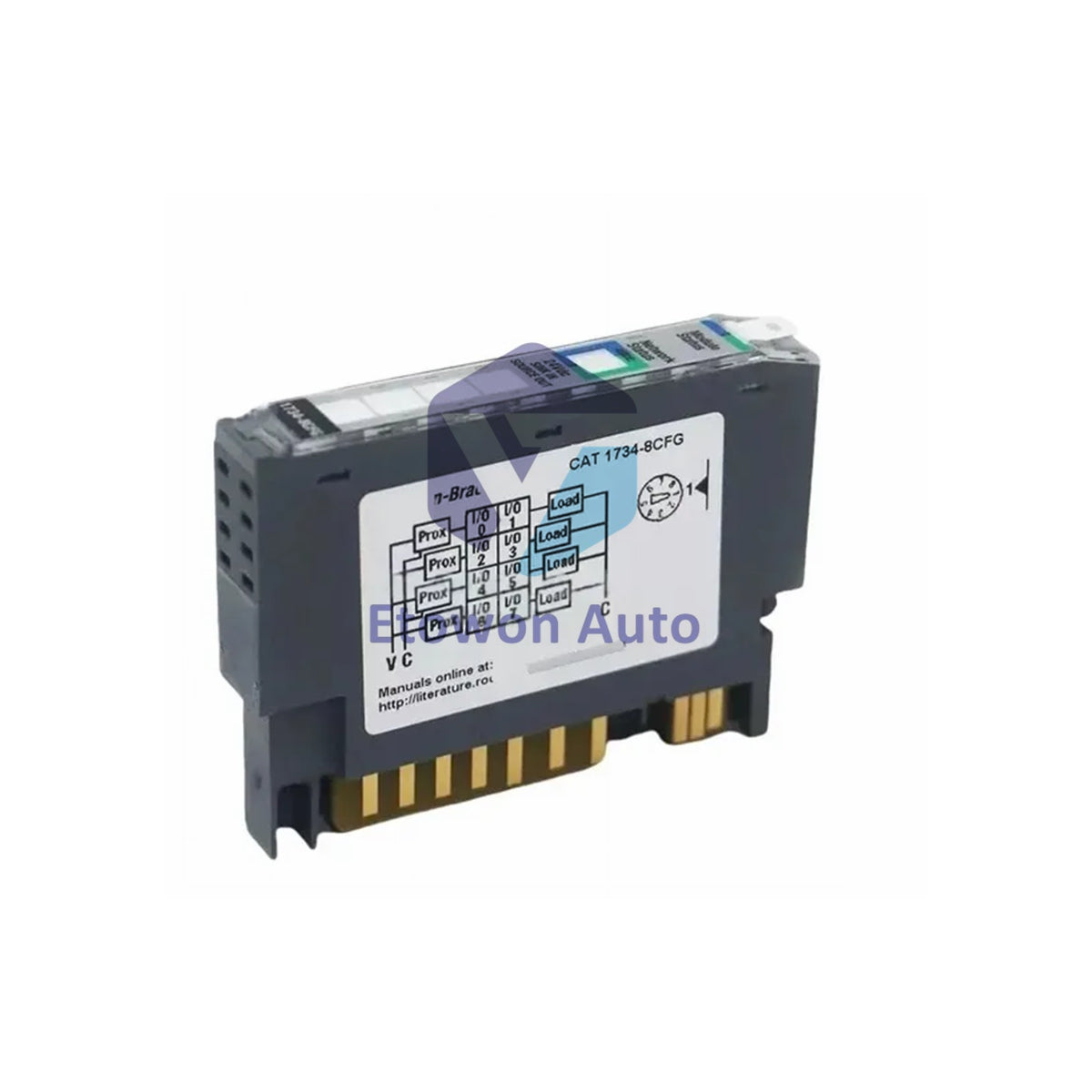

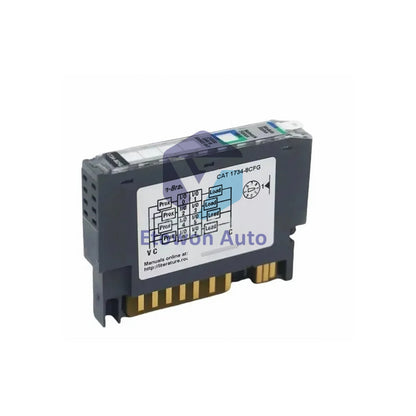

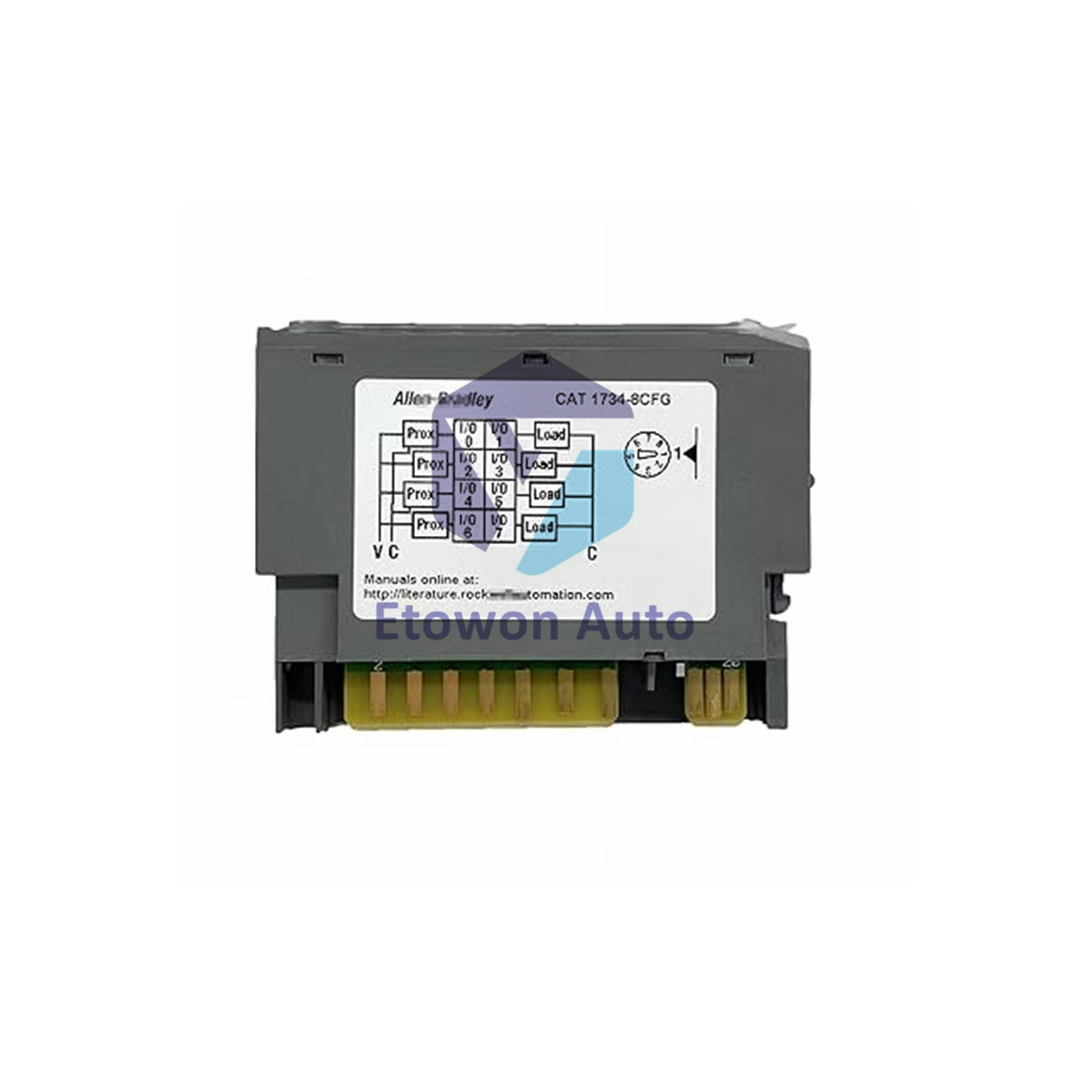

Allen-Bradley 1734-8CFG POINT I/O 8-Point Module | 24VDC

Only 8 units left

  • Manufacturer: Allen-Bradley

  • Product No.: 1734-8CFG

  • Product Type: I/O Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 1734-8CFG POINT I/O 8-Point Configurable DC I/O Module

The Allen-Bradley 1734-8CFG is a versatile 8-point configurable DC digital I/O module from Rockwell Automation's Bulletin 1734 POINT I/O series. Weighing approximately 0.10 kg (0.22 lbs), each of its 8 channels automatically self-configures to operate as either a digital input or digital output based on field wiring and controller programming, maximizing panel density and system flexibility.

Key System & Electrical Features

Designed for efficient power distribution, the 1734-8CFG operates on a 5V DC POINTBus backplane drawing 100 mA. Inputs accept a minimum on-state voltage of 11V DC with a 2 to 5 mA current range, while outputs deliver 10 to 28.8V DC. Built-in features include reverse polarity protection, programmable input filter times in millisecond increments (1000 ms default), and RIUP (Removal and Insertion Under Power) support for zero-downtime maintenance.

Technical Specifications

Manufacturer & Brand Rockwell Automation | Allen-Bradley
Series & Part Number POINT I/O | 1734-8CFG
I/O Count & Functionality 8 Points | Self-Configuring Inputs/Outputs
Input Voltage & Current 11V DC Min (24V DC Nom) | 2…5 mA On-State Current
Output Voltage Range 10…28.8V DC On-State Output Range
POINTBus Power & Dissipation 5V DC @ 100 mA | 2.6 W Power / 8.9 BTU/hr Thermal Dissipation
Enclosure & Key Switch Position Open-Type Enclosure | Keyswitch Position 1
Compatible Terminal Bases 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS
Operating Temperature & Weight -20 °C to +55 °C (-4 °F to +131 °F) | Approx. 0.10 kg

Installation & Operation Considerations

  • Keyswitch Setup: Set the terminal base mechanical keyswitch to Position 1 before snapping the 0.10 kg module into the base unit.
  • Power Source Compliance: Connect field I/O power exclusively from a Protected Extra Low Voltage (PELV) or Safety Extra Low Voltage (SELV) power supply.
  • Base Compatibility: Install only into compatible 1734 wiring bases (1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS) to guarantee proper contact alignment and backplane connectivity.

Frequently Asked Questions

Q1: What does 'self-configuring' mean for the Allen-Bradley 1734-8CFG?
A1: Each of the 8 channels automatically detects and configures itself to operate as an input or an output depending on connected field wiring and software setup.

Q2: What terminal base units work with the 1734-8CFG module?
A2: It is compatible with 1734-TB, 1734-TBS, 1734-TOP, and 1734-TOPS mounting bases utilizing mechanical keyswitch position 1.

Q3: What power supply requirement applies to connected field devices?
A3: All connected field inputs and outputs must be powered by a SELV (Safety Extra Low Voltage) or PELV (Protected Extra Low Voltage) rated power supply.
