ACS510-01-07A2-4

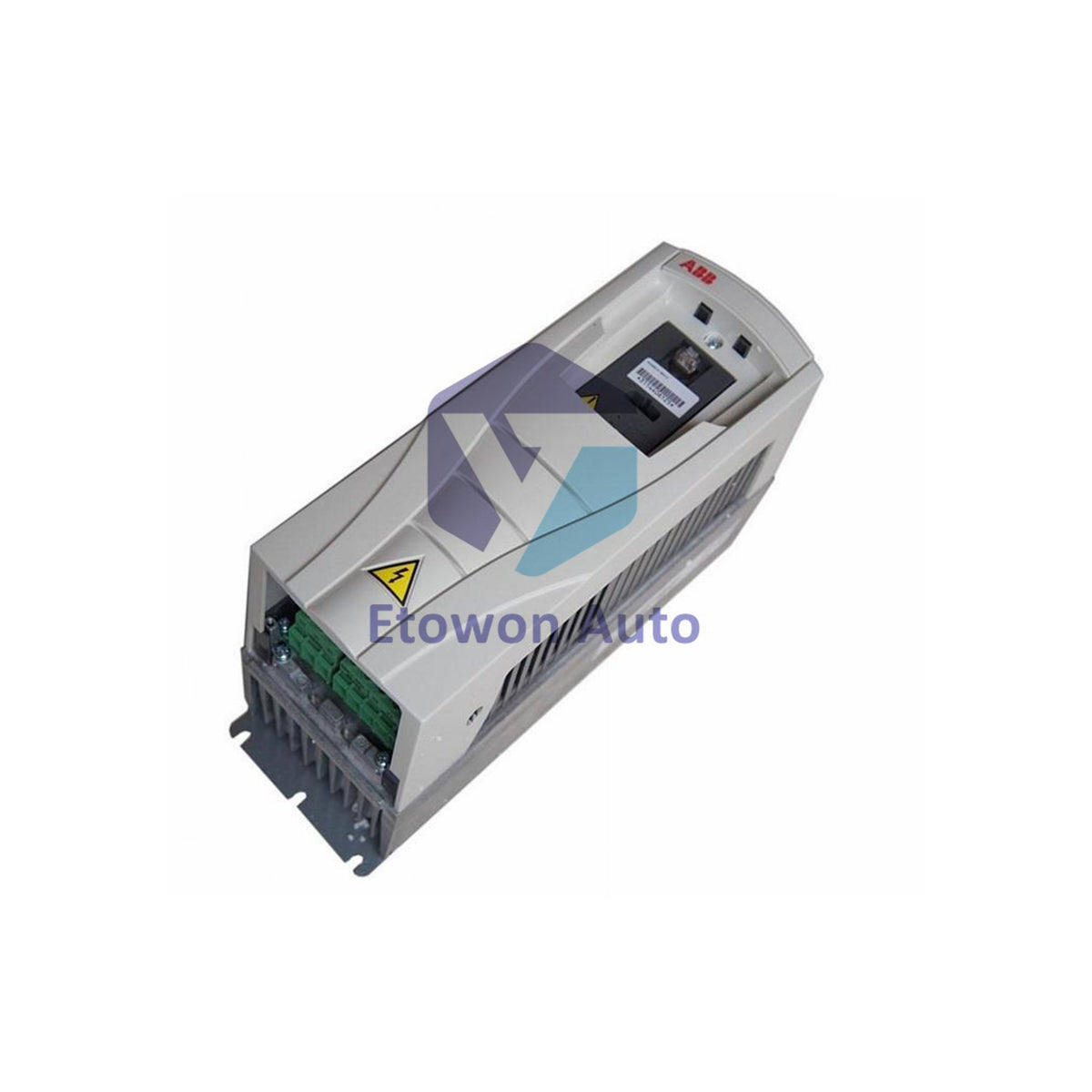

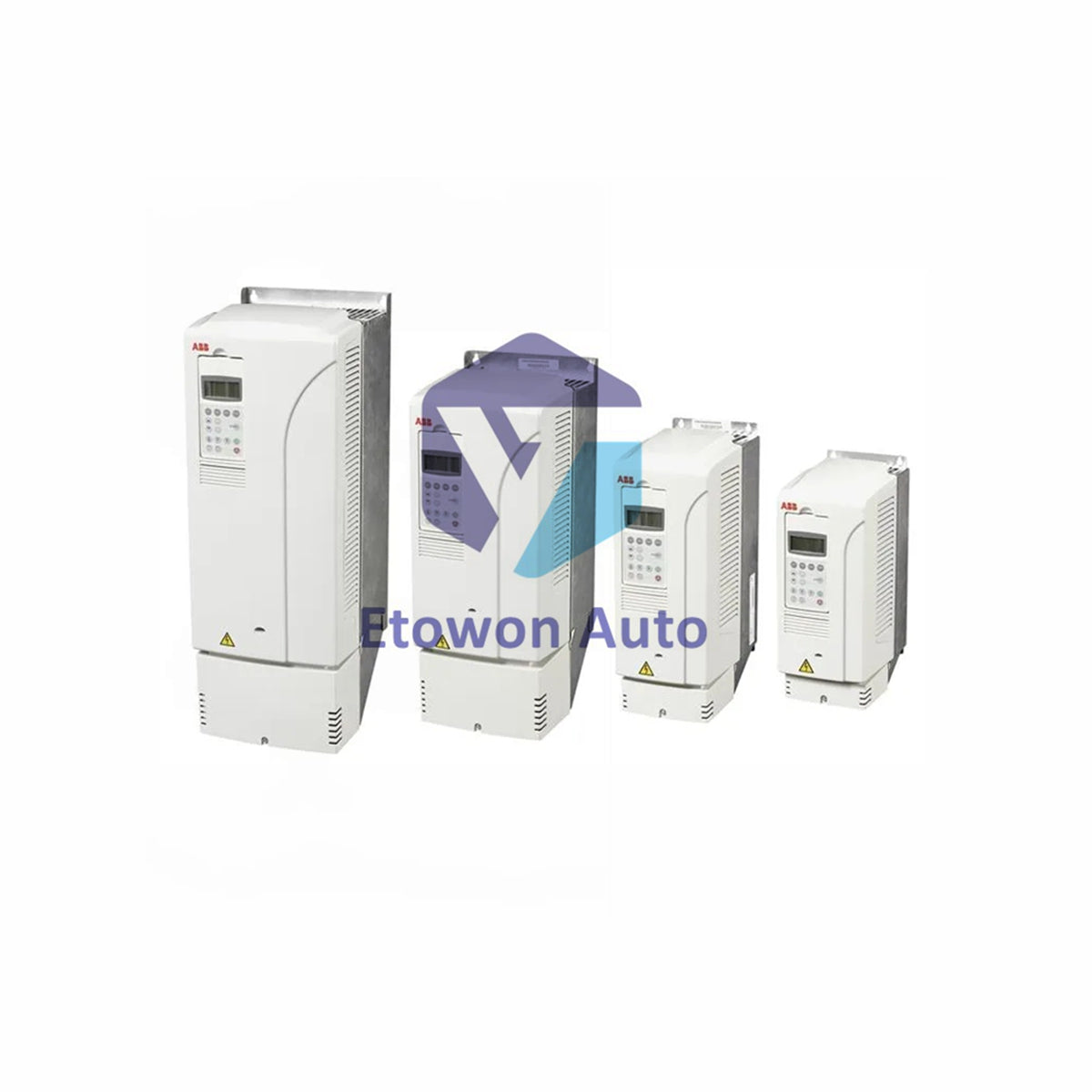

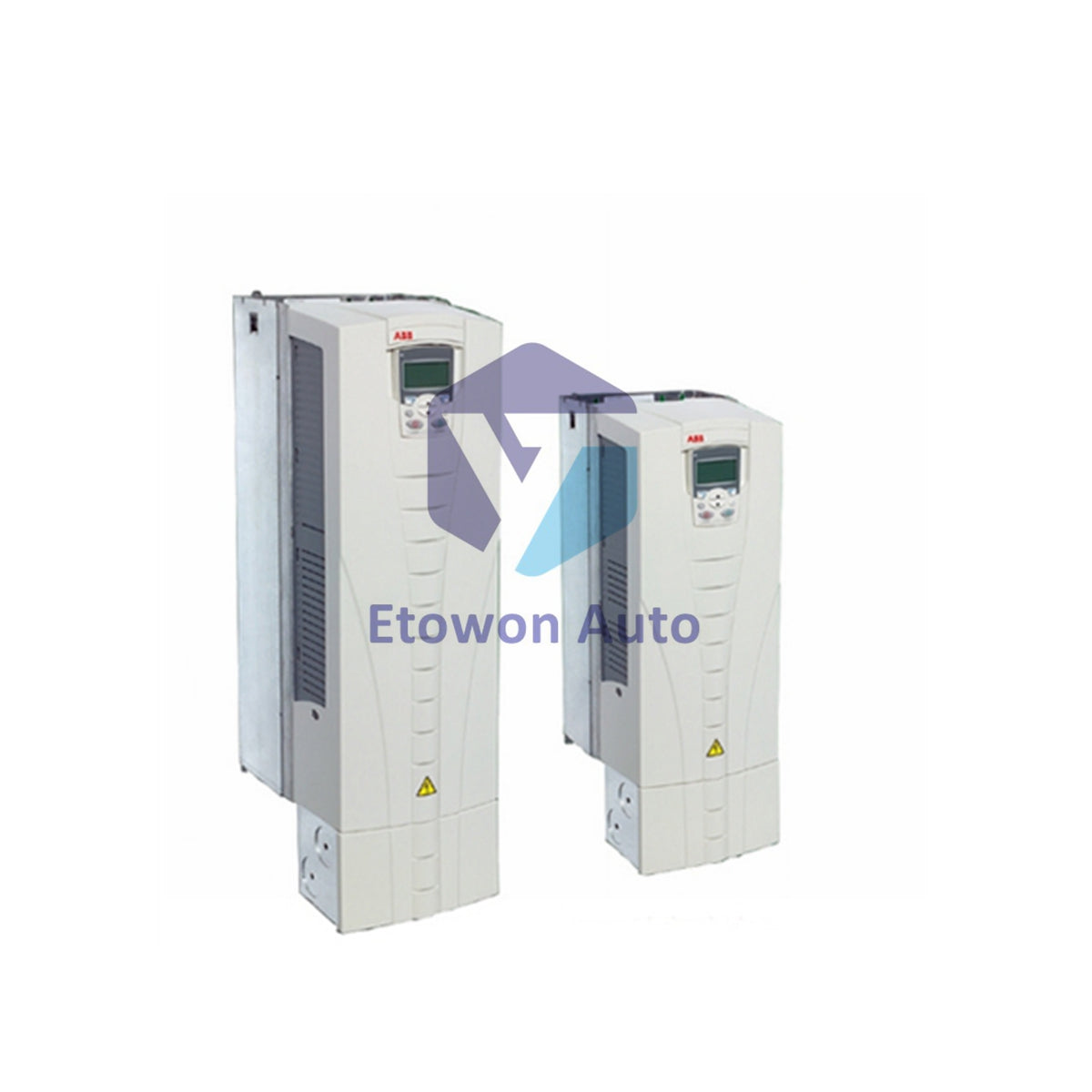

ACS510-01-07A2-4 ABB Inverter Drive 3kW 380-480V

In stock (30 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: ACS510-01-07A2-4

  • Product Type: Inverter Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 8200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The ACS510-01-07A2-4 is a wall-mounted inverter drive from ABB, designed for precise speed control of three-phase motors. It delivers 3 kW output power at 380–480 V, 50–60 Hz, making it ideal for industrial pump, fan, and conveyor applications. IP21 protection and IE2 efficiency ensure reliable performance in demanding environments.

Technical Configuration

Frame Size: R1 – Wall-Mounted

The R1 frame size designates a compact wall-mounted enclosure. This form factor optimizes panel space while maintaining full functionality. NEMA Type 1 rating provides basic protection against solid objects and dripping water.

Efficiency Level: IE2

IE2 efficiency ensures energy-saving operation with standby loss of only 11 W. This reduces operating costs and meets international efficiency standards for variable speed drives.

Technical Specifications

Parameter Specification
Manufacturer ABB
Product Type Inverter Drive (VFD)
Input Voltage 380 – 480 V
Input Frequency 47.5 – 63 Hz
Output Current (Normal Use) 7.2 A
Output Power (Normal Use) 3 kW
Apparent Power Output 5.0 kVA
Number of Phases 3
Degree of Protection IP21 (NEMA Type 1)
Frame Size R1
Mounting Type Wall-mounted
Efficiency Level IE2
Standby Loss 11 W
Frequency Range 50 – 60 Hz
Dimensions (L x W x H) 12 cm x 13 cm x 59.5 cm
Weight 8.2 kg

Installation & Maintenance

Mounting

Wall-mount the drive in a vertical position with adequate clearance for airflow. Maintain minimum 100 mm clearance above and below for proper cooling. IP21 enclosure protects against dust and dripping water.

Wiring

Connect input power (380–480 V, 3-phase, 50–60 Hz) to L1, L2, L3 terminals. Connect motor output to U, V, W terminals. Use appropriately sized cables for 7.2 A current. Ground the drive securely using the designated PE terminal.

Configuration

Configure parameters via the control panel or PC software. Set motor nominal values, acceleration/deceleration times, and application-specific parameters. The drive supports multiple control modes including scalar and vector control.

Engineering Advantages

Energy Efficiency

IE2 efficiency with 11 W standby loss reduces energy consumption. The drive optimizes motor operation for pumps, fans, and conveyors, delivering significant energy savings compared to direct-on-line starting.

Compact R1 Frame

Wall-mounted R1 frame minimizes panel space requirements. Lightweight design (8.2 kg) simplifies installation and maintenance. IP21 protection suits industrial environments with moderate dust and moisture exposure.

Versatile Application

Supports 50–60 Hz operation with 380–480 V input. Output power of 3 kW at 7.2 A covers a wide range of motor sizes. Ideal for HVAC, material handling, and process control applications.

Technical FAQs

Q1: What is the maximum motor power this drive can control?

A1: 3 kW (normal use) at 7.2 A output current. The drive supports motors rated for 380–480 V, 3-phase operation.

Q2: What is the enclosure rating?

A2: IP21 (NEMA Type 1). Protected against solid objects over 12.5 mm and dripping water. Suitable for indoor industrial environments.

Q3: Is this drive suitable for pump and fan applications?

A3: Yes. The ACS510 series is specifically optimized for pump, fan, and conveyor control with built-in application macros for quick setup.
