3ADT314100R1001

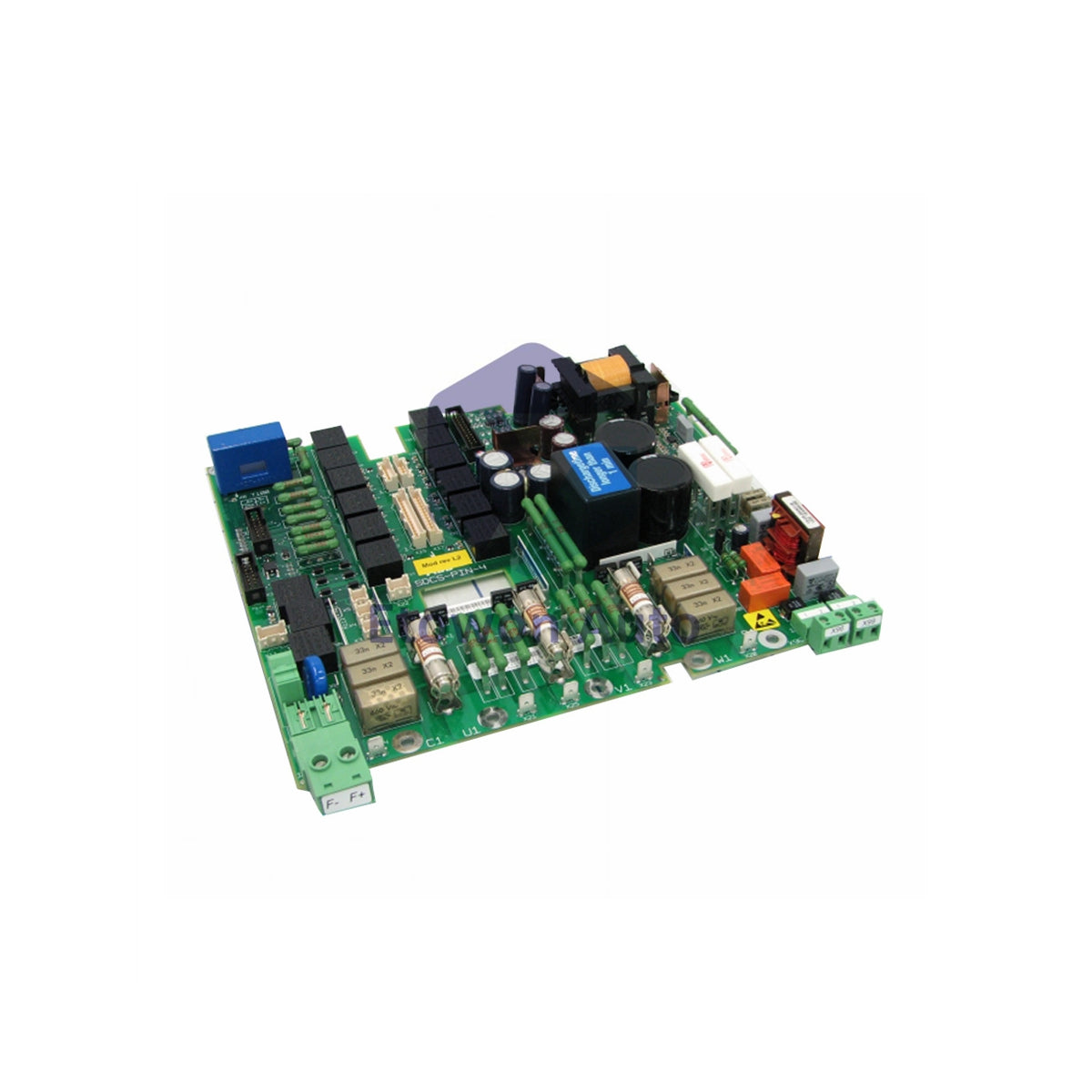

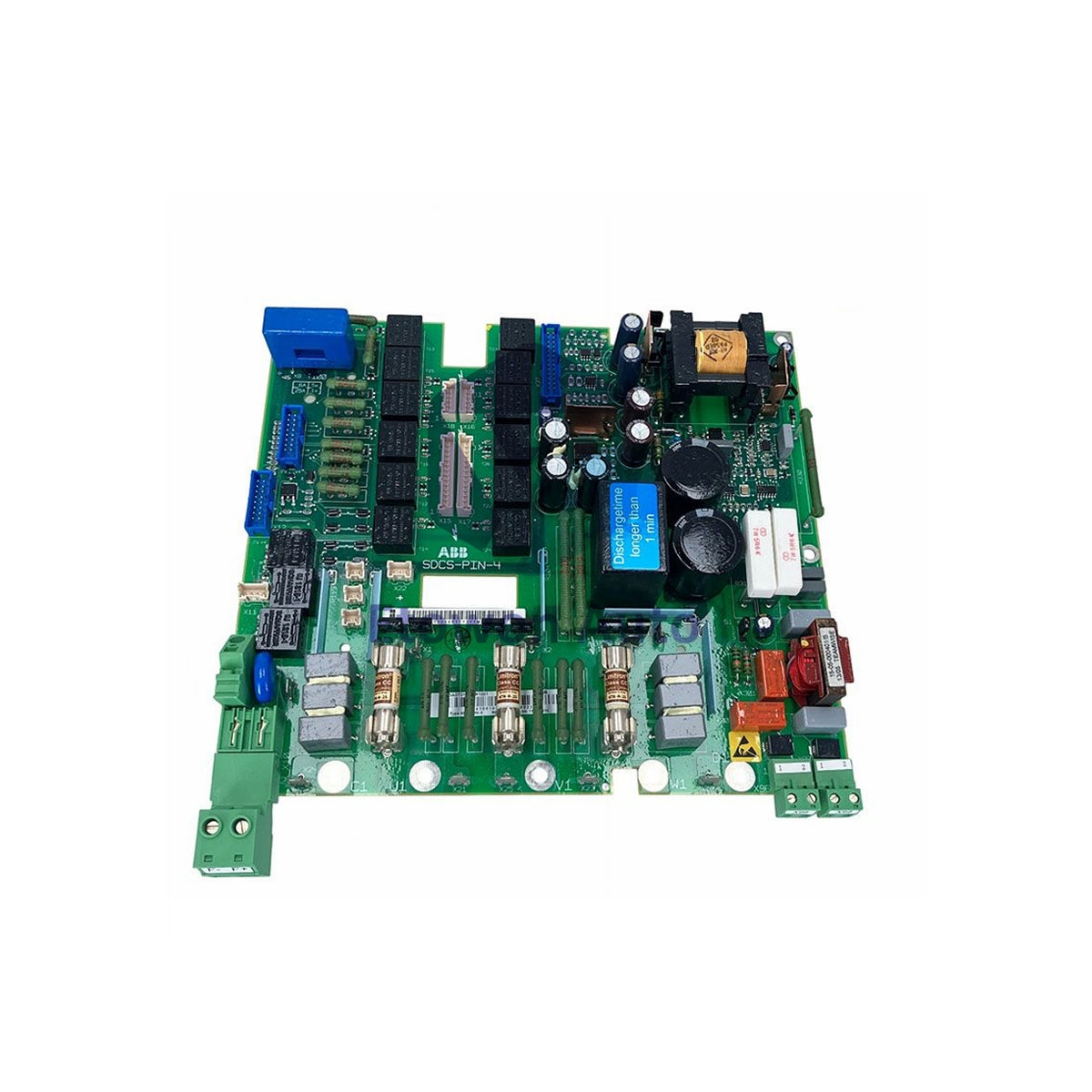

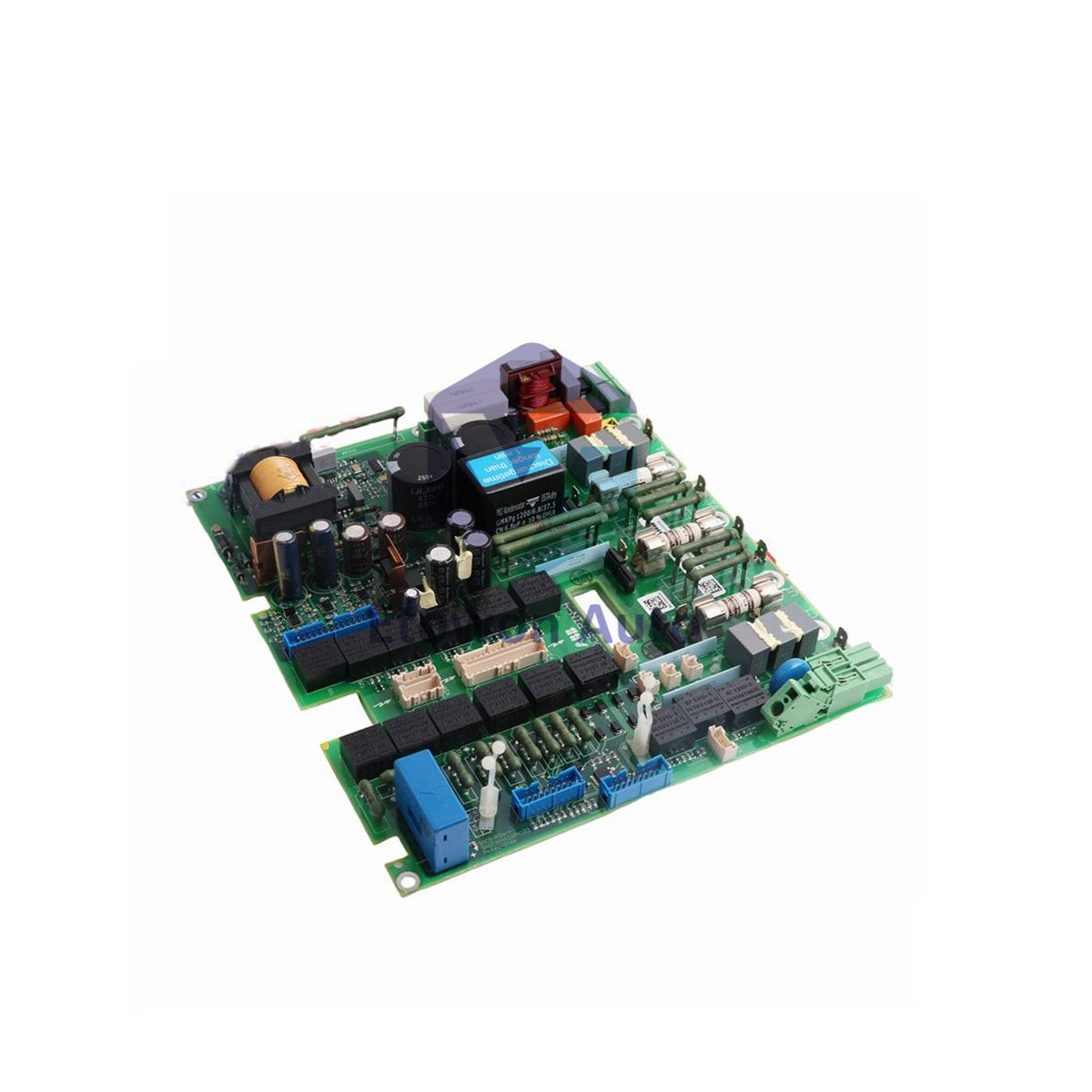

ABB SDCS-PIN-4 3ADT314100R1001 Power Interface Module 4A

In stock (11 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: 3ADT314100R1001

  • Product Type: Interface Board

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB SDCS-PIN-4 3ADT314100R1001 Power Interface Module

ABB SDCS-PIN-4 3ADT314100R1001 is a power interface module with 3 x 400V AC input and 0-400V DC output. Delivers 4A output current with open-loop or closed-loop control modes. Features RS-485 communication interface for flexible integration. Weight: 0.91 kg (2.0 lbs).

Technical Specifications

Parameter Specification
Manufacturer ABB
Model SDCS-PIN-4 3ADT314100R1001
Product Type Power Interface Module
Input Voltage 3 x 400V AC, ±10%
Output Voltage 0-400V DC
Output Current 4A
Frequency 50/60 Hz
Control Mode Open-loop or closed-loop
Communication Interface RS-485
Weight 0.91 kg (2.0 lbs)

Key Features

  • 3 x 400V AC input with ±10% tolerance
  • Adjustable 0-400V DC output
  • 4A continuous output current capacity
  • Selectable open-loop or closed-loop control
  • RS-485 communication for remote monitoring and control
  • Compact design for panel installation
  • Wide frequency support 50/60 Hz

Applications

  • Material handling systems
  • Robotics and automation
  • Machine tools
  • Packaging machinery
  • Printing machinery
  • Conveyor systems
  • HVAC systems

Installation Guidelines (Field Engineer Notes)

Power Wiring: Connect 3-phase 400V AC input to L1, L2, L3 terminals. Use 2.5 mm² minimum wire gauge. Torque terminals to 0.8 N·m. Verify phase rotation before energizing.

Control Mode Selection: For open-loop operation, DIP switch 1 must be OFF. For closed-loop, switch 1 ON and connect external feedback signal to terminals 5-6. Do not change mode while powered.

RS-485 Wiring: Use shielded twisted pair cable. Connect A to terminal 8, B to terminal 9. Ground the shield at the master device only. Terminate last device on the network with 120Ω resistor.

Output Protection: Install an external fast-acting fuse (4A, 500V DC rated) in series with the output. The module does not have internal output short-circuit protection.

FAQs

Q1. Can I run this module on single-phase input?
A1. No. The SDCS-PIN-4 3ADT314100R1001 requires 3-phase 400V AC input. Running on single-phase will cause unstable output and may damage the internal rectifier.

Q2. What wire gauge for RS-485 communication?
A2. Use 22-24 AWG shielded twisted pair. Maximum cable length is 1200 meters. Terminate both ends with 120Ω resistors for longer runs to prevent signal reflection.

Q3. How do I reset the module after an overcurrent fault?
A3. Cycle input power off for 10 seconds, then re-energize. Check load for shorts before restart. The module does not have a front-panel reset button.
