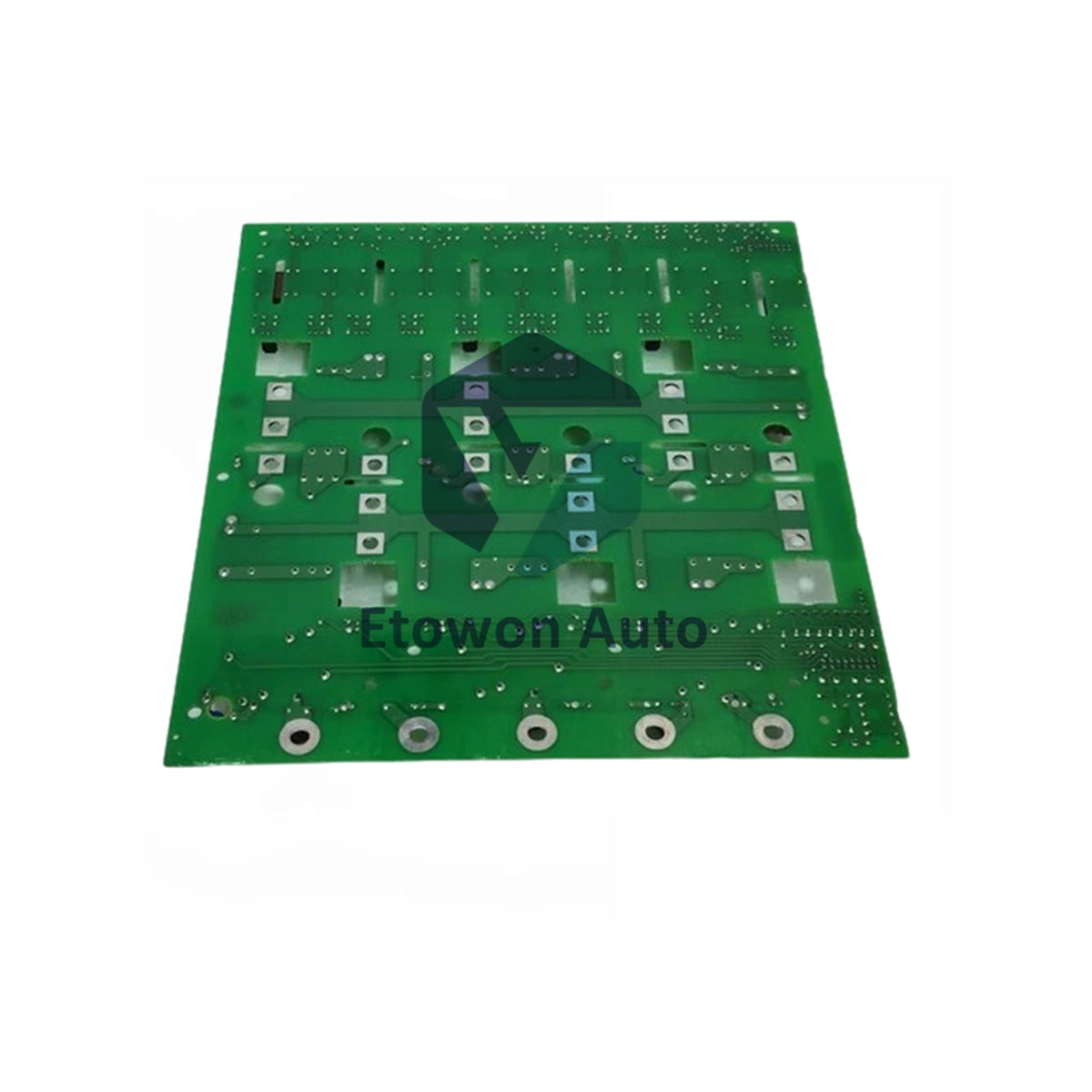

ABB SDCS-PIN-11 3ADT306100R0001 Power Interface Board

In stock (15 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: 3ADT306100R0001

  • Product Type: Power Interface Board

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 660g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB SDCS-PIN-11 3ADT306100R0001 Power Interface Board

Product Overview

ABB SDCS-PIN-11 is a power interface board with product ID 3ADT306100R0001. It accepts 24V DC at 2A input and delivers 0 10V output. Rated for 48W maximum output power. Designed for drive and control system interfacing.

Technical Specifications

Parameter Value
Brand ABB
Model SDCS-PIN-11
Product ID 3ADT306100R0001
Type Power Interface Board
Operating Voltage 24V DC
Input Current 2 A
Output Voltage Range 0 10V
Max Output Power 48 W
Operating Temperature 20°C to +60°C
Gross Weight 0.66 kg
UNSPSC 39120000

Installation

Mount board in designated drive slot. Connect 24V DC supply to pins. Verify polarity before powering on. Ensure adequate clearance for connectors. Use proper ESD protection during handling.

Wiring

Use stranded copper wire 18 22 AWG. Strip 7mm for terminal connections. Twist wires tightly before termination. Secure cables with cable ties. Keep signal wiring separate from power lines.

FAQ

Q1: What is the output voltage range?
A1: 0 to 10V DC. Use for analog control signals to drives and actuators. Test with multimeter before connecting load.

Q2: Can I exceed 48W output?
A2: No. Exceeding max power causes overheating and failure. Calculate load current to stay within 48W limit.

Q3: How to troubleshoot no output?
A3: Verify 24V input at terminals. Check fuse on board. Confirm load wiring not shorted. Replace board if input is present but output remains zero.
