AFC094AE02

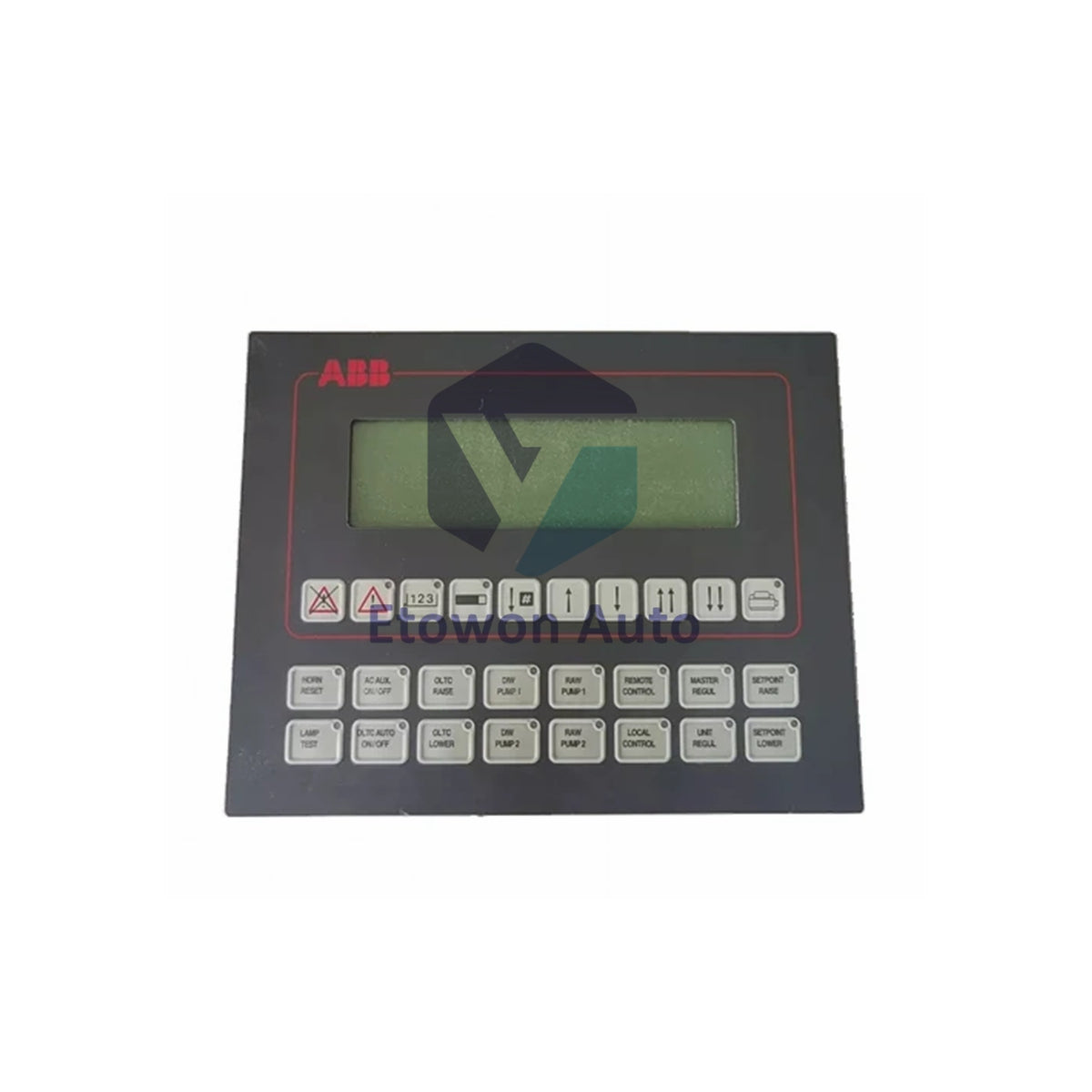

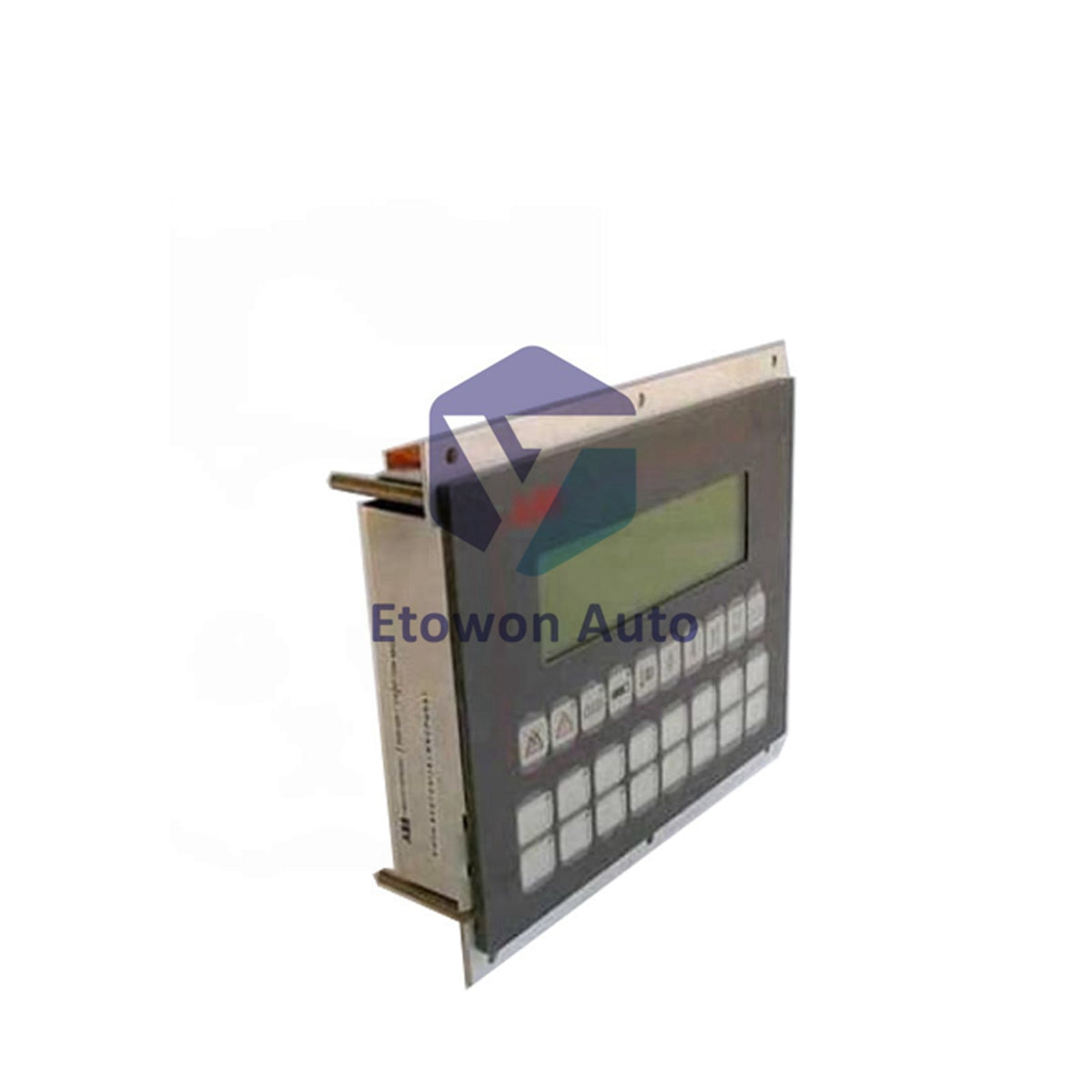

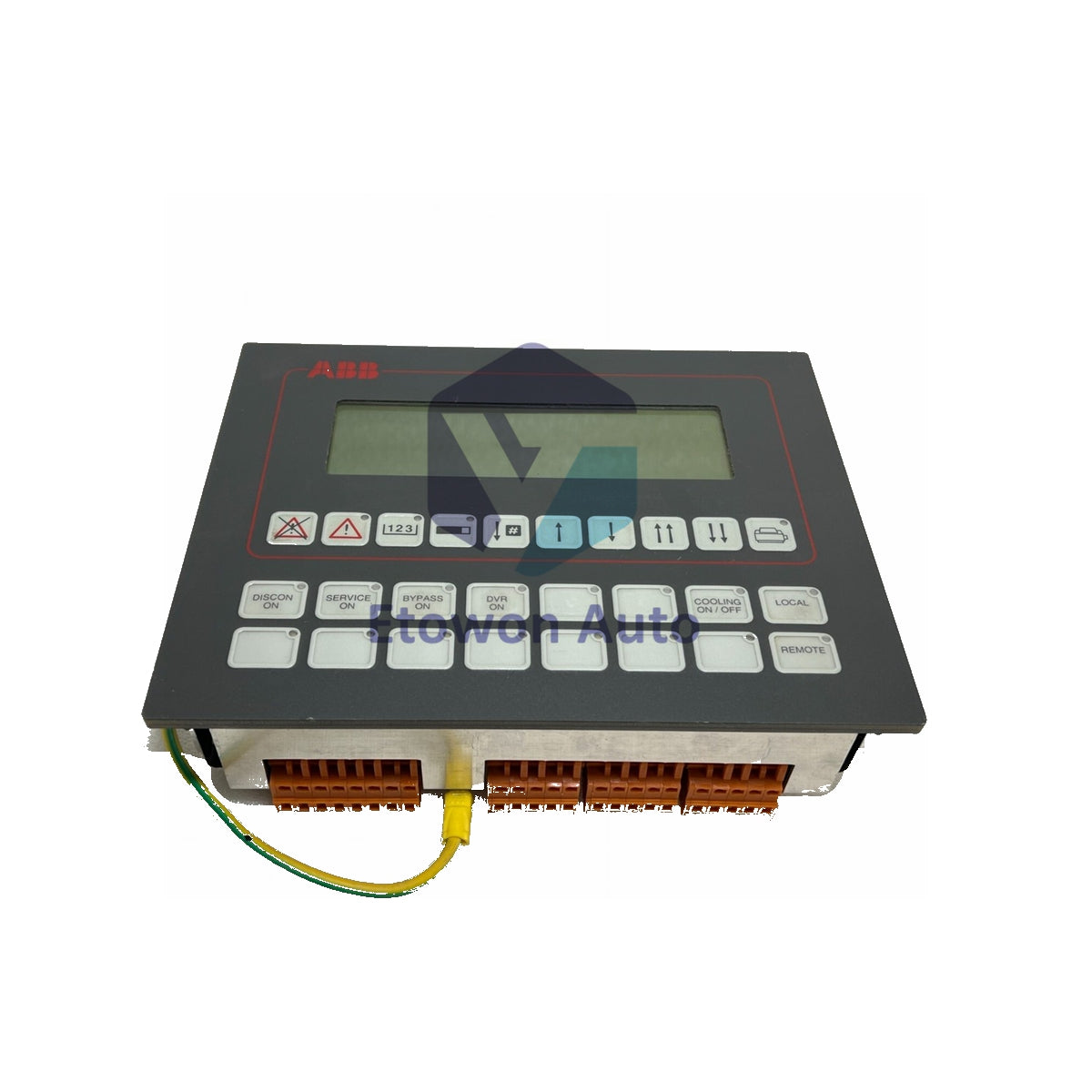

ABB HIEE200130R0002 AF C094 AE02 ARCnet Control Board

In stock (12 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: AFC094AE02

  • Product Type: Control Panel

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 1200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB HIEE200130R0002 Technical Overview

The ABB HIEE200130R0002 (AF C094 AE02) is an industrial ARCnet control panel designed by ABB for high-reliability communication and control within automated industrial networks. Operating on a 24 VDC input supply, this module features built-in LED indicators for real-time diagnostics, IP20 ingress protection, and a durable panel-mountable form factor. Weighing 1.2 kg with physical dimensions of 21 mm (W) x 8 mm (H) x 285 mm (D), it operates efficiently across extreme environments ranging from -20°C to +55°C and complies with international CE and UL safety standards.

Part Number Breakdown

  • HIEE200130R0002: Specific ABB Engineering Product Identification Code
  • AF C094 AE02: Functional Series Designator — ARCnet Control Panel Unit

Technical Specifications Table

Parameter Specification
Manufacturer / Brand ABB
Product ID HIEE200130R0002
Catalog Description AF C094 AE02 ARCnet Control Panel
Communication Protocol ARCnet Protocol
Input Supply Voltage 24 VDC
Display & Protection Class LED Indicator / IP20 Protection Rating
Physical Net Dimensions 21 mm W x 8 mm H x 285 mm D
Product Net Weight 1.2 kg (2.65 lbs)
Mounting Type & Temperature Panel Mountable / -20 °C to +55 °C
Compliance Certifications CE Certified, UL Listed

Key Features & Hardware Configurations

Features ARCnet protocol support, 24VDC input, 1.2 kg weight, LED indicators, IP20 protection, and panel mounting.

Frequently Asked Questions (FAQs)

Q1: What are the main specifications of the ABB HIEE200130R0002 control panel?
A1: ARCnet protocol, 24 VDC power input, 1.2 kg net weight, IP20 protection, LED indicators, and -20°C to +55°C operating range.

Q2: How is the physical panel mounted within an enclosure?
A2: It is designed for panel mounting with net dimensions of 21 mm width, 8 mm height, and 285 mm depth.

Q3: What certifications does the HIEE200130R0002 hold?
A3: The unit is compliant with both CE and UL safety and electromagnetic standards.
