61001239

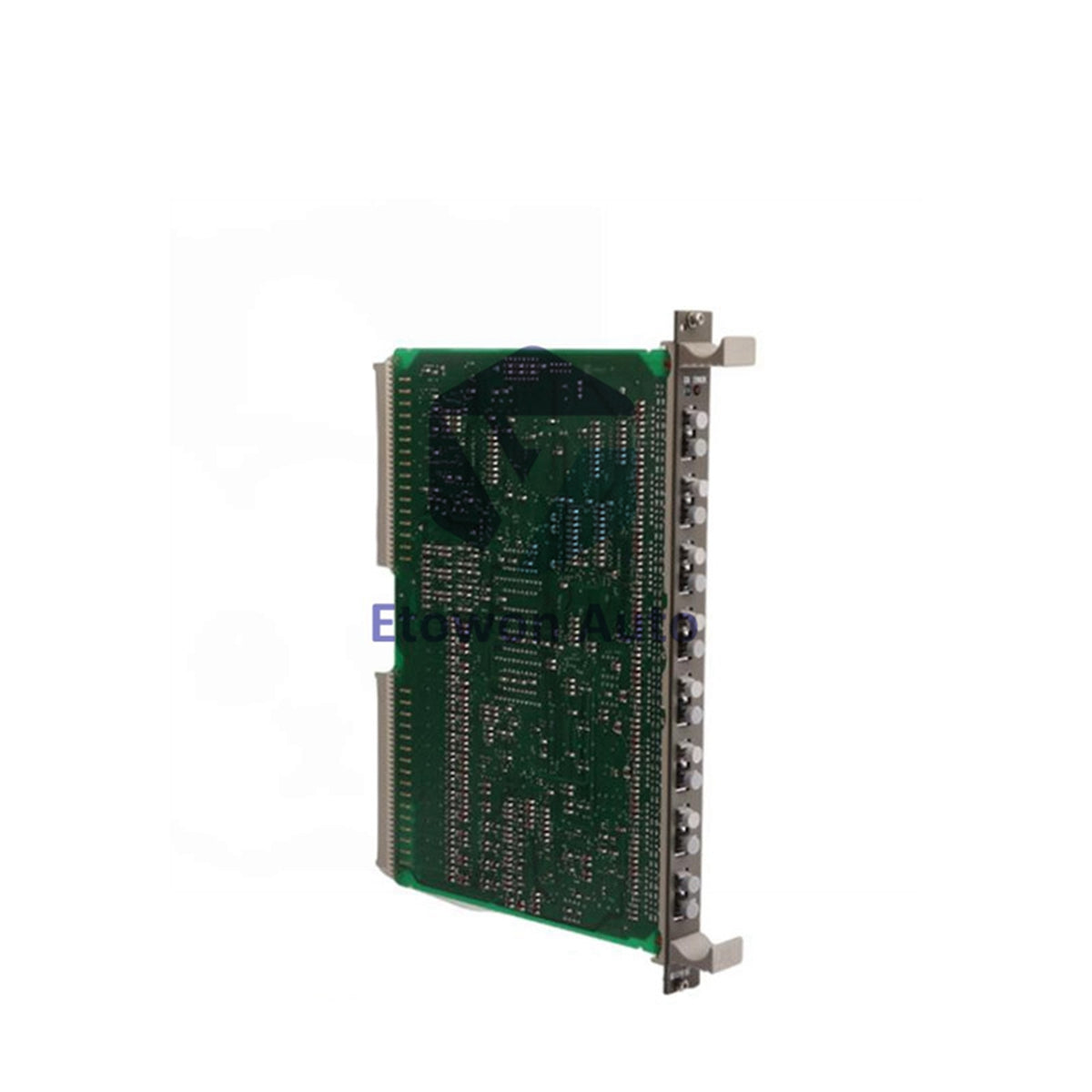

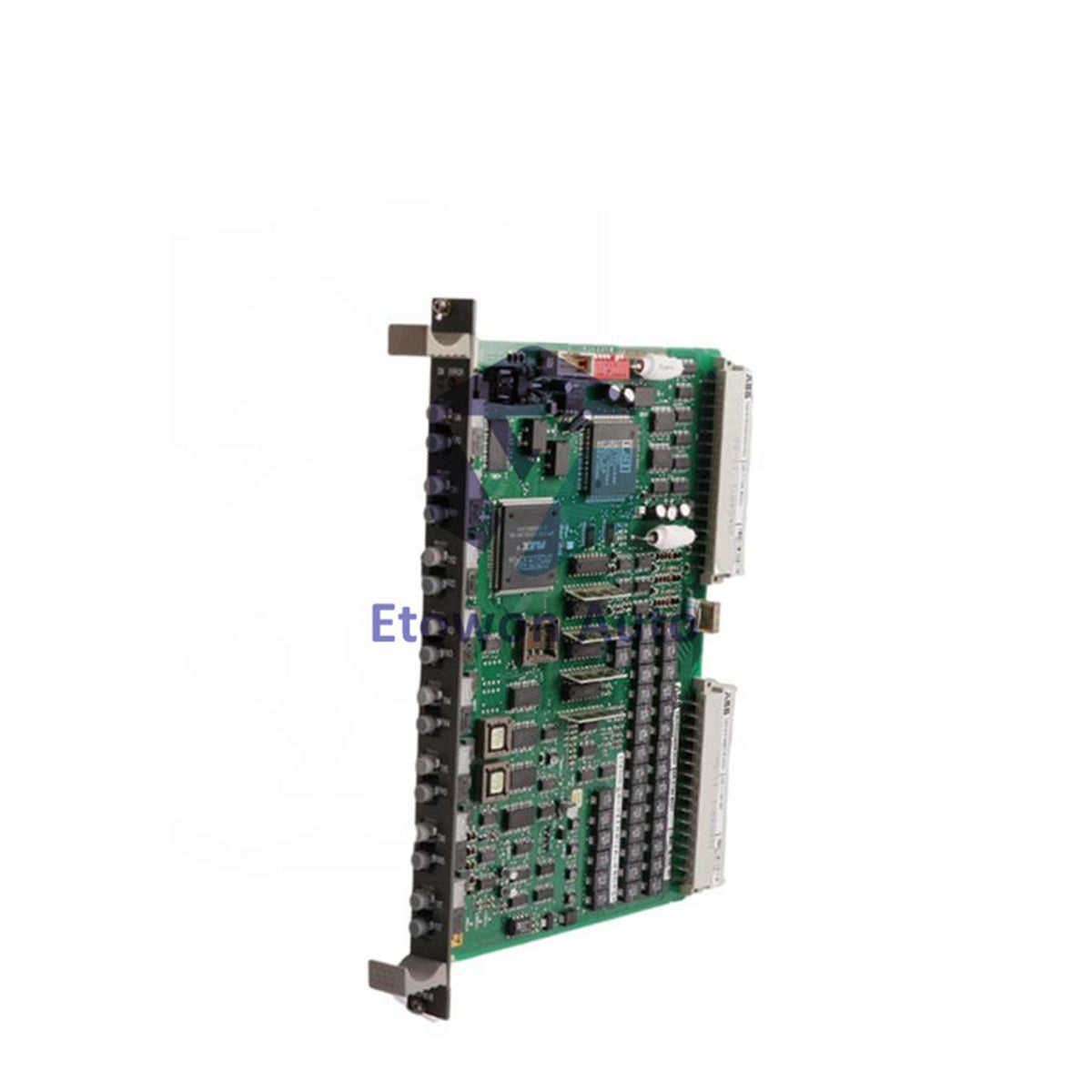

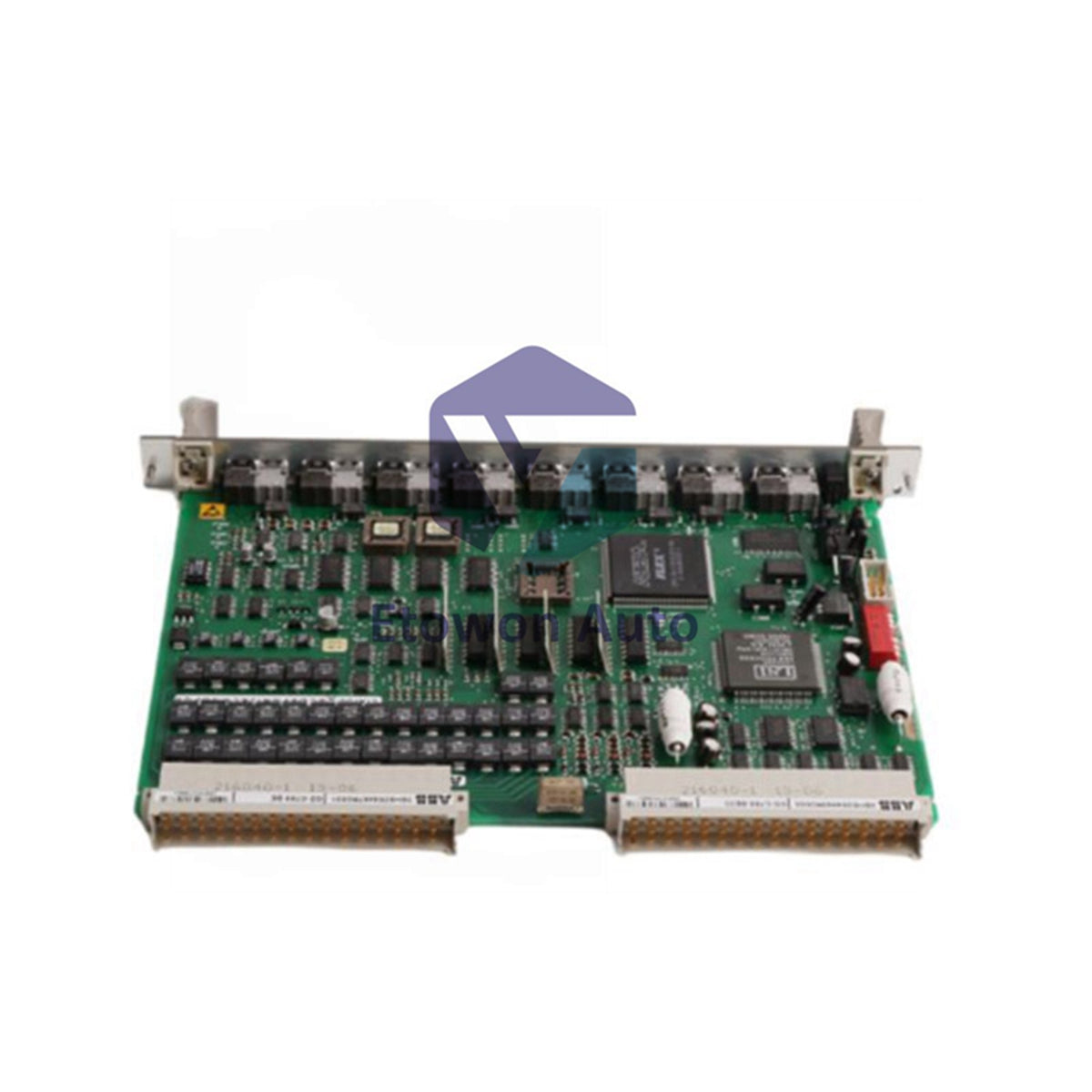

61001239 ABB SNAT601TAI Control Board 24VDC 500mA RS485

In stock (17 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: 61001239

  • Product Type: Control Board

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB SNAT601TAI 61001239 PID Control Board

The ABB SNAT601TAI (61001239) is a PID control board designed for industrial process control applications. Operating on 24 V DC with 500 mA input current and 2 A output current, it provides reliable PID control functionality. Featuring RS-485 connectivity and IP54 protection in a polycarbonate housing, this board operates from -20°C to +70°C. Weighing 0.5 kg (1.10 lbs), it measures 150 x 100 x 40 mm.

Technical Specifications

Parameter Value
Manufacturer ABB
Product ID 61001239
ABB Type Designation SNAT601TAI
Control Type PID Control
Input Voltage 24 V DC
Input Current 500 mA
Output Current 2 A
Operating Temperature -20°C to +70°C (-4°F to +158°F)
Housing Material Polycarbonate
Dimensions (L x W x H) 150 x 100 x 40 mm (5.9 x 3.9 x 1.6 in)
Weight 0.5 kg (1.10 lbs)
Protection Class IP54
Connectivity Interface RS-485
Customs Tariff Number 85176200

Installation & Field Application Guide

  • Mount the control board in a control cabinet with ambient temperature between -20°C and +70°C.
  • Connect 24 V DC power supply. The board draws 500 mA input current.
  • Use RS-485 interface for communication with PLC or SCADA systems.
  • Verify output current does not exceed 2 A per channel to avoid damage.

Why Choose the SNAT601TAI

  • PID control algorithm provides precise process regulation.
  • RS-485 connectivity enables integration with industrial networks.
  • IP54 polycarbonate housing protects against dust and water splashes.
  • Compact dimensions (150 x 100 x 40 mm) save panel space.

Field Engineer FAQs

Q1: What is the function of this control board?

A1: The SNAT601TAI provides PID control for industrial processes, regulating output based on input feedback to maintain setpoint values.

Q2: What communication protocol does this board support?

A2: The board features an RS-485 interface for communication with PLC, SCADA, and other industrial control systems.

Q3: What is the maximum output current per channel?

A3: The maximum output current is 2 A. Do not exceed this rating to prevent damage to the board.
