3ABD00015750-D

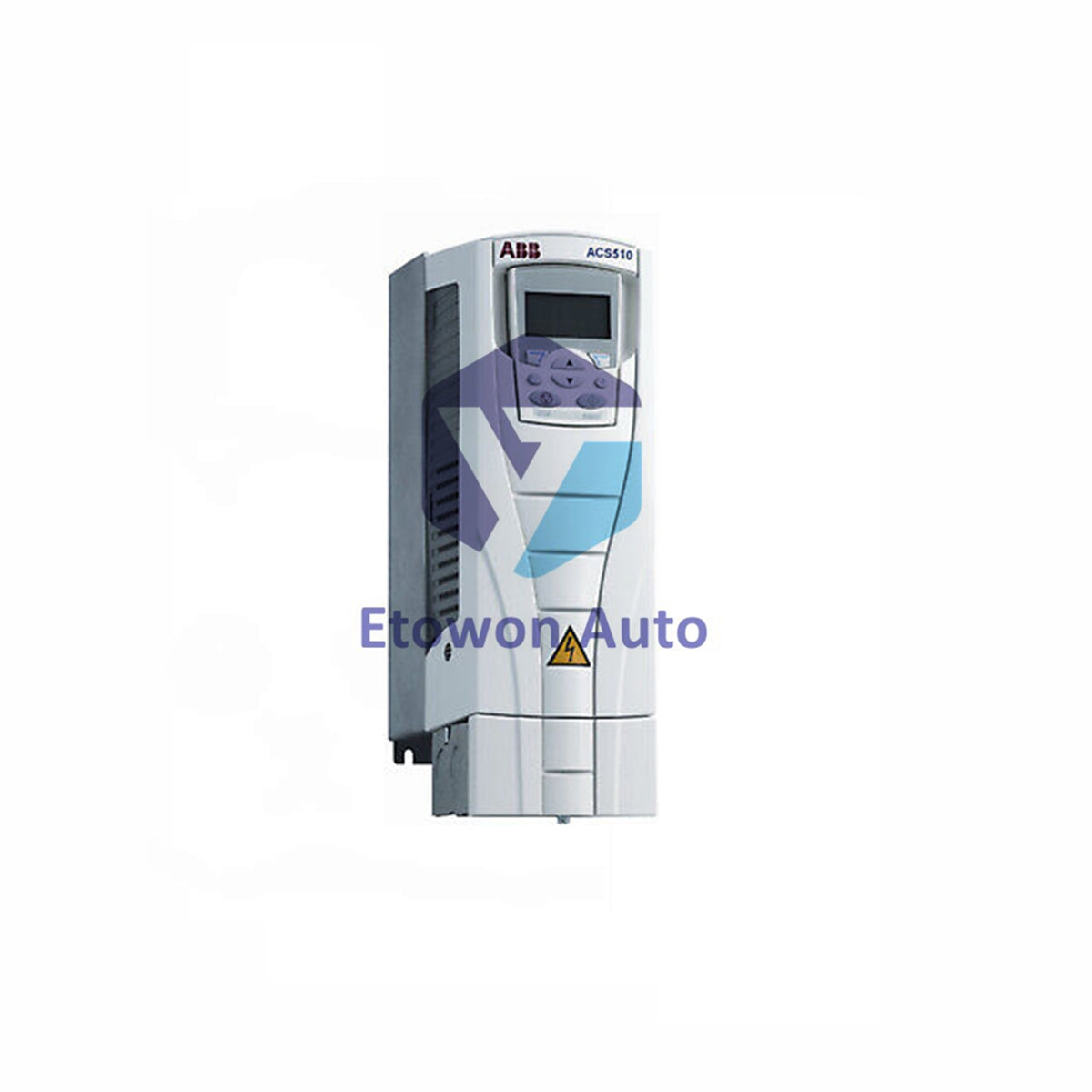

3ABD00015750-D ABB 18.5kW Variable Frequency Drive

In stock (16 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: 3ABD00015750-D

  • Product Type: Inverter Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 18500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The ABB 3ABD00015750-D is a 3 phase wall mounted inverter drive delivering 18.5 kW output power and 38 A output current. Designed for industrial motor control applications, it operates on 380 480 V input and supports 50 60 Hz frequency.

Key Features

IP21 protection with NEMA Type 1 enclosure suits indoor installations. R3 frame size offers compact footprint. IE2 efficiency level ensures energy savings. Low standby loss of 15 W reduces idle power consumption.

Technical Specifications

Product ID 3ABD00015750-D
Global Commercial Alias ACS510-01-038A-4
Manufacturer ABB
Product Type Inverter Drive
Input Voltage 380 480 V
Frequency Range 47.5 63 Hz
Number of Phases 3
Output Current (In) 38 A
Output Power (Pn) 18.5 kW
Apparent Power Output 26 kVA
Frame Size R3
Degree of Protection IP21
Enclosure Type NEMA Type 1
Efficiency Level IE2
Standby Loss 15 W
Mounting Type Wall mounted
Dimensions (L x W x H) 45 x 27 x 60 cm
Weight 18.5 kg

Installation Guide

Mount the 3ABD00015750-D vertically on a sturdy wall surface. Ensure adequate clearance for airflow around the R3 frame. Connect 3 phase 380 480 V input to the supply terminals. Verify motor compatibility with 18.5 kW nominal power and 38 A current rating.

Engineering Advantages

IE2 efficiency reduces operating costs over the drive lifetime. IP21 protection safeguards against dust and dripping water. Wide input frequency range (47.5 63 Hz) ensures stable operation with varying grid conditions. Low standby loss minimizes energy waste during idle periods.

Frequently Asked Questions

Q1: What motor power rating matches this drive?

A1: The drive delivers 18.5 kW output power and 38 A current, suitable for motors with equivalent power rating.

Q2: Can this drive operate on 50 Hz and 60 Hz supplies?

A2: Yes, it accepts 47.5 63 Hz input, covering both 50 Hz and 60 Hz grid standards.

Q3: What is the difference between IP21 and NEMA Type 1?

A3: IP21 and NEMA Type 1 provide equivalent protection against solid objects and dripping water for indoor use.
