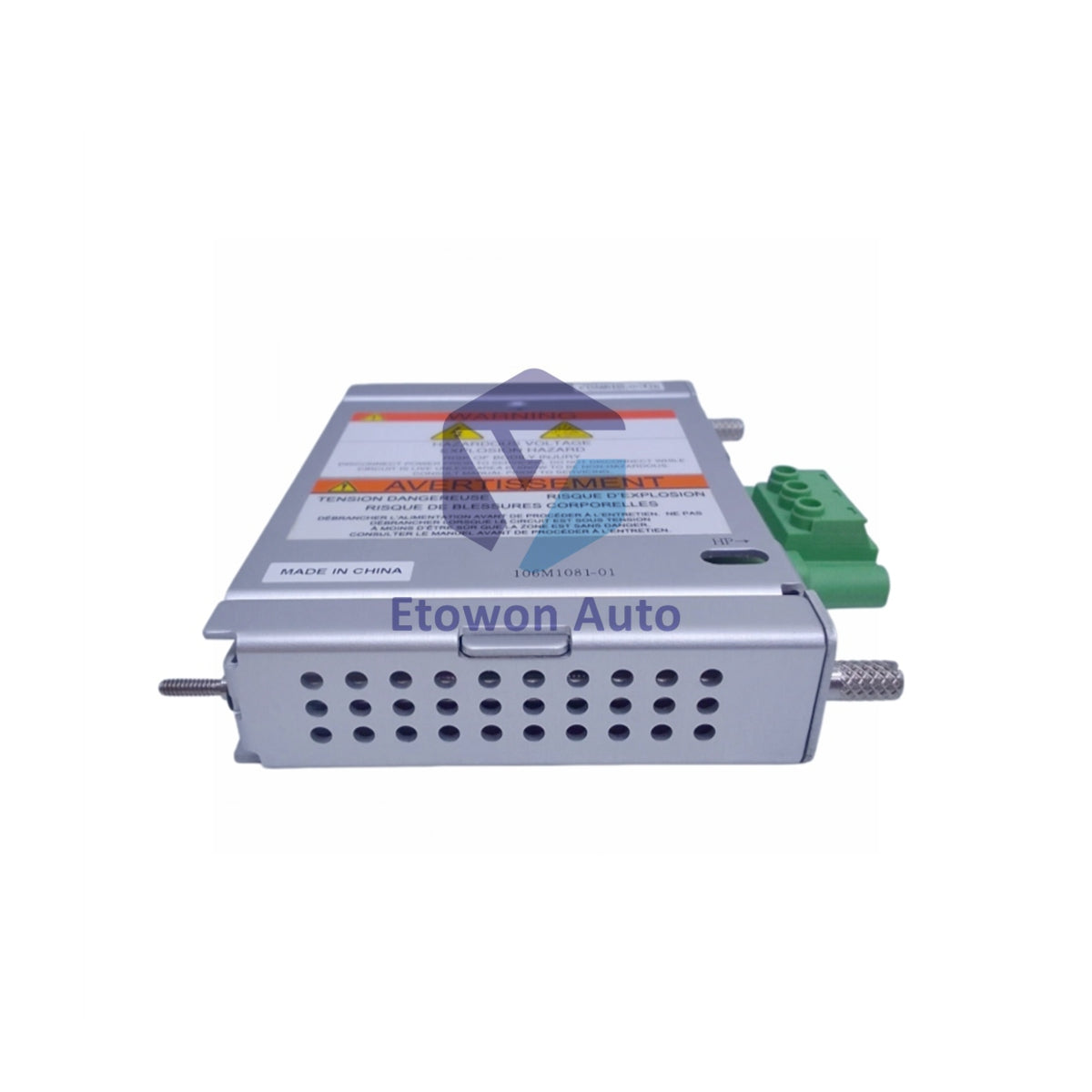

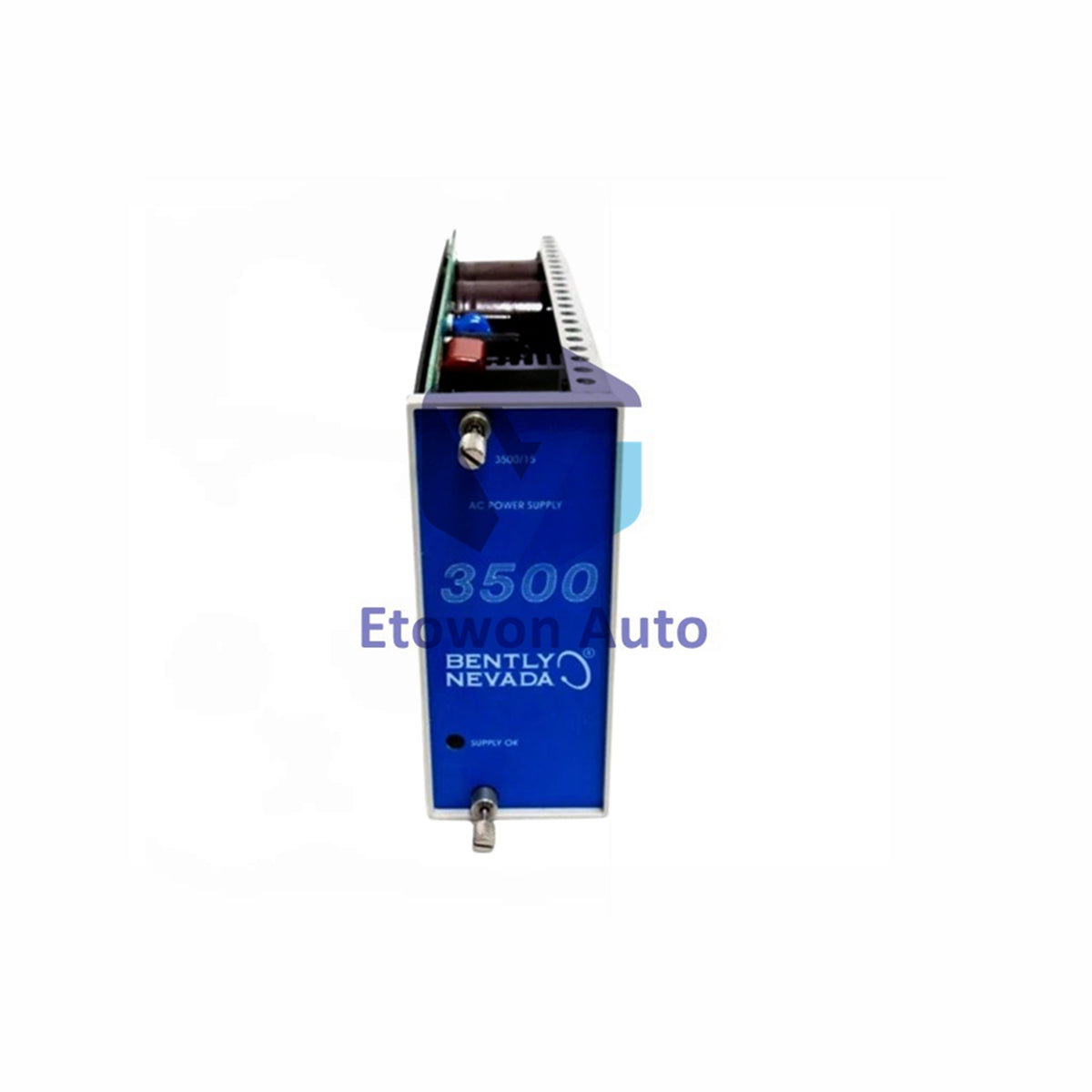

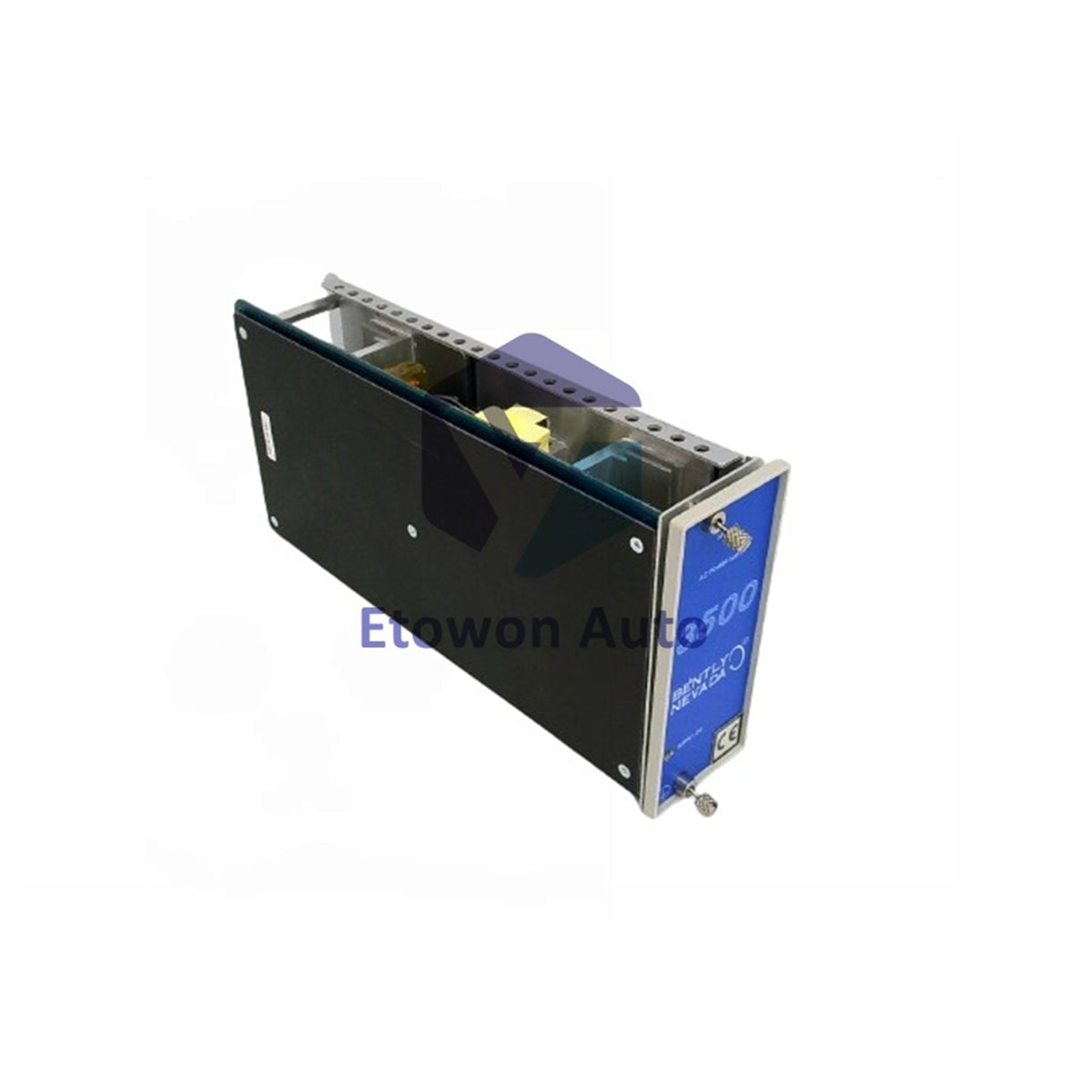

3500/15-05-00-05

3500/15-05-05-00 Bently Nevada Power Supply 65W 85-264V

In stock (12 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 3500/15-05-00-05

  • Product Type: Power Supply

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1390g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

3500-15-05-05-00 Bently Nevada Power Supply – 65W 85-264VAC

The Bently Nevada 3500-15-05-05-00 is a universal AC power supply module for the 3500 Monitoring System. Accepts 85 to 264 VAC input and delivers 65 Watts output power.

Product Information

Manufacturer Bently Nevada
Product Number 3500-15-05-05-00
Product Type Power Supply (106M1079-01 + 106M1081-01)
Origin U.S.A.
Condition New and Original
Warranty 12 Months
Certificate Certificate of Origin (COO) Available

Technical Specifications

Input Voltage 85-264 VAC RMS (Universal)
Input Frequency 47-63 Hz
Output Power 65 Watts
Efficiency >85%
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Dimensions (L x W x H) 25.15 x 5.08 x 12.07 cm
Weight 1.39 kg
Safety Standards UL / CSA / TUV Certified

Compatible Systems

  • Bently Nevada 3500 Monitoring System
  • 3500-15 Rack Interfaces
  • 3500-22M Transient Data Interface
  • 3500-25 Keyphasor Module
  • 3500-32 4-Channel Relay
  • 3500-40M Analog Monitor

Applications

Industry Application
Power Generation Turbine Control System Power
Oil and Gas Compressor Monitoring Systems
Marine Propulsion Monitoring Backup Power
Manufacturing Critical Machine Protection Systems

Package Contents

  • 3500-15 Power Supply Module
  • Mounting Hardware
  • Installation Guide
  • Quality Assurance Documentation

Features

  • Universal AC input 85-264 VAC
  • 65 Watts output power with >85% efficiency
  • UL, CSA, and TUV safety certified
  • Designed for Bently Nevada 3500 Monitoring System
  • Wide operating temperature range
  • Certificate of Origin available
  • 12-month warranty included

FAQs

Q1: What is the correct mounting orientation?
A1: Install in the leftmost rack slot. Fully seat and secure with two retaining screws at 0.56 N·m (5 in·lb).

Q2: How to wire AC input?
A2: Use 14-16 AWG 90°C wire. Connect L to terminal 1, N to terminal 2, Ground to terminal 3. Torque to 0.56 N·m. Use 6A circuit breaker.

Q3: Green LED off, amber on. What to check?
A3: Check AC voltage at terminals. If present but green off, internal fuse is blown. Amber indicates over-temp or over-current. Verify rack ventilation and ambient below 60°C.

Product Documentation

Download Detailed Product Specifications PDF

🏷️ Tags: Power Supply

Scalar (V/f)

Vector

AC-powered
  • Confirm the exact model, part number, and specifications before ordering.
  • Ensure compatibility with your current machinery or control systems.
  • Reach out via sale@etowonauto.com or +8617859788089 for technical assistance.
  • Review delivery options, lead times, and shipping requirements.
  • Follow manufacturer instructions and best practices during installation.

In-stock items are typically dispatched the same business day. For products not currently in stock, dispatch times may vary based on availability. International shipping is available, and shipping costs are calculated according to destination, weight, and carrier selection.

Returns are accepted within 30 days of receipt, provided items are unused and in original condition. Return shipping costs are the responsibility of the customer. Please contact us before returning any item to receive return authorization.

For more details, please review our Shipping & Return Policy.
