330905-05-08-05-12-00

330905-05-08-05-12-00 Bently Nevada Probe

In stock (20 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330905-05-08-05-12-00

  • Product Type: 330905 NSv Proximity Probes

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

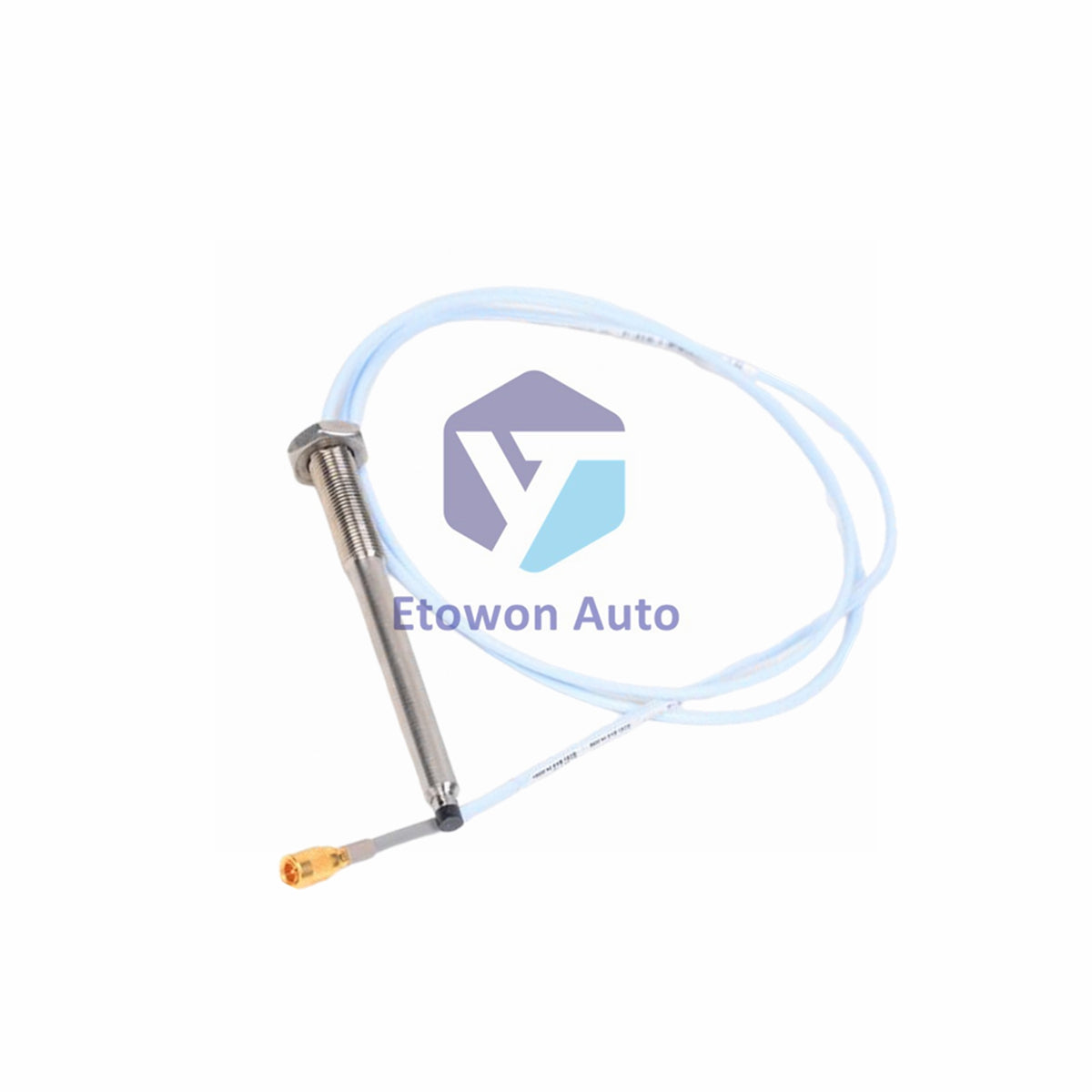

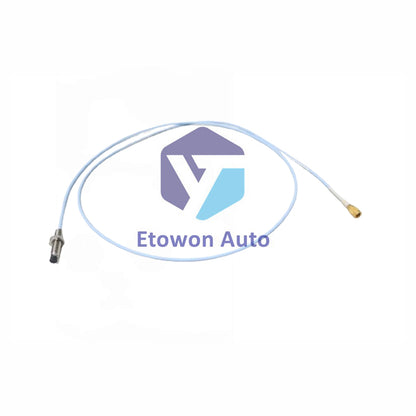

Bently Nevada 330905-05-08-05-12-00 Proximity Probe

The Bently Nevada 330905-05-08-05-12-00 is an ultra-compact 3300 NSv series proximity probe. Its short 80mm case and robust FluidLoc cable make it ideal for installations with severe space constraints and harsh chemical exposure.

Technical Specifications

  • Brand & Model: Bently Nevada 330905-05-08-05-12-00
  • Case Configuration: Short-case, 80mm total length (50mm unthreaded)
  • Thread: M10 x 1
  • Cable Technology: FluidLoc™ (Resistant to 18+ petrochemicals, including diesel and lubricants)
  • Operating Temperature: -52°C to +177°C
  • Thermal Output Drift: ±0.6% across full temperature range
  • Electrical Performance:
    • Probe Resistance: 4.0Ω ±0.5Ω (with 0.5m cable)
    • Capacitance Stability: ±3% over 10,000 cycles
    • Shield Effectiveness: 90dB @ 100MHz
  • Mechanical Endurance:
    • Axial Load: Withstands 15 kN on M10x1 threads
    • Tip Material: PPS (survives 800+ steam cycles at 150°C)
    • Seal: Viton (maintains 2.8 MPa pressure integrity)
  • Dynamic Response:
    • Response Time: 0.5 ms
    • Angular Misalignment Tolerance: ±6°
    • Shock Survival: 40G pulses (6ms duration)
  • Protection Rating: IP68 when properly installed

FAQ

  • Q: What is the 330905-05-08-05-12-00 probe's key advantage?
    A: Its primary advantage is the combination of an ultra-short 80mm housing for tight spaces and the FluidLoc cable for reliable operation in chemically aggressive environments.
  • Q: What does "FluidLoc" technology do?
    A: It creates a hermetic seal at the cable entry point, preventing oils, fuels, and other liquids from wicking along the cable and causing signal drift or sensor failure.
  • Q: Is this probe suitable for high-temperature steam areas?
    A: Yes, its PPS tip and wide temperature range (-52°C to +177°C) make it capable of surviving in environments with high-temperature steam exposure.

Technical Documentation

Download Detailed Specifications (PDF)

For pricing and technical support for the 330905-05-08-05-12-00, contact us at sale@etowonauto.com.
