330905-00-10-05-01-00

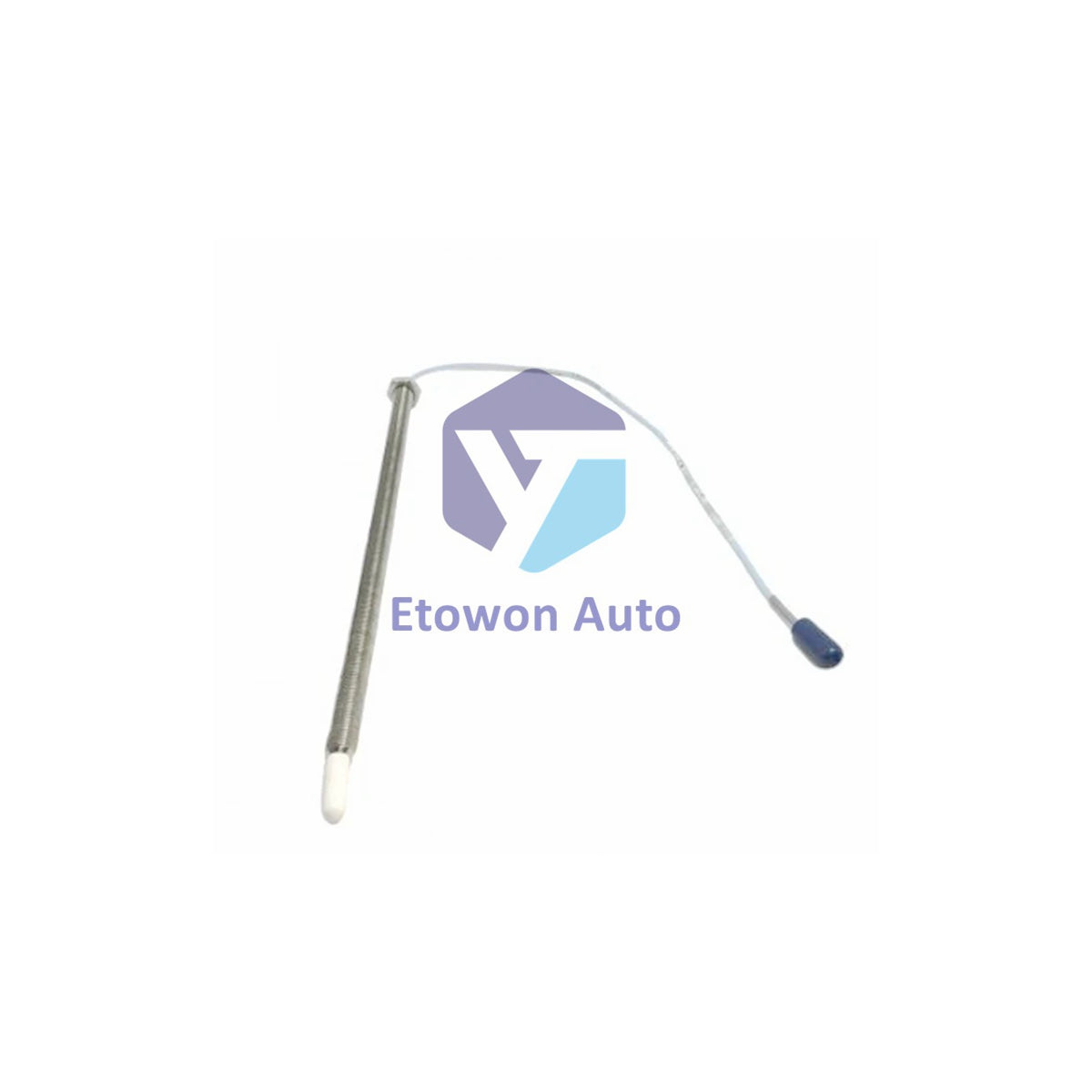

330905-00-10-05-01-00 Bently Nevada 0.5m Cable Probe

In stock (11 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330905-00-10-05-01-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 150g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Technical Specifications

Manufacturer / Brand Bently Nevada
Product Series / Model 3300 NSv Series / 330905 Model
Full Part Number 330905-00-10-05-01-00
Linear Range & Scale Factor 1.5 mm (60 mils) | 7.87 V/mm (200 mV/mil) ISF
Thread & Case Dimensions M10×1 Thread | 0 mm Unthreaded | 100 mm Overall Case Length
Cable Type & Total Length 0.5 meter (20 in) FEP Insulated 75 Ω Coaxial Cable (No Armor)
Connector Type Miniature Coaxial ClickLoc Connector with Connector Protector
Probe Resistance & Frequency 4.0 ± 0.5 Ω (0.5m) | 0 to 10 kHz (+0, -3 dB typical)
Materials & Pressure Seal AISI 304 Stainless Steel Case | PPS Tip | Viton O-ring Seal
Weight 0.15 kg (0.33 lbs) approx.
Operating Temperature -52 °C to +177 °C (-62 °F to +351 °F)

Product Overview

The Bently Nevada 330905-00-10-05-01-00 is a 3300 NSv non-contact proximity probe engineered for precise vibration and position measurements in tight-clearance industrial machinery and process compressors. Featuring an M10×1 threaded AISI 304 stainless steel casing, a 100 mm case length, and a polyphenylene sulfide (PPS) tip with a Viton O-ring seal, it offers enhanced chemical resistance compared to legacy 3300 RAM probes. Weighing approximately 0.15 kg (0.33 lbs), this lightweight probe is equipped with a 0.5-meter FEP coaxial cable and a ClickLoc connector to deliver a 1.5 mm (60 mil) linear measurement range with an incremental scale factor of 7.87 V/mm (200 mV/mil).

Key Features

  • Precision NSv Transducer Performance: Provides a 1.5 mm (60 mil) linear measurement span across 0.25 to 1.75 mm gap distances with 7.87 V/mm (200 mV/mil) sensitivity.
  • Chemical-Resistant Hardware Construction: Built with an AISI 304 stainless steel outer casing, PPS probe tip, and Viton O-ring seal for aggressive fluid and process environments.
  • Lightweight Compact Configuration: Compact 0.15 kg design featuring M10×1 metric threads, 0 mm unthreaded length, 100 mm case length, and high side-view target immunity in small spaces.
  • Extreme Thermal Range Capability: Designed for demanding field conditions operating reliably continuously between -52 °C and +177 °C (-62 °F to +351 °F).

Installation Essentials

Thread probe into M10x1 port, set gap to 1.0 mm (40 mils), click-lock coaxial cable, and torque case to max 7.5 N•m.

Technical FAQs

Q1: What is 330905-00-10-05-01-00's function?
A1: Eddy current proximity probe for vibration and position monitoring in tight-clearance machinery.

Q2: What are the exact probe dimensions, weight, and cable specs?
A2: Features M10×1 thread, 100 mm case length, weighs ~0.15 kg, and has a 0.5m FEP coaxial cable.

Q3: What temperature range does it support?
A3: Operates continuously in extreme environments from -52 °C to +177 °C (-62 °F to +351 °F).
