330905-00-07-10-02-CN Bently Nevada | Probe

330905-00-07-10-02-CN Bently Nevada | 3300 NSv Probe with Country Approvals

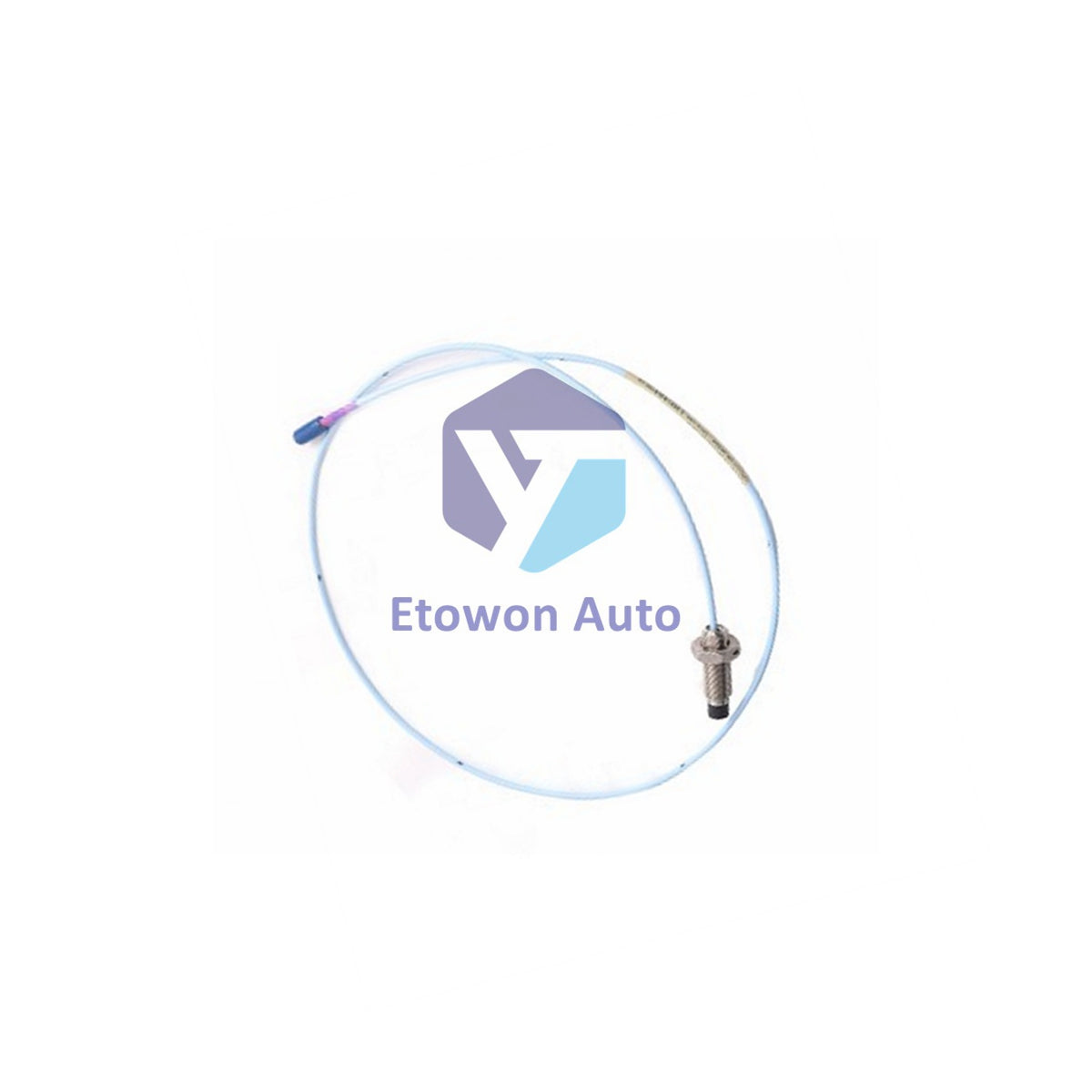

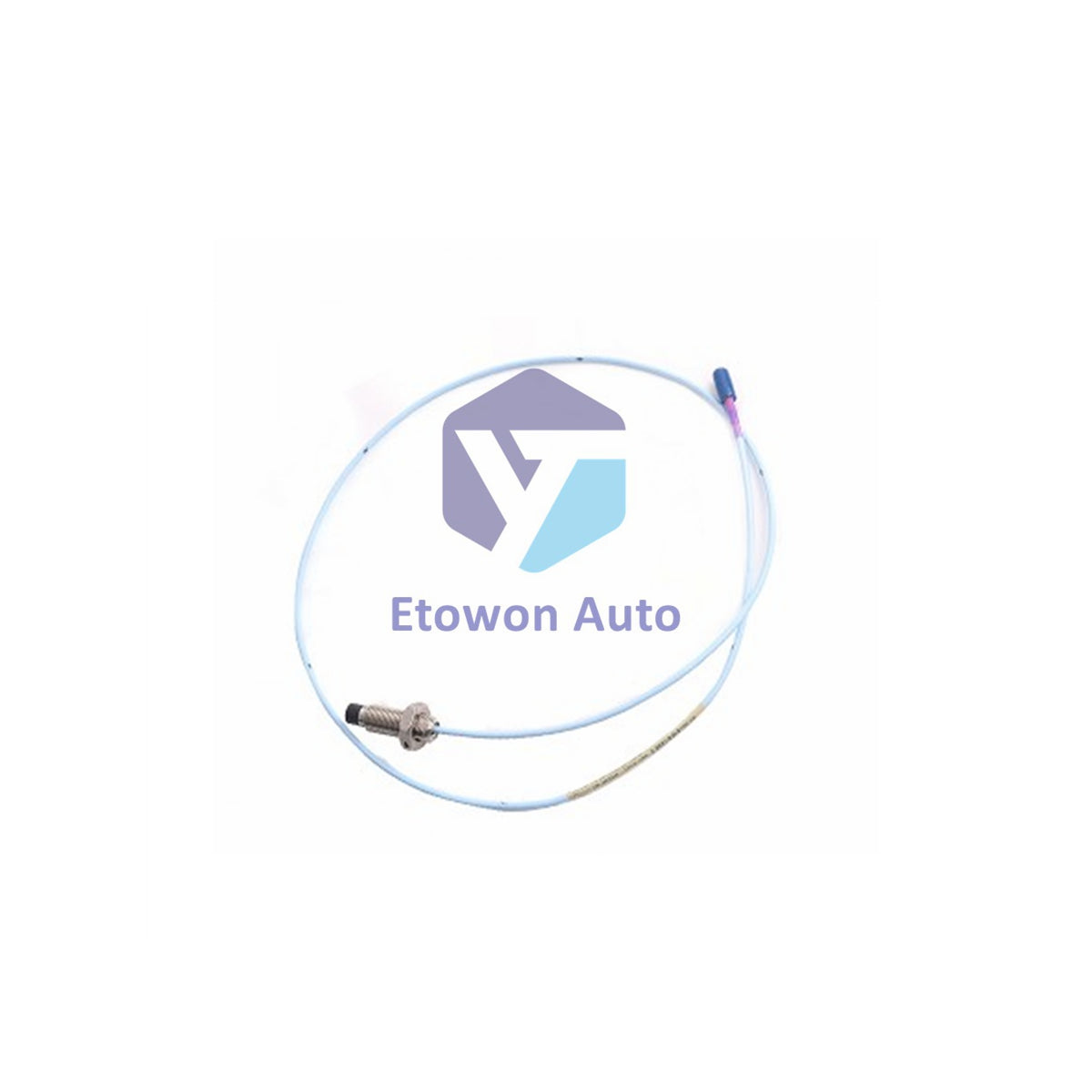

The 330905-00-07-10-02-CN is a proximity probe from Bently Nevada 3300 NSv series with standard cable and country specific approvals. 1.0m length, 70mm case.

▸ Configuration

• Model: 330905 - M10x1 thread, without armor
• Unthreaded length: 0 mm
• Case length: 70 mm
• Total cable: 1.0 meter (39 in)
• Connector: Miniature coaxial ClickLoc, standard cable
• Approvals: Country specific (-CN)

▸ Key Specifications

• Linear range: 1.5 mm (60 mils) from 0.25-1.75 mm
• Scale factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
• Deviation: Less than ±0.06 mm (±2.3 mils)
• Frequency response: 0-10 kHz, +0/-3 dB
• Probe DC resistance: 4.2 ±0.5 Ω (1.0m)
• Recommended gap: 1.0 mm (40 mils)

▸ Electrical & Mechanical

• Tip material: PPS
• Case material: AISI 304 SST
• Cable: 75Ω coaxial, FEP insulated, standard
• Min bend radius: 25.4 mm
• Max torque: 0.56 N•m (finger tight)
• Case torque max/rec: 33.9 / 11.3 N•m
• First three threads max/rec: 22.6 / 7.5 N•m
• Weight: 150g (5.3 oz) max

▸ Temperature & Environment

• Operating/Storage: -52°C to +177°C
• Pressure seal: Viton O-ring
• Field wiring max: 305 m (1000 ft) to monitor
• Wire gauge: 16-24 AWG (18-23 AWG with ferrules)
• Target min/recommended: 8.9 mm / 13 mm diameter

▸ FAQ

1. What approvals does this probe have?
Country specific certifications (-CN).

2. Cable type?
Standard 75Ω coaxial FEP insulated cable.

3. Temperature range?
-52°C to +177°C operating and storage.
