330903-00-03-05-01-00

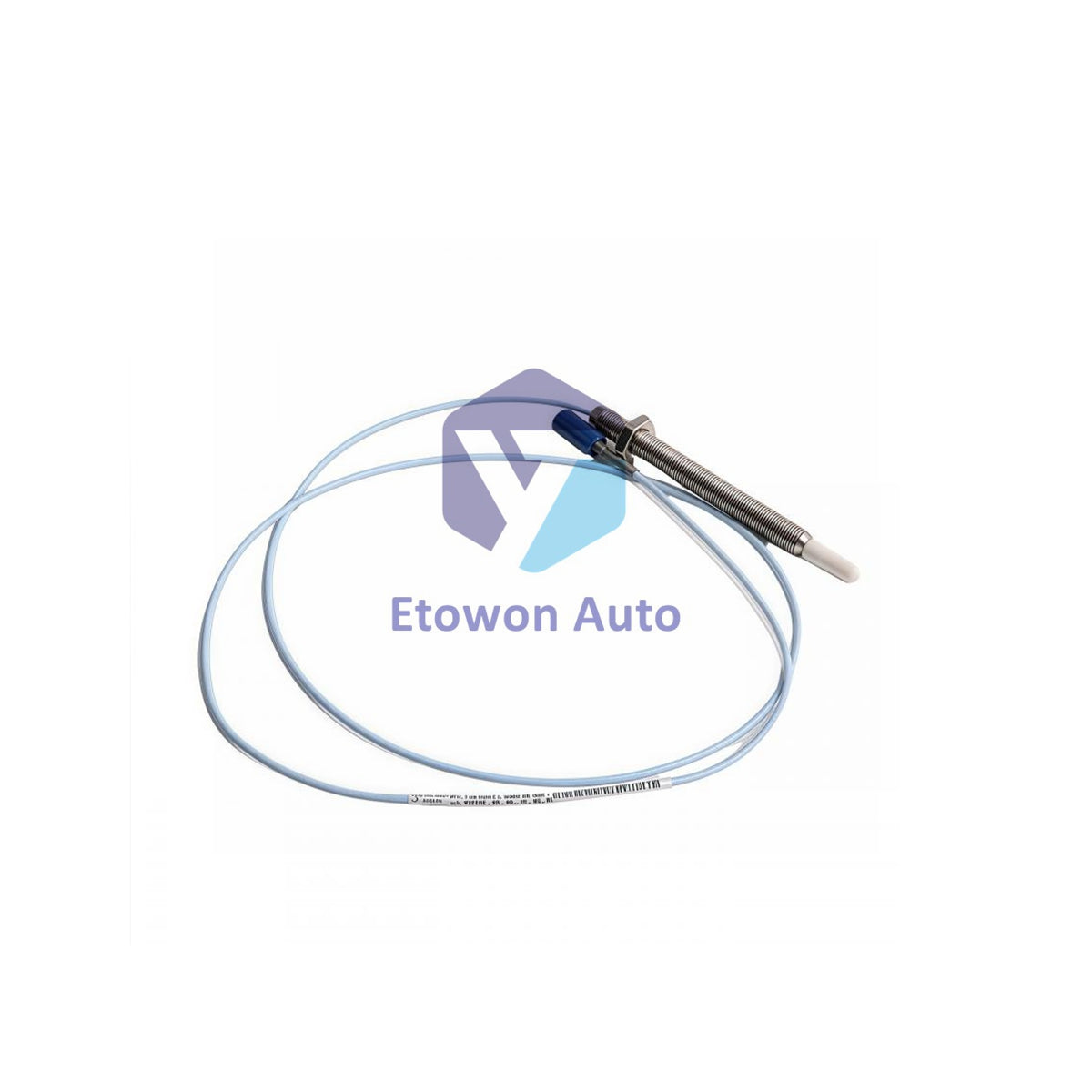

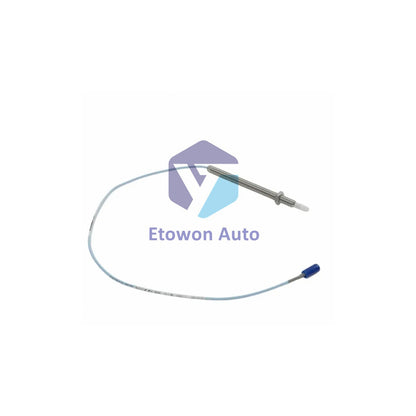

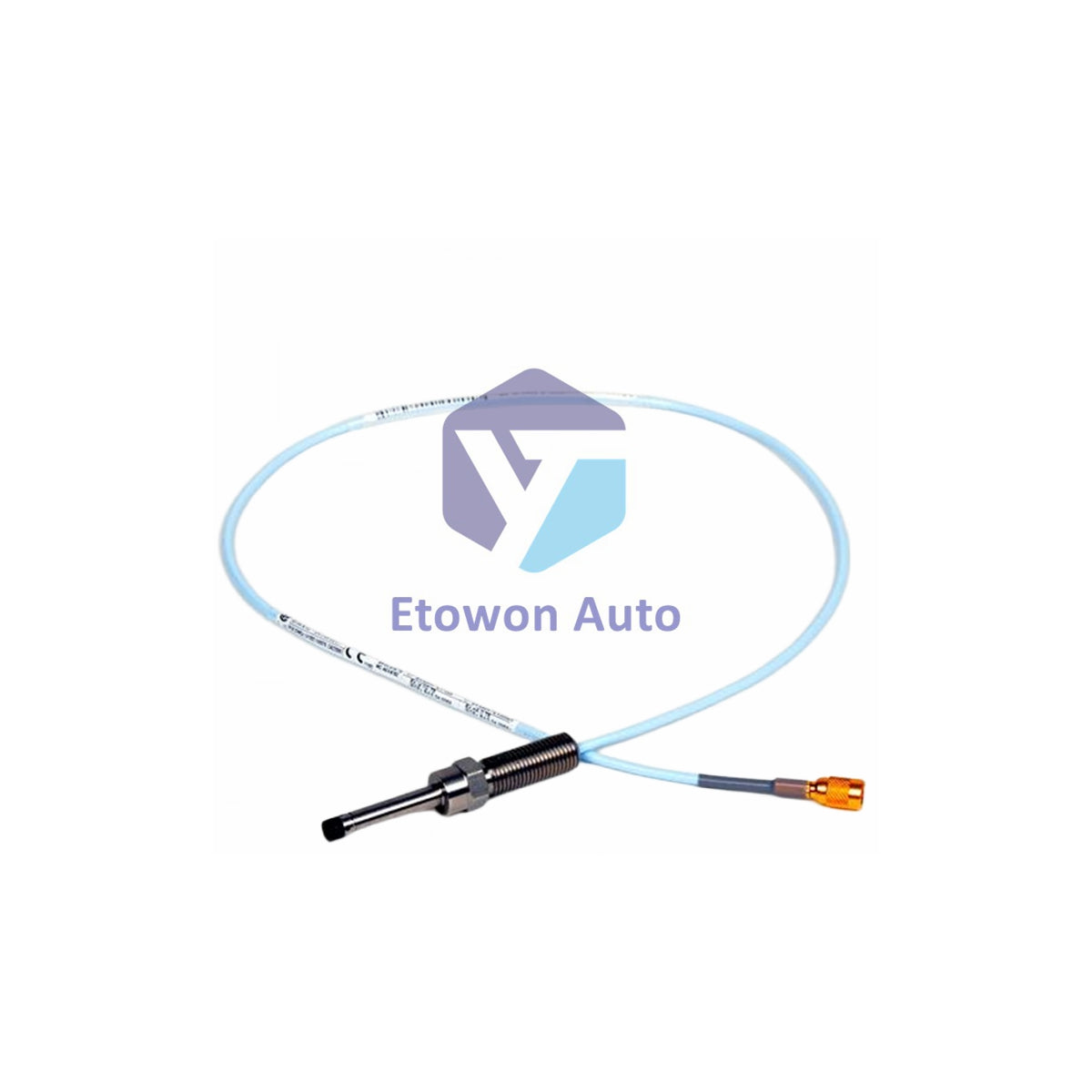

330903-00-03-05-01-00 Bently Nevada 0.5m Probe

In stock (12 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330903-00-03-05-01-00

  • Product Type: 3300 NSv Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 150g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

330903-00-03-05-01-00 Bently Nevada | 3300 NSv M8x1 Probe 30mm Case with Connector Protector

The 330903-00-03-05-01-00 is a proximity probe from Bently Nevada 3300 NSv series with M8x1 thread and ClickLoc connector protector. 0.5m length, 30mm case.

▸ Configuration

  • Model: 330903 - M8x1 thread, without armor
  • Unthreaded length: 0 mm
  • Case length: 30 mm
  • Total cable: 0.5 meter (20 in)
  • Connector: Miniature coaxial ClickLoc with connector protector, standard cable
  • Approvals: Not required (-00)

▸ Key Specifications

  • Linear range: 1.5 mm (60 mils) from 0.25-1.75 mm
  • Scale factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
  • Deviation: Less than ±0.06 mm (±2.3 mils)
  • Frequency response: 0-10 kHz, +0/-3 dB
  • Probe DC resistance: 4.0 ±0.5 Ω (0.5m)
  • Recommended gap: 1.0 mm (40 mils)

▸ Electrical & Mechanical

  • Tip material: PPS
  • Case material: AISI 304 SST
  • Cable: 75Ω coaxial, FEP insulated, standard
  • Min bend radius: 25.4 mm
  • Max torque: 0.56 N•m (finger tight)
  • Case torque max/rec (M8x1): 7.3 / 5.1 N•m
  • Max thread engagement (M8x1): 12 mm
  • Weight: 150g (5.3 oz) max

▸ Temperature & Environment

  • Operating/Storage: -52°C to +177°C
  • Pressure seal: Viton O-ring
  • Field wiring max: 305 m (1000 ft) to monitor
  • Wire gauge: 16-24 AWG (18-23 AWG with ferrules)
  • Target min/recommended: 8.9 mm / 13 mm diameter

▸ Features

  • M8x1 thread for compact installations
  • 30mm case length
  • ClickLoc connector with protective boot
  • Standard 75Ω coaxial FEP cable
  • 0.5m compact cable length
  • Interchangeable with 3300 RAM probes
  • Increased chemical resistance for compressors

▸ Shipping

  • FedEx, UPS, DHL worldwide

▸ FAQ

1. What thread size?
M8x1 thread for smaller mounting applications.

2. What is the connector protector?
Protective boot shields ClickLoc connector during installation.

3. Temperature range?
-52°C to +177°C operating and storage.
