330103-00-04-10-12-00

330103-00-04-10-12-00 Bently Nevada 3300 XL FluidLoc Cable

In stock (28 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330103-00-04-10-12-00

  • Product Type: 3300 XL 8 mm Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

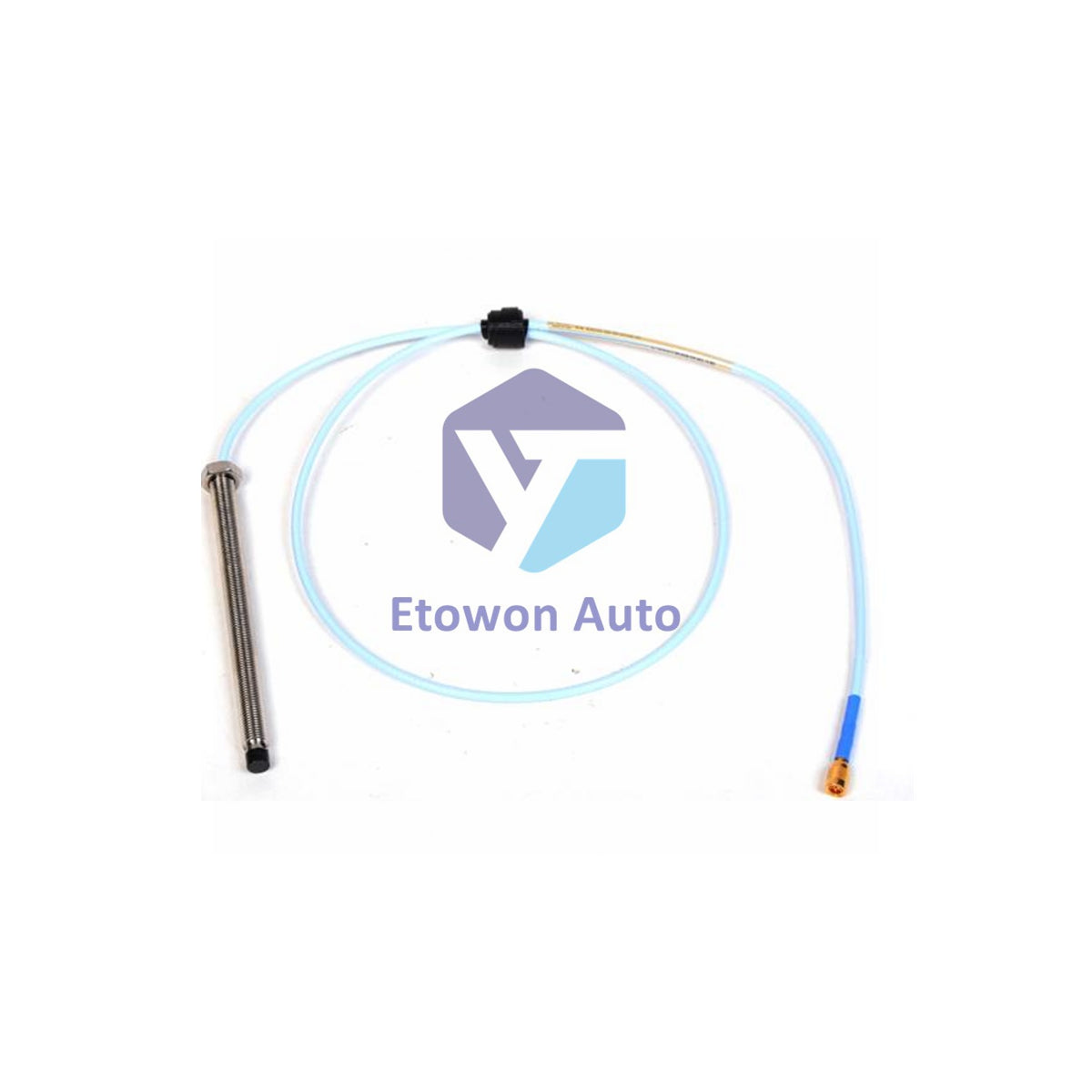

Bently Nevada 330103-00-04-10-12-00 FluidLoc Proximity Probe

Bently Nevada 330103-00-04-10-12-00 is a 3300 XL 8mm proximity probe with FluidLoc cable technology. Features 40mm overall case length and 1.0 meter FluidLoc cable with ClickLoc connector. Patented FluidLoc design prevents oil leakage through cable interior. Weight: 0.32 kg (0.71 lbs).

Technical Specifications

Parameter Specification
Manufacturer Bently Nevada
Model 330103-00-04-10-12-00
Probe Type 3300 XL 8mm Probe, 3/8-24 UNF thread, without armor
Unthreaded Length 00 mm
Overall Case Length 40 mm (1.6 inches)
Total Length 1.0 meter (3.3 feet)
Connector Type ClickLoc with connector protector, FluidLoc cable
Thread Size 3/8-24 UNF
Measurement Range 0.25 to 2.3mm (10 to 90 mils)
Accuracy ±0.025mm (±1 mil)
Output Signal 7.87 V/mm ±5%
Pull Strength 330 N (75 lbf)
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 304 stainless steel
Operating Temperature -52°C to +177°C (-62°F to +351°F)
Recommended Gap 1.27mm (50 mils) for radial vibration
Maximum Field Wiring 305 meters (1,000 feet)
Weight 0.32 kg (0.71 lbs)

Key Features

  • Patented FluidLoc cable prevents oil and liquid leakage through cable interior
  • 330 N (75 lbf) cable pull strength with CableLoc design
  • Viton O-ring pressure seal for differential pressure sealing
  • CSA explosion-proof certification
  • IEC 68-2-3 humidity compliant for 93% RH up to 56 days
  • RoHS Directive 2011/65/EU compliant
  • Stainless steel housing for durability in harsh environments

Installation Guidelines

Mounting Thread: 3/8-24 UNF recommended torque is 5.1 N·m (45 in·lb). Maximum torque 7.3 N·m (65 in·lb).

Recommended Gap: Optimal gap for radial vibration measurement is 1.27mm (50 mils), corresponding to -9V DC output.

Field Wiring: Maximum length of 305 meters (1,000 feet) between Proximitor Sensor and monitor. Use 3 conductor shielded triad cable with 16-24 AWG.

Temperature Warning: Exposing the probe to temperatures below -34°C (-30°F) may cause premature failure of the pressure seal.

Oil and Gas Application

Monitors compressor shaft vibrations at 6,000 RPM with ±0.03mm stability in -40°C to +160°C environments. Essential for critical turbomachinery protection in oil and gas facilities.

Package Contents

  • Probe assembly
  • FluidLoc cable (1.0 meter)
  • Installation toolkit

FAQs

Q1. What is the FluidLoc cable option?
A1. FluidLoc is a patented cable design that prevents oil and other liquids from leaking out of the machine through the cable's interior. Essential for applications where the probe cable passes through a sealed housing.

Q2. What is the measurement accuracy of this probe?
A2. The probe provides ±0.025mm (±1 mil) accuracy with a linear range of 0.25 to 2.3mm (10 to 90 mils). Output signal is 7.87 V/mm ±5%.

Q3. What certifications does the 330103-00-04-10-12-00 hold?
A3. The probe holds CSA explosion-proof certification, IEC 68-2-3 humidity compliance, and RoHS Directive 2011/65/EU compliance for environmental safety.
