330101-00-36-10-01-00

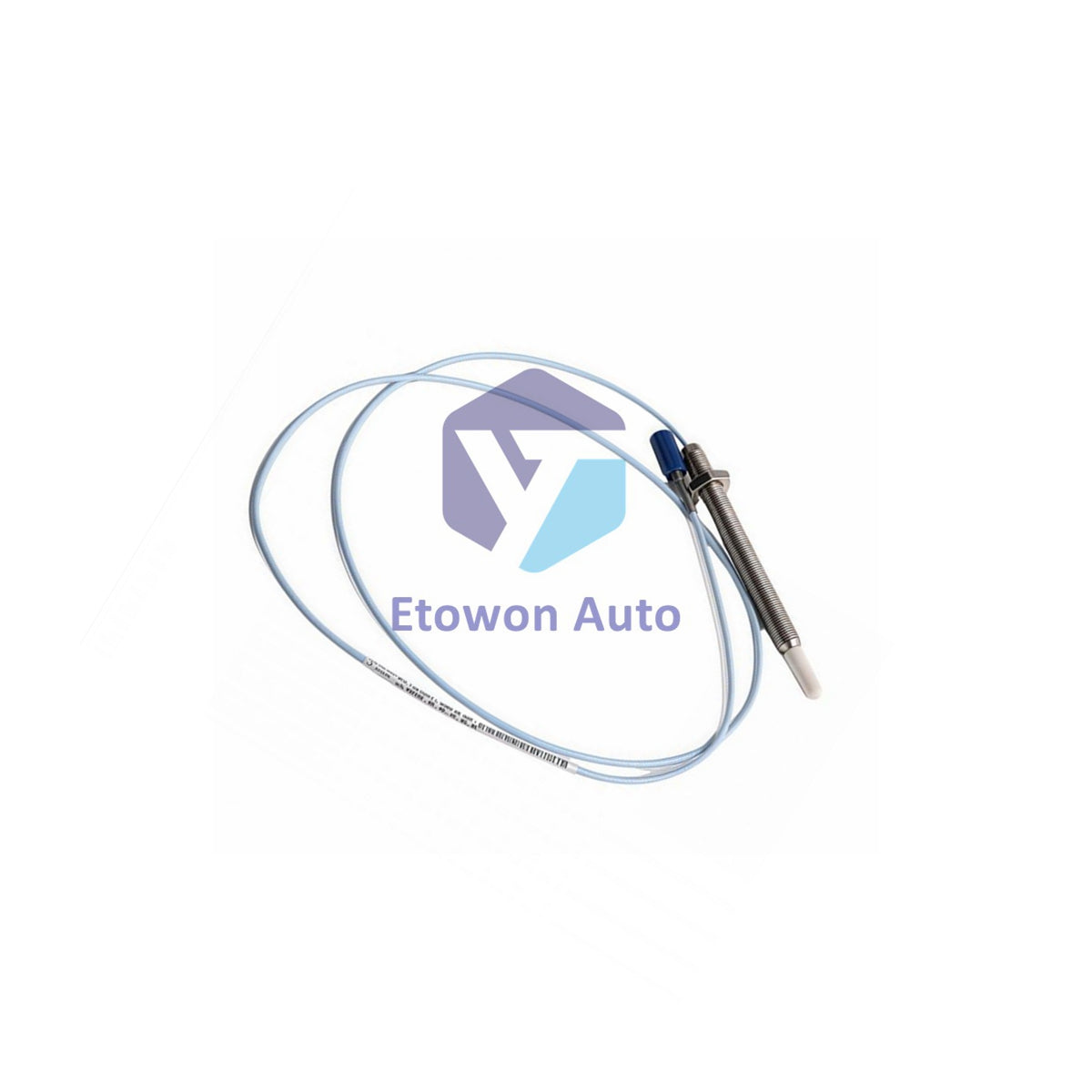

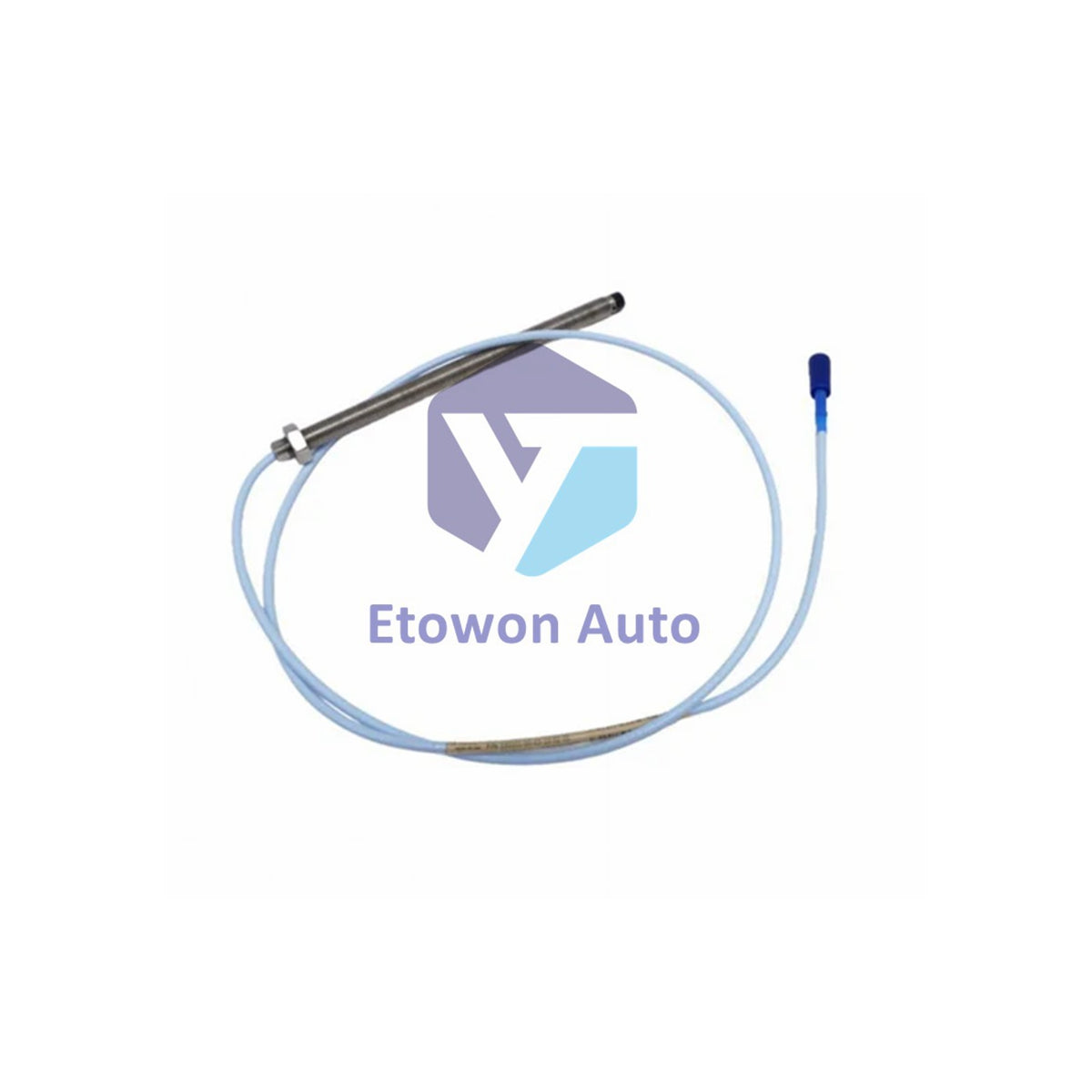

330101-00-36-10-01-00 Bently Nevada 8mm Probe 3.6in Case ClickLoc

In stock (16 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-36-10-01-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Bently Nevada 330101-00-36-10-01-00 3300 XL 8mm Probe

Product Overview

Bently Nevada 330101-00-36-10-01-00 is a 3300 XL 8 mm probe with 3/8-24 UNF thread, without armor. Features miniature coaxial ClickLoc connector with connector protector and standard cable. Total length 1.0 meter. Linear range 2 mm (80 mils). Incremental Scale Factor 7.87 V/mm (200 mV/mil). Probe weight 0.32 kg.

Model Number Breakdown

Option Code Description
330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
00 Unthreaded length 0.0 inches
36 Overall case length 3.6 inches
10 Total length 1.0 metre (3.3 feet)
01 Miniature coaxial ClickLoc connector with protector, standard cable
00 Not required

Technical Specifications

Parameter Value
Manufacturer Bently Nevada
Product Number 330101-00-36-10-01-00
Probe Type 3300 XL 8 mm
Thread Type 3/8-24 UNF
Armor Without armor
Total Length 1.0 metre (3.3 feet)
Connector Type Miniature coaxial ClickLoc with protector
Cable Type Standard cable
Linear Range 2 mm (80 mils)
Recommended Gap (Radial Vibration) -9 V DC (approx 1.27 mm / 50 mils)
Incremental Scale Factor (1m System) 7.87 V/mm (200 mV/mil) ±5%
DSL (1m System) Less than ±0.025 mm (±1 mil)
Nominal Probe DC Resistance (1.0m) 7.59 ± 0.50 ohms
Extension Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 Stainless Steel
Operating Temperature (Standard) -52°C to +177°C
Field Wiring 16-24 AWG, 305m max length
Weight 0.32 kg

Key Features

  • 3300 XL 8 mm probe with 3/8-24 UNF thread
  • Patented TipLoc molding for robust probe tip bond
  • Patented CableLoc design with 330 N pull strength
  • Miniature coaxial ClickLoc connector with protector
  • Linear range 2 mm (80 mils)
  • Incremental Scale Factor 7.87 V/mm ±5%
  • PPS probe tip material for durability
  • AISI 303 or 304 stainless steel case

FAQs

Q1: What is the recommended gap setting for radial vibration?
A1: -9 V DC, approximately 1.27 mm (50 mils).

Q2: What is the linear range and scale factor?
A2: 2 mm (80 mils) linear range. Scale factor 7.87 V/mm (200 mV/mil) ±5%.

Q3: What is the probe DC resistance at 1.0 metre?
A3: 7.59 ± 0.50 ohms from center to outer conductor.
