25B-E022N104 Allen-Bradley PowerFlex 525 Drive

Allen-Bradley 25B-E022N104 PowerFlex 525 AC Drive

Product Overview

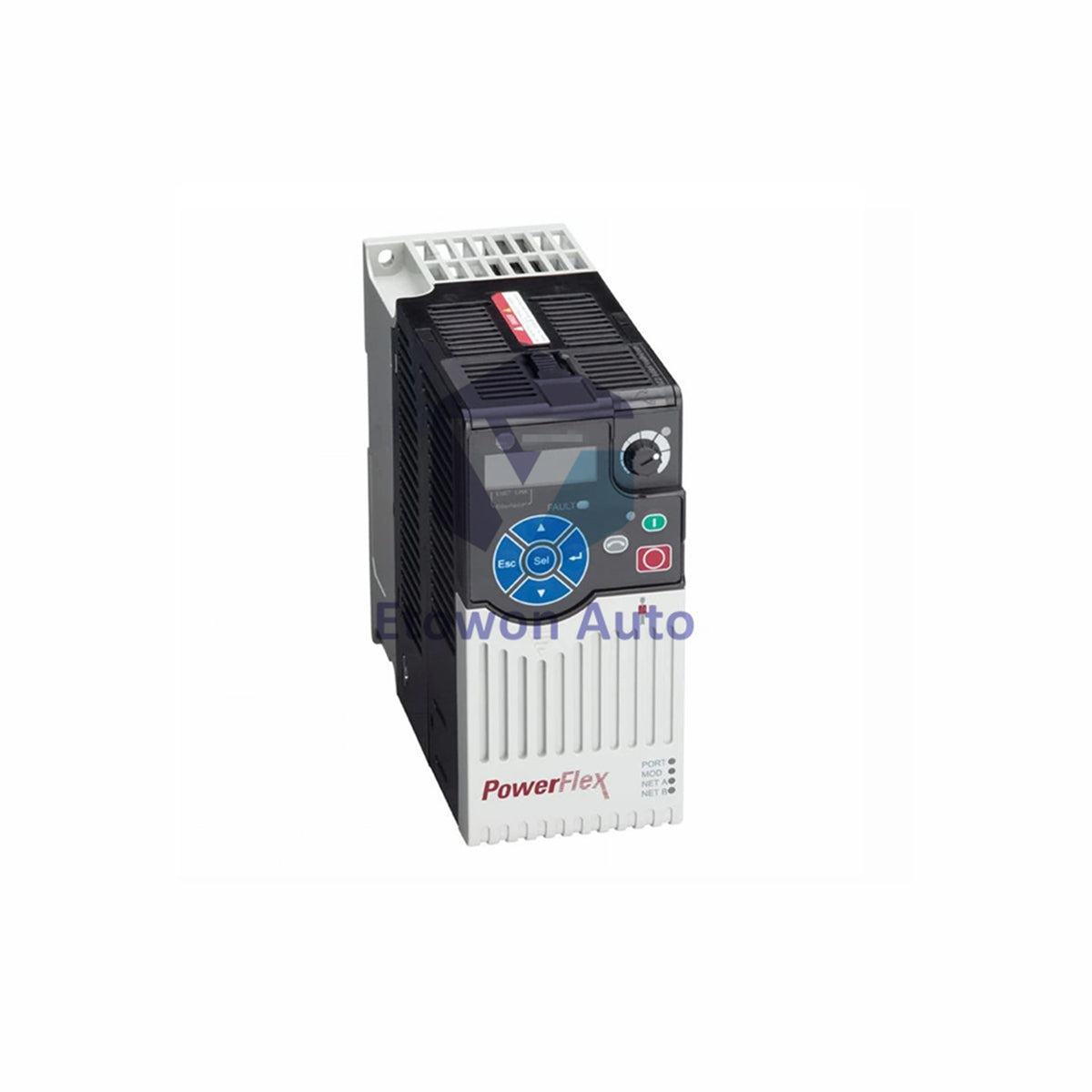

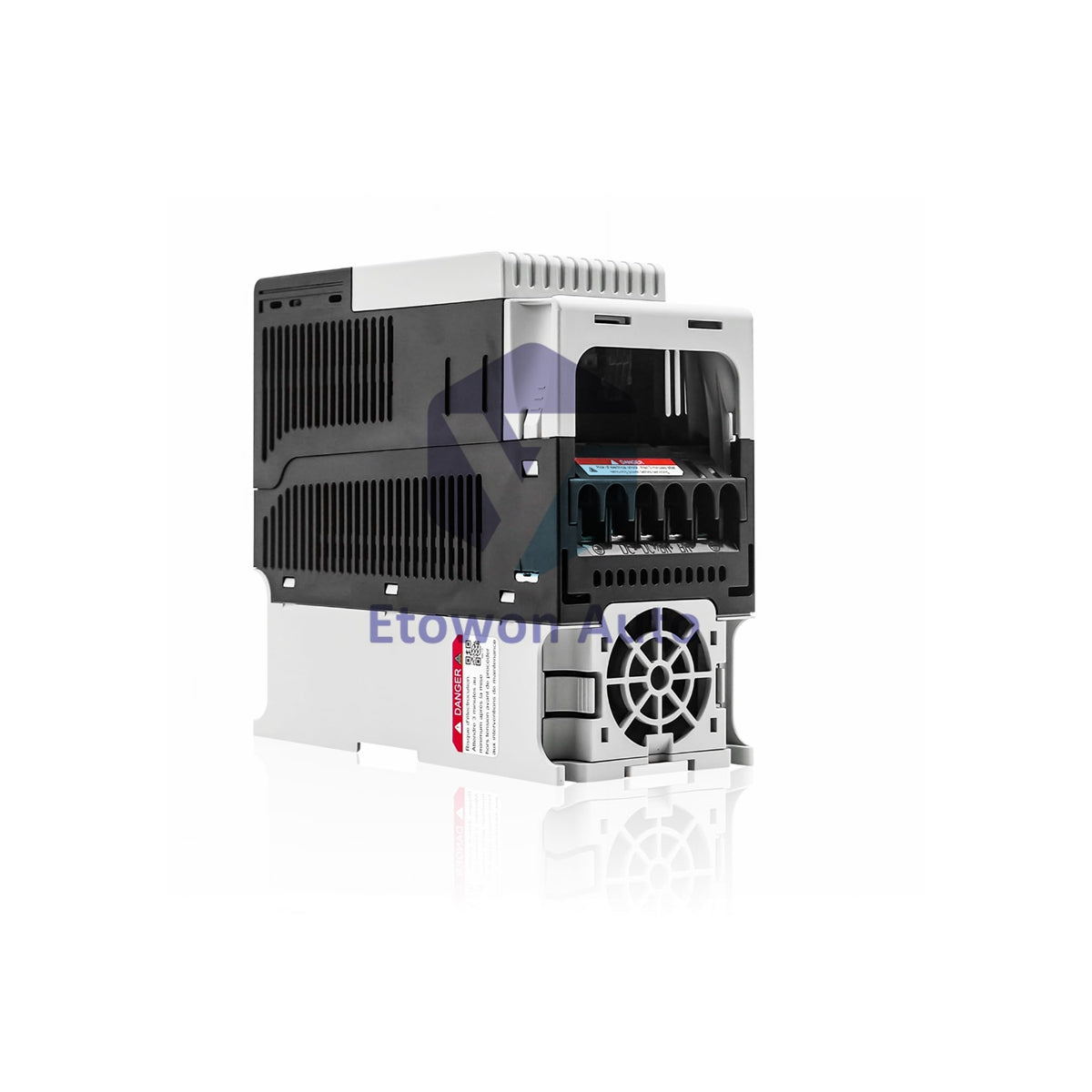

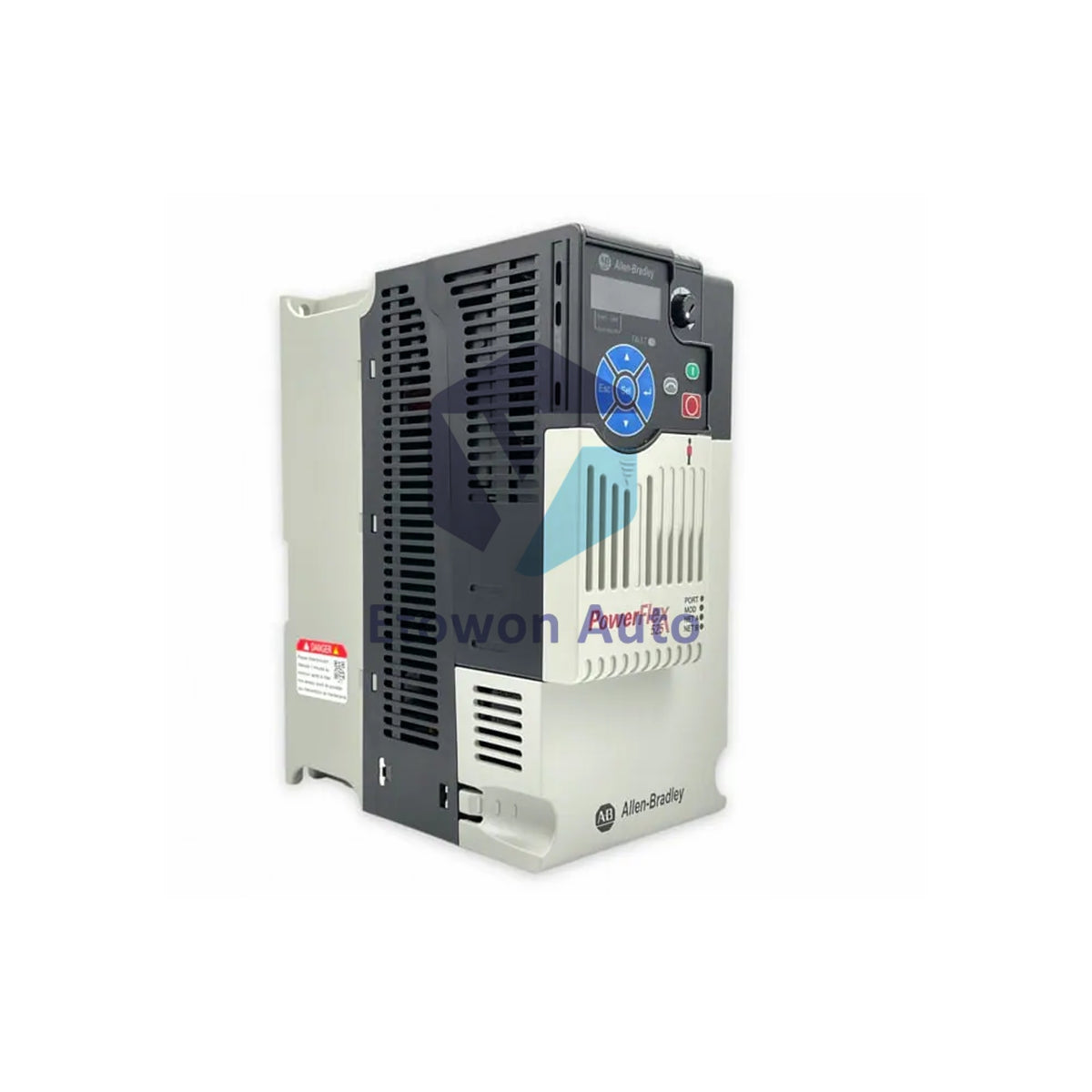

The Allen-Bradley 25B-E022N104 is a PowerFlex 525 series AC compact low-voltage drive delivering 22 A output current. It operates on 3-phase 525-600 VAC input with 0-575 VAC output voltage. The drive features a Frame D IP20 NEMA/Open Type enclosure and operates at temperatures up to 70 °C (158 °F). Weight is 3.6 kg.

Specifications

Key Features

• 22 A output current for demanding motor control applications
• 3-phase 525-600 VAC input with 0-575 VAC output
• Compact low-voltage design for space-saving installation
• HMI interface for enhanced communication
• Operates at temperatures up to 70 °C (158 °F)
• Frame D IP20 NEMA/Open Type enclosure
• Eliminates rotational power to motor without removing drive power
• Enables faster start-up after long processes
• Prevents burden on machine safety systems
• Ideal for conveyor, fan, pump, mixer, and food industry applications

Installation Notes

Mount the drive in a vertical position with adequate clearance for airflow. The IP20 open type enclosure requires installation in a protected panel. Ensure proper grounding and cable sizing for 22 A output current. The drive supports high-temperature environments up to 70 °C. The HMI interface provides local programming and monitoring capabilities. Ideal for compact industrial locations requiring energy savings and improved system control.

FAQs

Q1: What is the output current of the 25B-E022N104?

A1: 22 A.

Q2: What is the maximum operating temperature?

A2: 70 °C (158 °F).

Q3: What enclosure type does this drive have?

A3: Frame D IP20 NEMA / Open Type enclosure.
