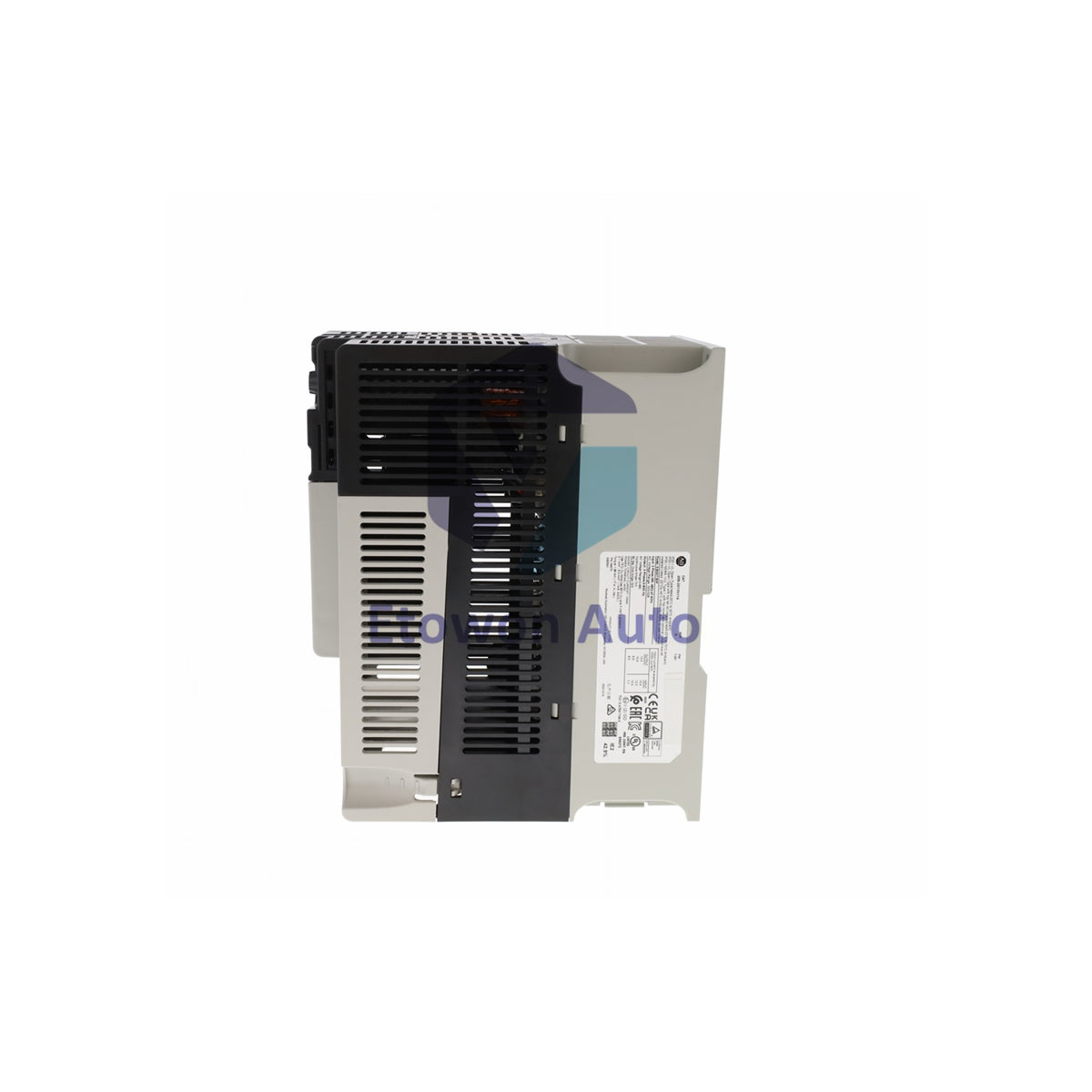

  • 25B-E012N104

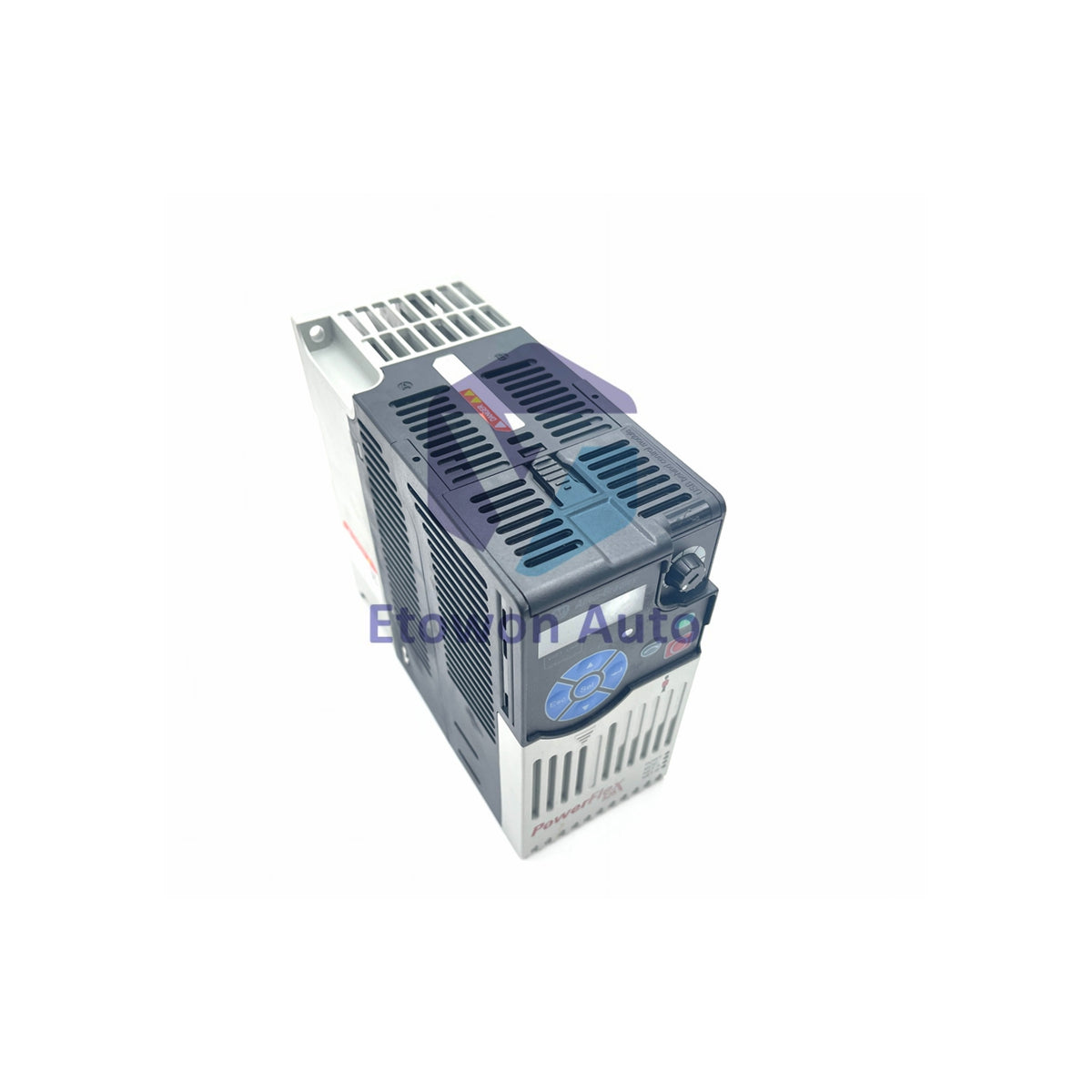

  • 25B-E012N104-1

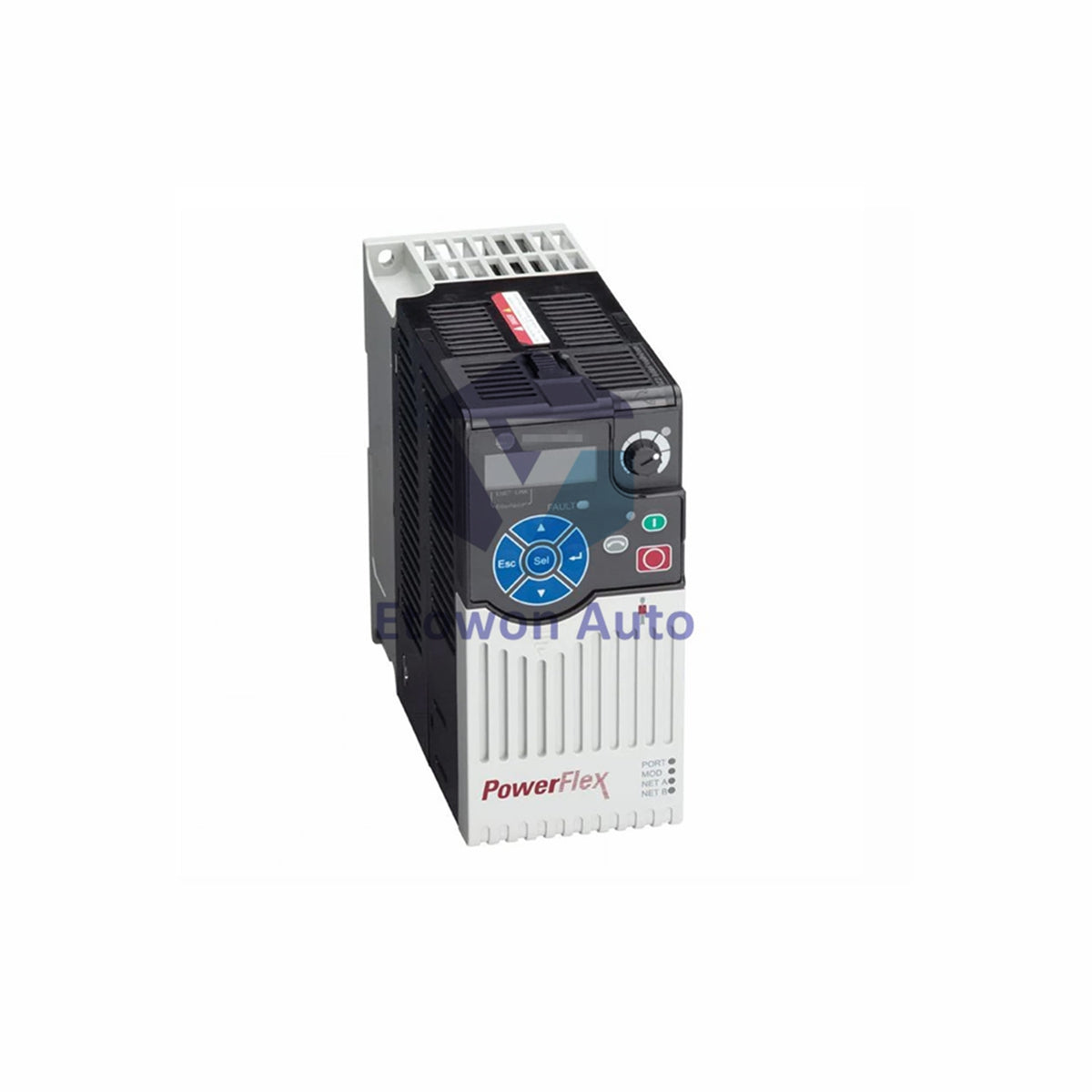

  • 25B-E012N104-2
1 3

25B-E012N104

25B-E012N104 Allen-Bradley PowerFlex 525 Drive 12A 10HP

In stock (24 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 25B-E012N104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2300g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 25B-E012N104 PowerFlex 525 AC Drive

Product Overview

The Allen-Bradley 25B-E012N104 is a PowerFlex 525 series variable frequency drive delivering 12.0 A output current with 7.5 kW (10.0 HP) power rating. It operates on 3-phase 446-660 VAC input (nominal 525-600 VAC) and provides 0-575 VAC output. The drive achieves 97.5% efficiency and supports V/Hz, Sensorless Vector, and Closed Loop Vector control methods. Weight is 2.3 kg.

Specifications

Parameter Value
Brand Allen-Bradley / Rockwell Automation
Model 25B-E012N104
Series PowerFlex 525
Input Voltage Range 446-660 VAC (Nominal 525-600 VAC), 3-Phase
Input Frequency 47-63 Hz
Output Voltage 0-575 VAC, 3-Phase
Output Current 12.0 A
Output Power 7.5 kW (10.0 HP)
Output Frequency 0-500 Hz (programmable)
Efficiency 97.5%
EMC Filtering Not included (optional)
Control Methods V/Hz, Sensorless Vector, Closed Loop Vector
PWM Control Sinusoidal PWM output
Discrete Inputs 7 Sink/Source
Discrete Outputs 2 Digital/Optocoupler
Relay Outputs 1 N.O., 1 N.C.
Analog Inputs 2 (0-10 VDC / 0-20 mA)
Analog Output 1 (0-10 VDC / 0-20 mA)
Communication RS-485, EtherNet/IP
Stop Modes Ramp, Coast, DC Brake, Ramp-to-Stop
Accel/Decel Profiles 4 programmable (0.01s to 600s)
Weight 2.3 kg

Key Features

  • 12.0 A output current with 7.5 kW (10.0 HP) power rating
  • 3-phase 446-660 VAC input voltage range
  • 97.5% efficiency for reduced energy costs
  • Supports V/Hz, Sensorless Vector, and Closed Loop Vector control
  • Compatible with surface/interior permanent magnet and induction motors
  • Internal PI controller for standalone control
  • Embedded RS-485 and EtherNet/IP communication
  • Premier Integration with Logix controllers for remote access
  • Seven discrete inputs and two analog inputs for flexible control
  • Four programmable accel/decel profiles from 0.01s to 600s
  • Multiple stop modes: Ramp, Coast, DC Brake, Ramp-to-Stop
  • Local HIM interface for programming, monitoring, and diagnostics

Installation Notes

Mount the drive in a vertical position with adequate clearance for airflow. Ensure proper grounding and cable sizing for 12.0 A output. The drive supports multiple motor types including permanent magnet and induction motors. Configure control method (V/Hz, SVC, or CLV) based on application requirements. For EMC compliance in sensitive environments, add the optional external filter. Use the embedded HIM interface for local programming or connect via EtherNet/IP for remote configuration.

FAQs

Q1: What is the output power rating of the 25B-E012N104?

A1: 7.5 kW (10.0 HP) with 12.0 A output current.

Q2: What communication protocols does this drive support?

A2: Embedded RS-485 and EtherNet/IP, with Premier Integration support for Logix controllers.

Q3: What motor types are compatible with this drive?

A3: Surface/interior permanent magnet motors and induction motors.
