22D-D1P4H204

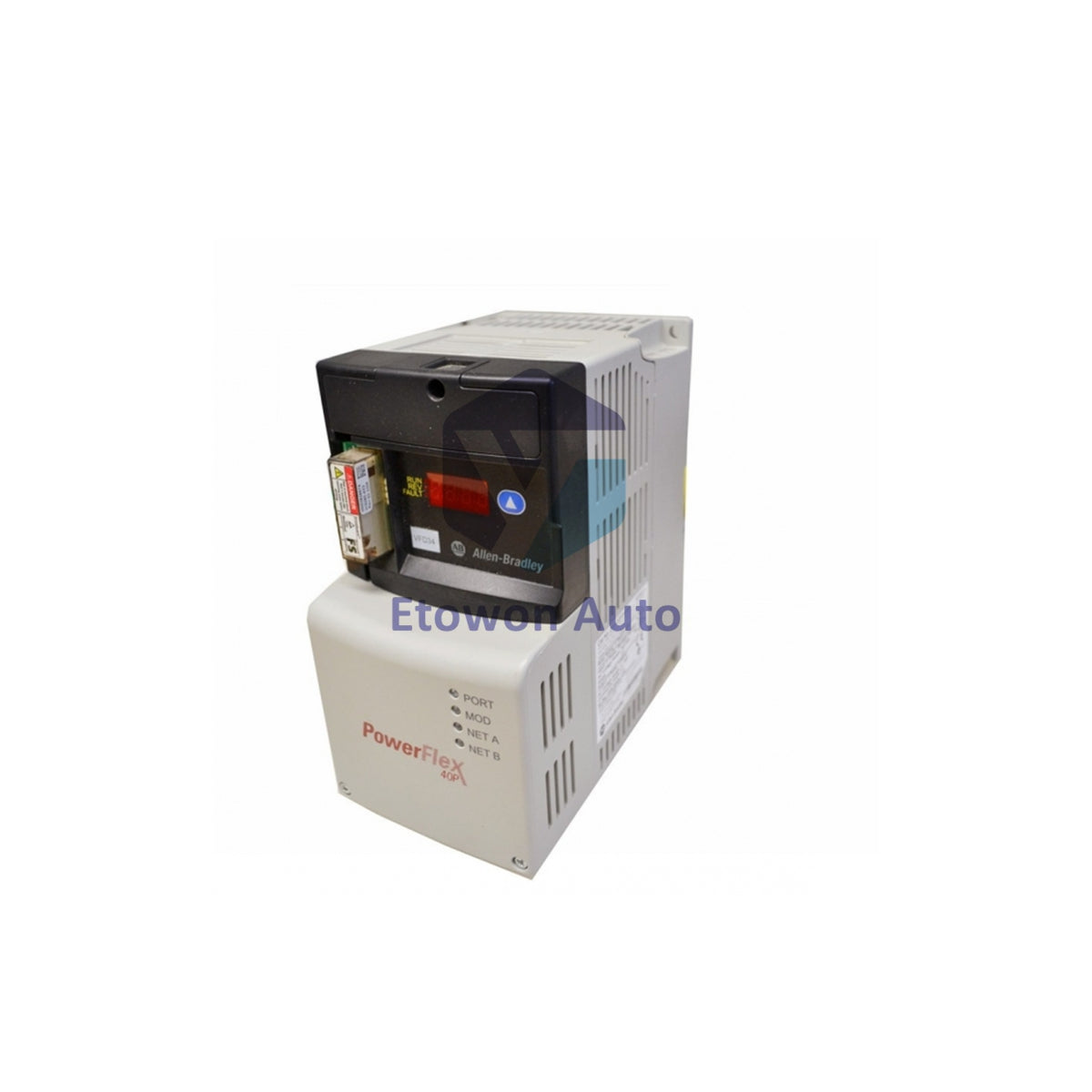

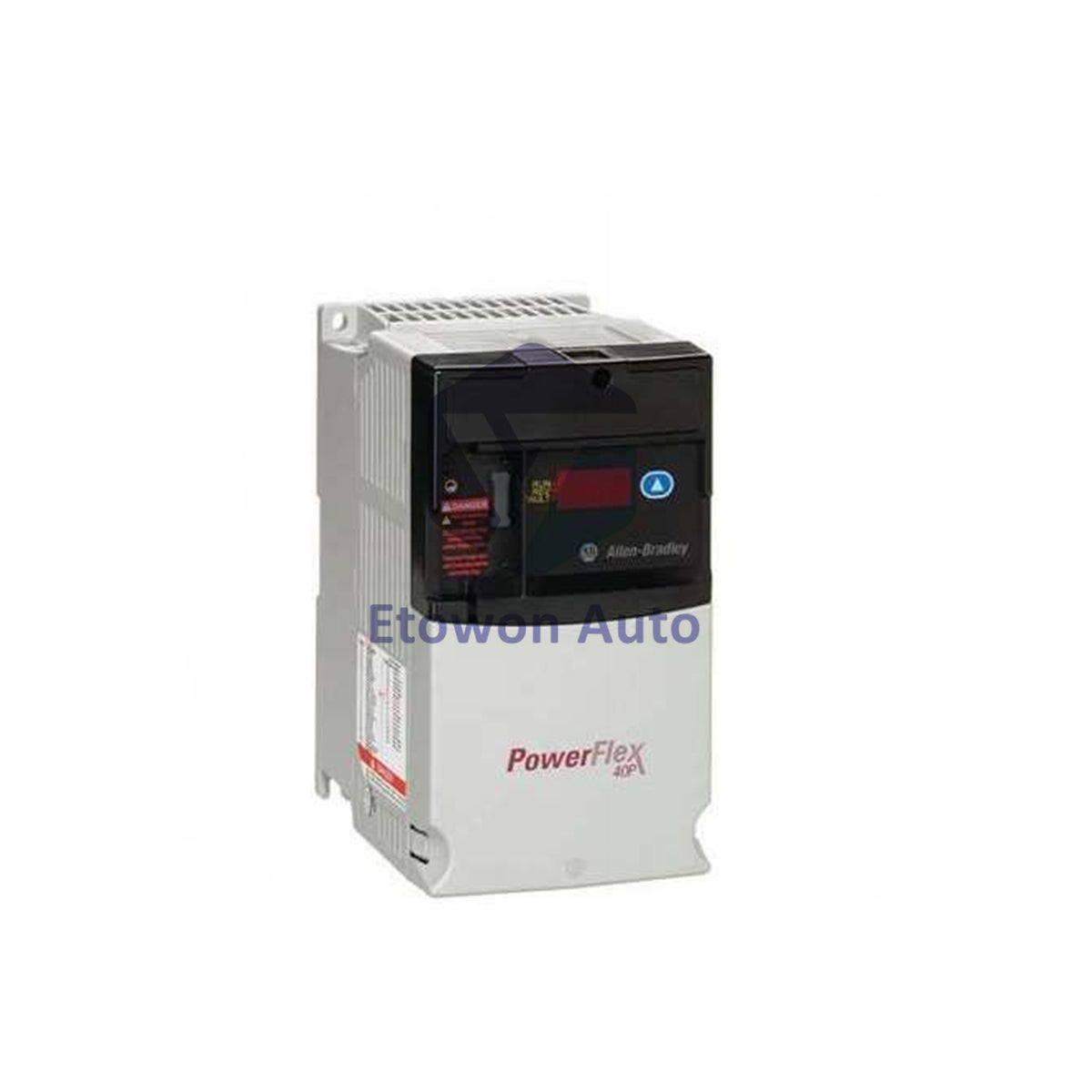

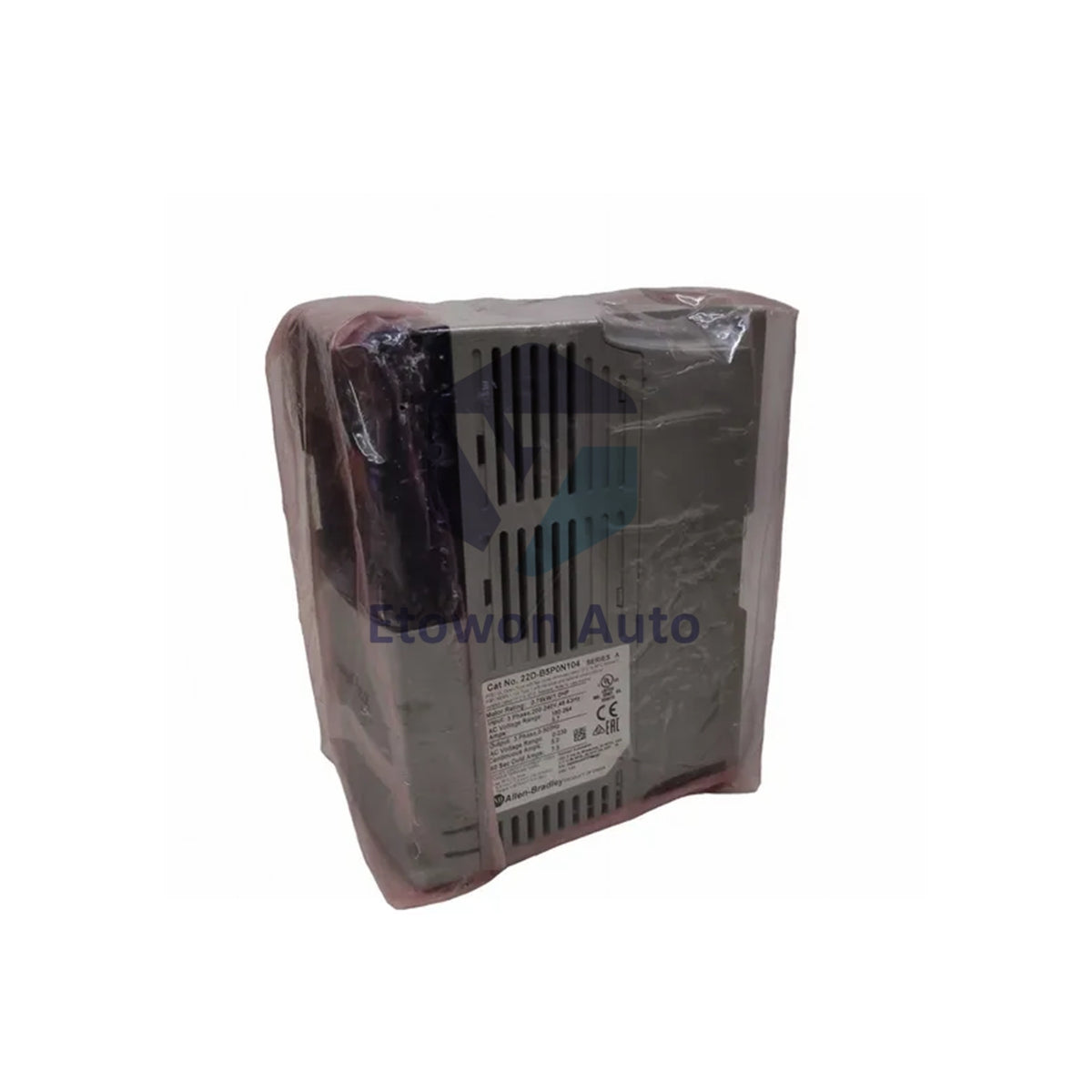

22D-D1P4H204 Allen-Bradley PowerFlex 40P VFD 0.5HP 0.4kW 1.4A

In stock (12 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22D-D1P4H204

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

22D-D1P4H204 Allen-Bradley PowerFlex 40P Drive – 0.5HP 480V Plate Mount

The Allen-Bradley 22D-D1P4H204 is a PowerFlex 40P Adjustable Frequency AC Drive. 480V 3-phase input, 1.4A output, 0.5HP (0.4kW) motor capacity. Plate mount, IP20, Frame B.

Product Information

Manufacturer Rockwell Automation / Allen-Bradley
Catalog Number 22D-D1P4H204
Product Type Adjustable Frequency AC Drive
Series PowerFlex 40P
Input Voltage 480V AC – 3 Phase (1.8A)
Output Current 1.4 Amps
Motor Capacity 0.5 HP (0.4 kW)
Operating Frequency 50-60 Hz (±10%)
Frame Size B (Compact)
Enclosure Plate Mount – IP20
Weight 2.1 kg
Warranty 12 Months

Control Features

Control Methods V/Hz and Sensorless Vector
Speed Regulation ±1% (80:1 speed range)
With Encoder ±0.05% Regulation
Overload Capacity 150% for 60s / 200% for 3s
Motor Protection Class 10 Overload
Current Limit 300% Instantaneous

I/O Configuration

Digital Inputs 7 (5 Programmable)
Analog Inputs 2 Isolated (0-10V / 4-20mA)
Relay Output 1 Form C (Programmable)
Analog Output 1 (Voltage or Current)
Sink/Source Selection DIP Switch

Environmental Ratings

Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5-95% Non-Condensing
Altitude Up to 1000m Without Derating

Communication and Interface

  • Built-in RS-485 (DSI) port
  • PC programming capability
  • 4-digit display with fault reset
  • Dual-channel encoder support

Protection and Safety

  • Removable MOV for surge protection
  • BUS fault trips (over/under voltage)
  • 300% instantaneous current limit
  • Ground fault protection
  • Integrated DC brake transistor
  • Class 10 motor overload protection

Applications

  • Small conveyor systems
  • Packaging machinery
  • Fan and pump control
  • Material handling equipment
  • Precision positioning applications

FAQs

Q1: How to set up the drive for basic V/Hz operation?
A1: Set P031 [Motor NP Volts] to motor nameplate voltage (480V). Set P032 [Motor NP Hertz] to 60Hz. Set P036 [Start Source] for desired control method (2-wire or 3-wire). Set P038 [Speed Reference] to select speed source.

Q2: How to wire a 2-wire start/stop control?
A2: For 2-wire SRC mode: Connect I/O Terminal 02 to +24V (Terminal 11) through a maintained switch. Set P036 [Start Source] to option 2. For 2-wire SNK mode: Connect I/O Terminal 02 to I/O Terminal 04 Common. Set P036 [Start Source] to option 3. The drive runs when input is closed and coasts when opened.

Q3: What is the correct procedure for wiring a remote potentiometer?
A3: Use 1-10 kΩ potentiometer, 2W minimum. Connect wiper to I/O Terminal 13, one end to Terminal 12 (+10V), other end to Terminal 14 (Common). Set P038 [Speed Reference] to option 2 (0-10V Input). Maximum cable length is 30m (100 ft). Use twisted pair shielded cable.
