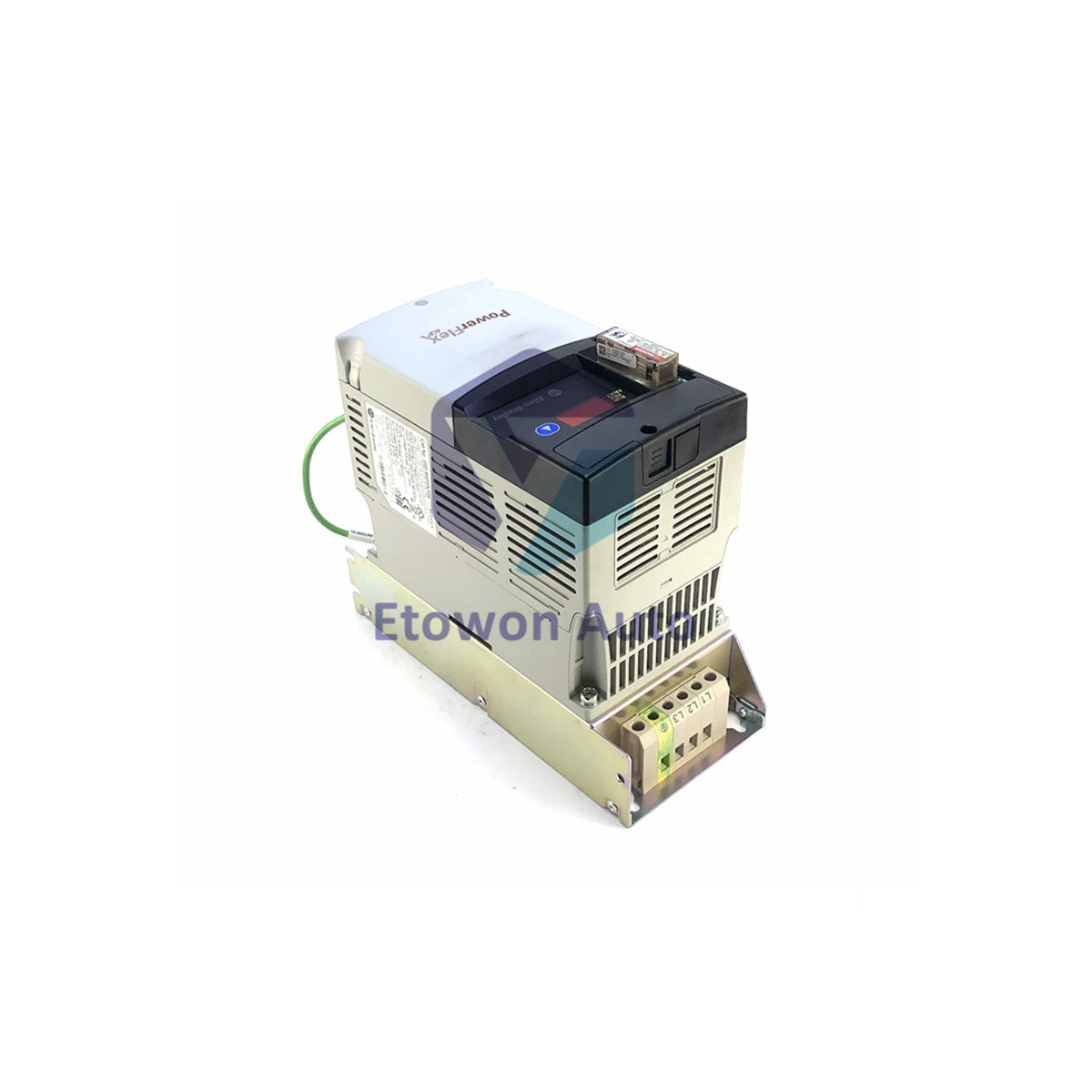

  • 22D-B5P0N104-3
1 3

22D-B5P0N104

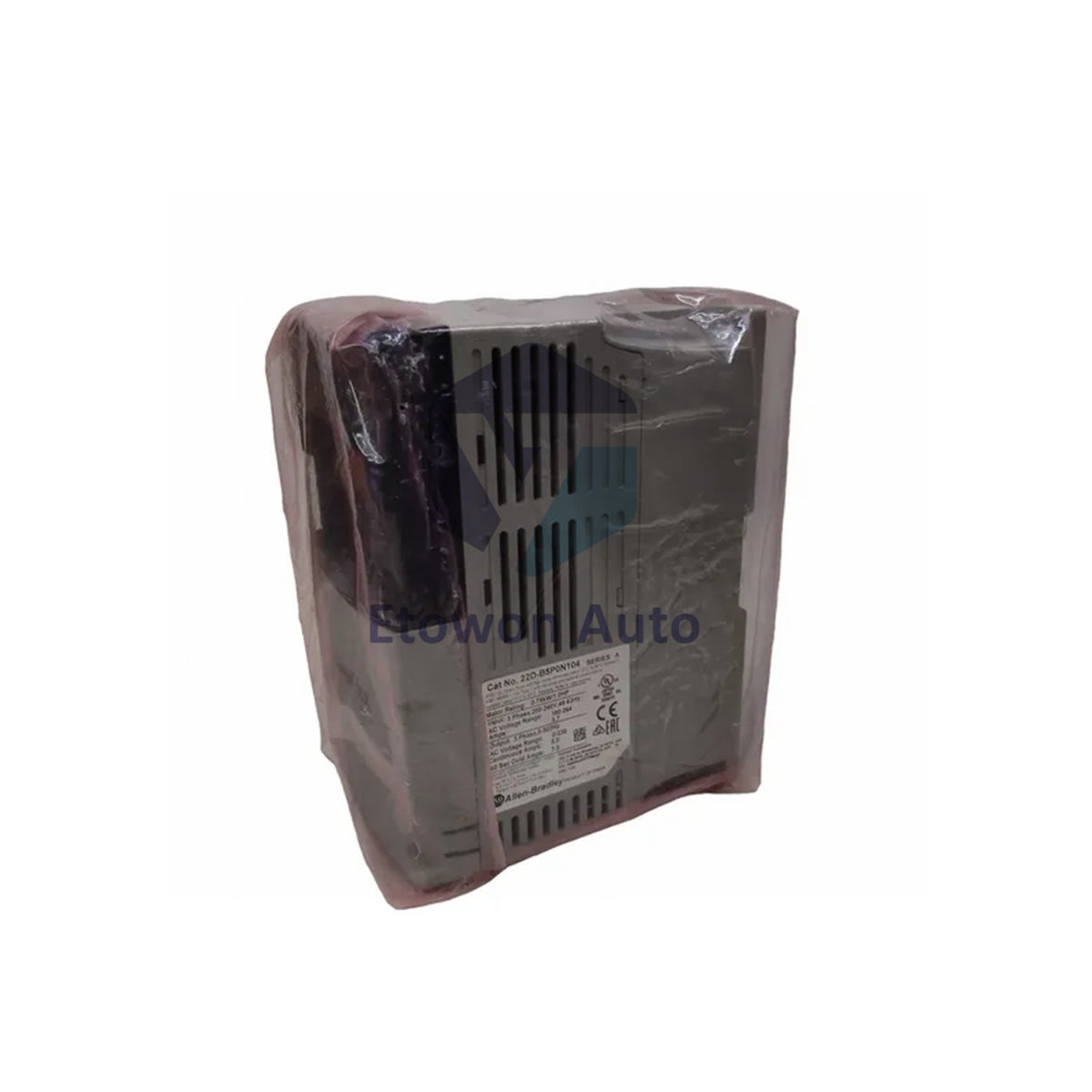

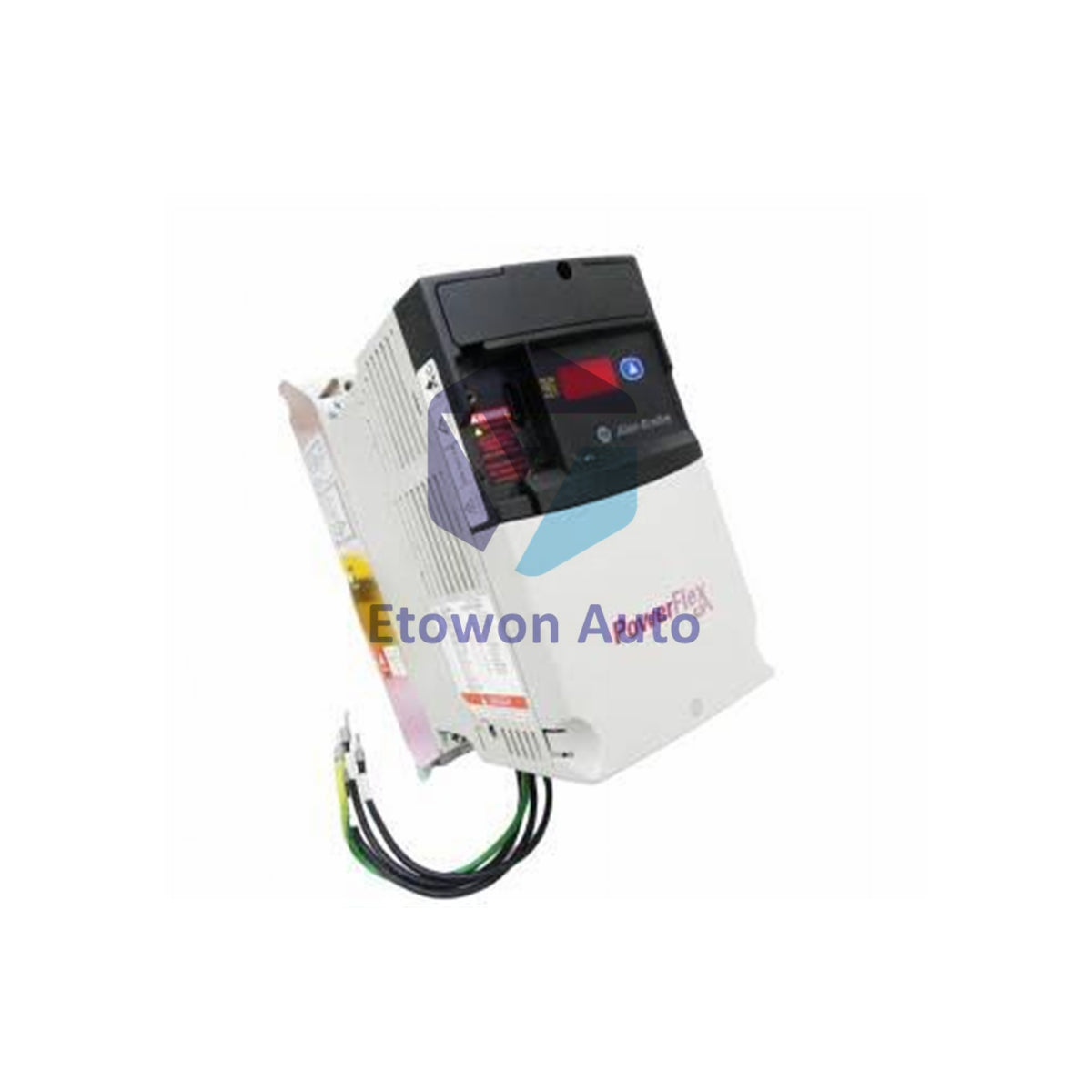

22D-B5P0N104 Allen-Bradley 1HP VFD Sensorless Vector Control

Only 6 units left

  • Manufacturer: Allen-Bradley

  • Product No.: 22D-B5P0N104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 22D-B5P0N104 PowerFlex 40P VFD

Product Overview

Allen-Bradley 22D-B5P0N104 is a PowerFlex 40P variable frequency drive. Rated 1 HP (0.75 kW) at 240 V AC 3 phase 50/60 Hz. Output current 5.0 A. Efficiency 97.5%. Power dissipation 60 W. Sensorless vector control and V/Hz operation modes. Drive weight 2.2 kg.

Technical Specifications

Parameter Value
Brand Allen-Bradley
Part Number 22D-B5P0N104
Series PowerFlex 40P
Input Voltage 240 V AC 3 Phase (50/60 Hz)
Output Current 5.0 A
Motor Power 1 HP (0.75 kW)
Efficiency 97.5%
Power Dissipation 60 W
Control Modes Sensorless Vector Control, V/Hz
Accel Decel Times 4 programmable
Stop Modes Coast, Ramp, DC Brake
Transient Protection 6 kV
Width 100 mm (3.94 in)
Height 213 mm (8.39 in)
Depth 135.89 mm (5.35 in)
Weight 2.2 kg (4.85 lbs)

Protection Features

  • Ground fault protection
  • 6 kV transient protection
  • Electronic motor overload protection
  • Overcurrent protection

Key Features

  • Sensorless Vector Control and V/Hz operation modes
  • 97.5% high efficiency
  • 60 W power dissipation
  • 4 programmable accel and decel times
  • Multiple stop modes coast ramp DC brake
  • 6 kV transient protection for surge immunity

Typical Applications

  • Palletizing systems
  • Smart conveyors
  • Textile spinning machines
  • Drafting equipment

FAQs

Q1: What is the motor power and output current rating?
A1: 1 HP (0.75 kW) with 5.0 A output current. Efficiency 97.5%.

Q2: What control modes are supported?
A2: Sensorless Vector Control and V/Hz operation modes.

Q3: What are the drive dimensions and weight?
A3: 100 x 213 x 135.89 mm. Weight 2.2 kg (4.85 lbs).
