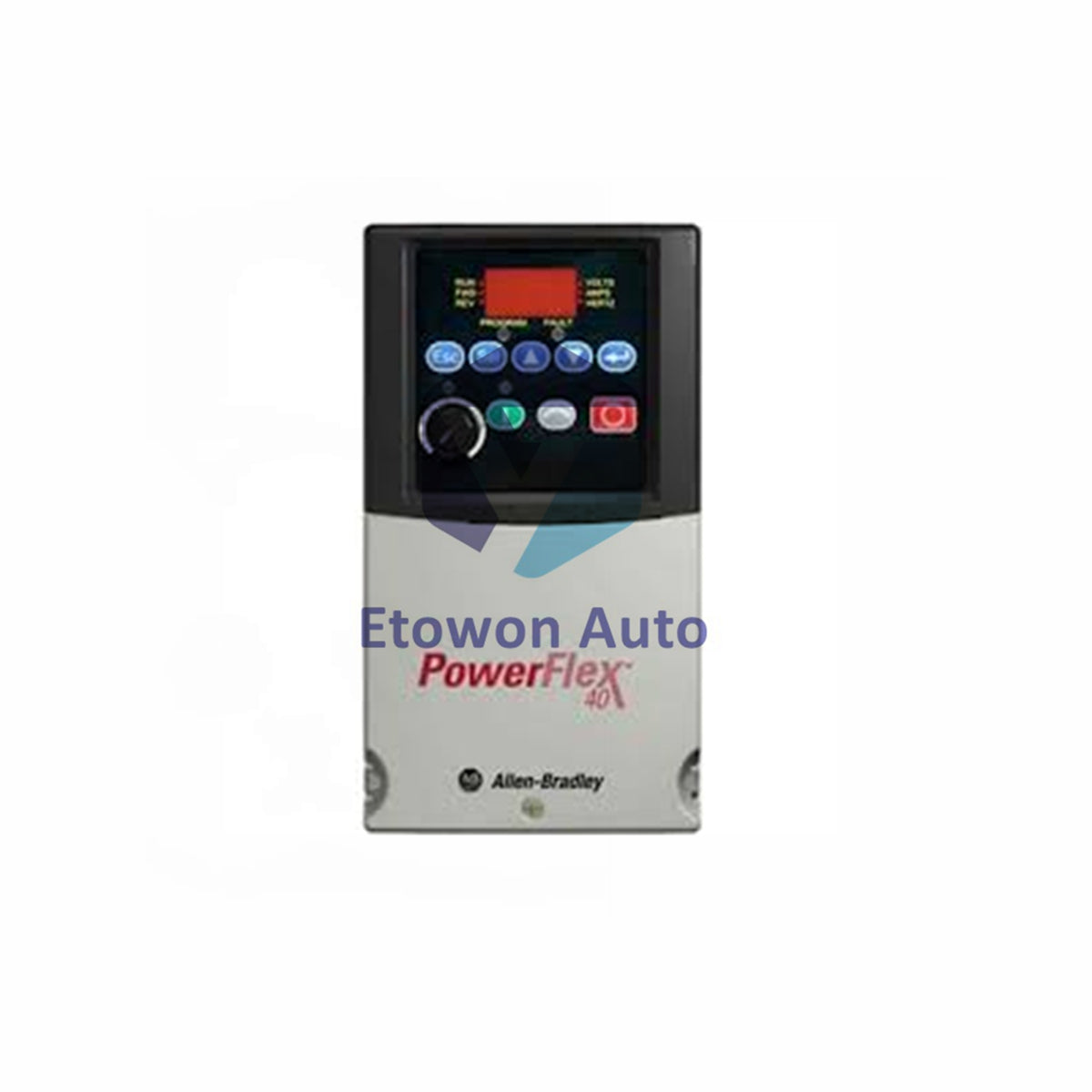

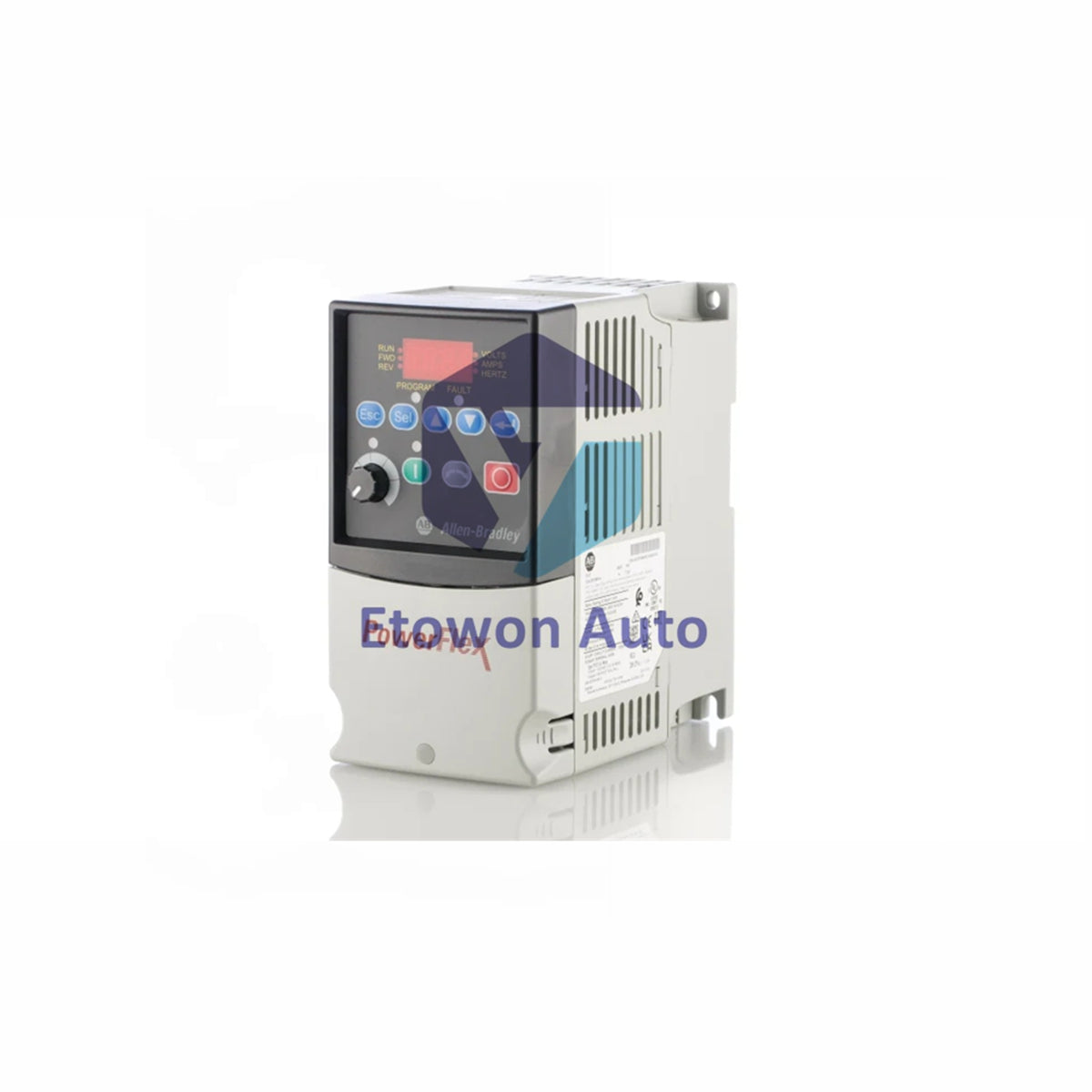

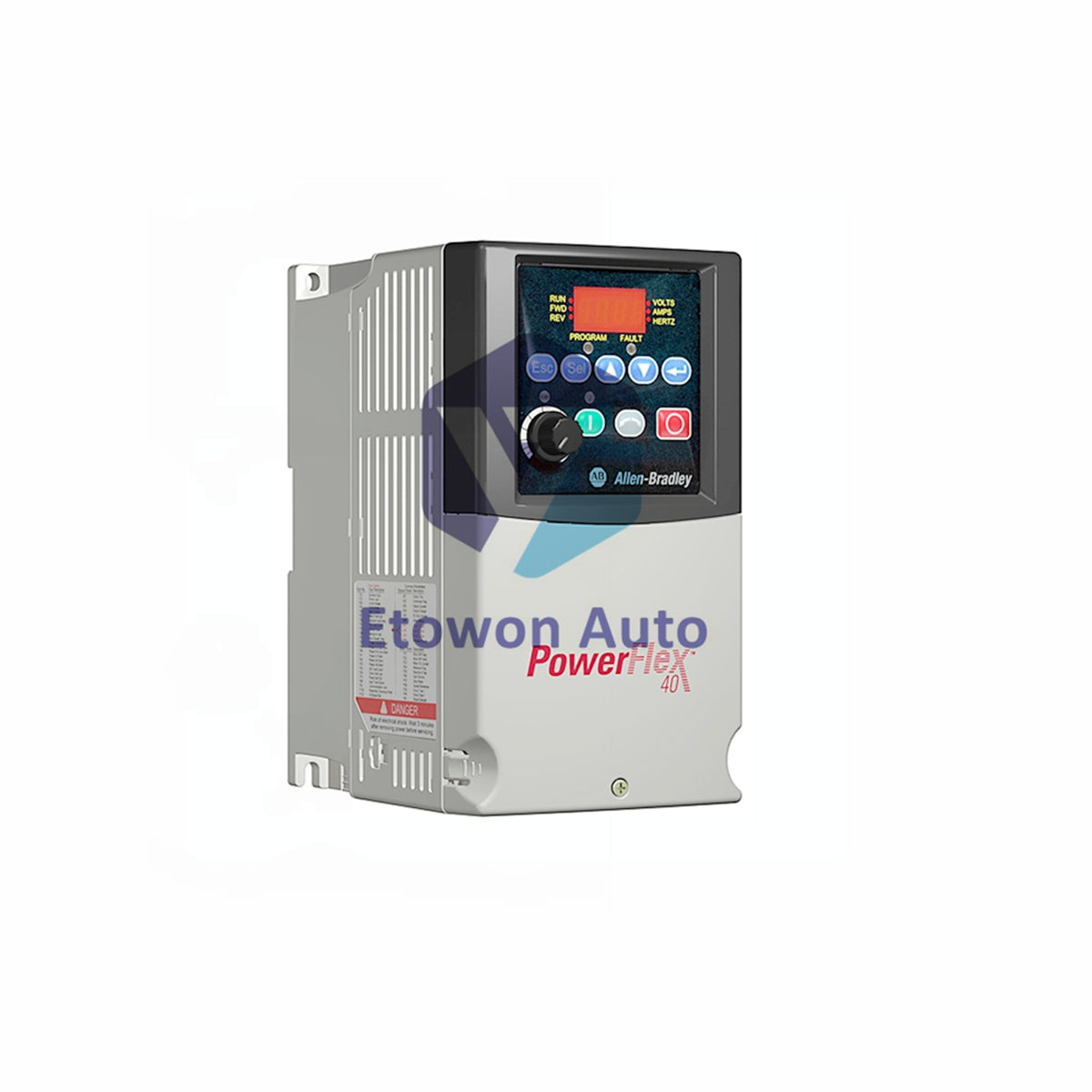

22B-B024H204

22B-B024H204 Allen-Bradley PowerFlex 40 AC Drive 5.5kW 240V

In stock (12 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-B024H204

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 3570g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 22B-B024H204 PowerFlex 40 AC Drive

Product Overview

Allen-Bradley 22B-B024H204 is a PowerFlex 40 adjustable frequency AC drive. It delivers 7.5 HP (5.5 kW) output power at 24 Amps. Operates on 200 240V AC input ±10%. Features adjustable carrier frequency from 2 to 16 kHz for optimized motor performance and noise reduction.

Technical Specifications

Parameter Value
Brand Allen-Bradley
Model 22B-B024H204
Series PowerFlex 40
Output Power 7.5 HP (5.5 kW)
Output Current 24 A
Input Voltage Range 200 240V AC ±10%
Carrier Frequency 2 16 kHz adjustable
Heat Dissipation 235 W total
Short Circuit Rating 100 kA symmetrical
Operating Temperature 10°C to +50°C (14°F to 122°F)
Weight 3.57 kg

Features

Adjustable carrier frequency from 2 to 16 kHz reduces motor noise and optimizes performance. 100 kA short circuit rating for robust protection. 235W total heat dissipation for thermal management. Plate drive design fits existing cabinets for retrofit projects.

Applications

Industrial fans with 0 200Hz speed control for airflow optimization. Material conveyors handling heavy loads with 24A output. Machine tools with 16kHz PWM for reduced motor noise. Retrofit projects with plate drive design for cabinet integration.

Installation

Mount in enclosure with proper ventilation. Verify input voltage 200 240V AC ±10%. Ensure adequate cooling for heat dissipation. Follow PowerFlex 40 installation manual for wiring and configuration.

FAQ

Q1: What is the output power rating?
A1: The drive delivers 7.5 HP (5.5 kW) output power at 24 Amps operating on 200 240V AC input.

Q2: What is the carrier frequency range?
A2: Carrier frequency is adjustable from 2 kHz to 16 kHz. Higher frequencies reduce motor audible noise while lower frequencies reduce drive losses.

Q3: What is the short circuit rating?
A3: The drive has 100 kA symmetrical short circuit current rating, providing robust protection for industrial power distribution systems.

Product Resources

📄 Download PDF
🏷️ Tags: AC Drive

Scalar (V/f)

Vector

AC-powered
  • Confirm the exact model, part number, and specifications before ordering.
  • Ensure compatibility with your current machinery or control systems.
  • Reach out via sale@etowonauto.com or +8617859788089 for technical assistance.
  • Review delivery options, lead times, and shipping requirements.
  • Follow manufacturer instructions and best practices during installation.

In-stock items are typically dispatched the same business day. For products not currently in stock, dispatch times may vary based on availability. International shipping is available, and shipping costs are calculated according to destination, weight, and carrier selection.

Returns are accepted within 30 days of receipt, provided items are unused and in original condition. Return shipping costs are the responsibility of the customer. Please contact us before returning any item to receive return authorization.

For more details, please review our Shipping & Return Policy.
