22B-A5P0F104

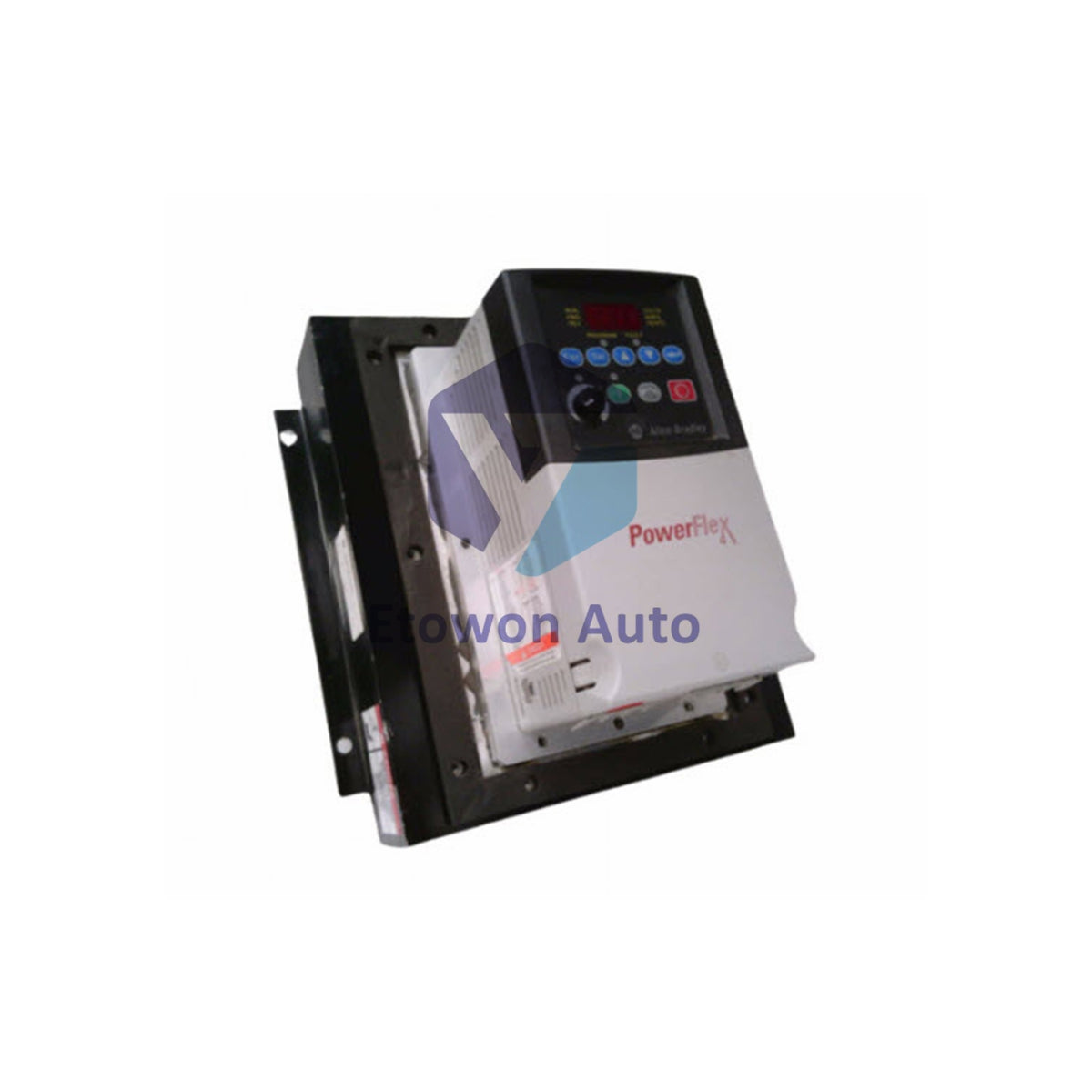

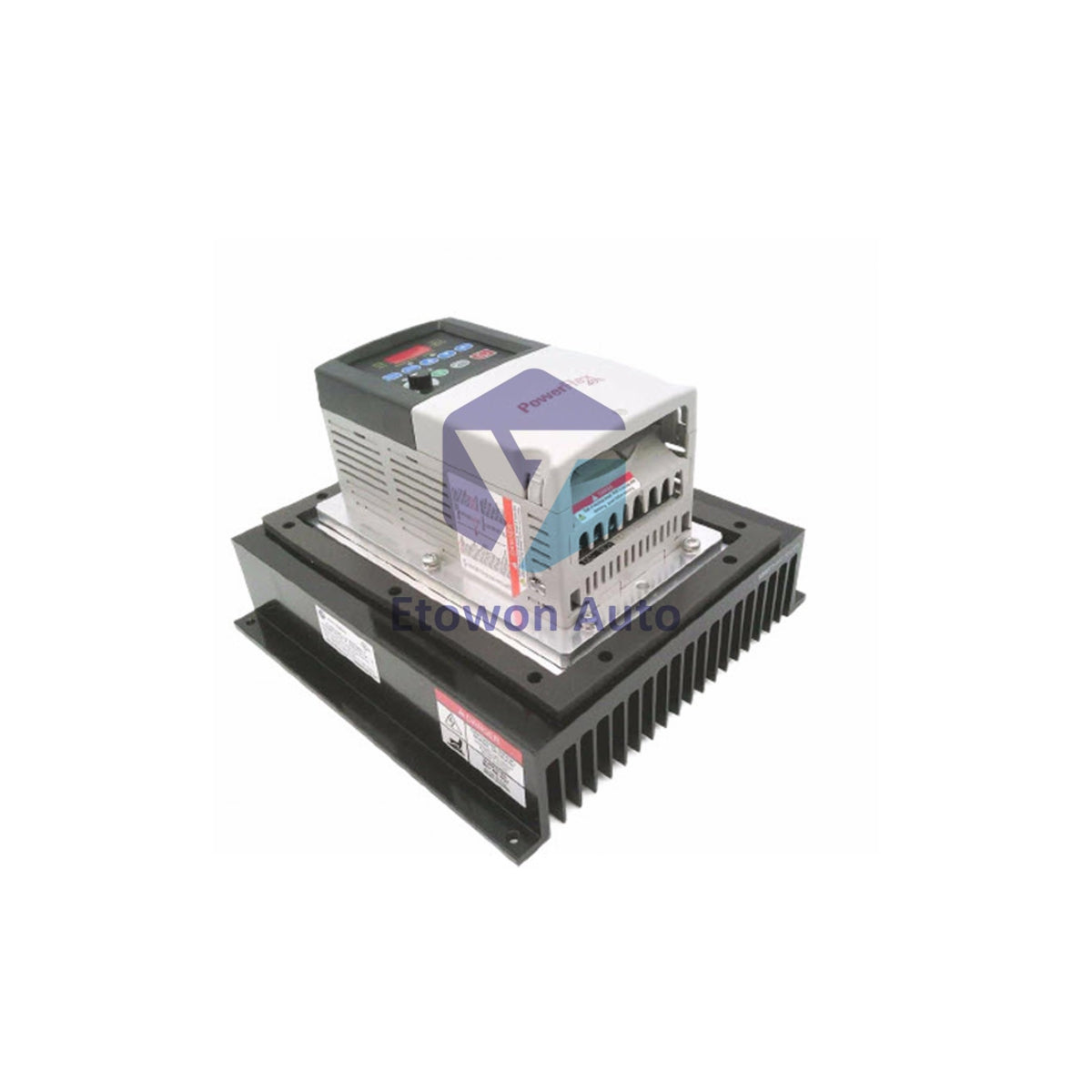

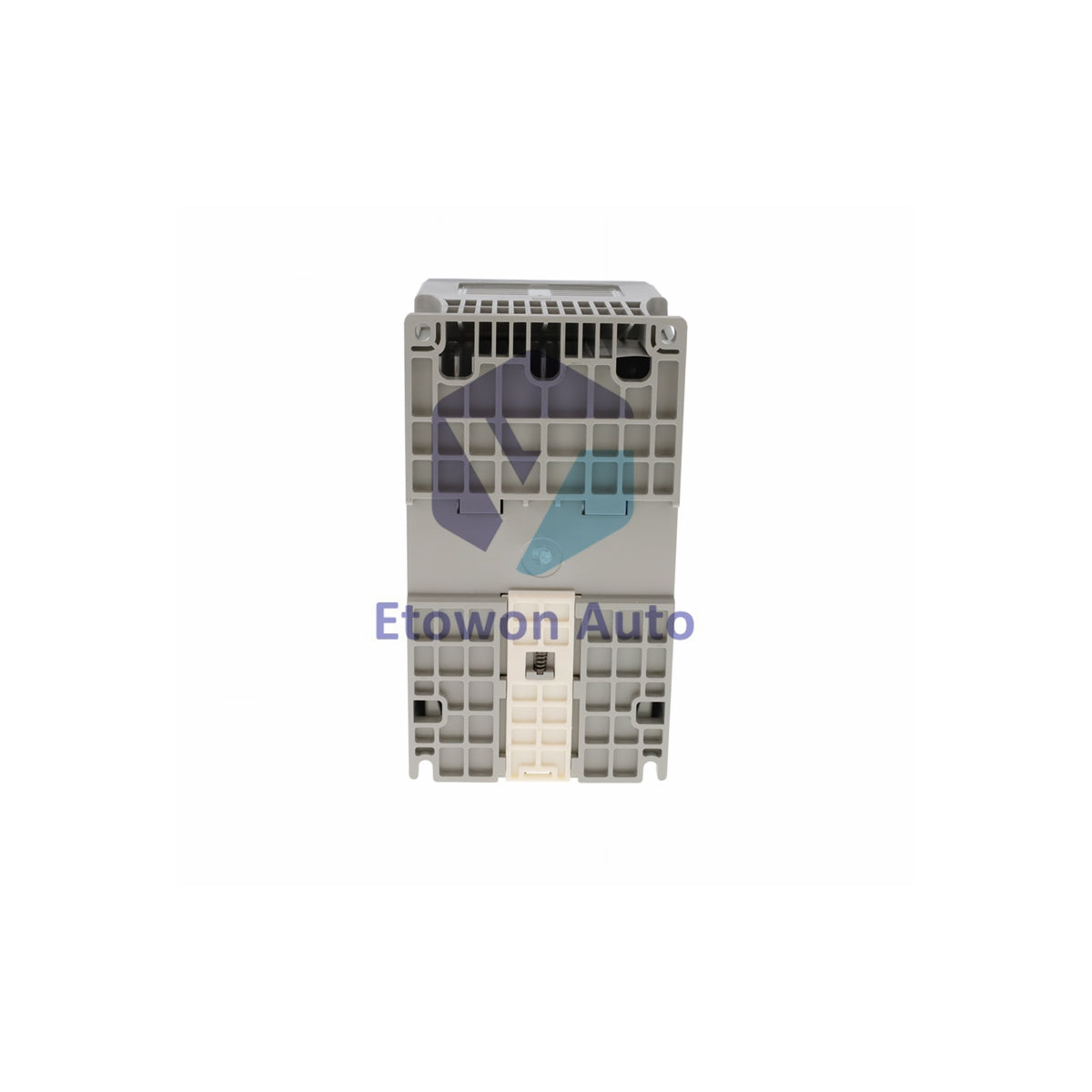

22B-A5P0F104 Allen-Bradley PowerFlex 40 Drive 240V 1 HP

In stock (14 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-A5P0F104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 6220g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Technical Specifications

Manufacturer / Brand Allen-Bradley (Rockwell Automation)
Product Line PowerFlex 40 Adjustable Frequency AC Drive
Part Number 22B-A5P0F104
Input Voltage / Phase 240V AC, Single-Phase, 50/60 Hz
Power Rating & Current 1 HP (0.75 kW) | Output Current: 5.0 A
Enclosure & Mounting Flange Mount, IP20 / NEMA / UL Open Type
Power Factor & Efficiency Displacement PF: 0.95 to 1.0 lagging | Efficiency: ≥97%
Communication & Interface RS-485 Communication | Integrated Keypad with 1-Line 4-Char LCD
Power Protection Components Phase-to-Phase & Phase-to-Ground MOV Protection; Gold-Plated PCB Contacts
Weight 6.22 kg (13.71 lbs)

Product Overview

The Allen-Bradley 22B-A5P0F104 is a compact PowerFlex 40 adjustable frequency drive weighing 6.22 kg (13.71 lbs). Operating on single-phase 240V AC input, it delivers 5.0 A output current to control standard three-phase induction motors rated up to 1 HP (0.75 kW). Built with an IP20, NEMA/UL Open Type flange-mount frame, microprocessor-isolated logic, and fast 200 ns IGBT rise times, this variable frequency drive ensures optimal torque and speed regulation across motor control applications.

Key Features

  • High-Efficiency Performance: Delivers ≥97% energy efficiency at full load with a displacement power factor of 0.95 to 1.0 lagging.
  • Robust Transient Protection: Equipped with MOV surge suppression for phase-to-phase and phase-to-ground protection, plus gold-plated PCB connectors.
  • Integrated Digital Interface: Features a built-in keypad with a 1-line, 4-character LCD display for fast startup and parameter tuning.
  • Flexible Networking: Onboard RS-485 serial communication port enables multi-drop networking and remote monitoring.

Installation Essentials

Mount the drive in an IP20/NEMA Open Type enclosure ensuring adequate vertical clearance for airflow. Verify single-phase 240V AC line power connections before energizing. Confirm MOV jumper configuration matches the grounded or ungrounded distribution power topology prior to operation.

Technical FAQs

Q1: What are the main voltage and current ratings for the 22B-A5P0F104?
A1: It operates on single-phase 240V AC power with an output current rating of 5.0 A (1 HP / 0.75 kW capacity).

Q2: What enclosure rating and physical weight apply to this PowerFlex 40 model?
A2: It features a Flange Mount IP20 / NEMA Open Type enclosure and weighs 6.22 kg (13.71 lbs).

Q3: Does the drive support serial communication?
A3: Yes, it includes an RS-485 communication port for industrial network integration.
