1756-OB16IEF

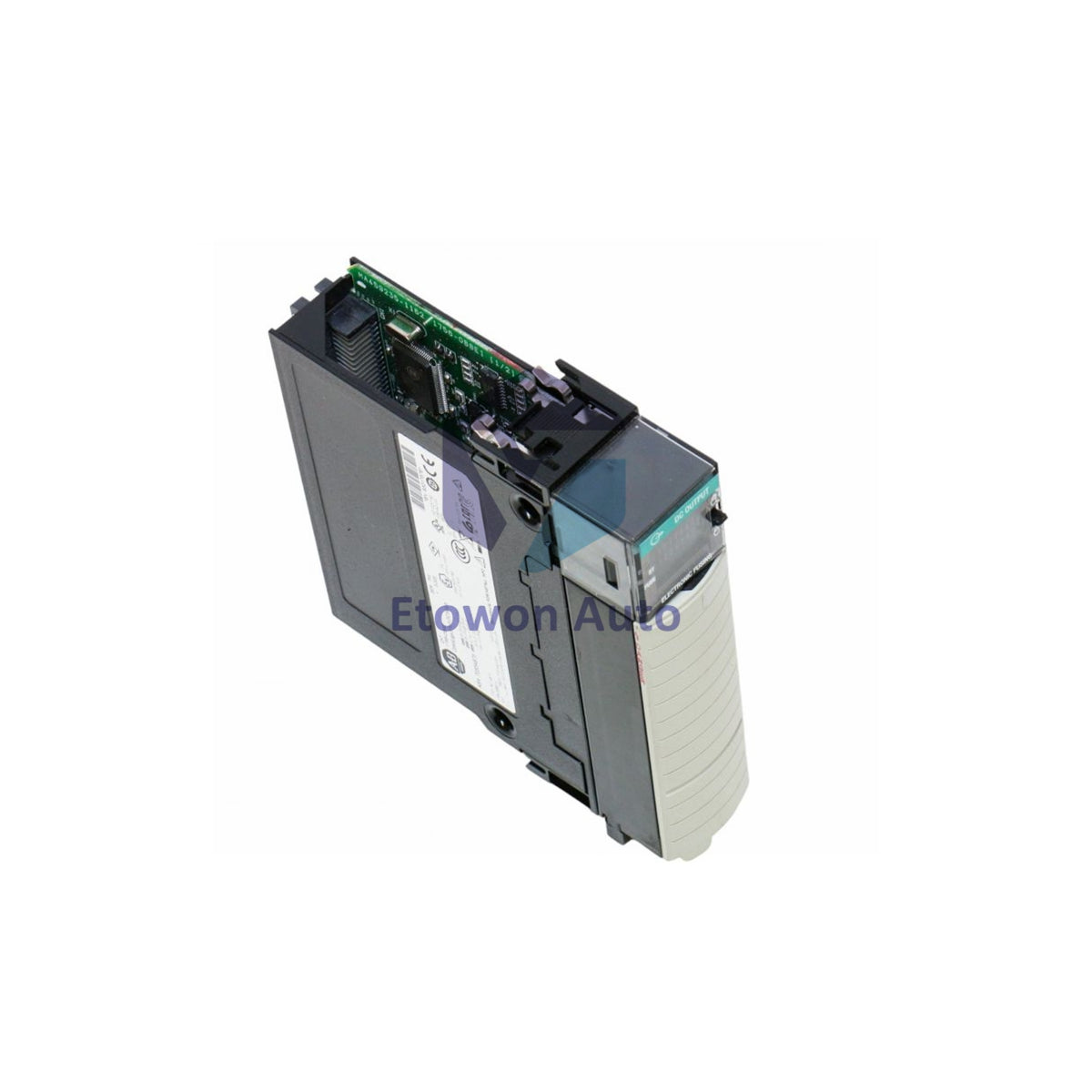

1756-OB16IEF ControlLogix Isolated Output 250V 350mA 5V Allen-Bradley

In stock (22 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-OB16IEF

  • Product Type: Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 1756-OB16IEF ControlLogix Fast Isolated Output Module

Allen-Bradley 1756-OB16IEF ControlLogix fast isolated DC output module. 16 individually isolated outputs, 10-30 VDC range, 2A per point at 30°C, 1A at 60°C.

Specifications

  • Outputs: 16 individually isolated points
  • Voltage Range: 10-30 VDC
  • Current per Point: 2A at 30°C, 1A at 60°C
  • Response Time: Less than 25µs
  • Isolation: 250V continuous per point
  • PWM Range: 1ms to 1 hour cycle time
  • Power Consumption: 350mA at 5V, 3mA at 24V
  • Weight: 0.32 kg

Package

  • 1756-OB16IEF module
  • Documentation
  • Shipping: FedEx, UPS, DHL
  • 12-month warranty

FAQ

Q: Output rating?
A: 16 individually isolated outputs, 10-30 VDC, 2A at 30°C, 1A at 60°C. 25µs response time.

Q: PWM capability?
A: PWM range 1ms to 1 hour cycle time, 200µs minimum on-time. CIP Sync compatible.

Q: Weight and power?
A: 0.32 kg. Power consumption 350mA at 5V, 3mA at 24V. 250V continuous isolation per point.
