1746-OAP12

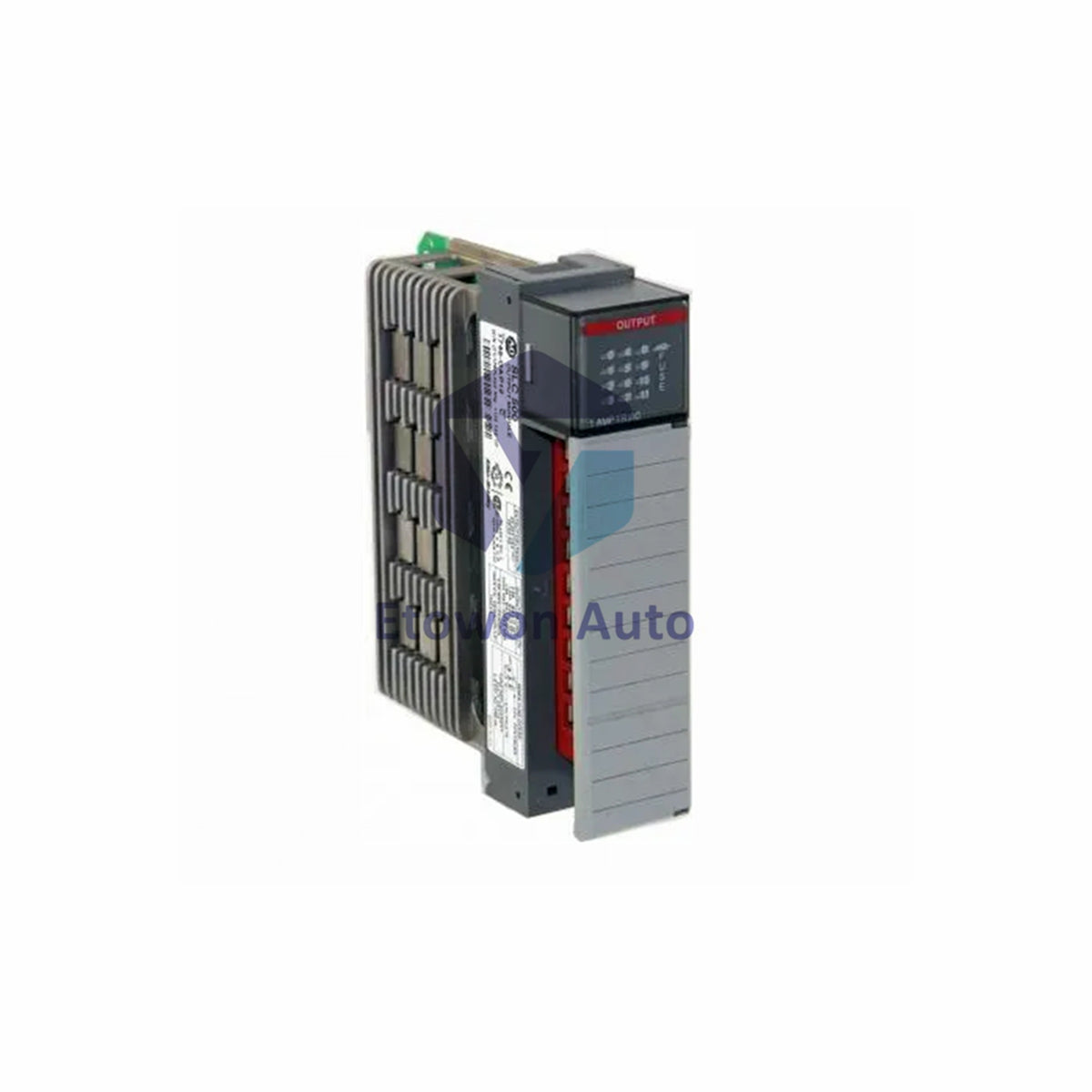

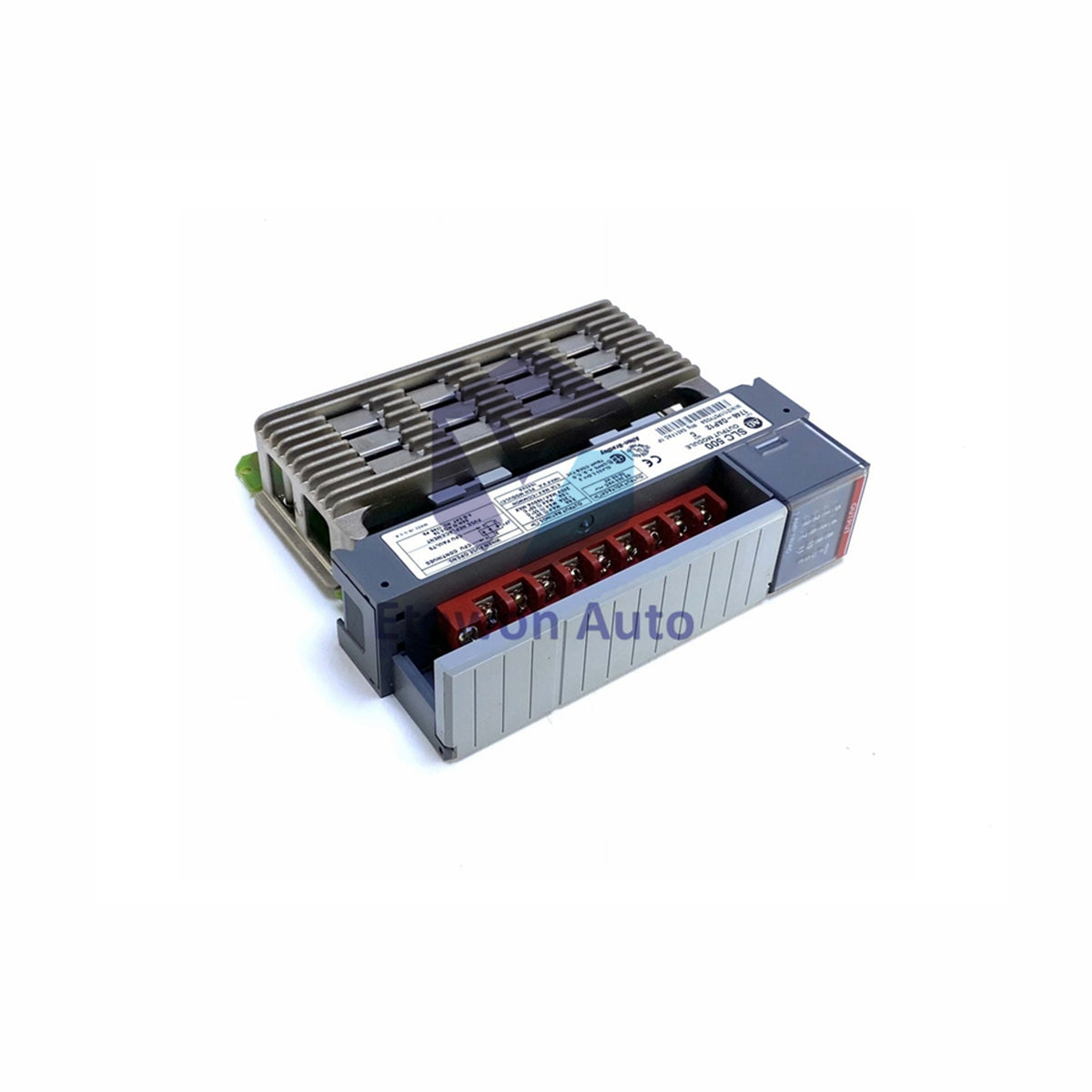

1746-OAP12 Output Module | Allen-Bradley SLC 500

In stock (21 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1746-OAP12

  • Product Type: AC Output Modules

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 560g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 1746-OAP12 AC Output Module

The Allen-Bradley 1746-OAP12 is an AC output module. It provides 12 output channels for control applications. This module works with 85-265V AC power systems. The 1746-OAP12 is part of the SLC 500 series.

Module Specifications

  • Model: 1746-OAP12
  • Outputs: 12 AC channels
  • Voltage: 85-265V AC range
  • Frequency: 47-63 Hz operation
  • Common Points: 6 outputs per common

Performance Data

  • Off-State Leakage: 2 mA maximum
  • Backplane Current: 0.370 A at 5V DC
  • On Delay: 1 ms maximum
  • Off Delay: 11 ms maximum

Physical Details

  • Weight: 0.56 kg (1.23 lbs)
  • Design: Compact module form
  • Mounting: SLC 500 chassis slot

Installation

  • Install in SLC 500 chassis
  • Connect 85-265V AC power
  • Wire loads to output terminals
  • Follow common grouping (6 per common)
  • Verify proper grounding

Frequently Asked Questions (FAQ)

What voltage range does this module support?

The 1746-OAP12 accepts 85-265V AC input power.

How many outputs are available?

It provides 12 individual output channels.

What is the module weight?

It weighs 0.56 kg (1.23 pounds).
