1746-FIO4V

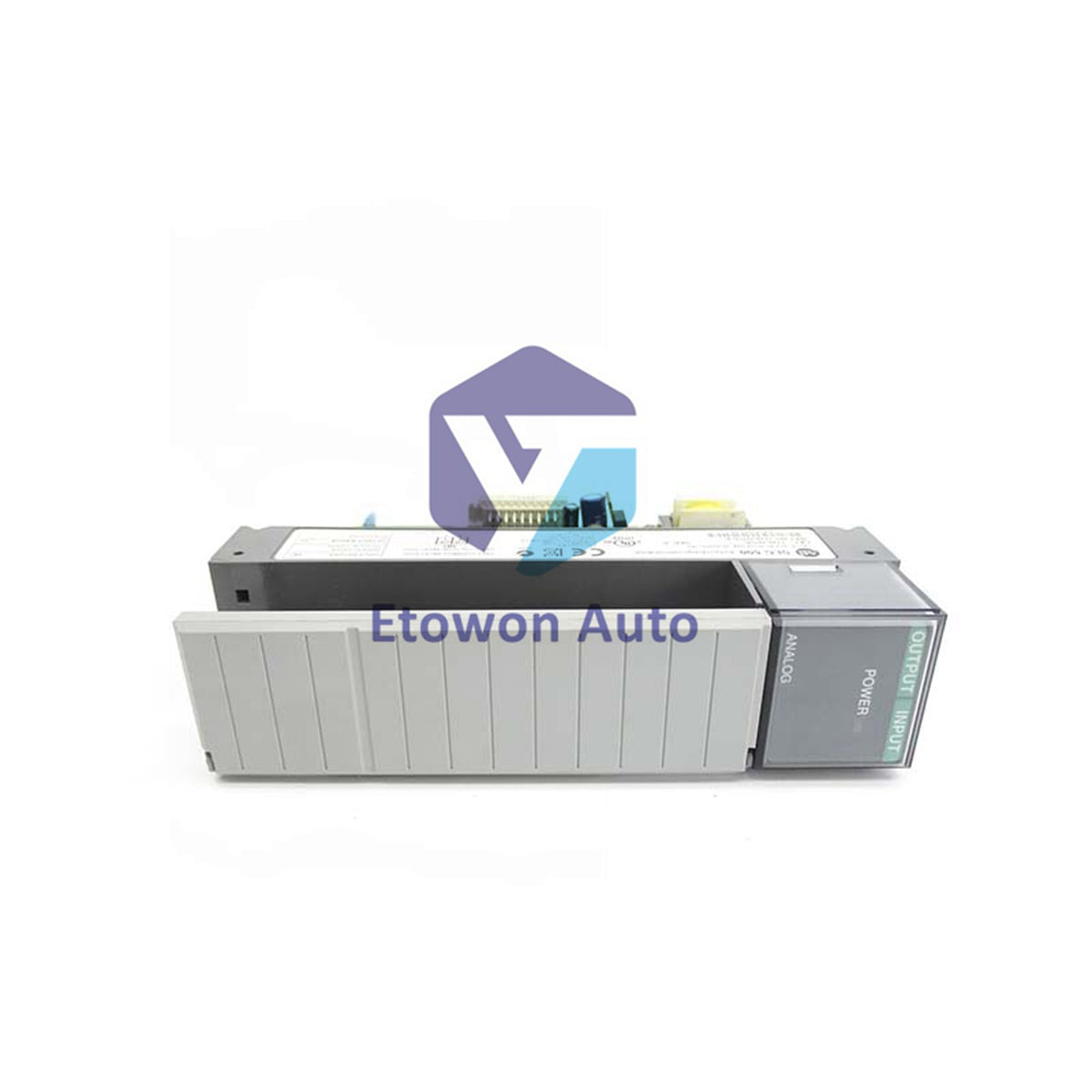

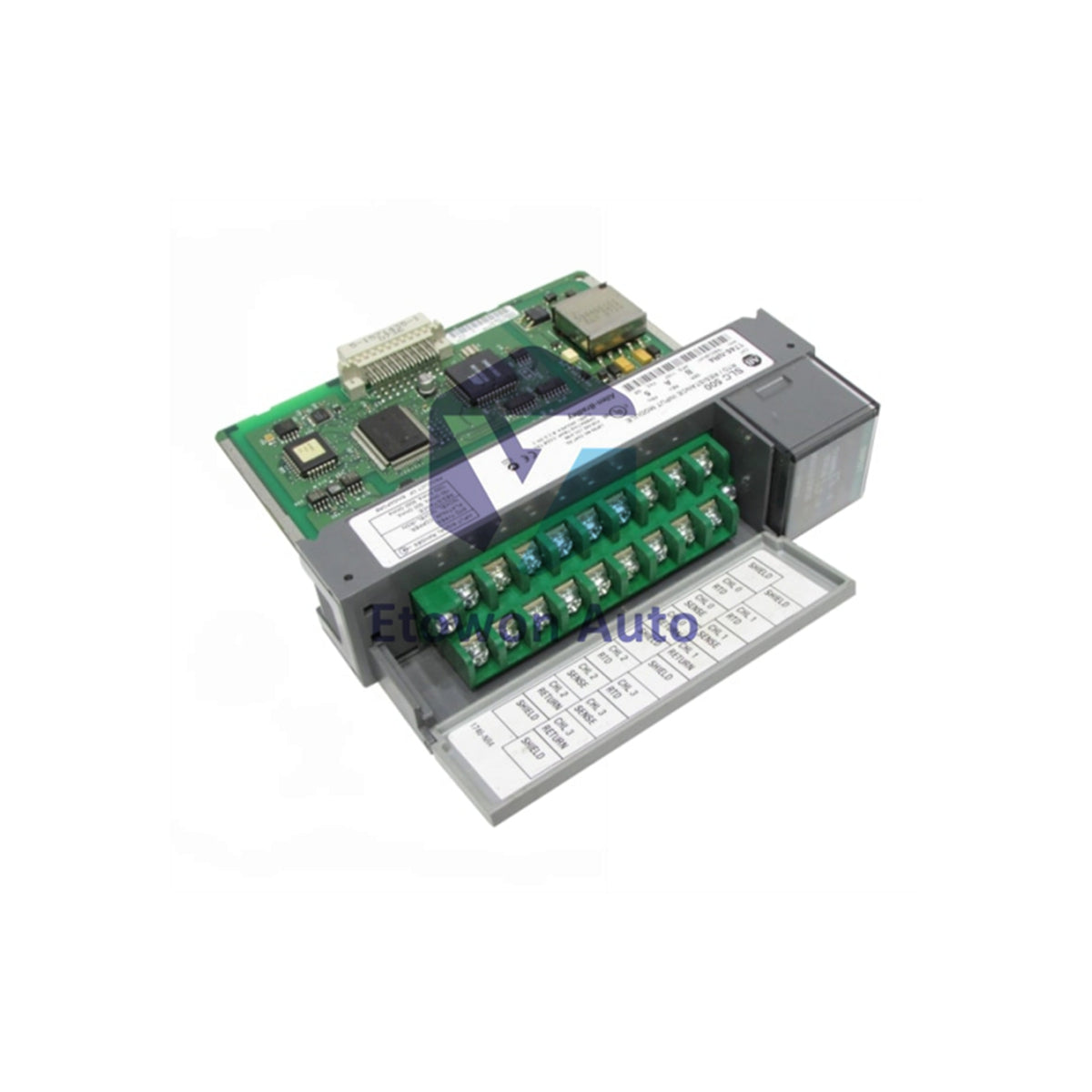

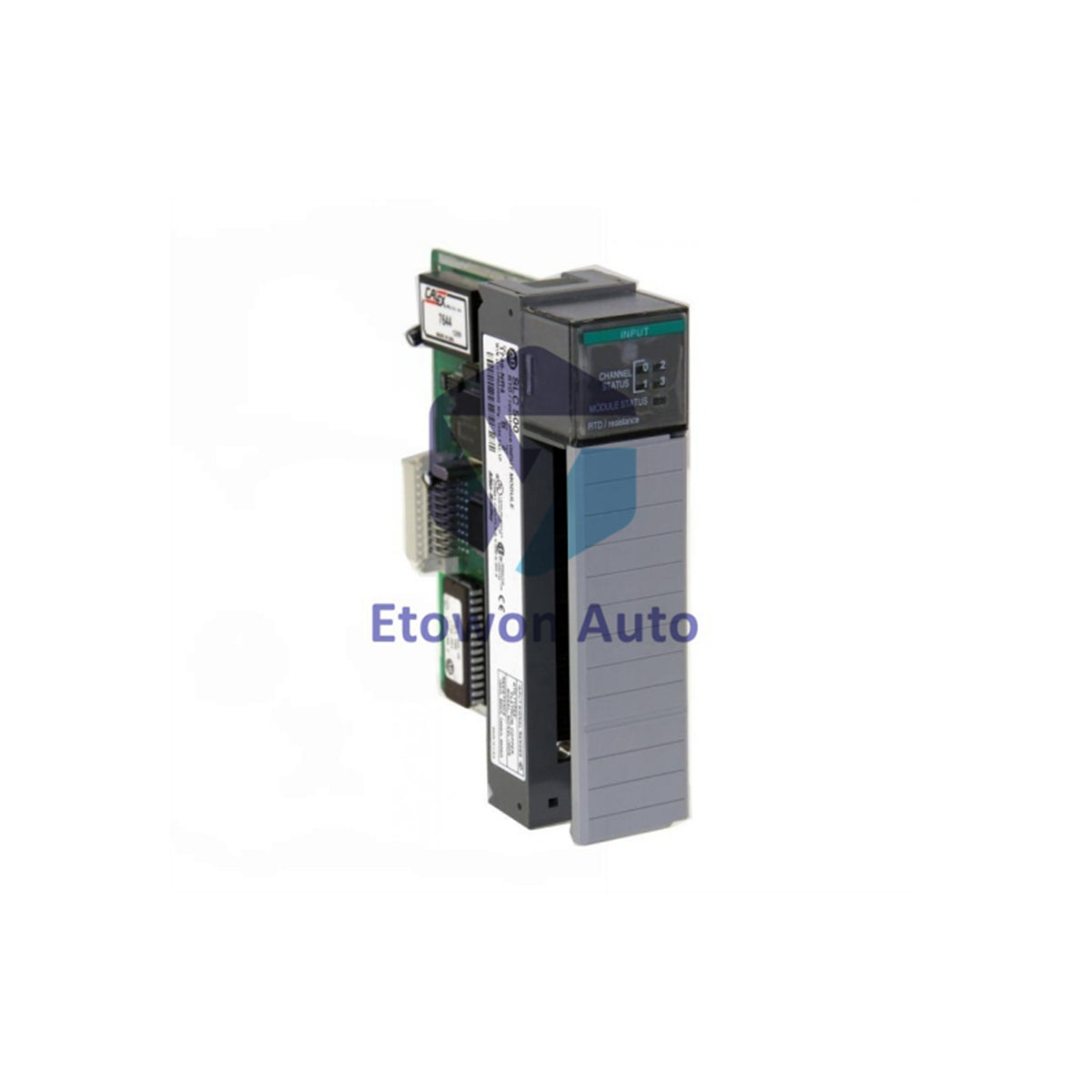

1746-FIO4V SLC500 Allen-Bradley Analog Module

In stock (24 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1746-FIO4V

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The Allen-Bradley 1746-FIO4V is an analog combination module for the SLC 500 platform. It provides 2 configurable inputs (0–20 mA or 0–10 VDC) and 2 voltage outputs (-10 to +10 VDC) in a single-slot chassis-mount package. The module weighs approximately 0.2 kg (0.44 lb).

Technical Specifications

Manufacturer Rockwell Automation / Allen-Bradley
Catalog Number 1746-FIO4V
Series SLC 500
Module Type Fast Analog Combination Module
Inputs 2 differential (voltage / current)
Input Signal Range 0–20 mA nominal; 0–30 mA max; 0–10 VDC
Outputs 2 voltage outputs (grouped)
Output Signal Range -10 to +10 VDC -1 LSB
Resolution 12-bit in / 14-bit out
Bandwidth 7 kHz
Update Time 512 µs
Step Response 100 ms in / 2.5 ms out
Backplane Current (5V) 55 mA
Backplane Current (24V) 150 mA
Isolation 500 VDC (field wiring to backplane)
Weight 0.2 kg (0.44 lb) approx.
Compatible Cable 14 AWG

Engineering Advantages

Combining 2 inputs and 2 outputs in a single slot saves rack space in space-limited installations. Inputs support 0–20 mA or 4–20 mA current and 0–5 VDC, 1–5 VDC, or 0–10 VDC voltage standards. Outputs handle -10 to +10 VDC for modulating valve, VFD, and positioner control. At roughly 0.2 kg, the module adds minimal weight to the chassis. Install away from AC voltage, high DC voltage, and rack power supplies to minimize electrical noise.

Technical FAQs

Q1: How many channels does the 1746-FIO4V provide?
A1: 2 configurable analog inputs and 2 voltage outputs (-10 to +10 VDC).

Q2: What input signal types are supported?
A2: 0–20 mA or 4–20 mA current; 0–5 VDC, 1–5 VDC, or 0–10 VDC voltage.

Q3: What is the resolution and update time?
A3: 12-bit input and 14-bit output resolution with 512 µs update time.

Product Resources
