172PNN21022

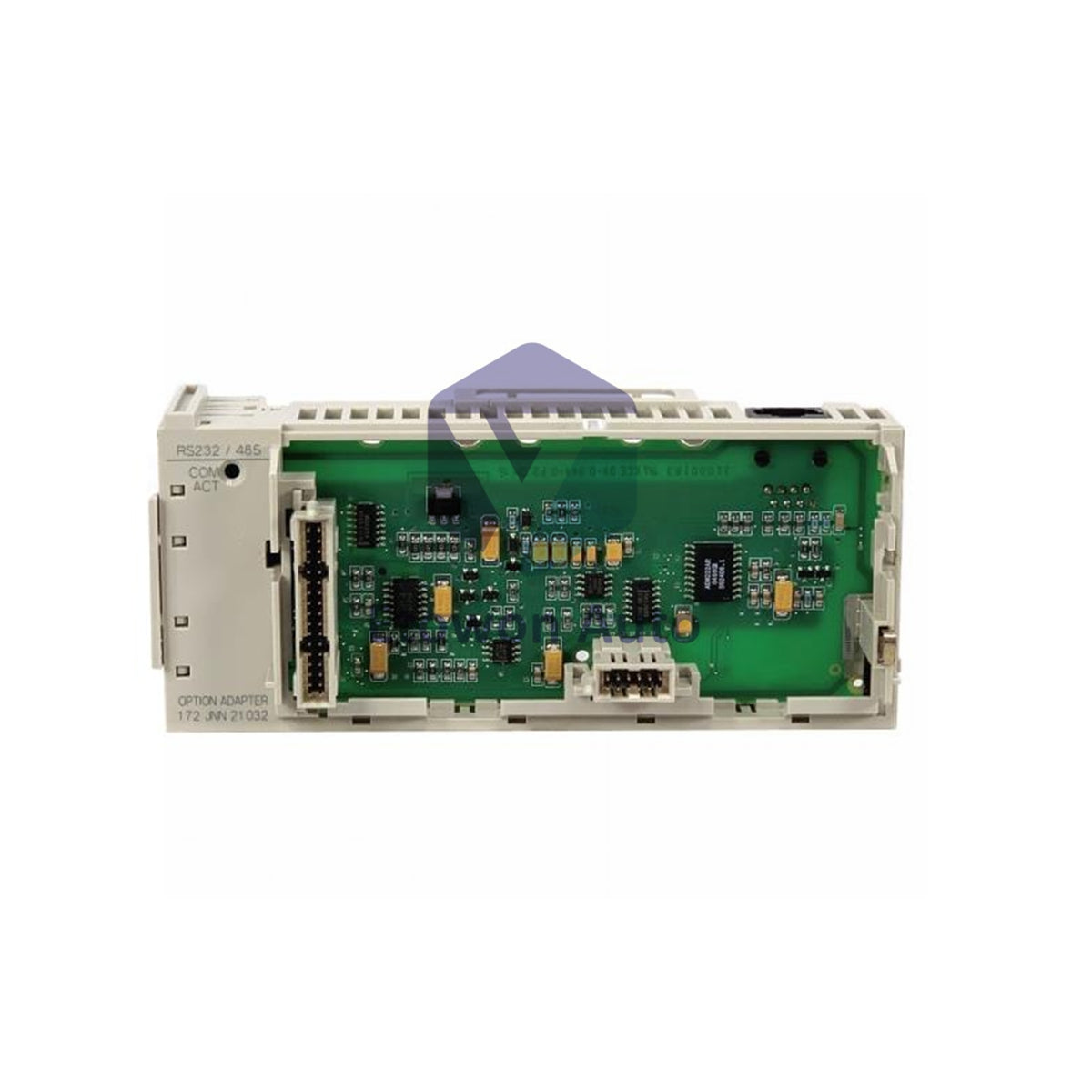

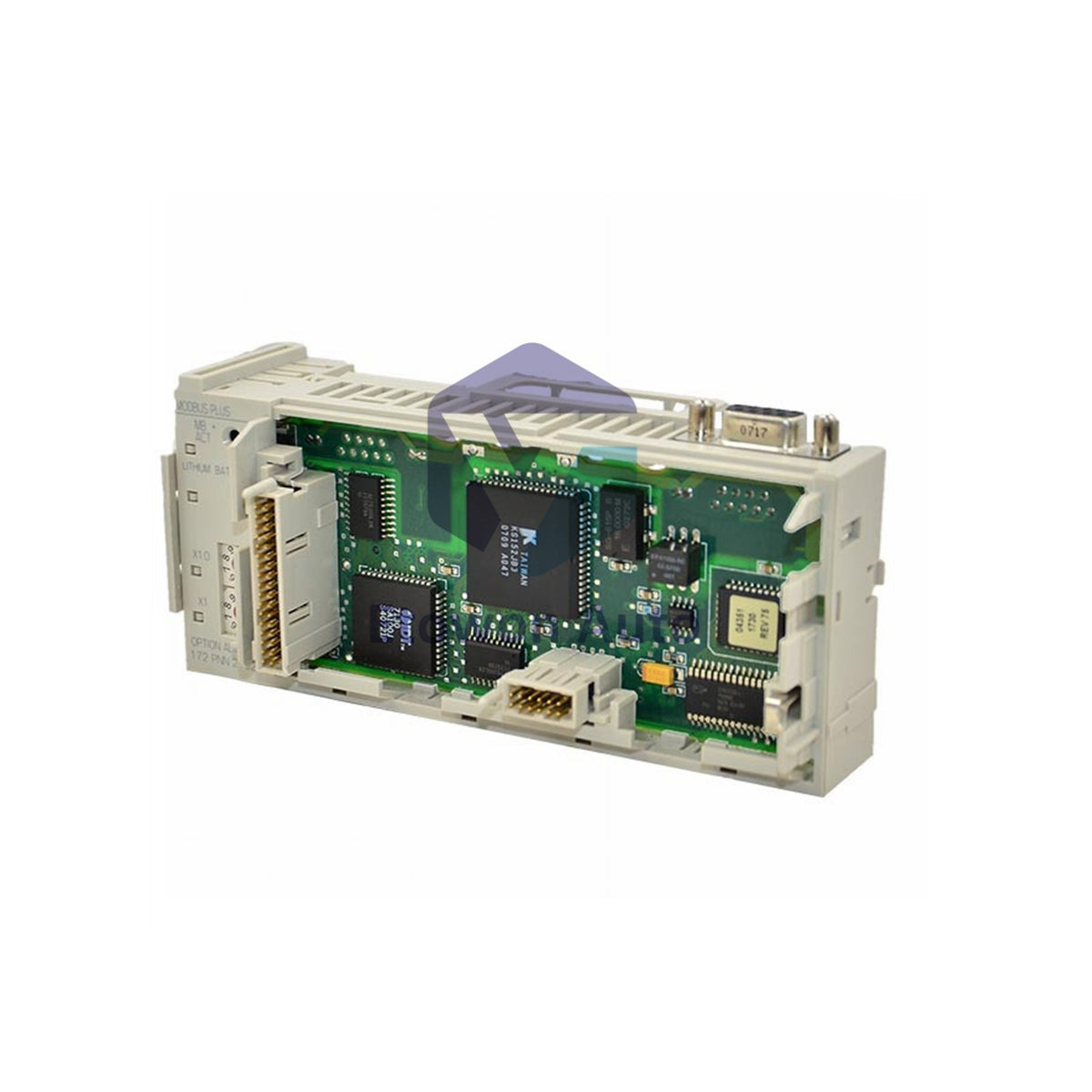

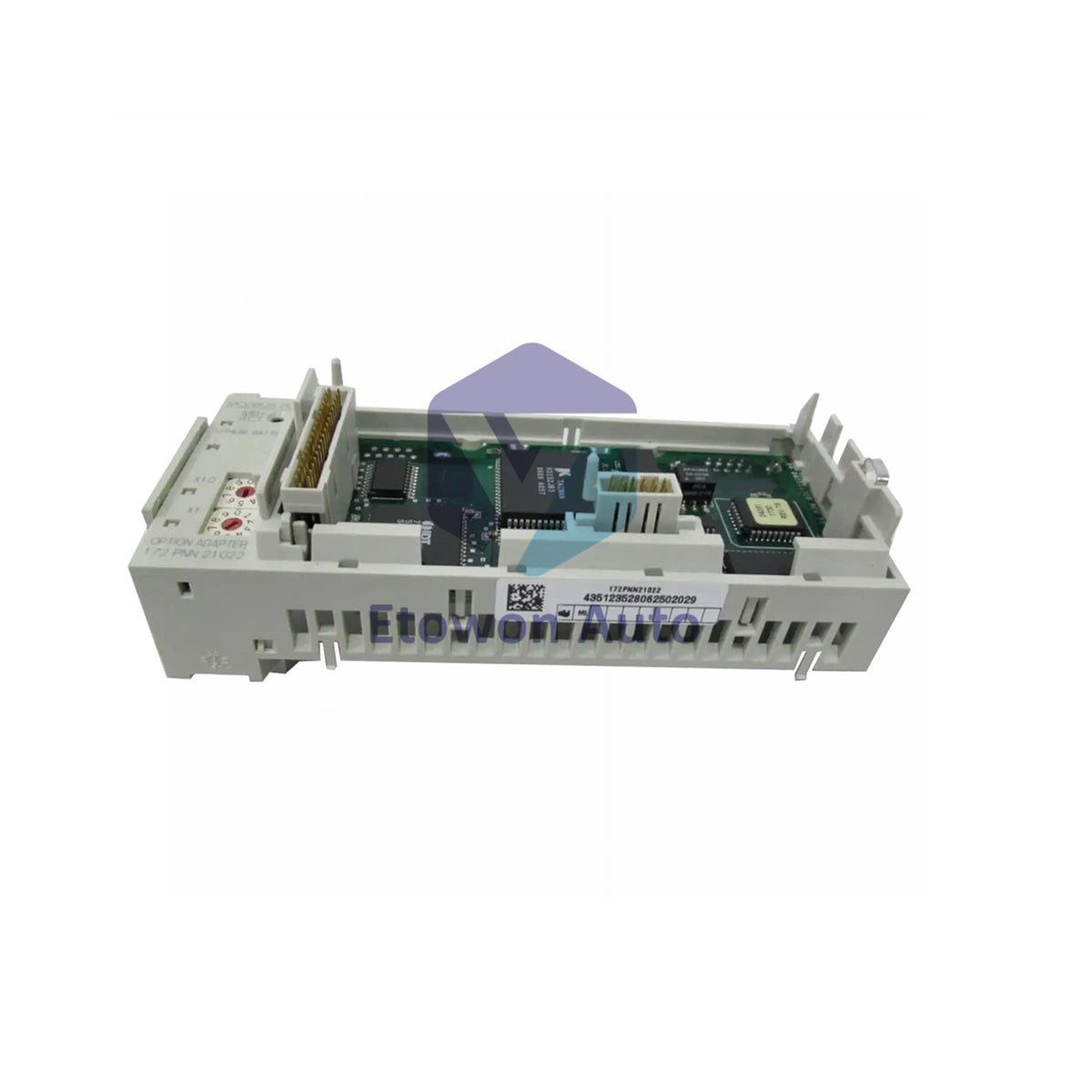

172PNN21022 Schneider Modicon Momentum 5V Modbus Module

In stock (14 units), ready to be shipped

  • Manufacturer: Schneider

  • Product No.: 172PNN21022

  • Product Type: Adaptor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 85g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Schneider Electric 172PNN21022 Modicon Modbus Plus Adapter Module

The Schneider Electric 172PNN21022 is a Modbus Plus Adapter Module from the Modicon Momentum series. Weighing 0.085 kg, it operates on 5V DC with a 9-pin D-shell connector, featuring conformal coating and IP20 protection for reliable Modbus Plus communication in industrial control applications.

Product Identification

  • Manufacturer: Schneider Electric
  • Part Number: 172PNN21022
  • Product Line: Modicon Momentum
  • Product Type: Modbus Plus Adapter Module
  • EAN: 3595861147393
  • Protection Class: IP20
  • Marking: CE

Technical Specifications

Parameter Value
Net Weight 85.05 g (0.085 kg)
Dimensions (W×H×D) 143.1 × 25 × 60.06 mm
Rated Supply Voltage 5V DC (±5%)
Current Consumption 200-350 mA at 24V DC
Communication Protocol Modbus Plus
Number of Ports 1
Electrical Connection 9-pin D-shell Modbus Plus connector
Battery Type Lithium (2/3 AA)
Battery Life Approx. 5 years
Clock Accuracy ±13 s/day
Dielectric Strength 500V DC
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Relative Humidity 5% to 95% non-condensing
Operating Altitude ≤ 2000 m
Material Lexan
Protective Treatment Conformal coating (TC)
Vibration Resistance 1 gn (57-150 Hz), 0.075mm (10-57 Hz)
Shock Resistance ±15 gn (11 ms half sine)
ESD Resistance 4kV contact, 8kV air (IEC 801-2)

Status Indicators

  • 1 communication LED for operational status

Certifications and Standards

  • UL Listed
  • CSA Certified
  • NEMA 250 Type 1
  • IP20 (IEC 529)
  • CE Marked
  • IEC 529 compliant

Features

  • Modbus Plus communication protocol.
  • 9-pin D-shell connector for easy integration.
  • Conformal coating for enhanced protection.
  • Lithium battery with 5-year lifespan.
  • Compact form factor for panel mounting.
  • CE, UL, and CSA certified.

Installation

  • Mount in Modicon Momentum chassis.
  • Power supplied via I/O base.
  • Connect using 9-pin D-shell Modbus Plus connector.
  • Ensure ambient temperature within 0°C to 60°C range.

Technical FAQs

Q1: What communication protocol does the 172PNN21022 support?
A1: Modbus Plus.

Q2: What is the battery life expectancy?
A2: Approximately 5 years.

Q3: What is the operating temperature range?
A3: 0°C to 60°C in non-condensing environments.
